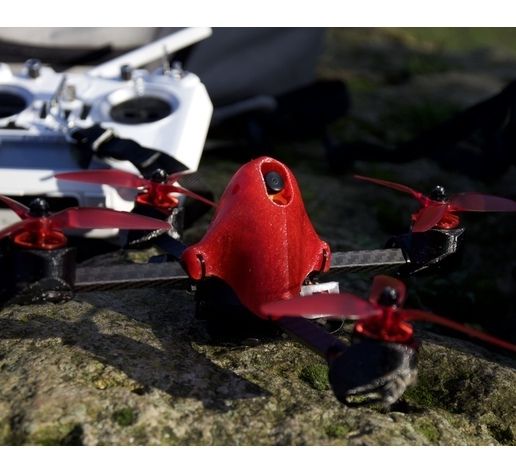

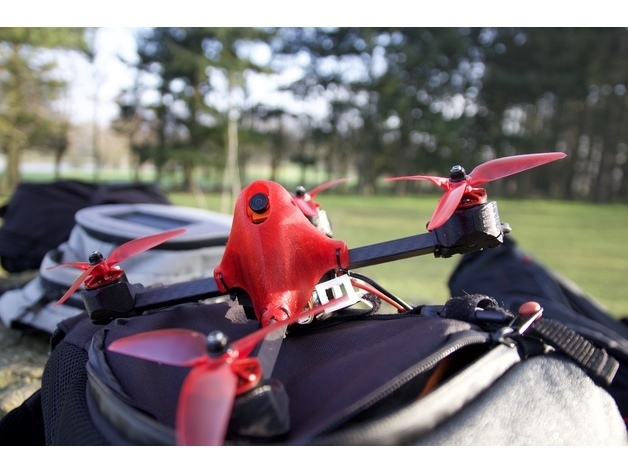

Raven Drone Frame

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 1 like
  • 9 downloads

3D model description

Hey Guys!

This is a long term project I always wanted to do. I took me some time but finally it's done. Well, almost. I'm already working on a V2 but for now you can enjoy this one ;)

I wanted a frame for racing, that was really aerodynamics. And it cuts really good through the air. I must warn you that this I is not an "easy" frame to build but it's not complicated either.

You'll need:

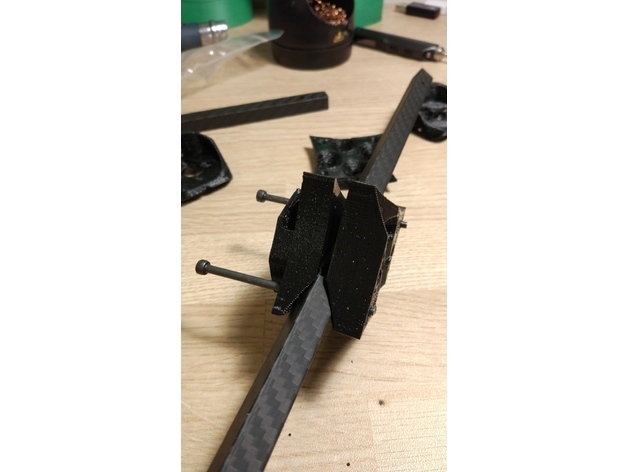

all the 3D parts listed (x2 for each motor mount)

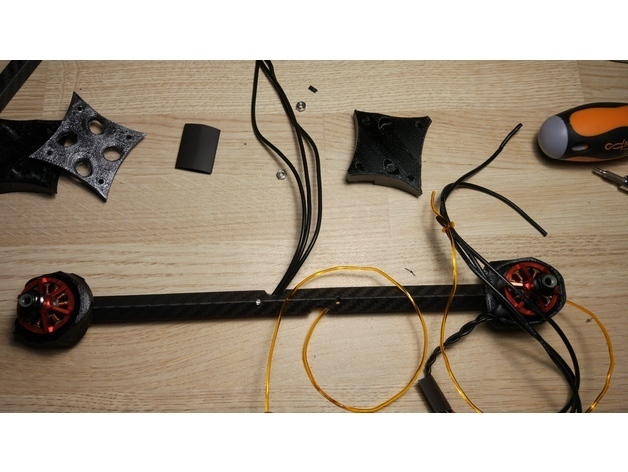

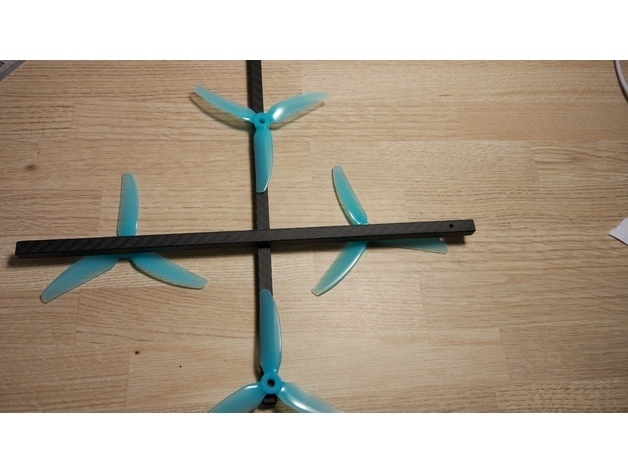

2 set of carbon arm here: https://rcexplorer.se/product/10x10mm-woven-carbon-fiber-arm/

4x M3 40mm screw ()

4x M3 countersink nuts ()

4x M3 mm screw for the motors ()

All our 3D designs are free to download!

Want to support us ?

--> Download the Broken Helper's KeyRing here:

https://cults3d.com/en/3d-model/gadget/l-helice-cassee-helper-s-key-ring

--> Get a sticker: https://www.etsy.com/fr/shop/LHeliceCasseeCie

--> Become a Patreon : https://www.patreon.com/join/helicecassee?

--> Visit our Facebook page: https://www.facebook.com/helicecassee

--> Check out our youtube channel: https://www.youtube.com/channel/UC-Dr9j7lASkgQ8-8uTPTLEw

3D printer file information

  • 3D design format: STL Folder details Close
    • Lhelicecasse-motor-bottomfront.stl
    • Lhelicecassee-bottom.stl
    • Lhelicecassee-middle.stl
    • Lhelicecassee-motor-bottomfront.stl
    • Lhelicecassee-motor-bottomside.stl
    • Lhelicecassee-motor-topside.stl
    • Lhelicecassee-top.stl
    • canopy.stl
  • Last update: 2020/04/22 at 10:55
  • Publication date: 2019/12/02 at 22:23
