CR-10 Dial Indicator Mount

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 4.9k views
  • 22 likes
  • 305 downloads

3D model description

CHECK OUT MORE GREAT 3D PRINTS HERE: https://cults3d.com/en/users/Trikonics/creations

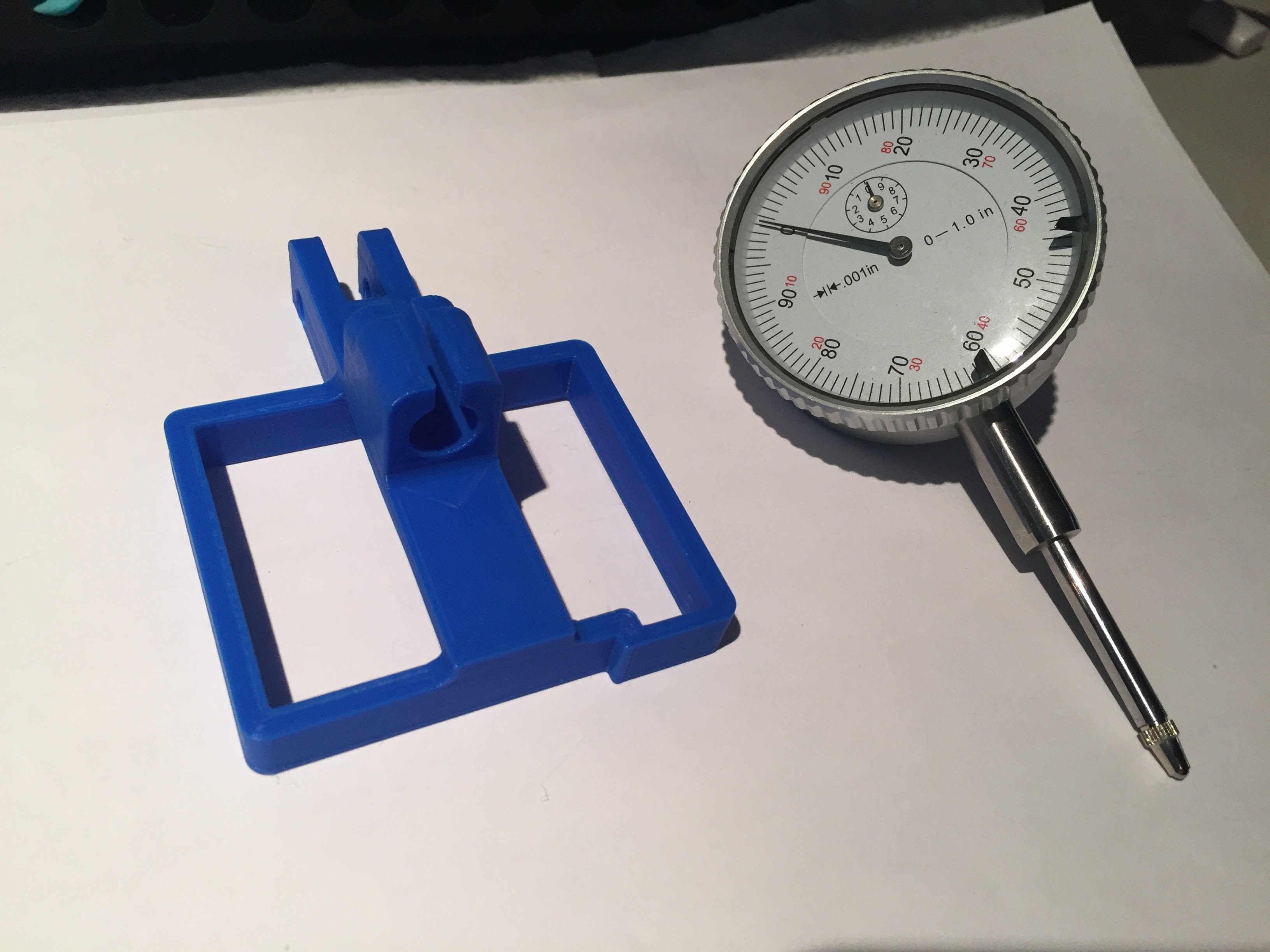

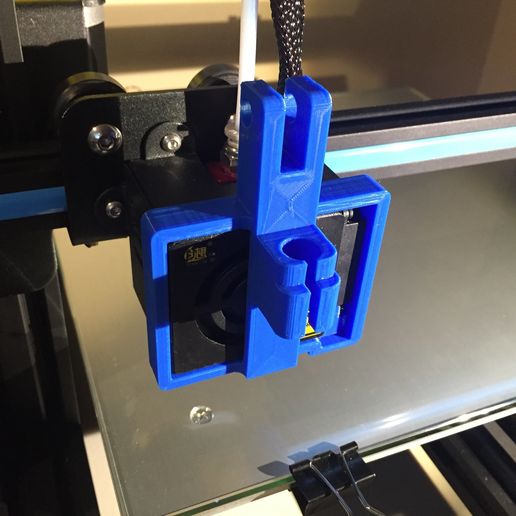

CR-10 Dial Indicator Mount for:
Accusize - 0-1'' x 0.001'' Dial Indicator, #P900-S102
https://www.amazon.ca/Accusize-0-001-Dial-Indicator-P900-S102/dp/B00SG6CIVO/ref=sr_1_1?ie=UTF8&qid=1515107464&sr=8-1&keywords=accusize+dial+indicator

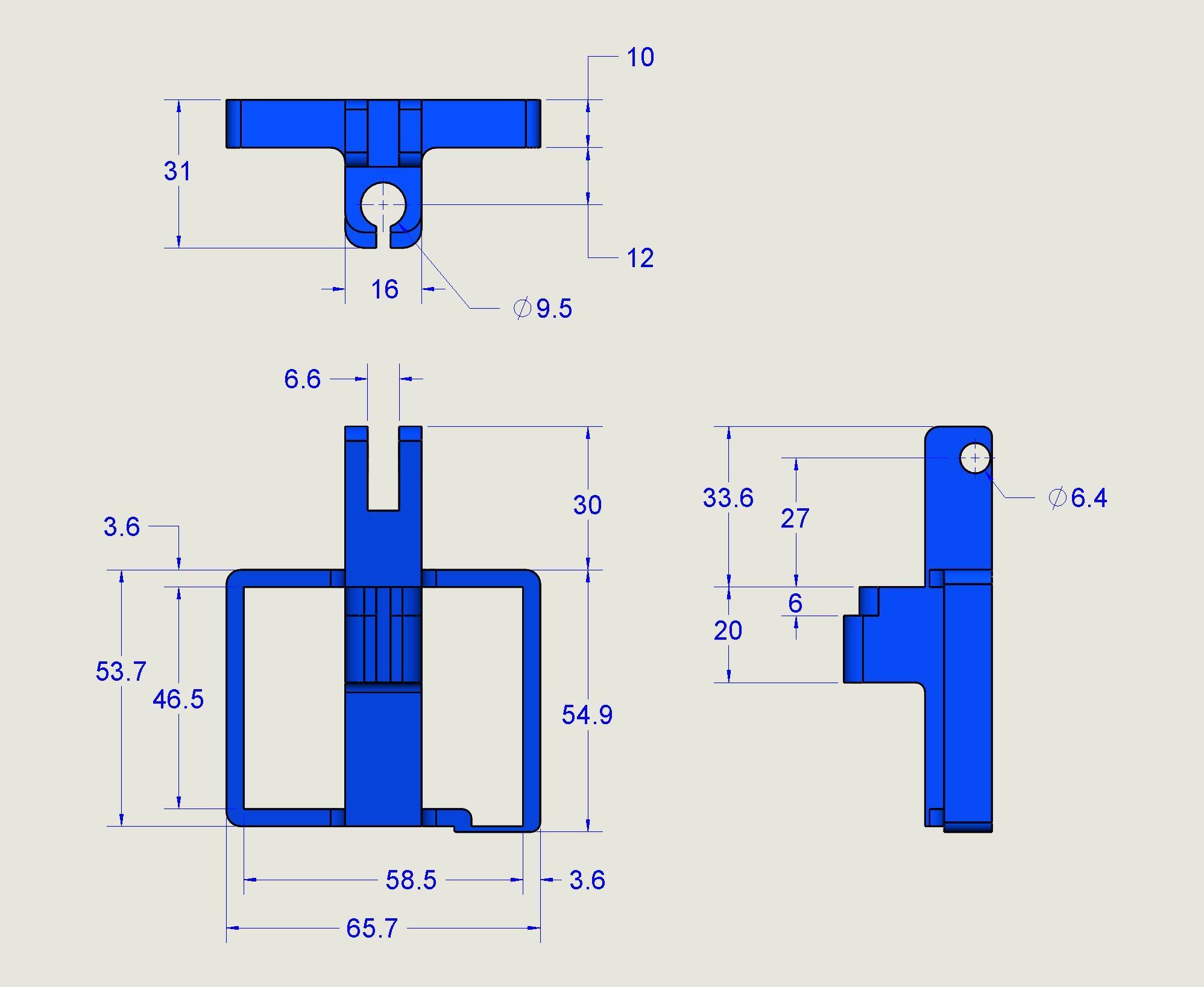

The mount was designed for CR-10, however, it may work on the Ender 3. Please review attached drawing spec.

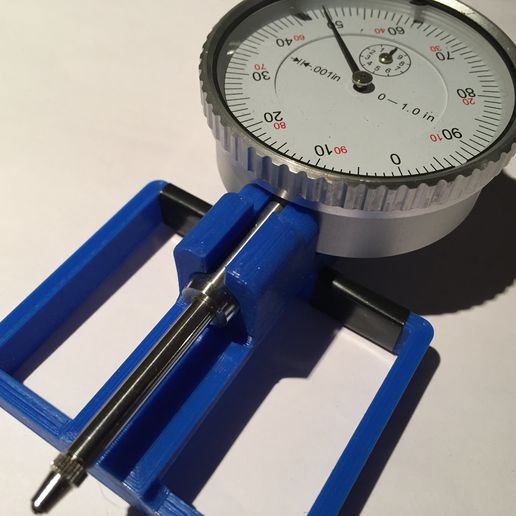

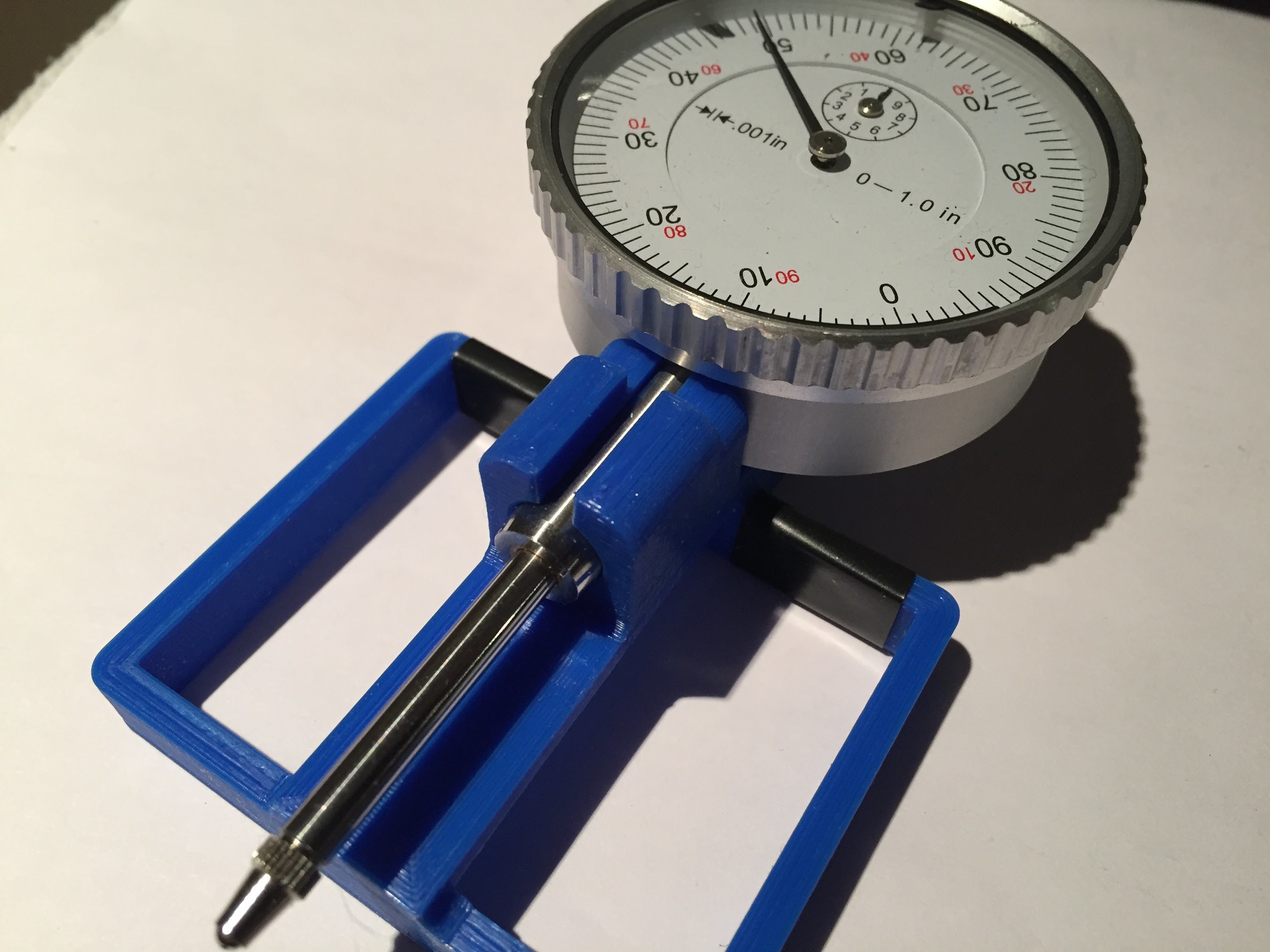

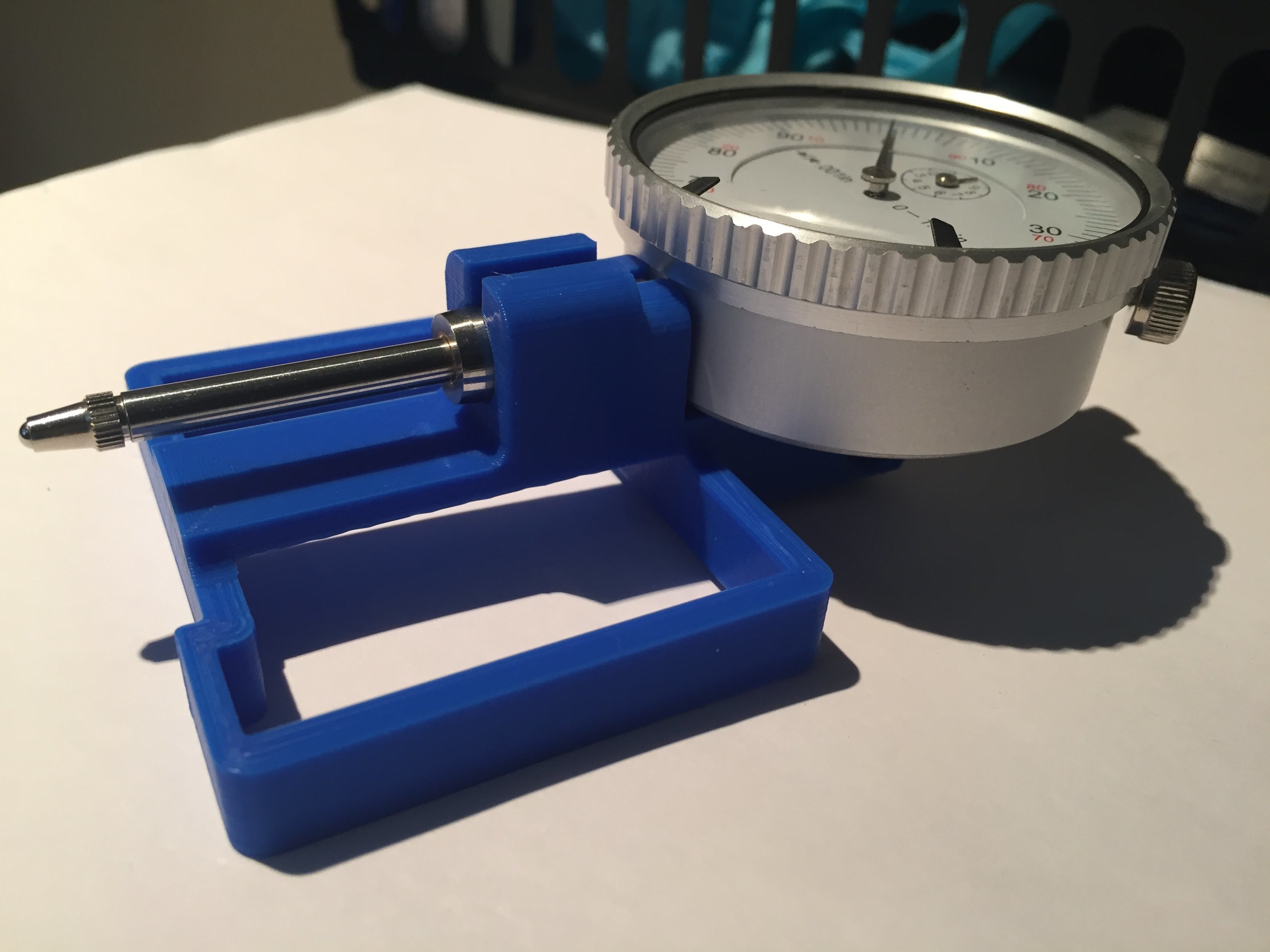

Fits snug and sturdy

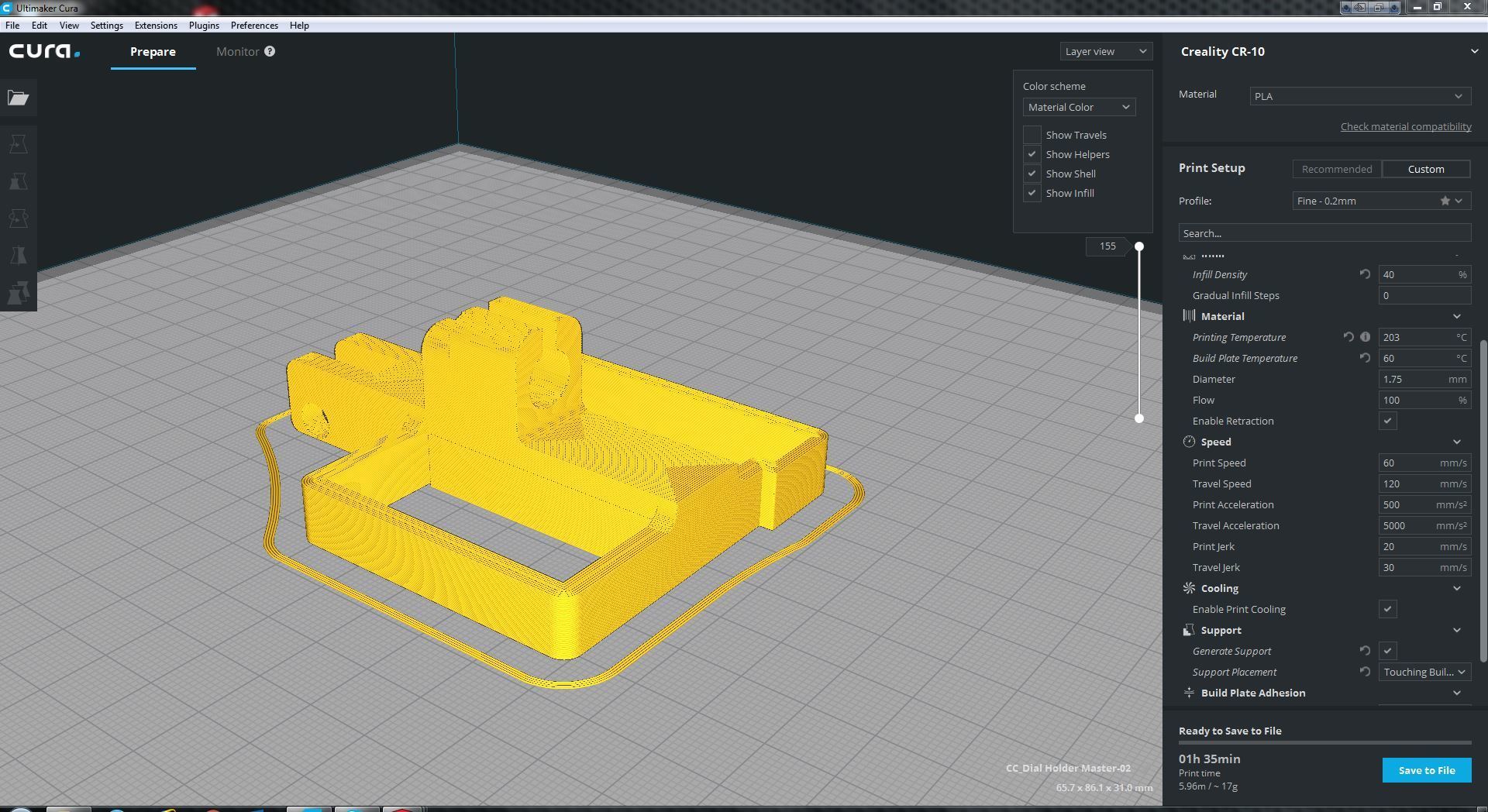

40 % infill
Support needed along center bridge only

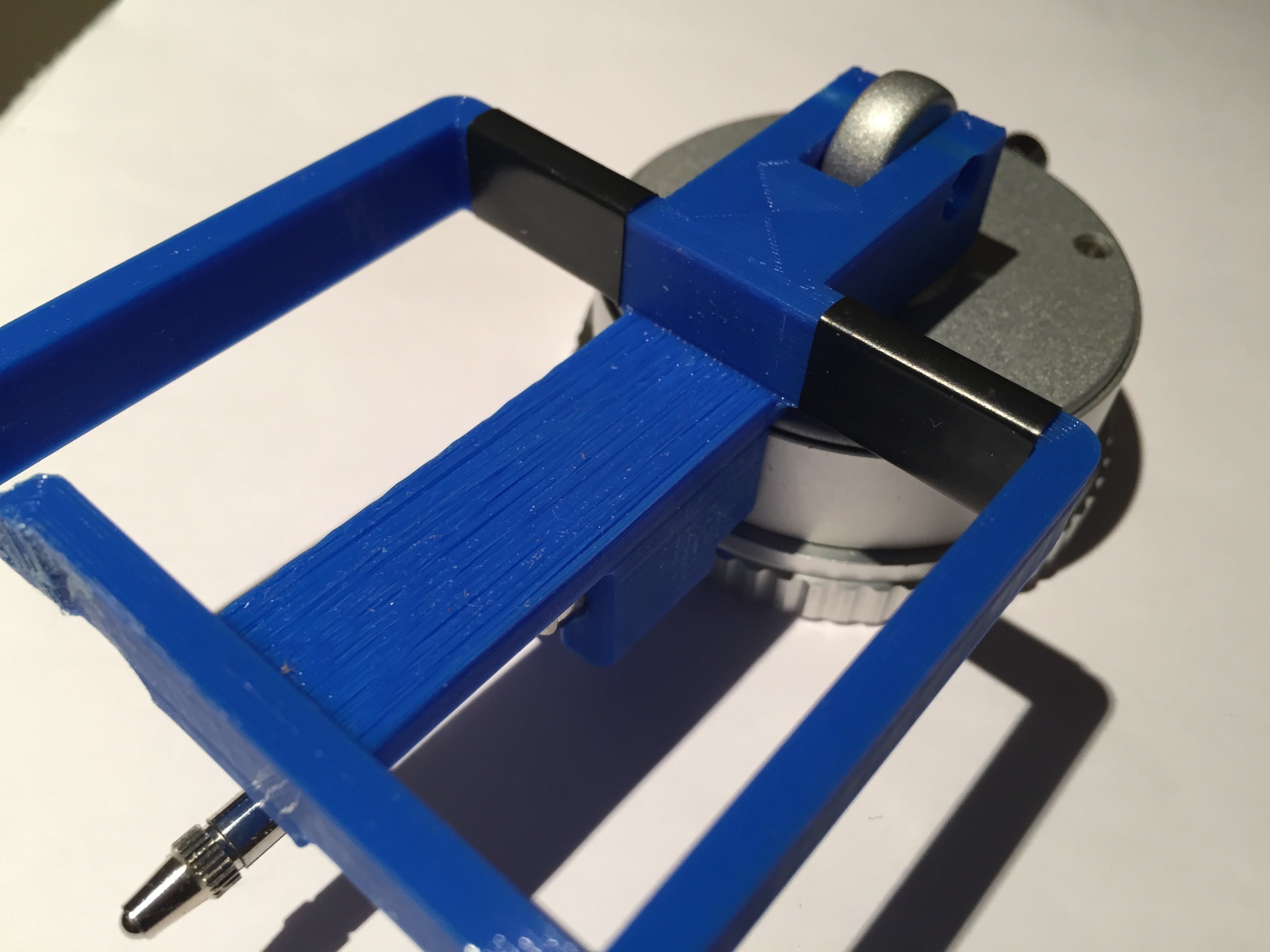

Shim with electrical tape as needed. See image of horizontal member for reference.
The attachment point at the back is optional. The dial fits firmly in place without movement.

Notes: Achieved .003" overall in all four corners starting from center bed position.
Use blank paper for initial nozzle height.

CHECK OUT MORE GREAT 3D PRINTS HERE: https://cults3d.com/en/users/Trikonics/creations

Affordable 3D Design Service for your custom STL personal needs https://trikonics3dprinting.wixsite.com/service

Have fun printing!

Regards,

Trikonics
