**Improved Updated Version** TESLA MOBILE CHARGER GEN 2 - CABLE HOLDER WALL MOUNT Bracket for Gen2 UMC North America and EUROPE

?
Creation's quality: 4.2/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • πŸ‘ 10.6k views
  • 4 likes
  • 242 downloads

3D model description

Improved Updated Version dated Jan, 01 2021
You can donate a tip to help cover material usage by purchasing one of my low cost print models here:πŸ‘‰πŸ» Check out my PRO MODELS here! https://cults3d.com/en/users/Trikonics/creations πŸ‘ˆπŸ»β­οΈβ­οΈβ­οΈ

Key features and options:
-Improved fitting of handle cutout. Now firmly holds handle
-Optional use of elastic for improved securement of handle. see image with yellow elastic. Again, this is optional.
-Wall charger mount for North America and EU

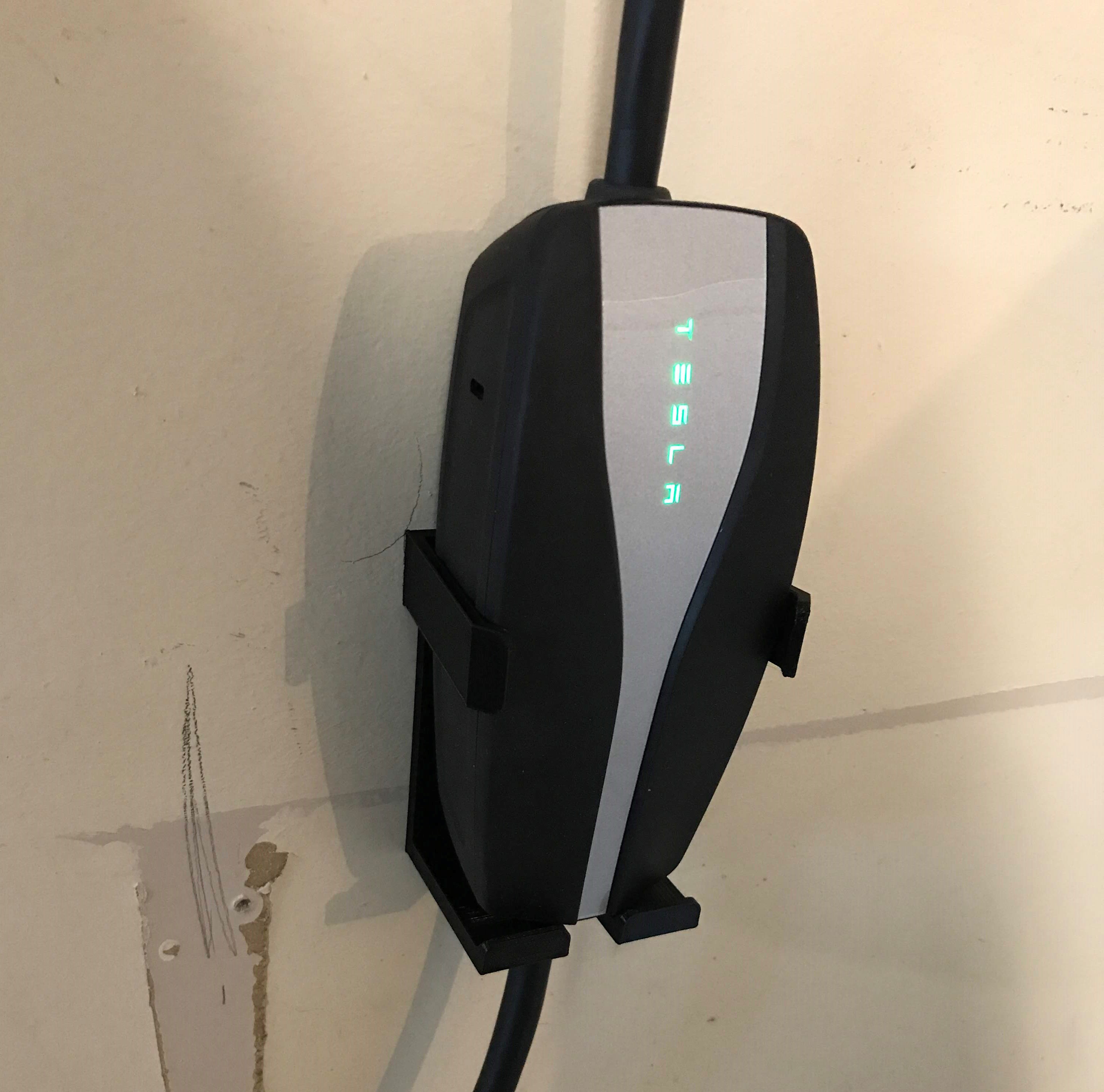

-Two mounts for main Mobile Connector controller which can be installed horizontally and or vertically.
-Easy print
-Robust design

β­οΈβ­οΈβ­οΈπŸ‘‰πŸ» Check out my PRO MODELS here! https://cults3d.com/en/users/Trikonics/creations πŸ‘ˆπŸ»β­οΈβ­οΈβ­οΈ

North America UMC Fits the following model:
https://www.tesla.com/sites/default/files/downloads/gen_2_mobile_connector_owners_manual_32_amp_en_US.pdf

EUROPE UMC Fits the following model:
https://www.tesla.com/sites/default/files/pdfs/charging_docs/gen_2_umc/Gen2_Mobile_Connector_en_EU.pdf

https://youtu.be/aSM5i-_ndv0

Have fun printing!

Regards,

Trikonics


3D printing settings

Notes:
-Print 3 walls
-20 percent infill
-If using print support, make sure your settings are for easy removal.

3D printer file information

  • 3D design format: STL Folder details Close
    • Tesla Charger Holder Horizontal-01.STL
    • Tesla Charger Holder-01.STL
    • Tesla Wall Charger Hanger EU Version-01.STL
    • Tesla Wall Charger Hanger North America-02.STL

    Learn more about the formats

  • Last update: 2021/03/25 at 17:34
  • Publication date: 2019/07/02 at 22:07
