Center of Gravity Balance for RC Airplanes

3D model description

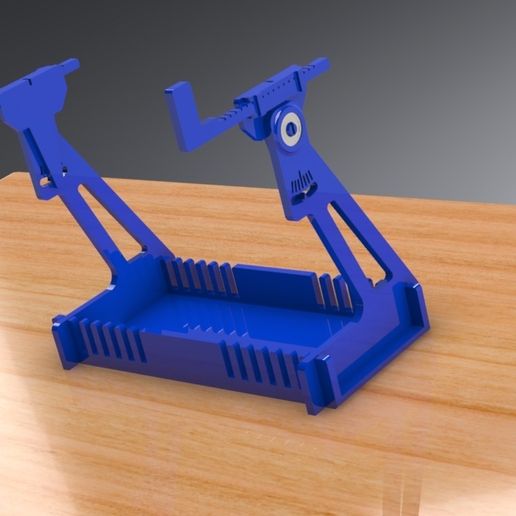

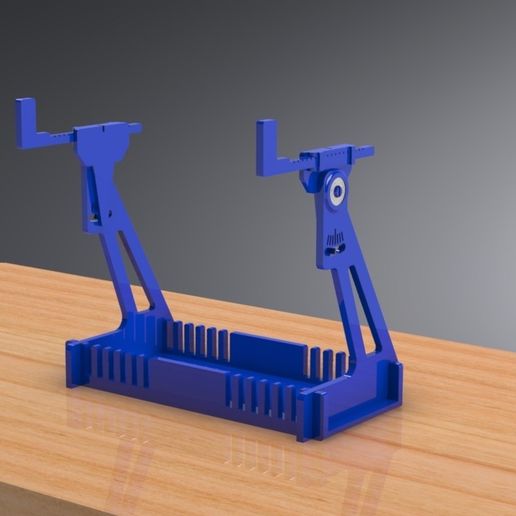

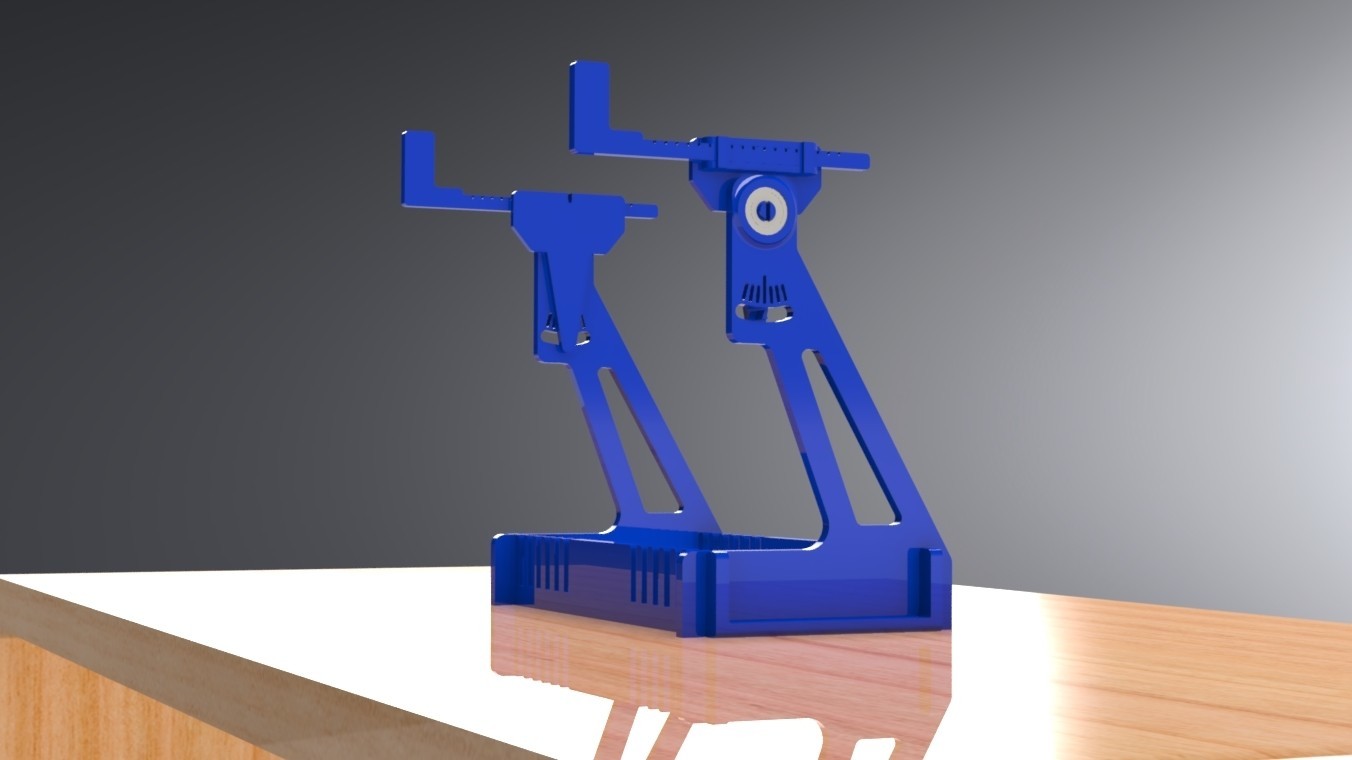

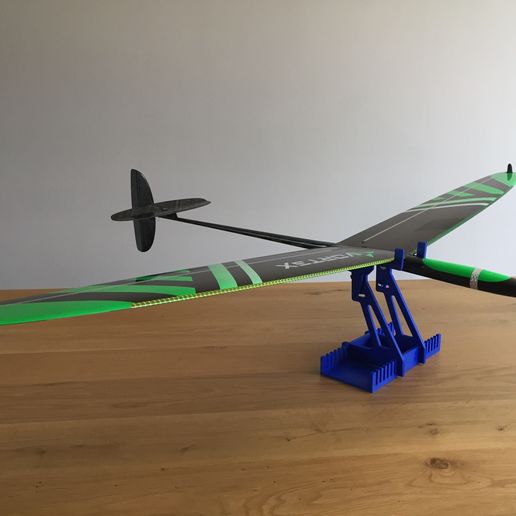

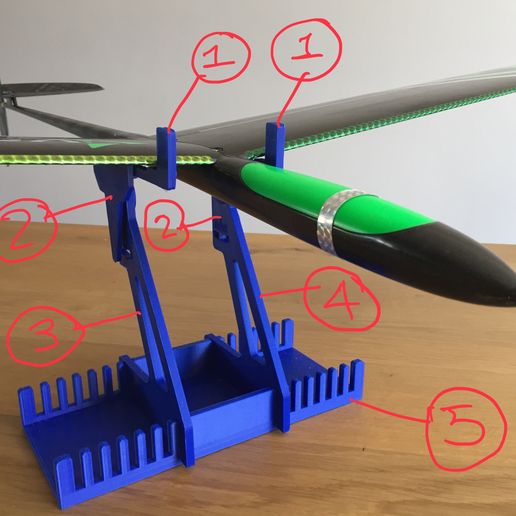

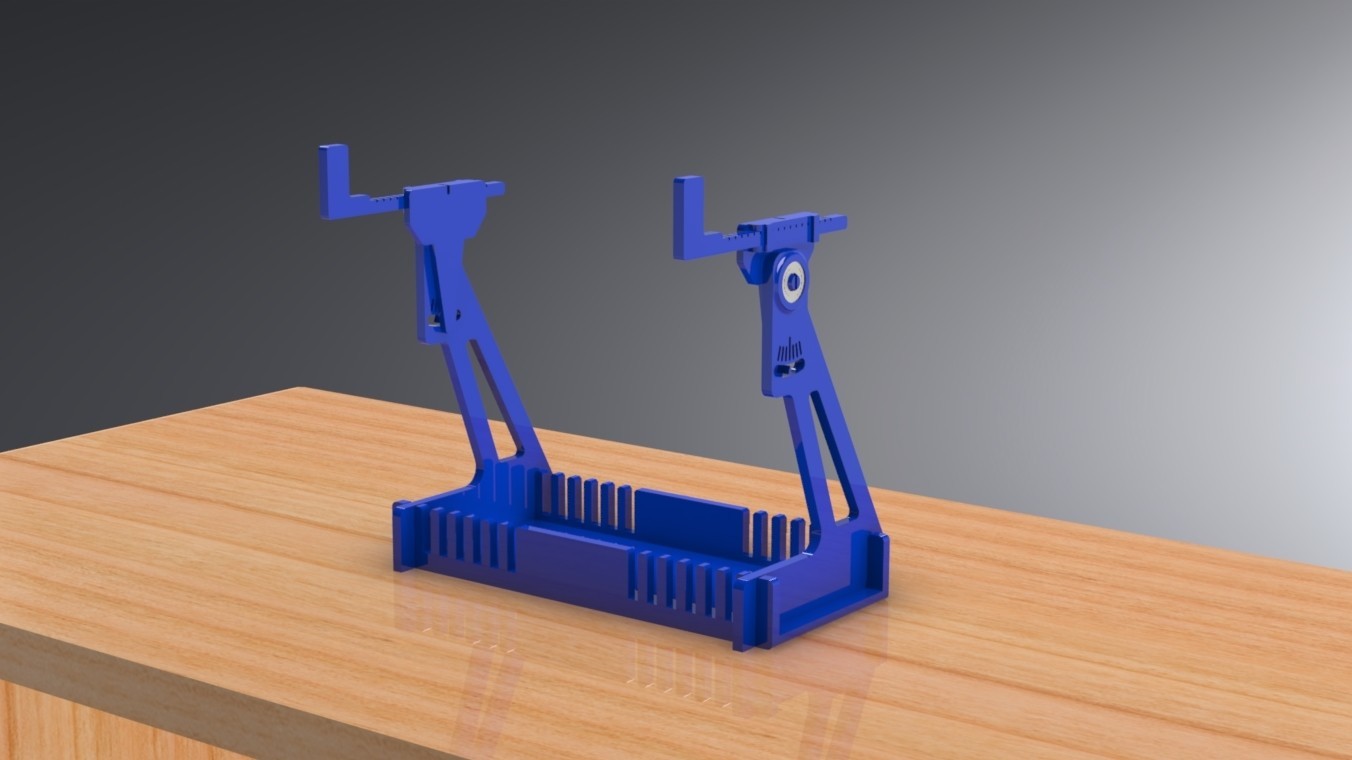

Center of Gravity Balance for RC Airplanes

Suitable for small to medium size RC planes.

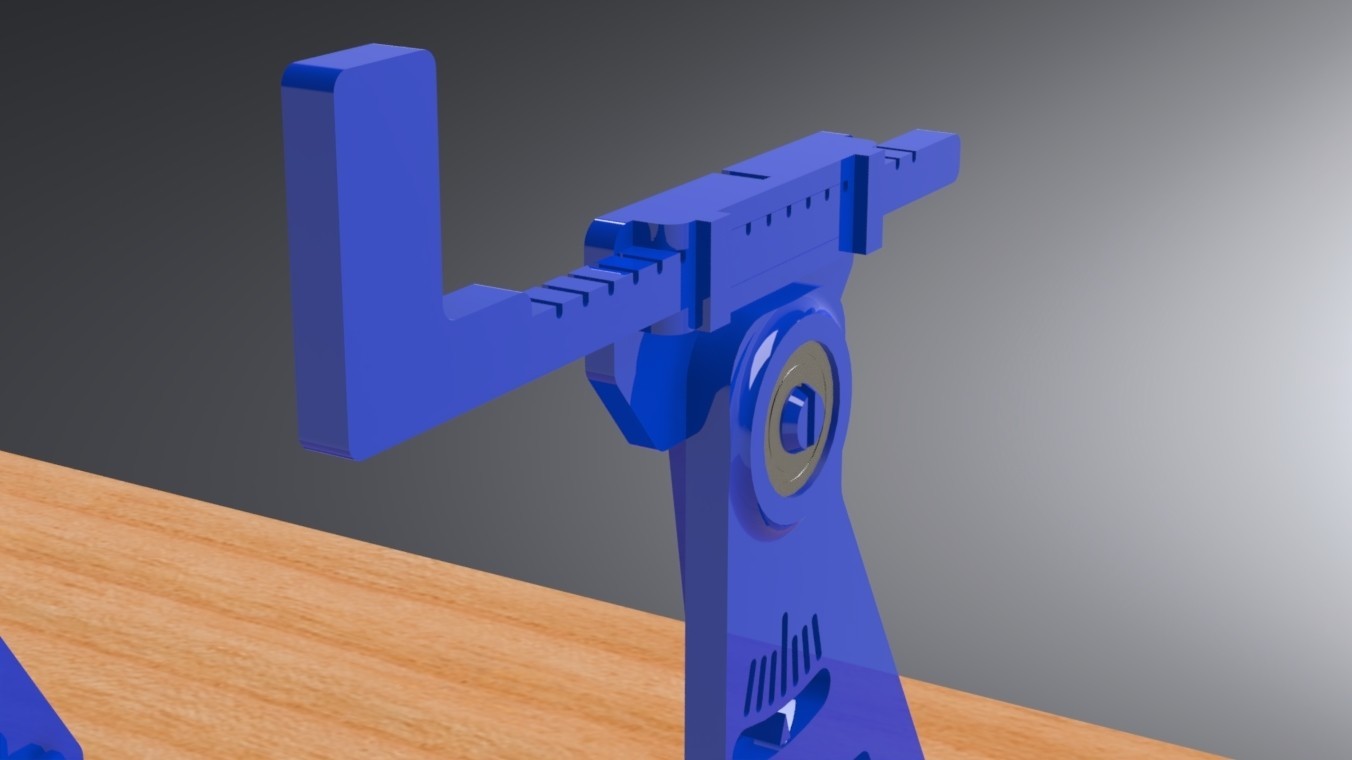

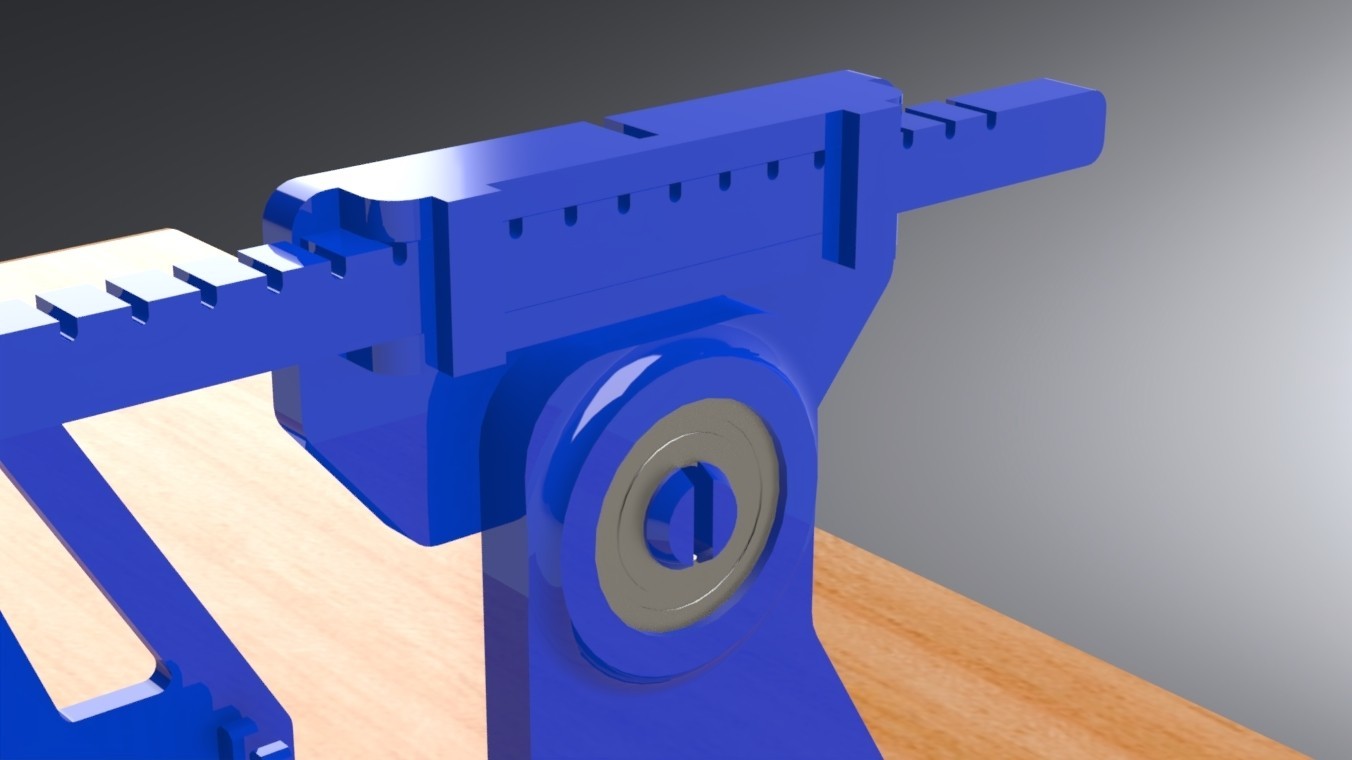

Required hardware, QTY 2 - Standard ball bearing 22mm dia x 7mm width. See drawing spec image.
Found used bearing from an old pair of Roller Blades.
Press fit bearing.

Technical specification:

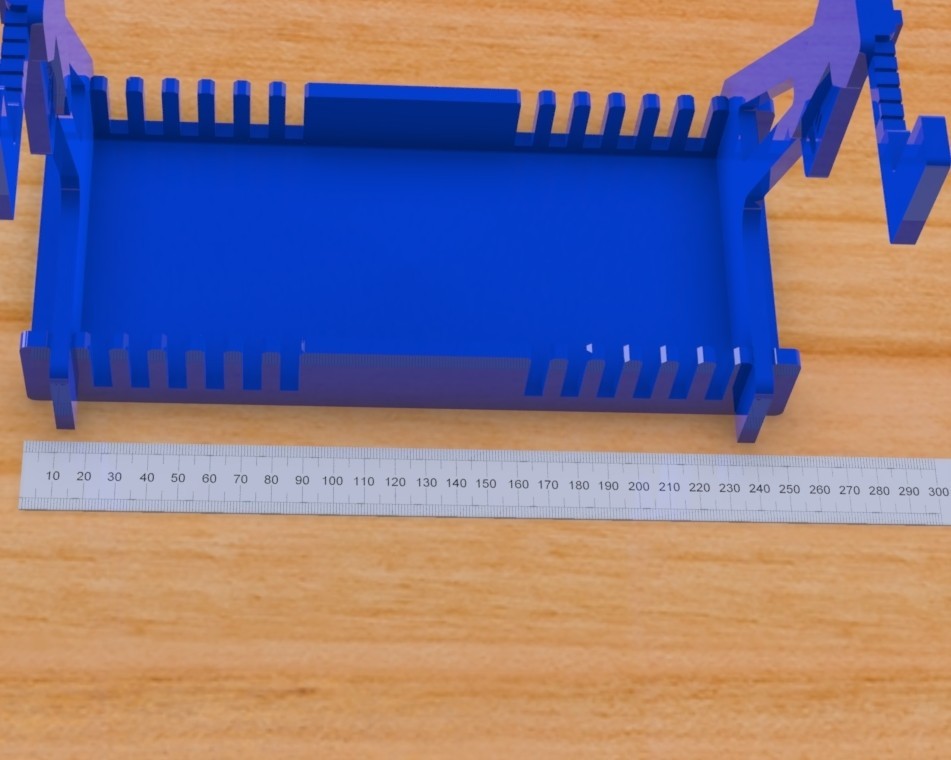

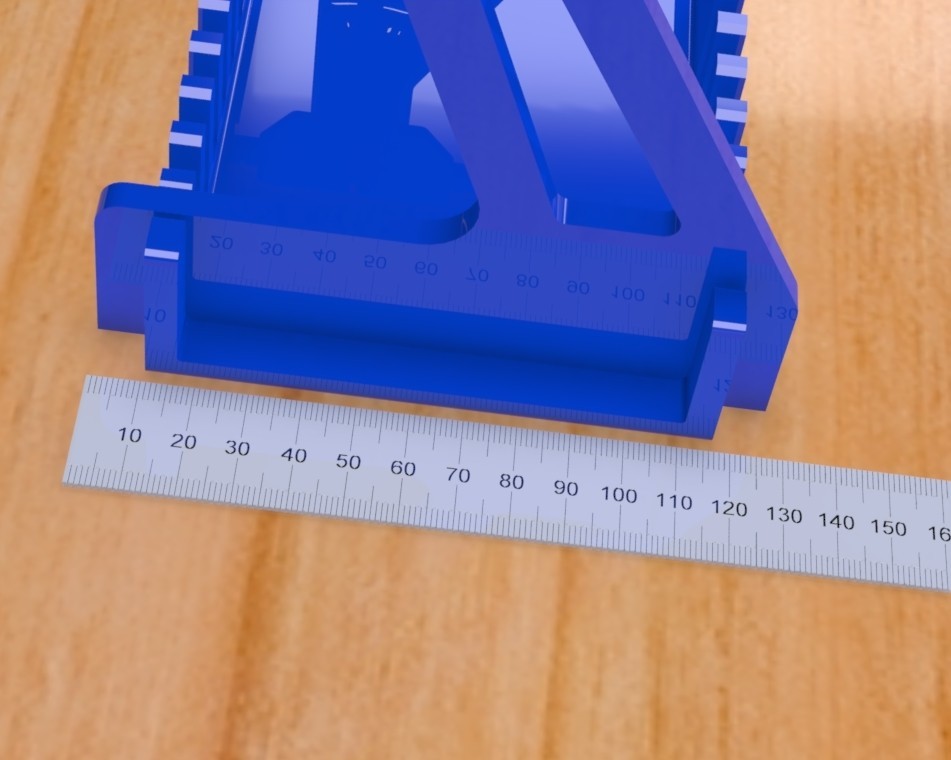

Can accommodate fuselage width (Min, 80mm Max, 200mm).
Max height with landing gear 170mm.

Easy print.
No supports needed
Infill 20 percent.
3 walls for all parts.

Let me know if you have any custom requests related to RC planes.

CHECK OUT MORE GREAT 3D PRINTS HERE: https://cults3d.com/en/users/Trikonics/creations

Have fun printing!

Regards,

Trikonics

3D printing settings

Easy print.
No supports needed
Infill 20 percent.
3 walls for all parts.
.

  • 3D model format: STL

Tags

Creator

Designs 53
Downloads 565
Sales $178
Followers

Product Design Engineer

Copyright

©

Similar 3D files

Best sellers of the category Gadget

Related contents


Add a comment

2 comments

Technical specification:

Can accommodate fuselage width Min, 80mm Max, 200mm
Height with landing gear 170mm

Pas mal ! La balance peut recevoir des avions de quelle largeur de fuselage ? Merci
