Arcade/Macro Controller (+Build Guide)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 941 views
  • 4 likes
  • 25 downloads

3D model description

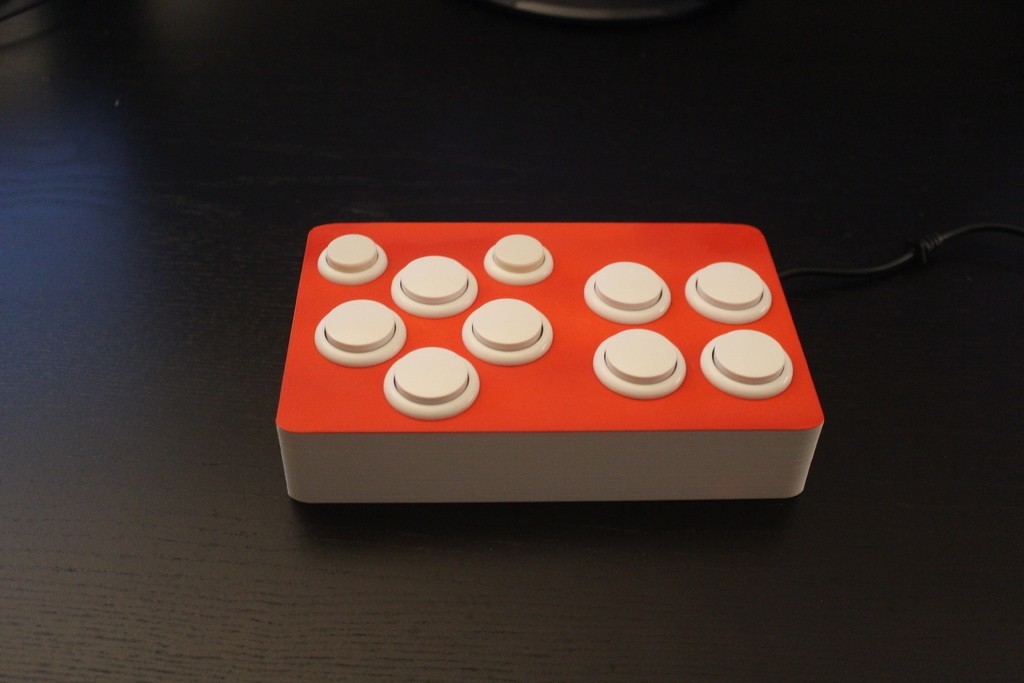

Here is a 10 button macro board / Arcade buttons which the buttons can be programmed to do whatever you want.

Parts list:
(US-$18.88) https://amzn.to/2GTKgNM
(UK-£16.88) https://amzn.to/2ToDz7D
For both of these items bare in mind they come with joysticks but everything you need is included.

Hardware Setup:
This arcade controller is incredibly easy to set up just follow the instructions below:
-Plug the red and black wires into each of the buttons. (It does not matter which way)

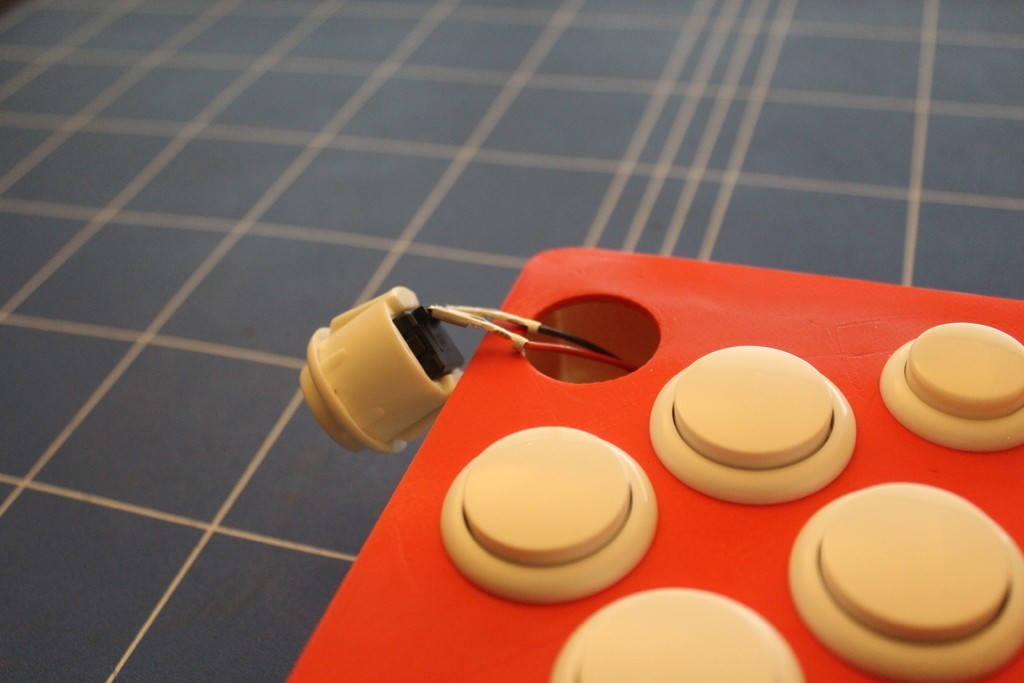

-Slot the wire endings and then proceed to put each of the buttons in the correctly sized
wholes

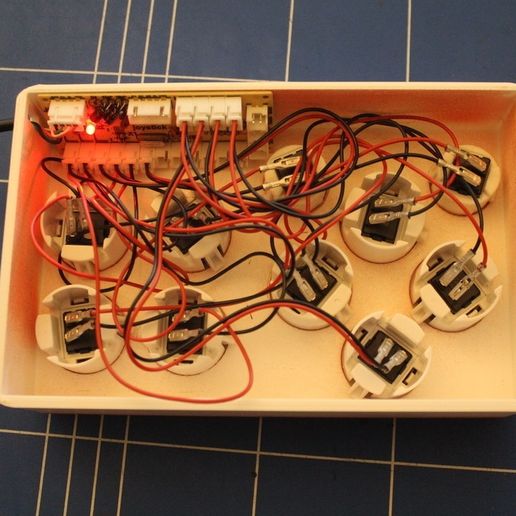

-Plug the wires from the four buttons arranged in a square into the 4 left most bottom
sockets on the brown joystick circuit board.
-Plug the 4 action buttons into the sockets labeled AU,AD,AR,AL (the top one in AU the
left most one in AL and so on...)
-Plug the top left smaller button on the Arcade box on the 5th most socket and the other
smaller button into the 6th slot.
-put the USB adapter cable end piece through the rectangular cutout (If its a tight fit you
can wiggle it through.

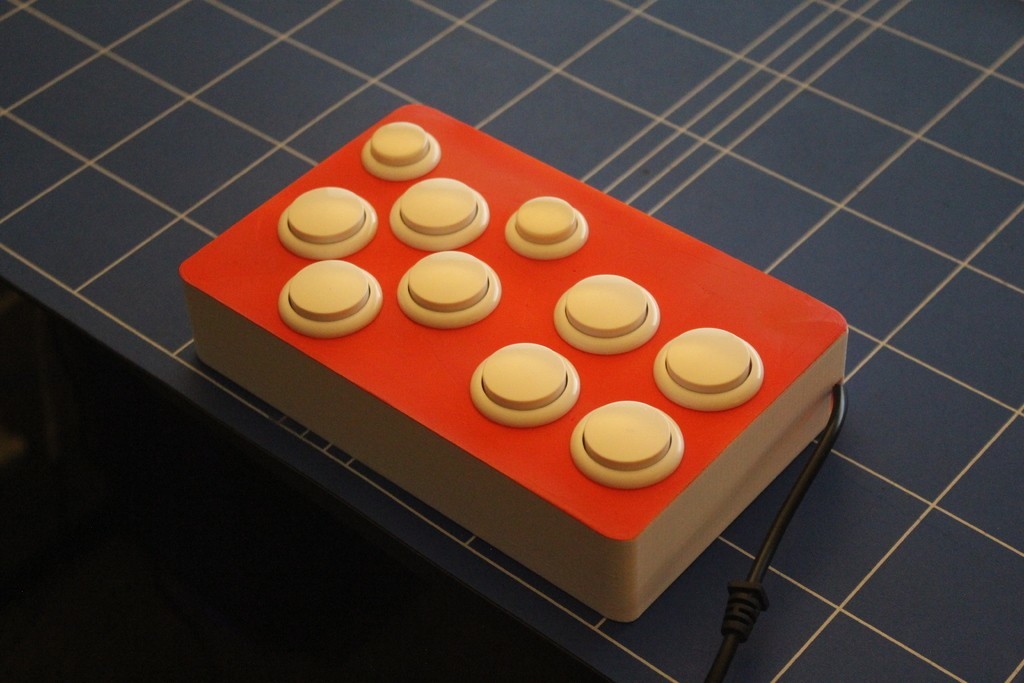

-For placement of the joystick circuit board look at 4th picture of this post. To make
sure everything fits you can bend the contacts of the wire downwards ( can also seen in
the 4th picture)
-Plug the USB adaptor end into the slot labelled J5.
-Finally you can glue the lid to the bottom with either double sided tape(temp.) or super
glue(permanent).

Software Setup:
-For this you only need a piece of software called JoyToKey.
-download link: joytokey.net/en/download
-Setup guide: https://www.youtube.com/watch?v=Z6Qh-8CL0f8 something not shown in
the tutorial which you can do is add multiple key presses to a button at once, to do this
just add another keystroke in the box under the first keystroke when pressing a button.

That's it! Any advice in the comments is welcome and if you want you can donate.
