V for Vendetta Dagger New and Improved

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 5.4k views
  • 22 likes
  • 351 downloads

3D model description

Update

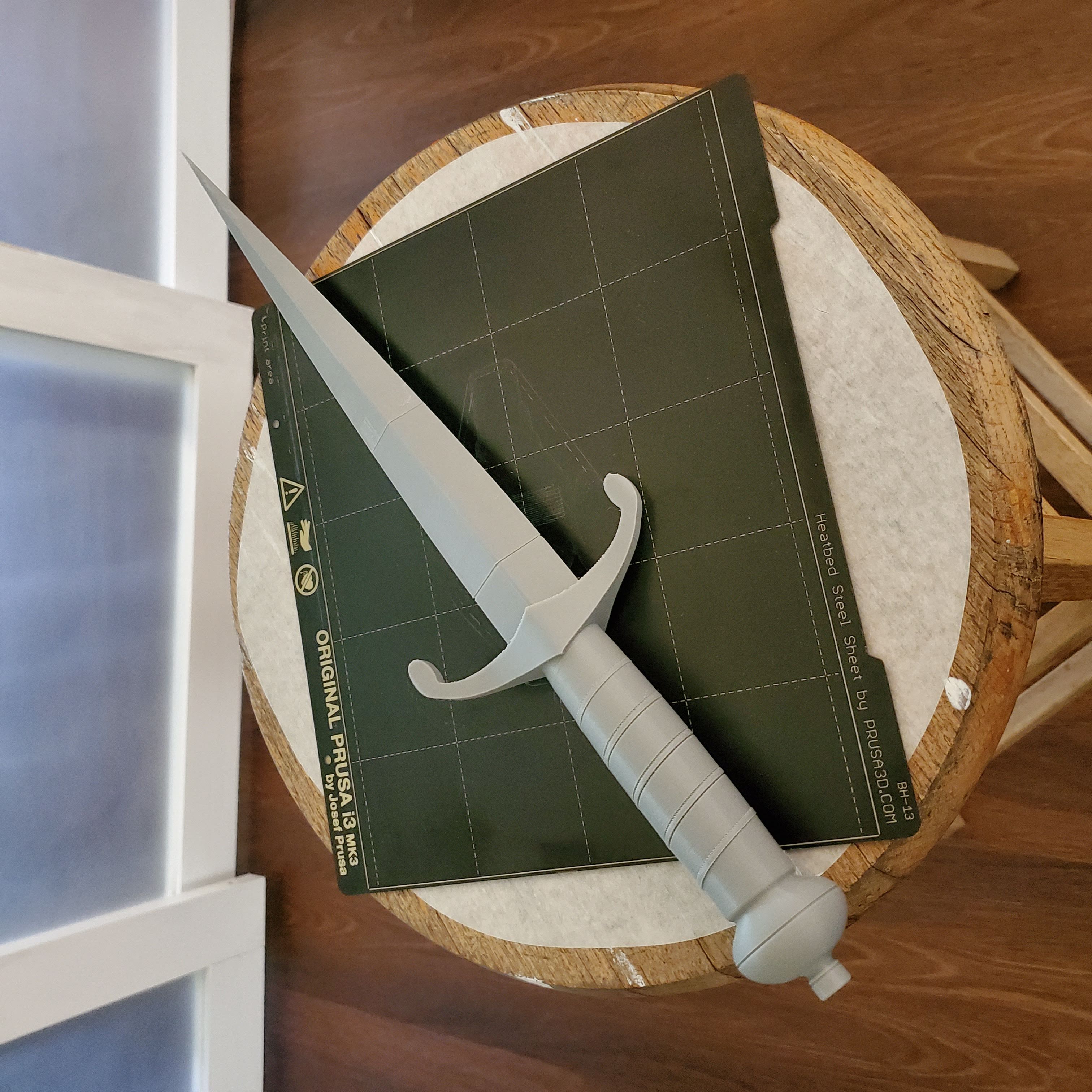

I finally got around to redesigning this and here is a list of changes I've made
-from 8 parts to 3 (fewer seams to fill from 4 to 2)
-parts snap together (no longer require glue)

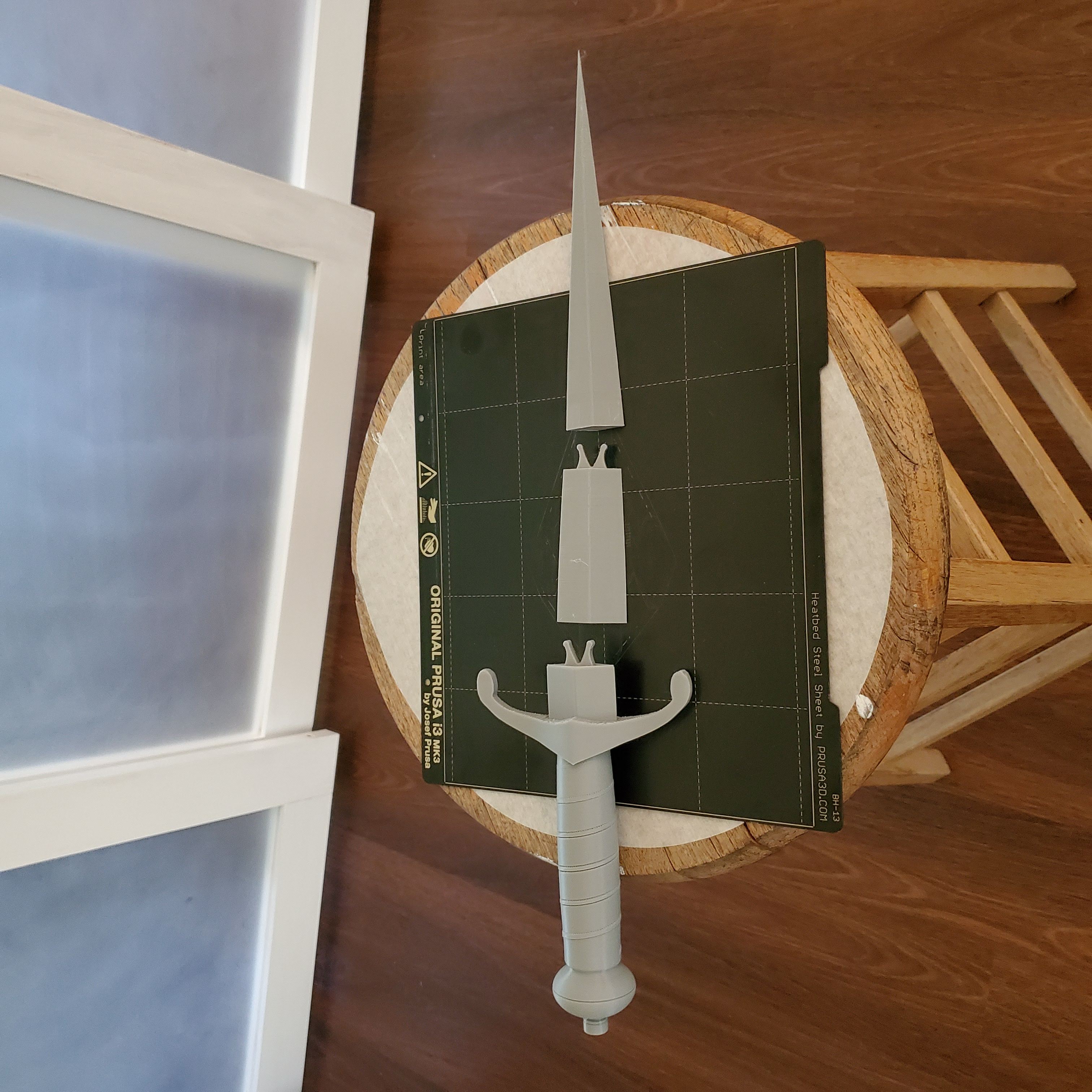

Print the following stls and snap them together
Updated Part 1 Vendetta hilt
Updated Part 2 Vendetta blade mid
Updated Part 3 Vendetta blade tip
Video https://www.instagram.com/p/B2HqEZUH6hU/?utm_source=ig_web_copy_link

Old Description below if you use the old files not recommended

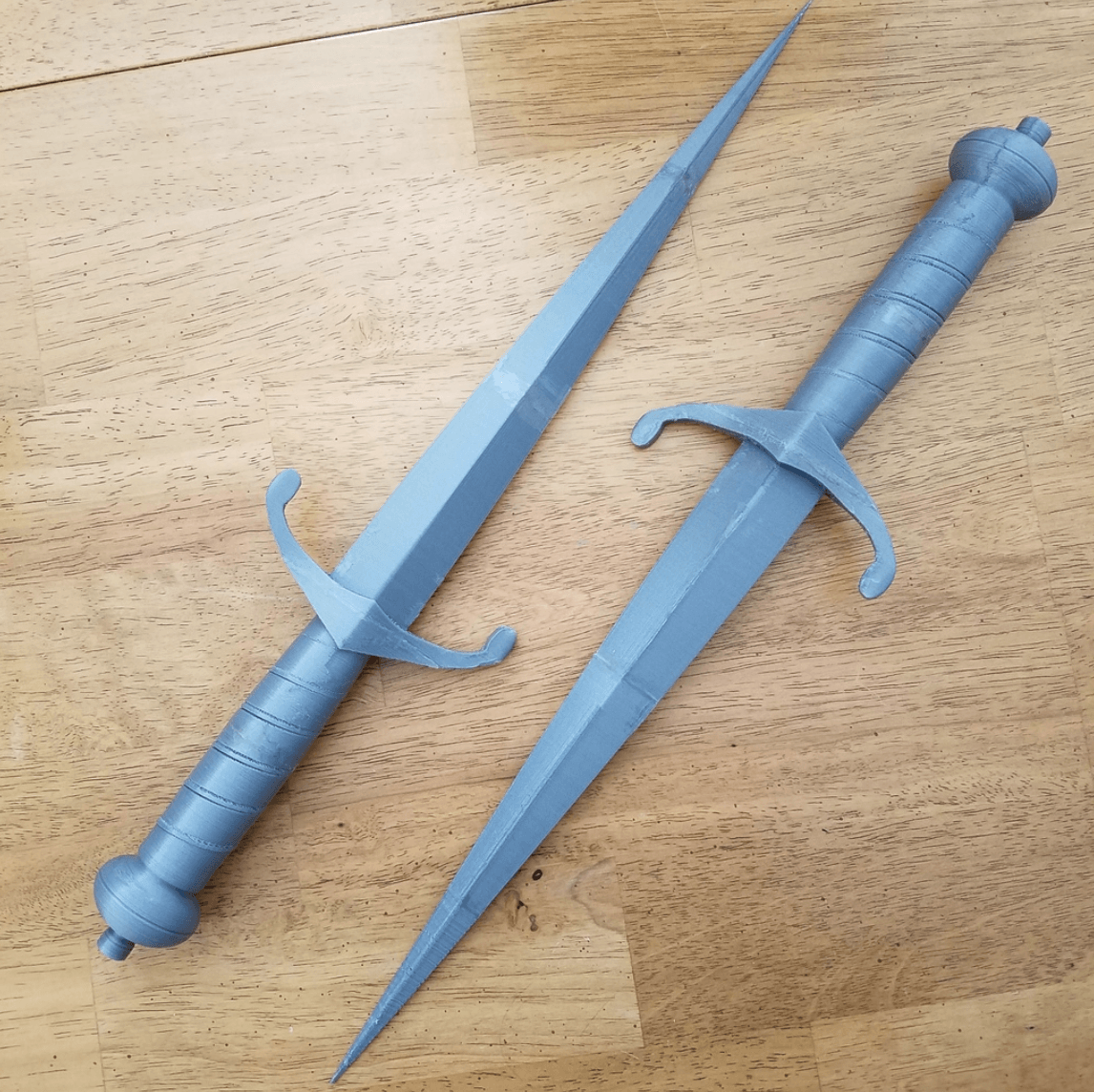

I was finally asked to make my first model for cosplay. A set of 6 daggers for a V / Guy Fawkes costume of V for Vendetta fame. They wanted plastic as the metal replicas are not con friendly. I will post more pictures after they have painted and finished them.

At 150mm x 150mm x 150mm I have a relatively small volume printer (printrbot simple metal) I mistakenly thought it would limit my ability to create but it only made me more creative.

I modeled it off of pictures off of the internet and I am sorry that the wrap around the handle doesn't look like a chain.

I have uploaded the dagger three different ways.

For small volume printers, the model is split into 5 parts and needs 3 keys

For large volume printers, the model is split into 2 parts and needs one key

The whole 18" one piece model
All parts are in the correct orientation for printing. I printed with 4** outer layers and 15 - 20% infill

The key is just a "+" shaped part that fits in between the parts to help with assembly.

Post processing - I used hot glue on one and super glue on another but I also used a wood burner at the seams to weld them smooth/closed. This is why I recommend 4 outer layers/parameters I am pleased with how strong it is.

**This might help someone... If your slicer askes for parameters or outer layers the answer is probably 4 but on other slicers, it might ask for shell thickness (mm) and you will have to do some math. example my nozzle is .5mm so if I want 4 outer layers the math is .5 x 4 = 2mm wall thickness. If your nozzle is .4mm the math would be .4 x 4 = 1.6mm wall thickness.

Amazon Affiliate links
Ender 3 Pro on Amazon
3d Solutech PLA Amazon
OR
Paypal Donations
Much appreciated :)
Thanks for looking!

3D printer file information

  • 3D design format: STL Folder details Close
    • Key.stl
    • Large_Volume_blade.stl
    • Large_Volume_handle.stl
    • Small_Volume_1.stl
    • Small_Volume_2.stl
    • Small_Volume_3.stl
    • Small_Volume_4.stl
    • Small_Volume_5.stl
    • Updated Part 1 vendetta hilt.stl
    • Updated Part 2 vendetta blade mid.stl
    • Updated Part 3 vendetta blade tip.stl
    • Whole_Dagger.stl

    Learn more about the formats

  • Last update: 2019/10/16 at 20:51
  • Publication date: 2018/03/26 at 17:17
