SPOOL STORAGE BOX (UPCYCLING)

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.2k views
  • 9 likes
  • 8 downloads

3D model description

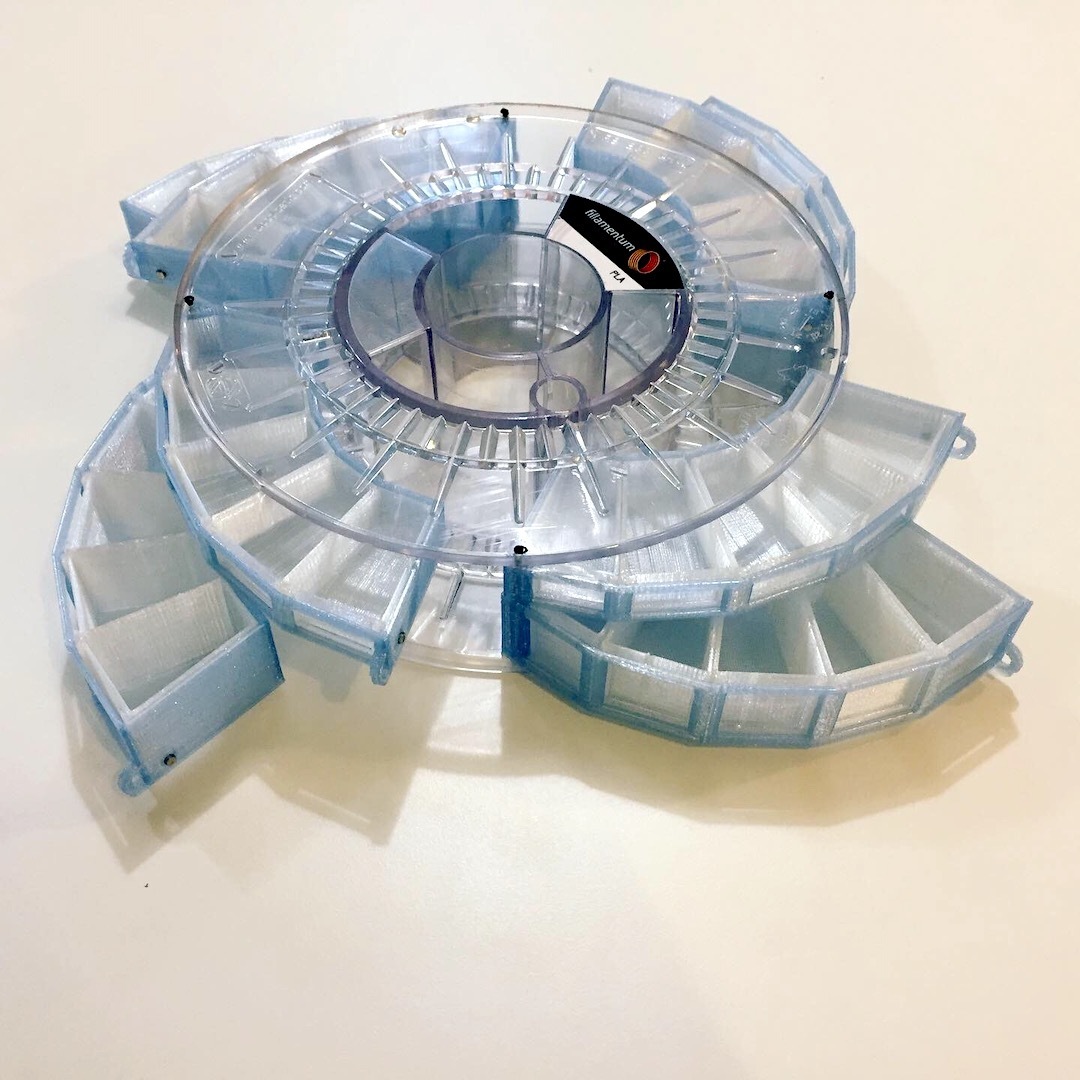

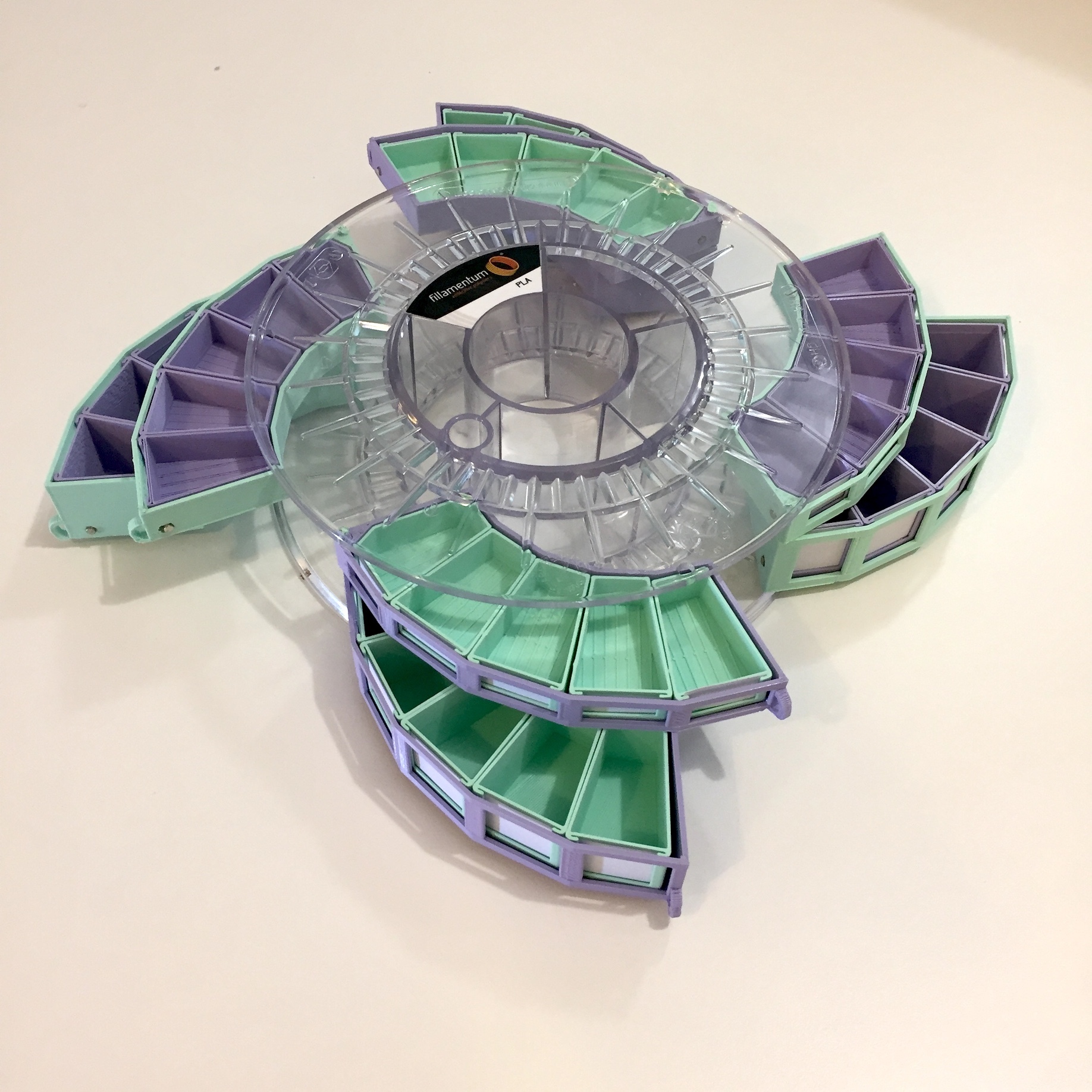

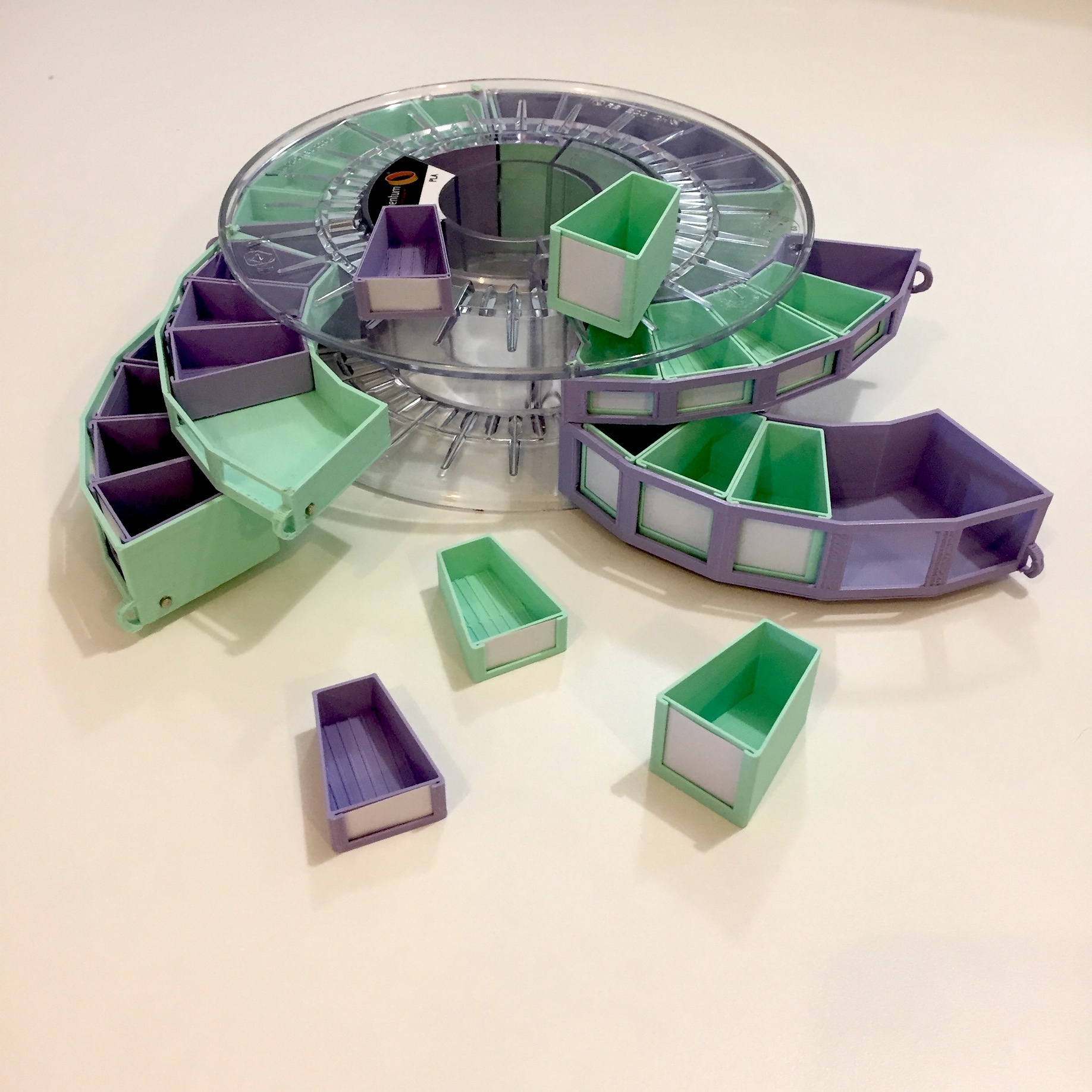

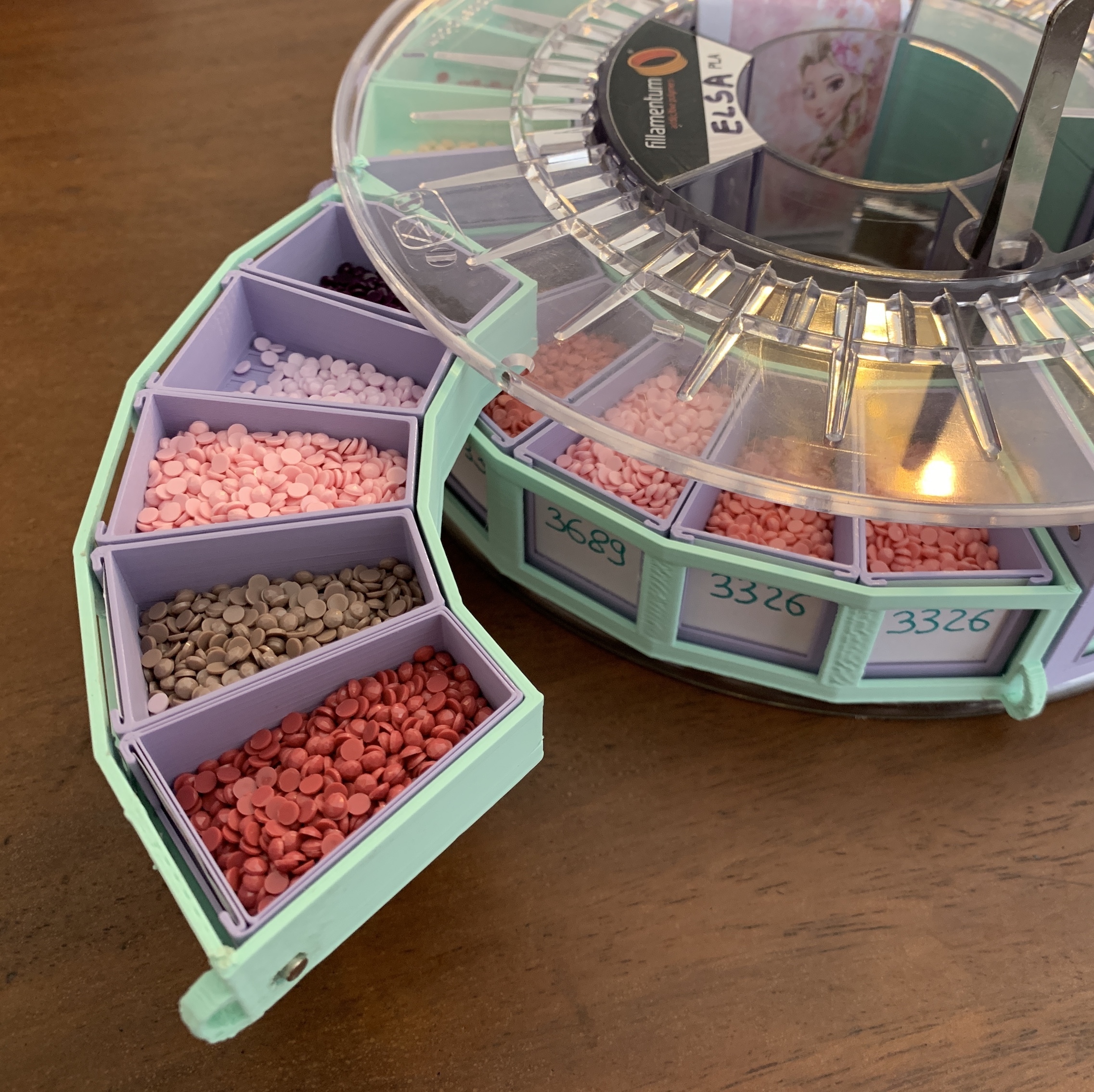

Upcycle your empty - Fillamentum - spools (no hardware required)!

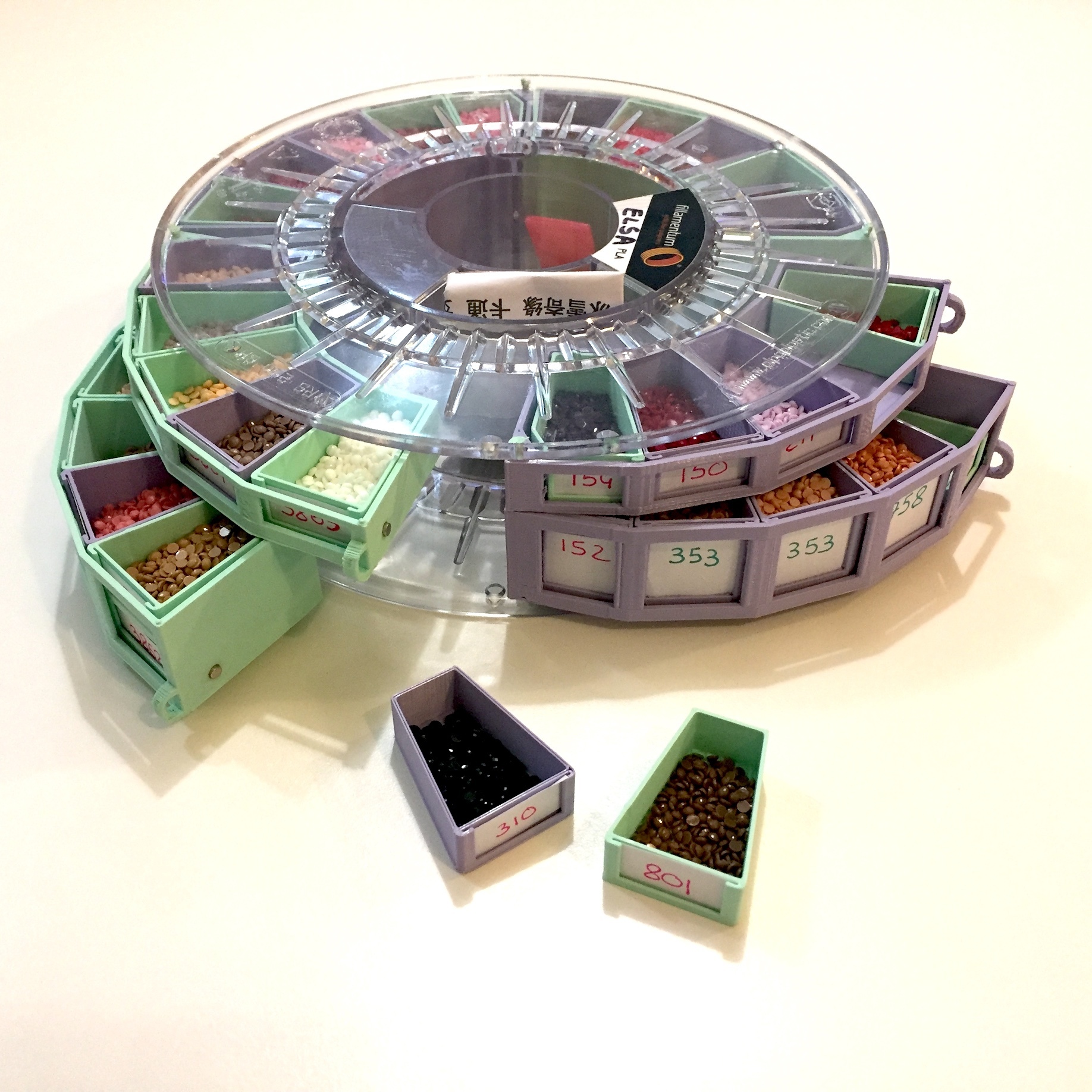

I made this one on my wife's request, to store diamonds (for diamond painting). It includes one big and one small drawers, which makes it very convenient to use any diamond quantities!

DRAWERS:
- BIG
- SMALL

BOXES:
- BIG 1 & 2 - fit into the BIG drawer
- SMALL 1 & 2 - fit into SMALL drawer (or two in the BIG drawer)

Spool dimensions (Fillamentum):
- External diameter: 20cm
- Internal diameter: 11cm
- Height to fit drawers: 4.4cm

If your spool height is different, you can always z re-size the drawers to fit!

ASSEMBLY:
- Drill 4x 2mm holes in the top of bottom of the spool for each hinge (using the guide - stl included) - make sure the top and bottom holes are perfectly aligned!
- Slide through the hole and drawers a piece of 1.75mm filament
- Melt both sides with a lighter (to prevent it from getting out)

Nice to have: I have also added holes to include magnets on the drawers (size are 3mm diameter x 1.4mm width).

This STL is for personal use only (contact me for commercial license). Do not copy or redistribute it.

3D printing settings

Printed in 0.3mm layer height - I am sure 0.2mm would work just as fine.

No raft, not support, no brim.

  • 3D file format: STL
  • Last update: 2021/01/11 at 17:16
  • Publication date: 2020/04/25 at 12:18
