Universal Flashlight Glare Shield

Download free STL file Universal Flashlight Glare Shield • 3D printer template, CyberCyclistDownload free STL file Universal Flashlight Glare Shield • 3D printer template, CyberCyclistDownload free STL file Universal Flashlight Glare Shield • 3D printer template, CyberCyclistDownload free STL file Universal Flashlight Glare Shield • 3D printer template, CyberCyclistDownload free STL file Universal Flashlight Glare Shield • 3D printer template, CyberCyclistDownload free STL file Universal Flashlight Glare Shield • 3D printer template, CyberCyclistDownload free STL file Universal Flashlight Glare Shield • 3D printer template, CyberCyclist

Did you 3D print this model?

3D model description

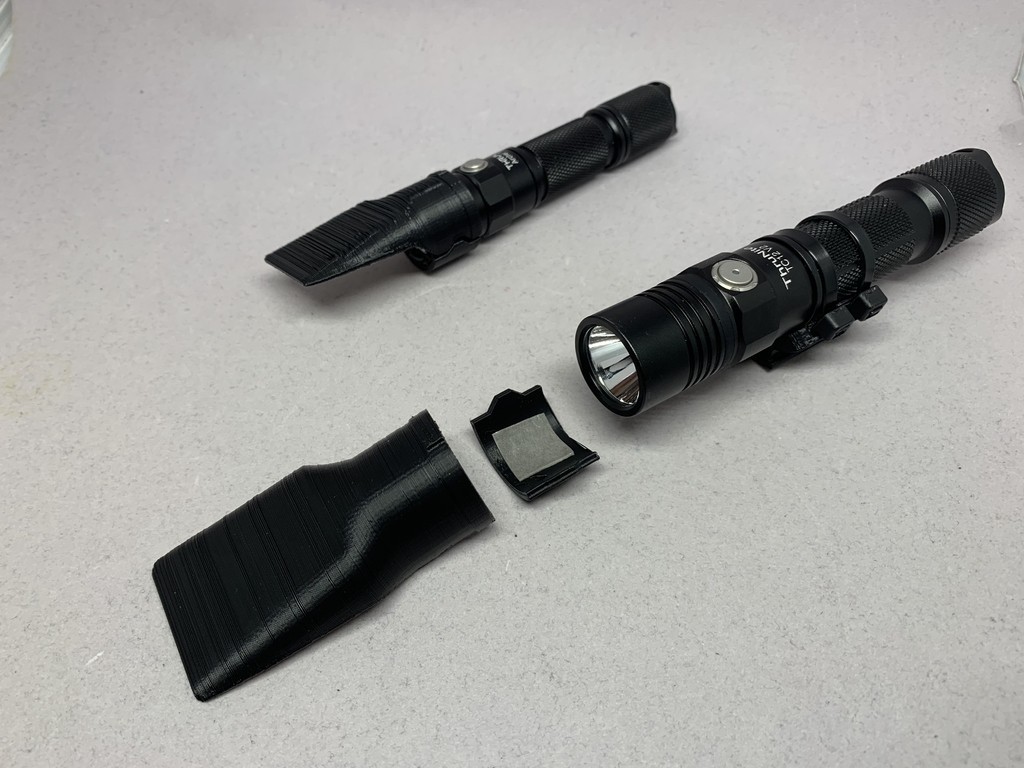

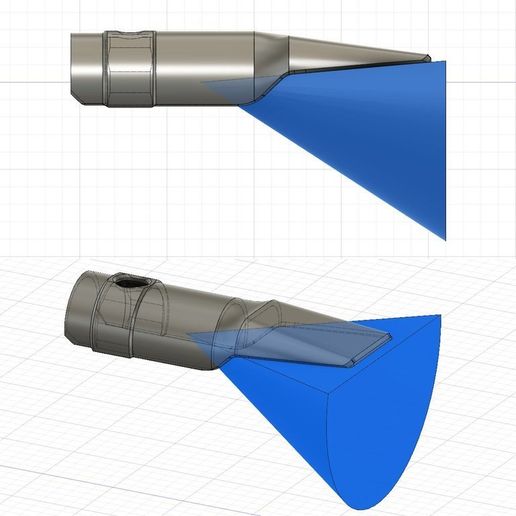

Anti-Glare shiled for flashlights with bulb diameter:
- 20.0mm (THRUNITE ARCHER 1A V3)
- 24.0mm
- 25.4mm (THRUNITE TC12 V2)

Can be resized for other diameter flashlights.
ex) for 28.0mm flashlight -> scale "hood_25.4mm" to 110% ( 28 / 25.4 = 1.1023... )

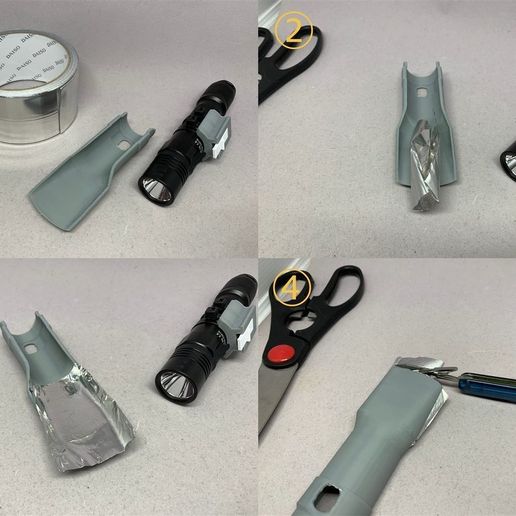

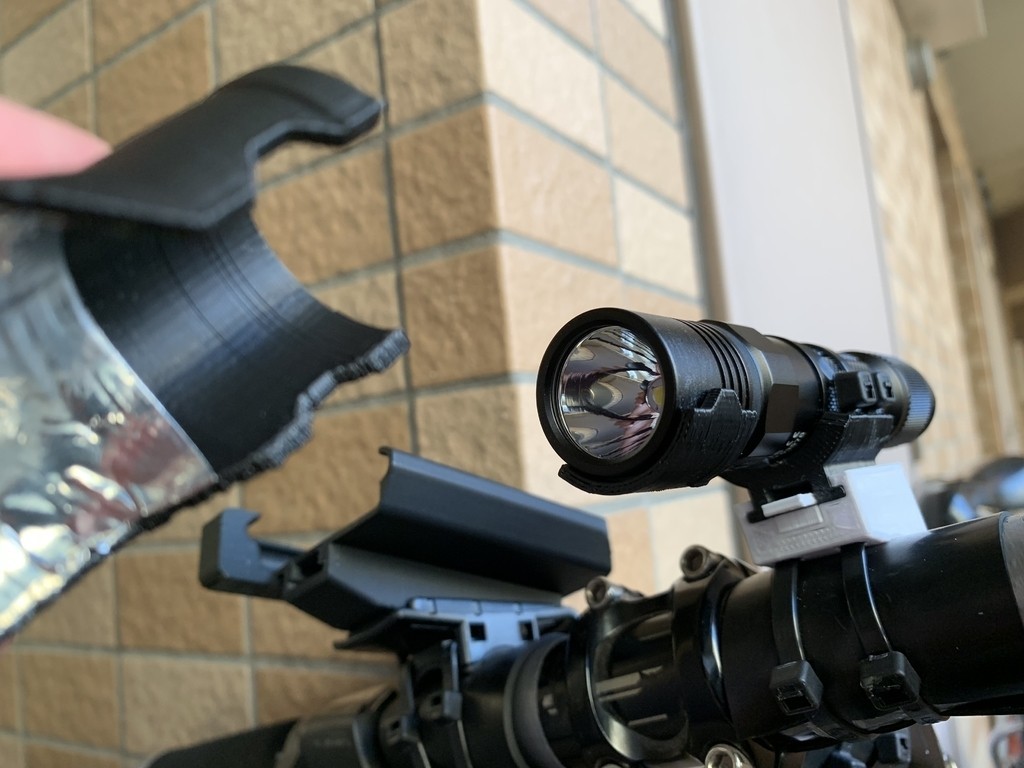

Paste aluminium foil tape on upper part for reflection. (optional)
Use double-sided adhesive tape to fix lower part.

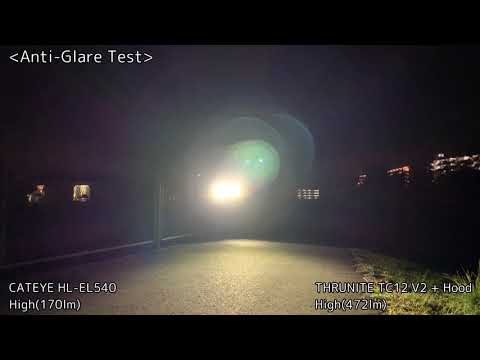

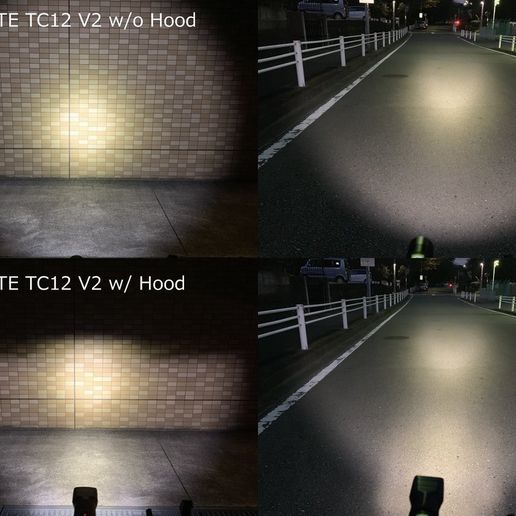

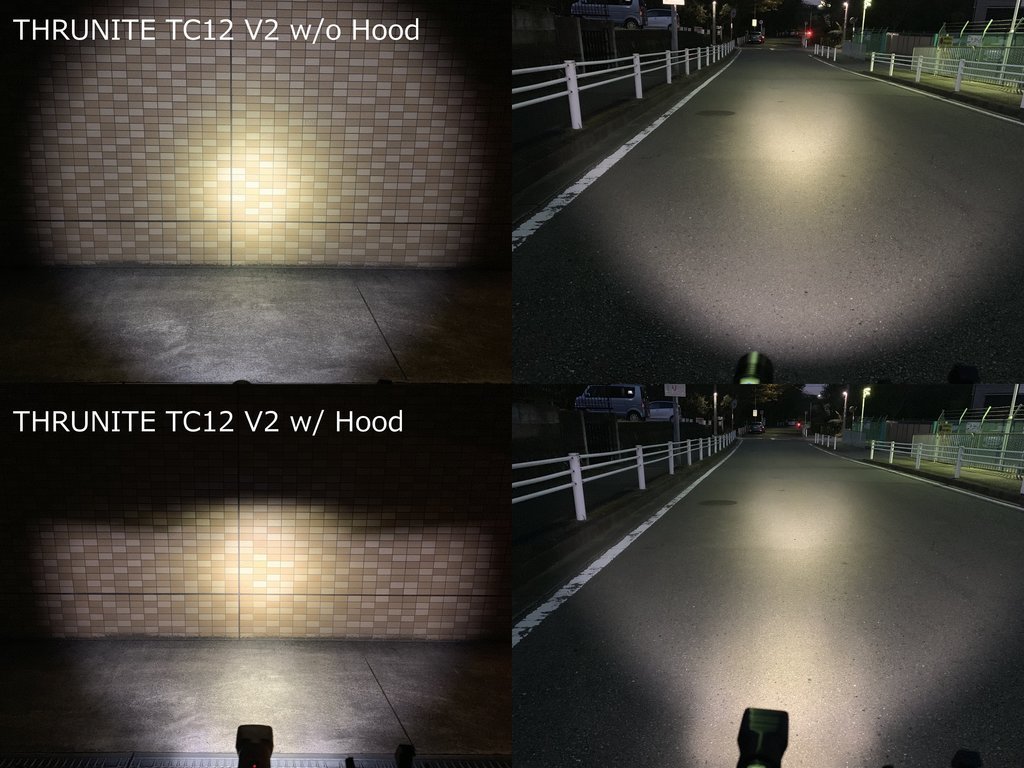

Beam pattern & anti-glare test https://youtu.be/c53GJG5cJnw

[Japanese]
各種フラッシュライトのサイズに対応した眩惑防止フードです。
先端部直径20.0mm / 24.0mm / 25.4mmに対応したデータがありますが、拡大縮小することでそれ以外のサイズにも対応できます。

上側のパーツは百均のアルミテープで内張りしてください。(しなくても使えますが)
また、下側のパーツは強力両面テープでライト本体に固定してください。

  • 3D file format: STL
