Topoint M1 SIL adapter

Advertising
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.


Licence CULTS - Private Use
Last update 2020-11-20 at 03:01
Publication date 2020-11-08 at 02:26
Design number 224261
3D design format
STL Folder details Close
  • Topoint M1 SIL Adapter.stl

Learn more about the formats

3D model size X 38 × Y 170 × Z 89 mm

proteinman

3D printer file info

3D model description

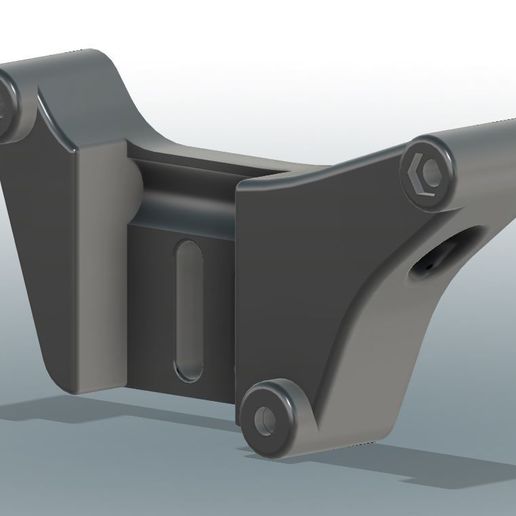

This is a bow adapter for the Topoint M1 bow for the SIL (sliding instant legolas) system. This system was invented by Joerg Sprave from the slingshot channel on youtube. It was adapted and used with the design from Lukasz Janikowski.

https://cults3d.com/en/3d-model/various/sil-hybrid-pump-action-repeating-bow

https://www.youtube.com/watch?v=a91zx70AqUc&t=84s&ab_channel=%C5%81ukaszJanikowski

https://youtu.be/rR1qQHfyzDw

Might be a good idea to print out a thin walled/low infill version to make sure it fits.

3D printing settings

Printed 5 walls thick, 5 top and bottom layers at 0.2mm layer height with 25% infill. Worked well with regular PLA.

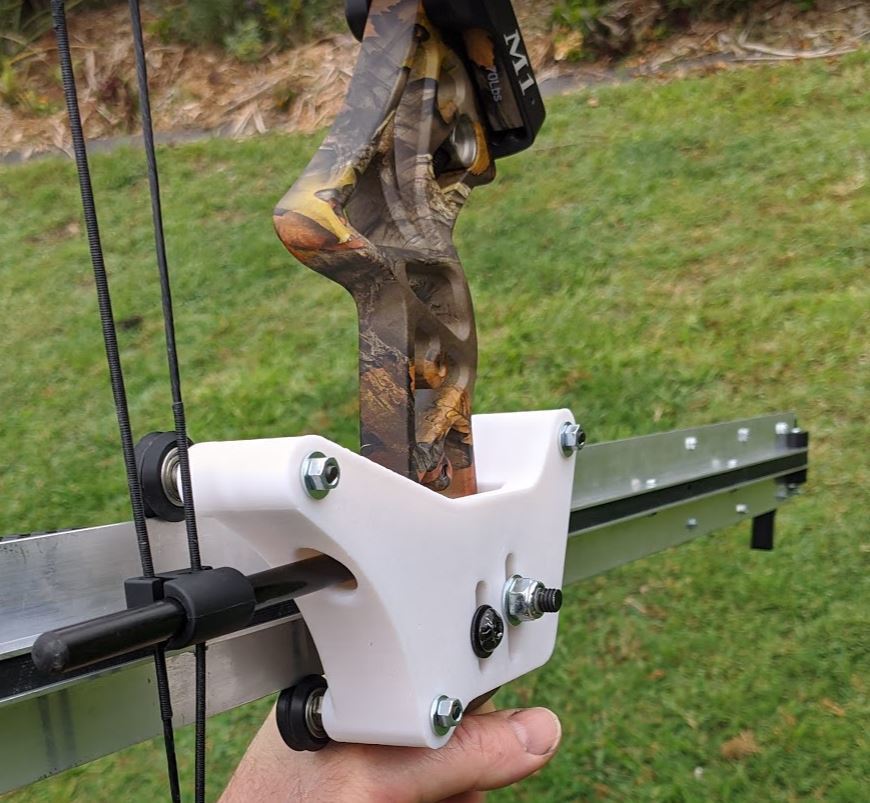

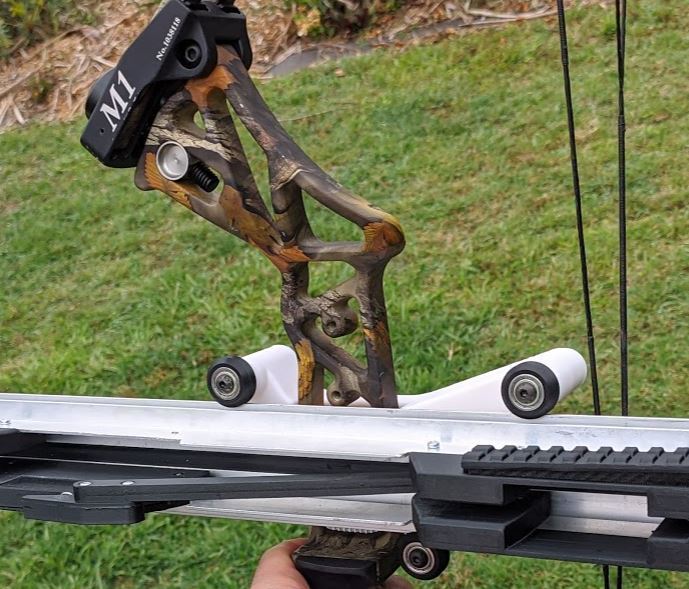

To fit adapter, undo the cable rod grub screws, fit adapter then put rod back in.
