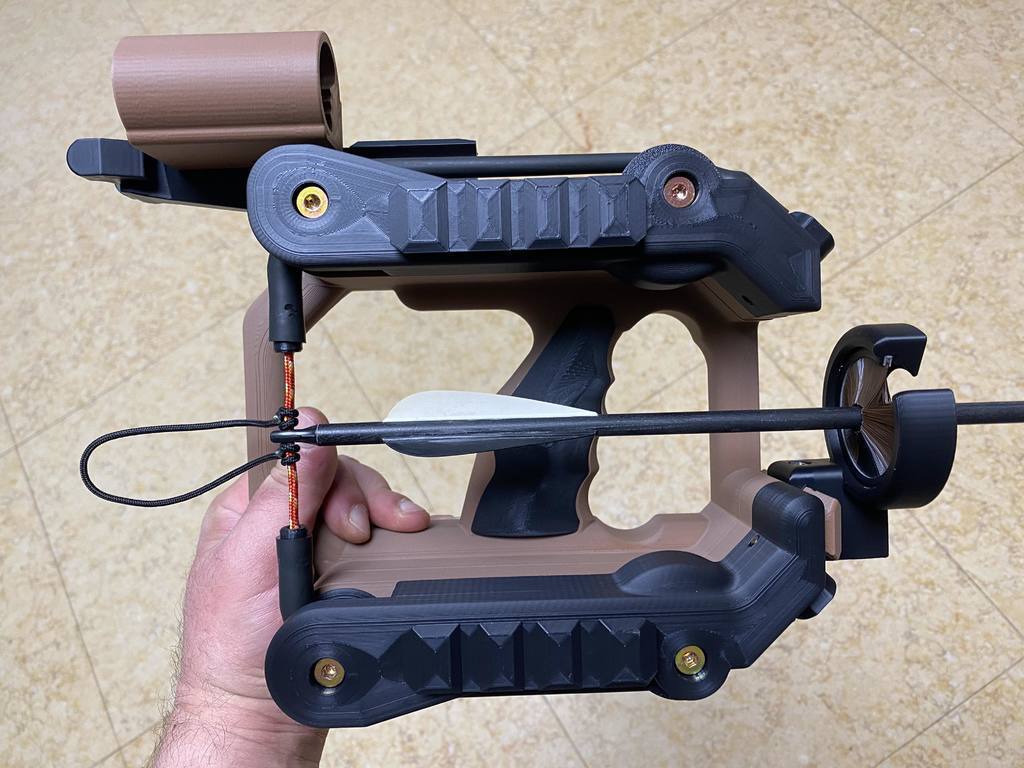

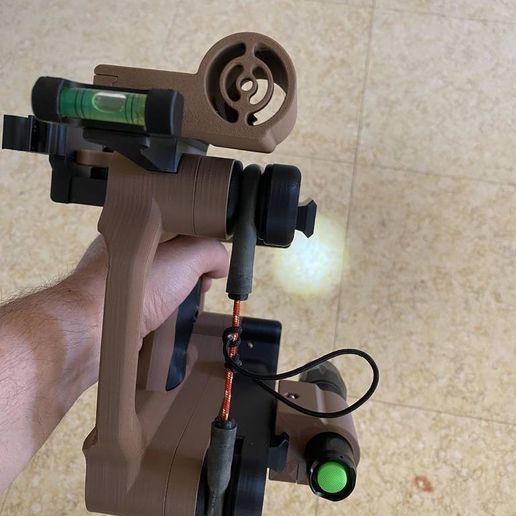

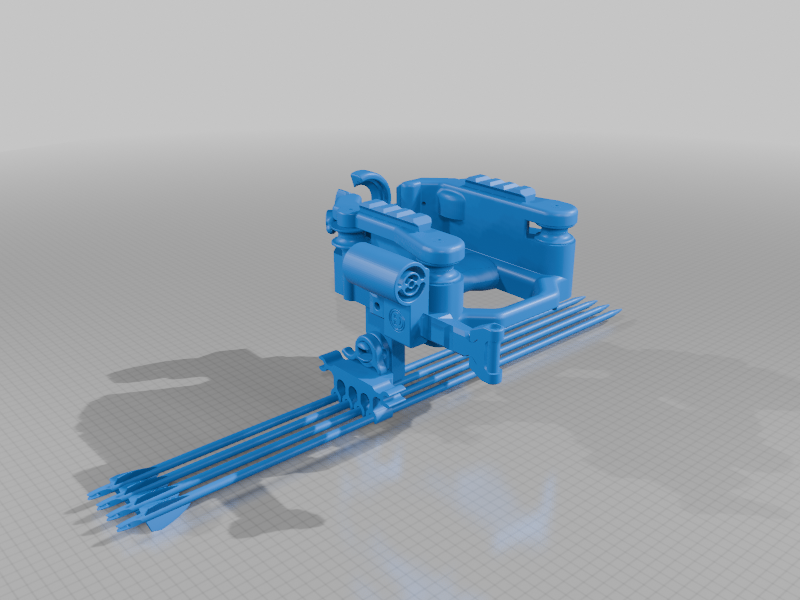

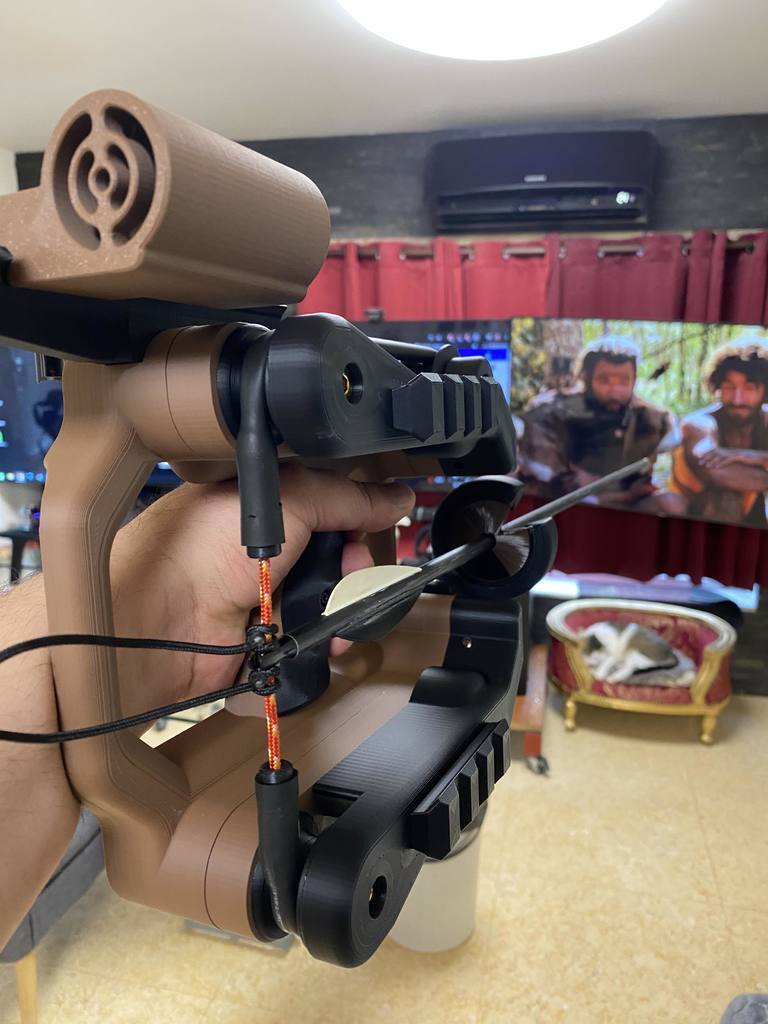

Survival X-Bow V2.0 Pro Unlimited Edition

Seems thingiverse removed the first one I uploaded without ever contacting me, so here it is again :(

###Don't forget to "Click A Like" & check out my other Cool designs and Follow my Weekly dose of KooKoo uploads, PLZ leave a comment what you want next! Also dont forget to look at my other 800+ designs ;)
.
So after spending almost 3 weeks modifying and fixing all the issues, and printing 8 fully assembled bows, Thanks to the feedback and support of all the buildteam and testers, you guys & gals made this happen <3

Note: I added the STEP files so feel free to mess with them! also Look at the MAKE for full build details...!

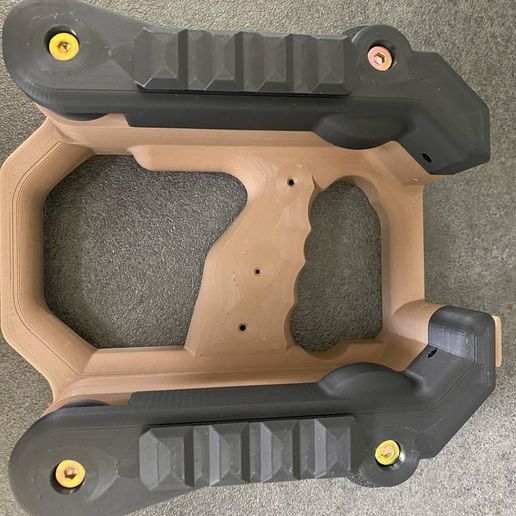

Frame dimensions in mm > x:190 · y:218 · z:80

ACCESSORIES:

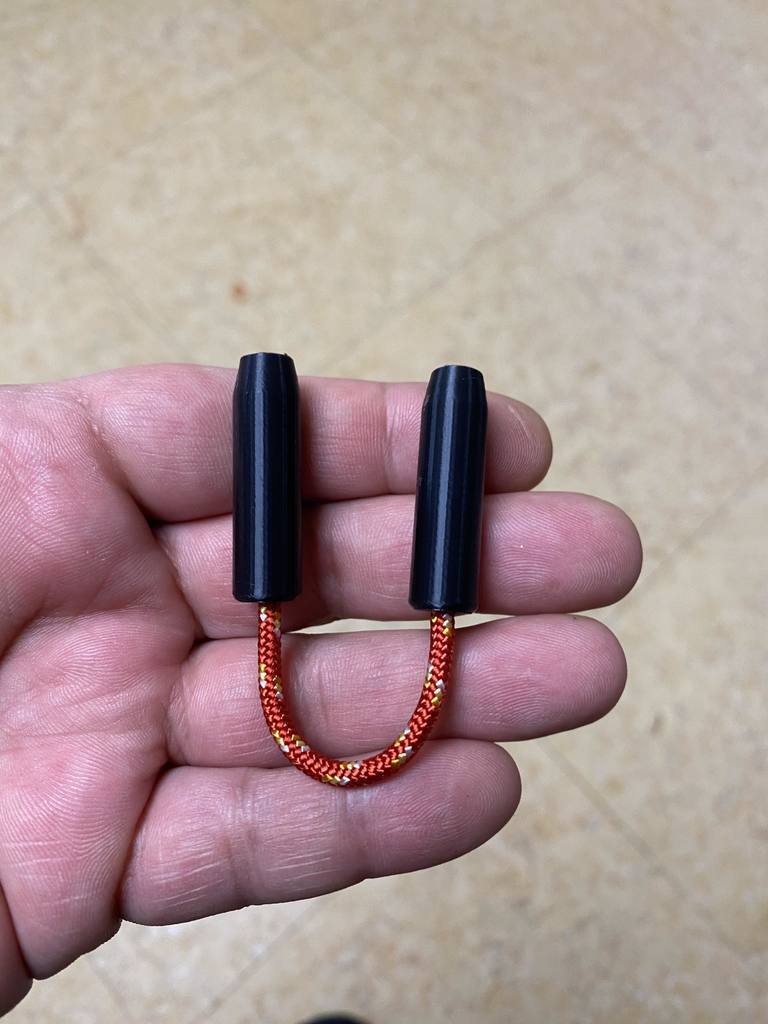

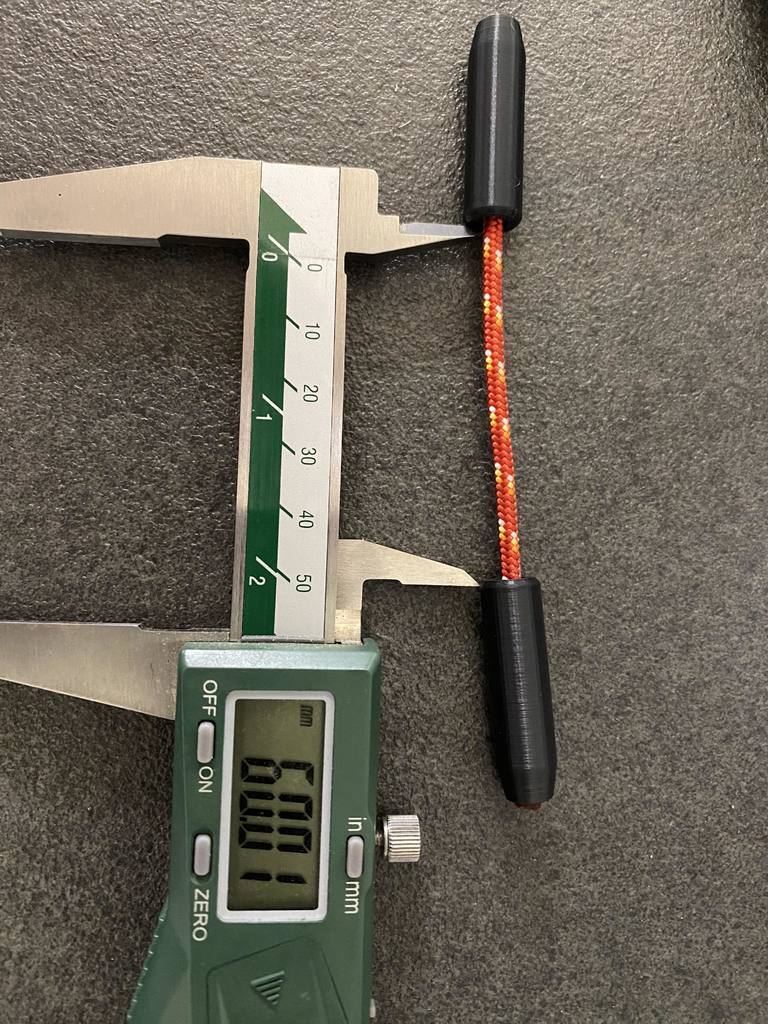

https://www.thingiverse.com/thing:6644829 -Mongolian Style Release
https://www.thingiverse.com/thing:6252161 -Serving Tool
https://makerworld.com/en/models/486891#profileId-399732 -XBow Sight by Durbanpoisonpew
https://www.thingiverse.com/thing:6679527 -Left Hand Version by jleslie48

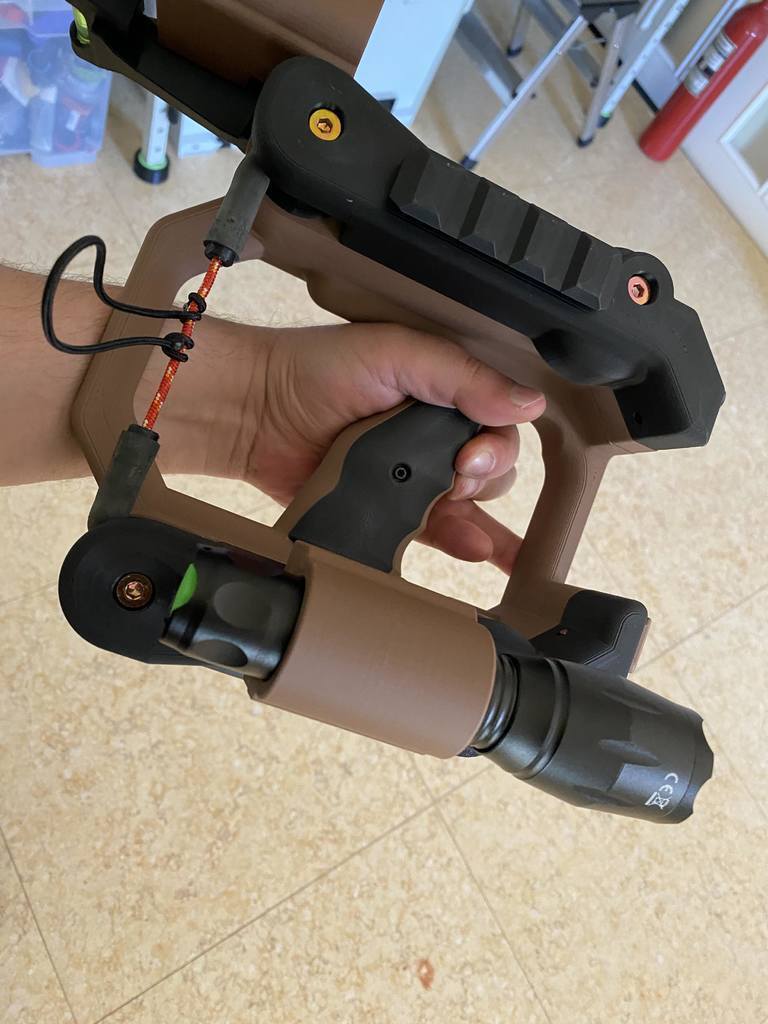

https://www.thingiverse.com/thing:6685633 -Tactical Light Attachment

Its intended to an all in one survival tool so i will be adding a few more accessories in the future. I also tried to use bearings in the pulleys but they didn't affect shooting much so you can def get away with just solid pulley.

Print Settings:
25% infill
8 walls on most parts except the pulley, Band Mounts & WB which I used 12 to make sure it does not flex
Supports only for the frame, NO Brim or Raft required, Long and easy print ;)
NOTE: I just added the print profile i'm using on my Bambu printers

BOM:

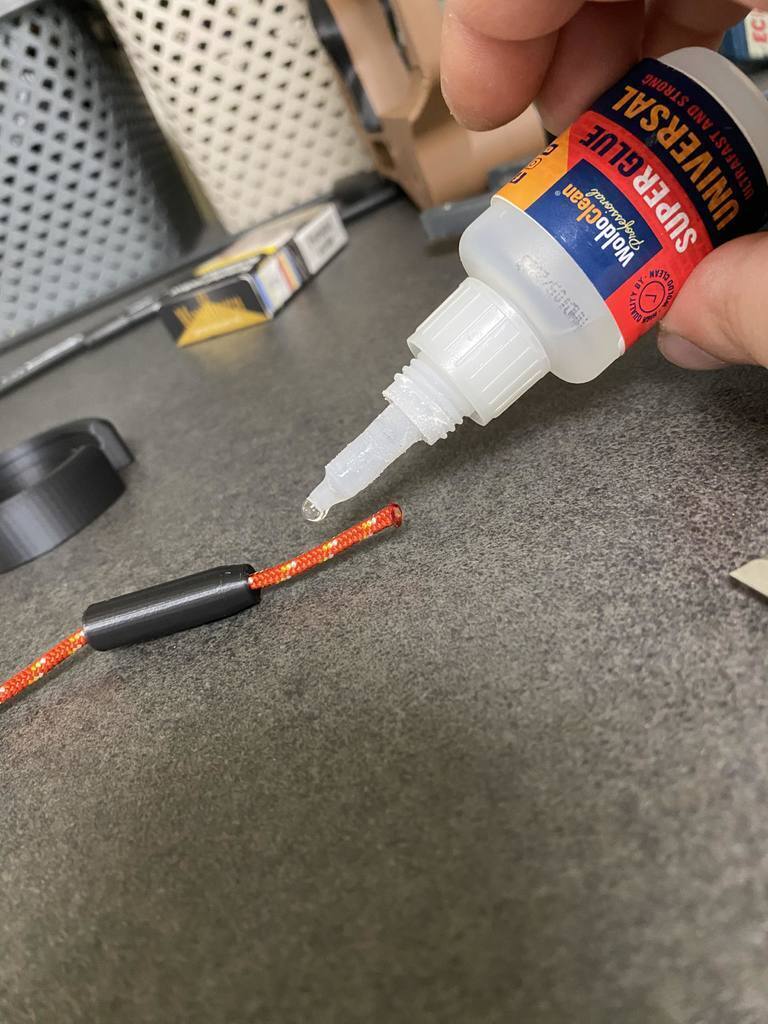

425 paracord for the string or any other braided 3mm-3.5mm OD cord + superglue

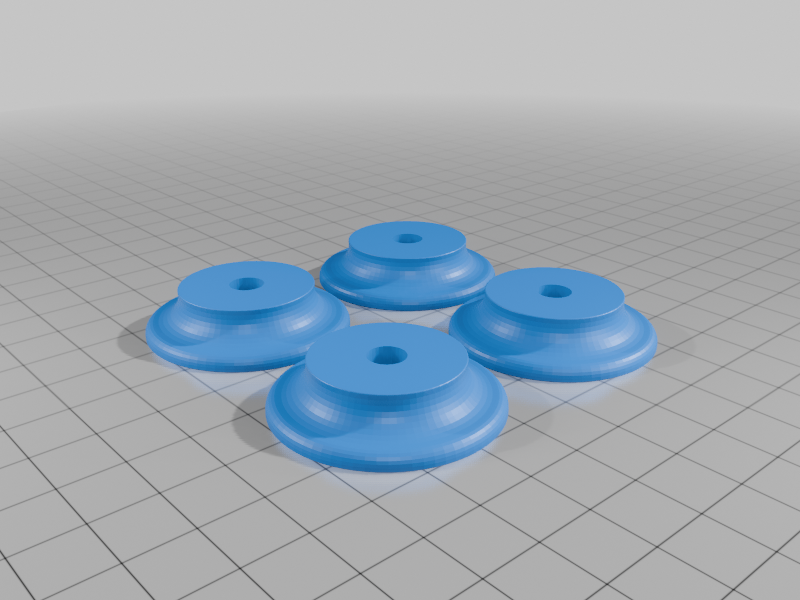

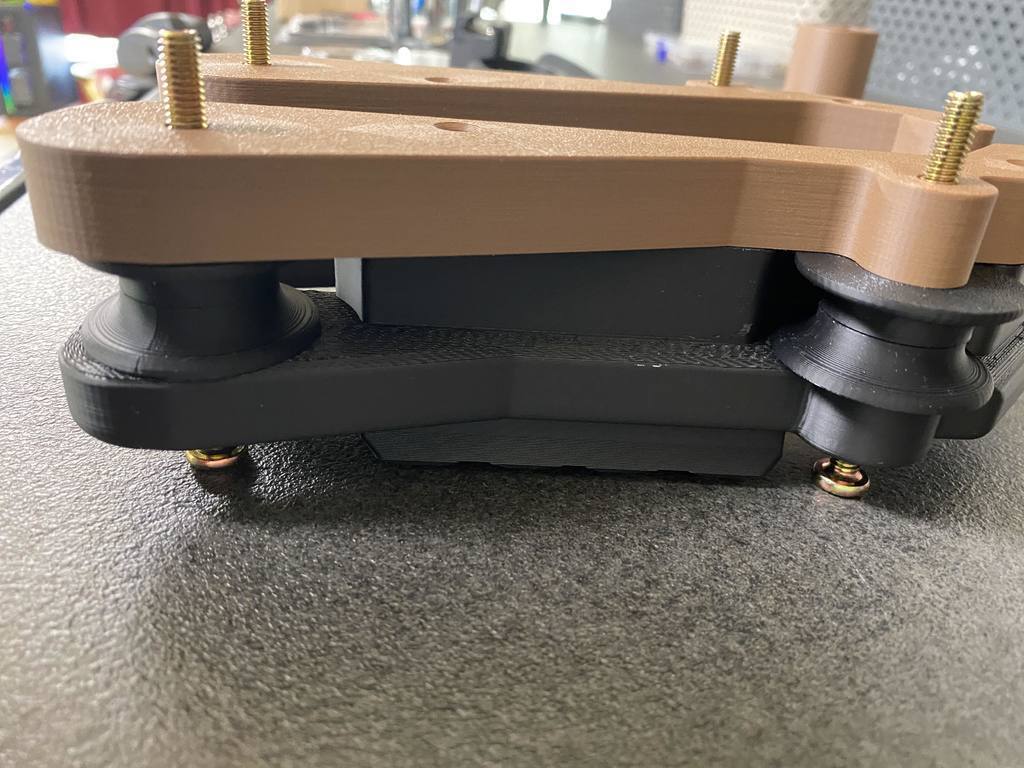

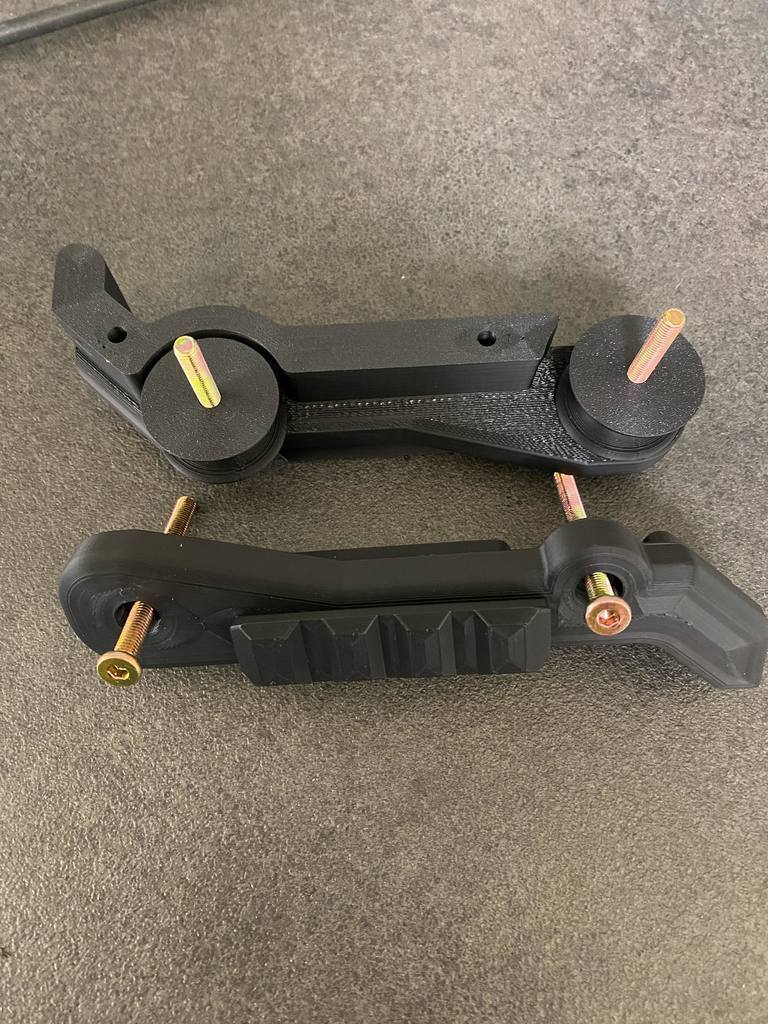

Pully:

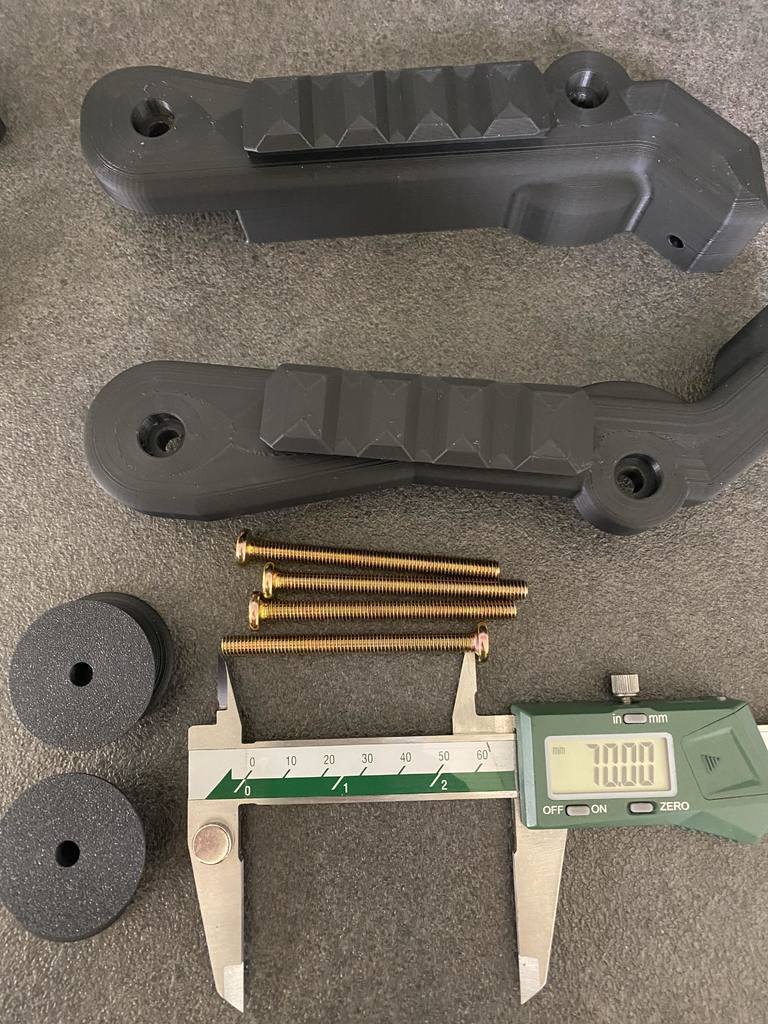

M6 70mmL Furniture screw x4

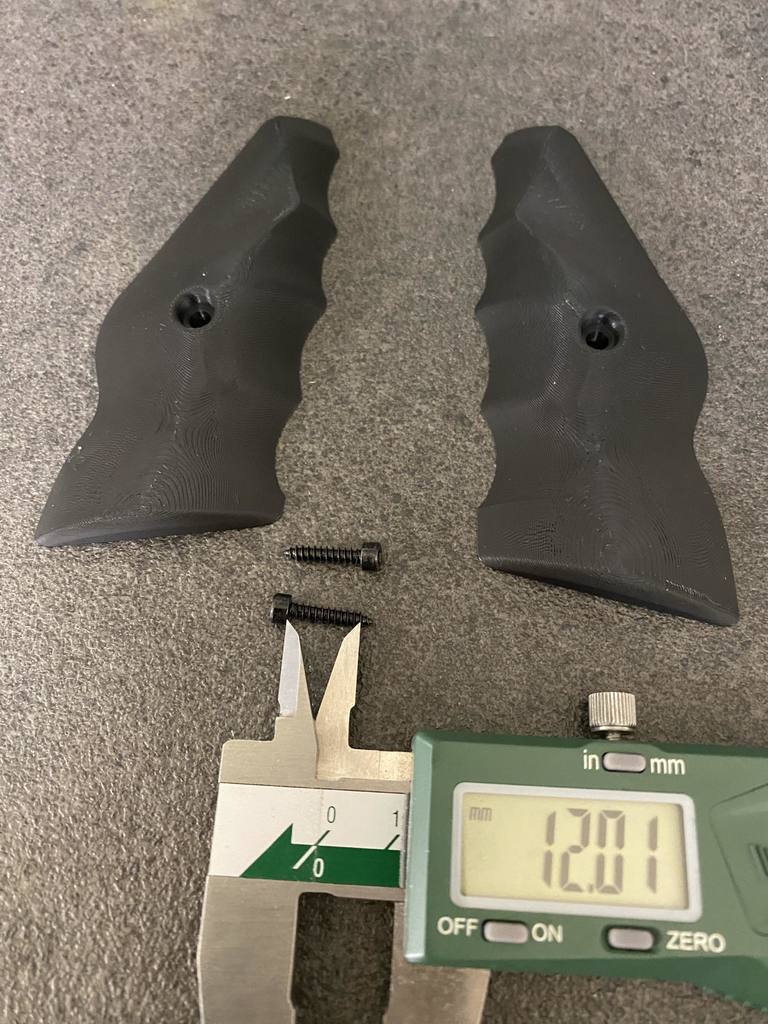

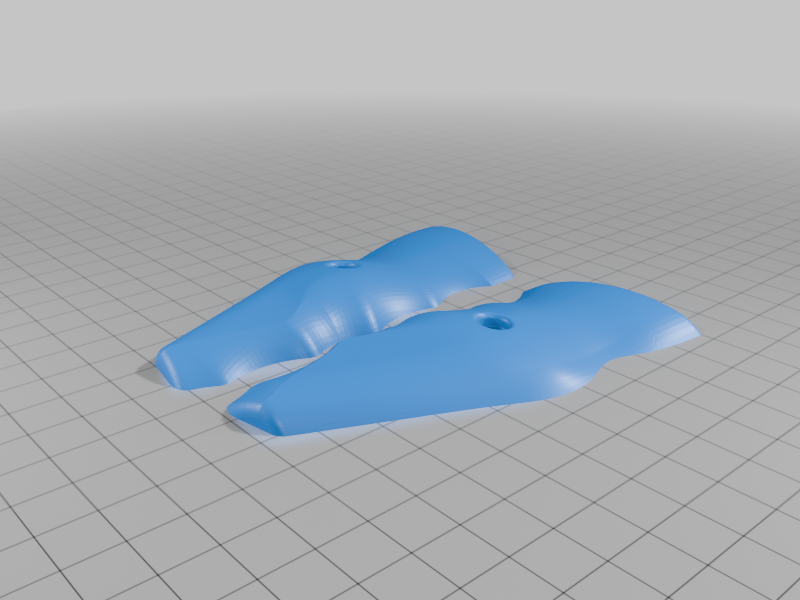

Grips:
M3 12mm L x2

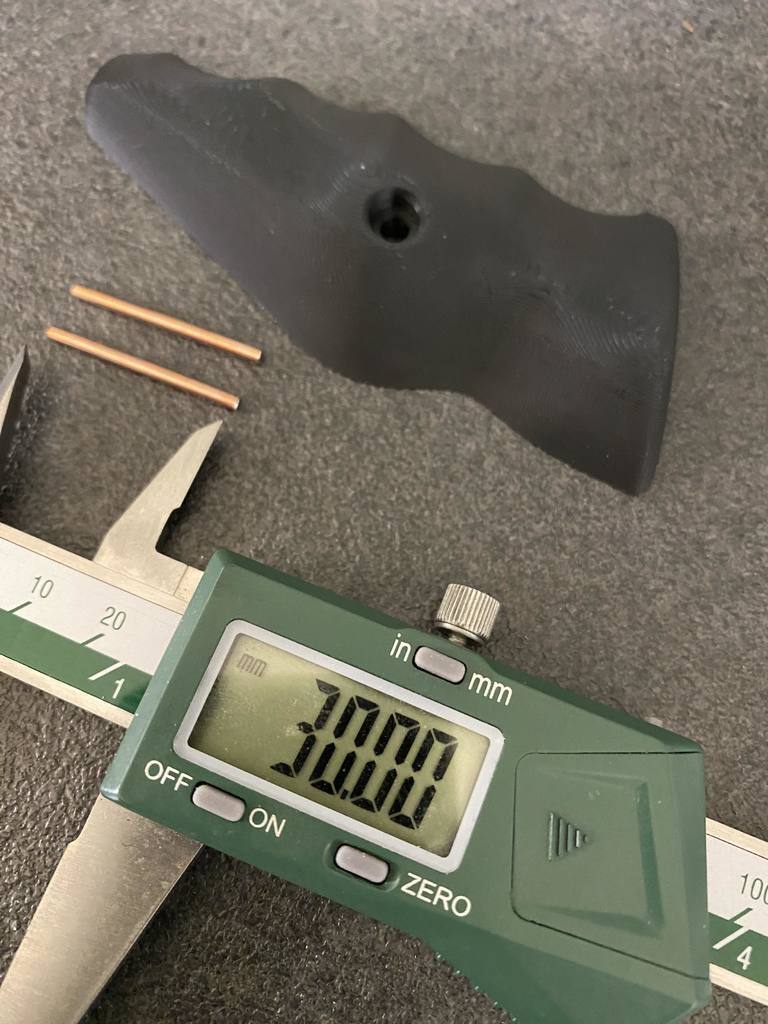

3mm 30mm L x2 Pins

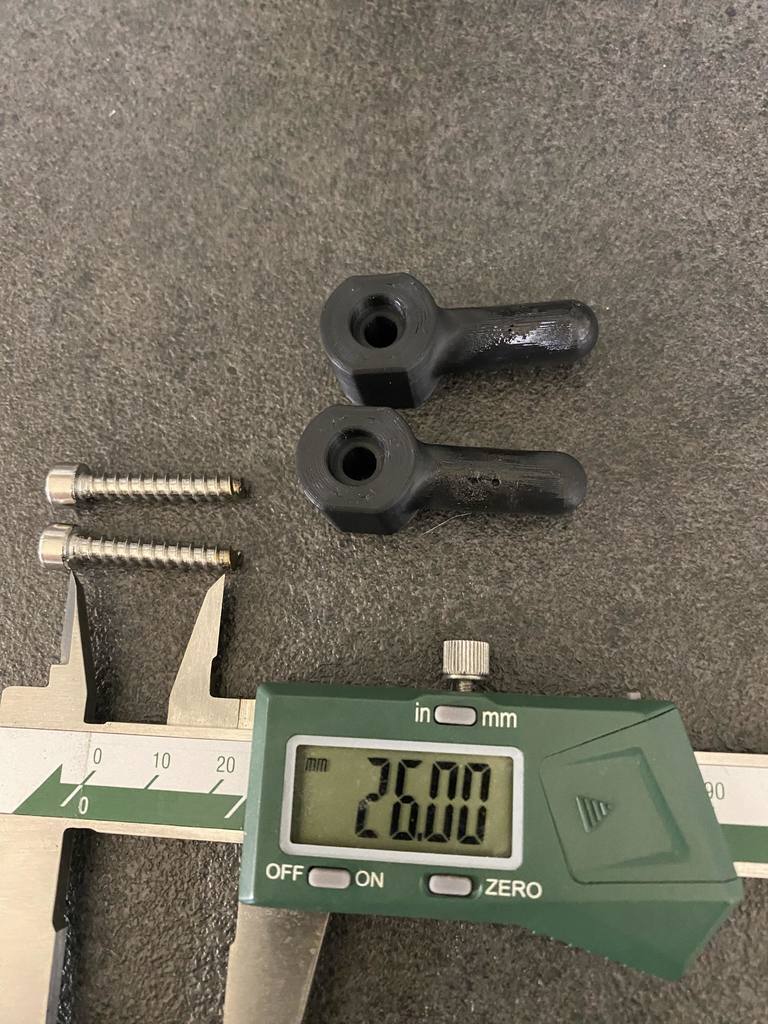

Rubber Holders:
M5 26mm L x2

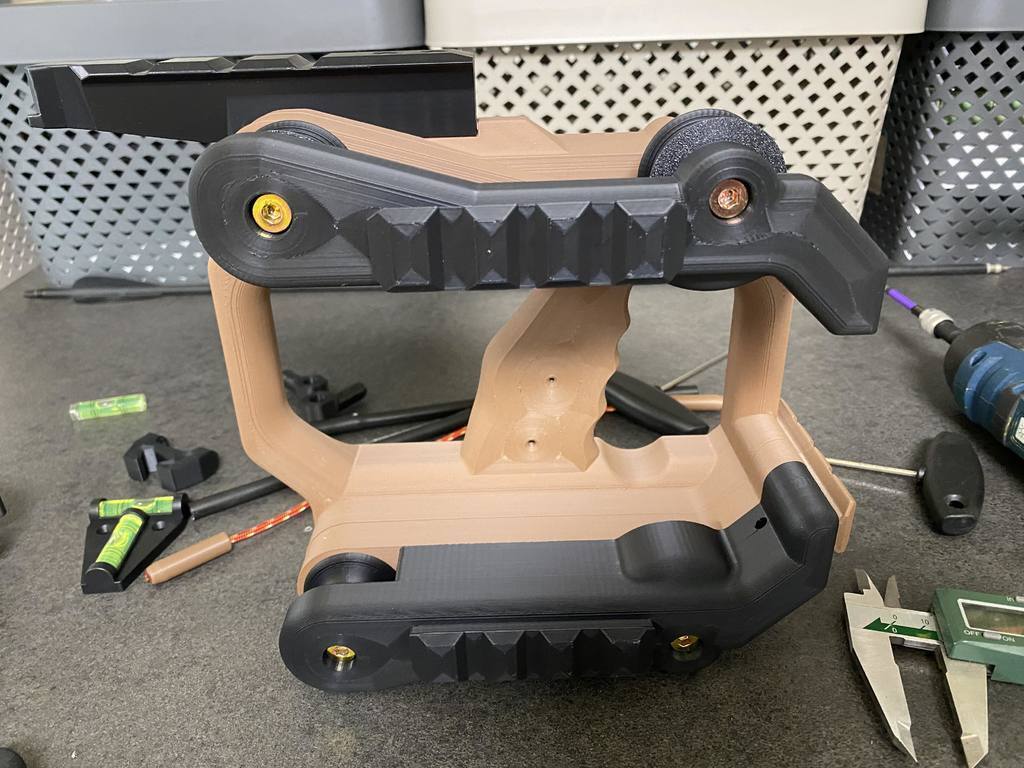

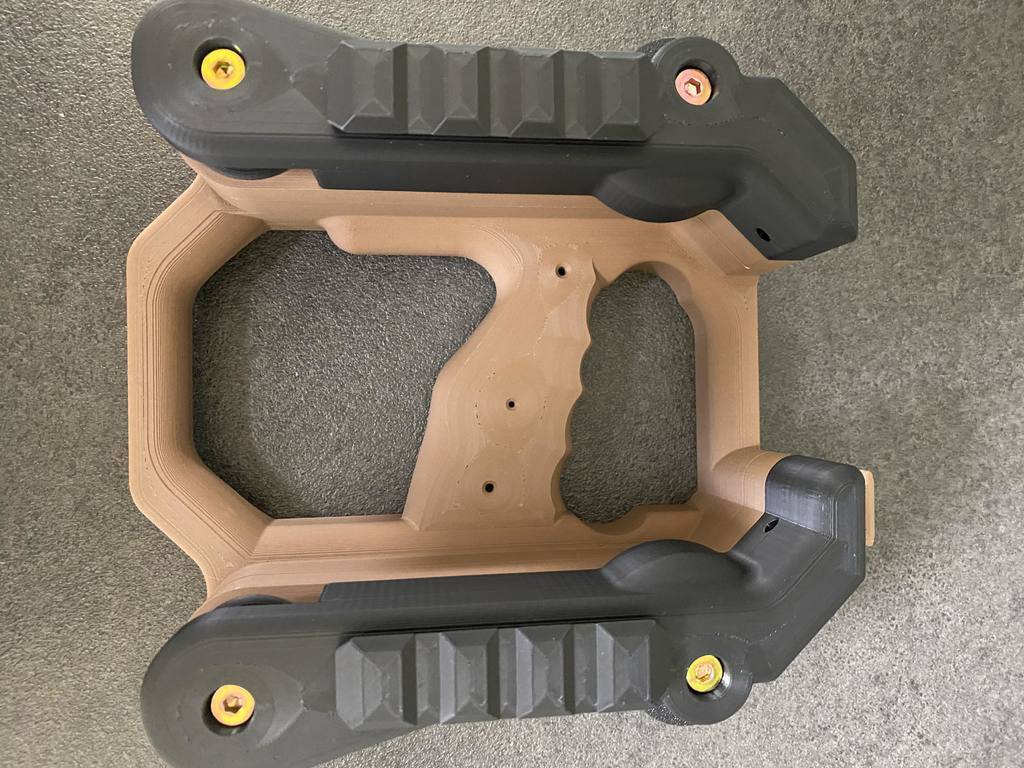

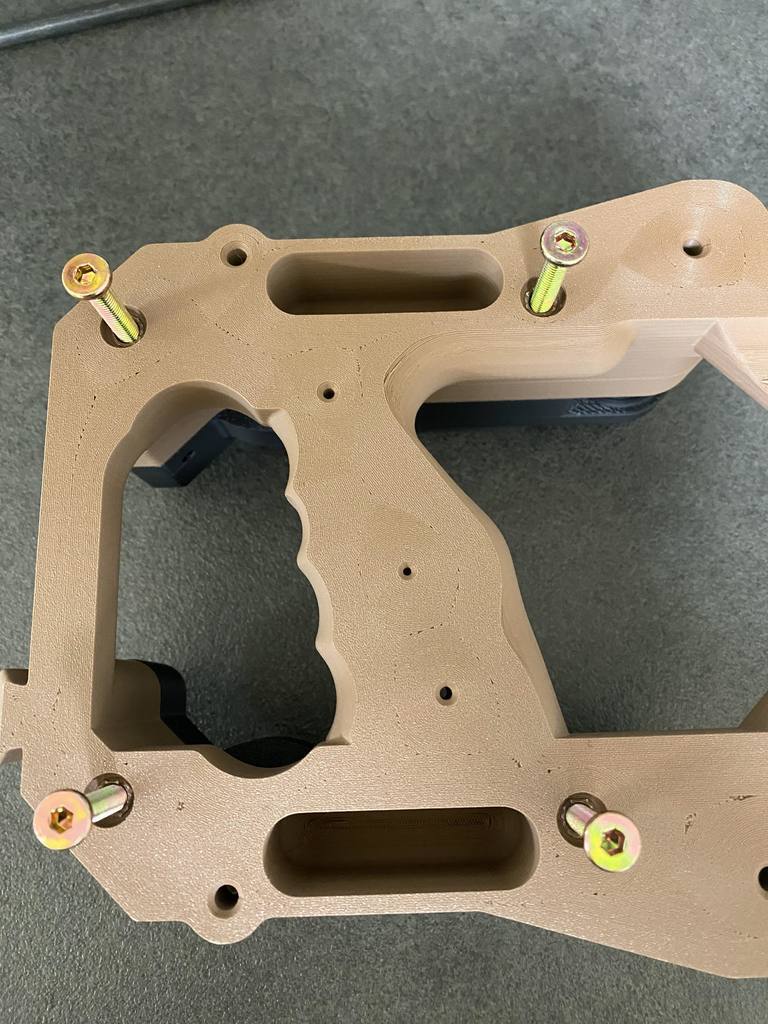

5 Piece Frame:

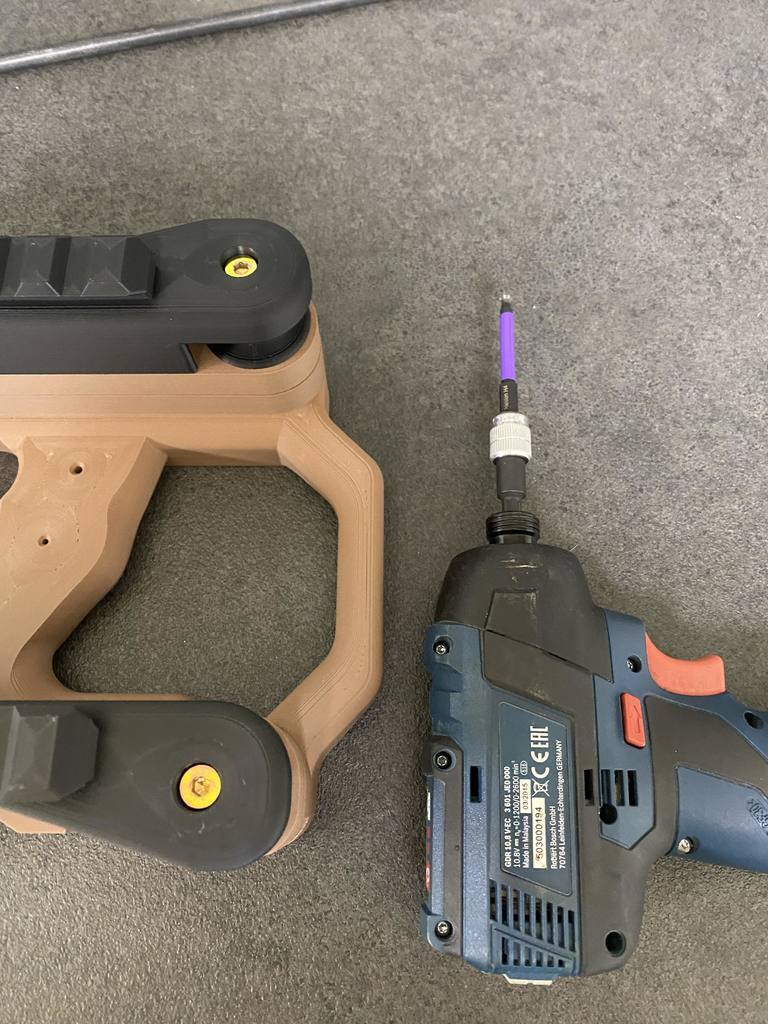

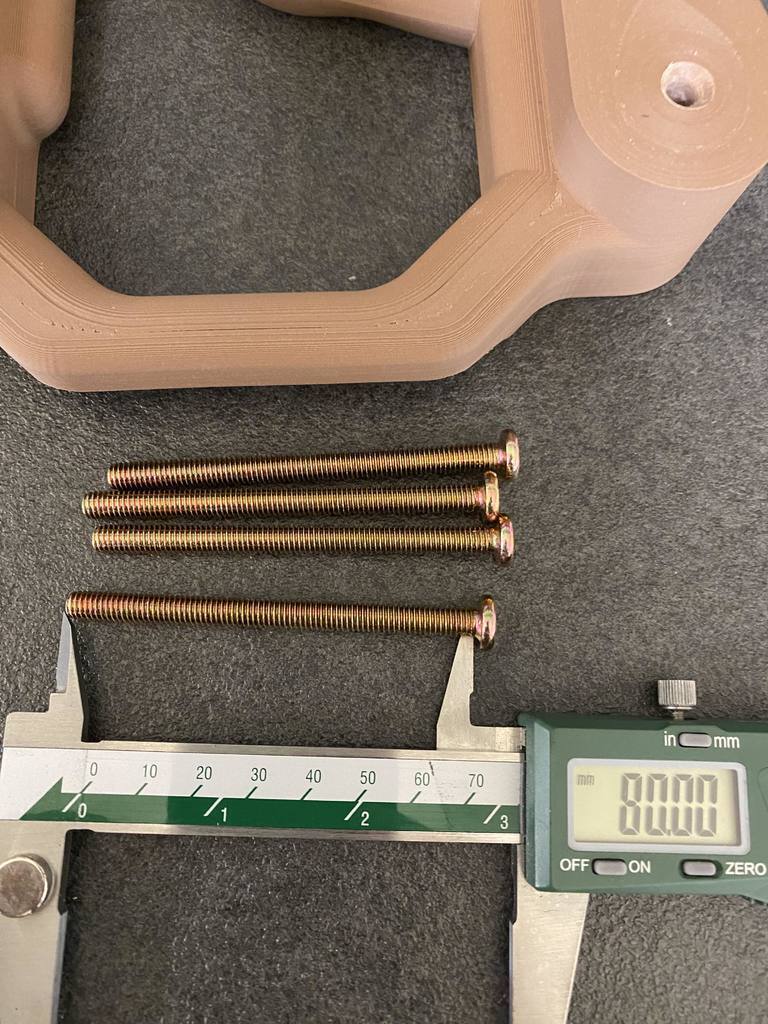

M6 80mmL Furniture screw x4

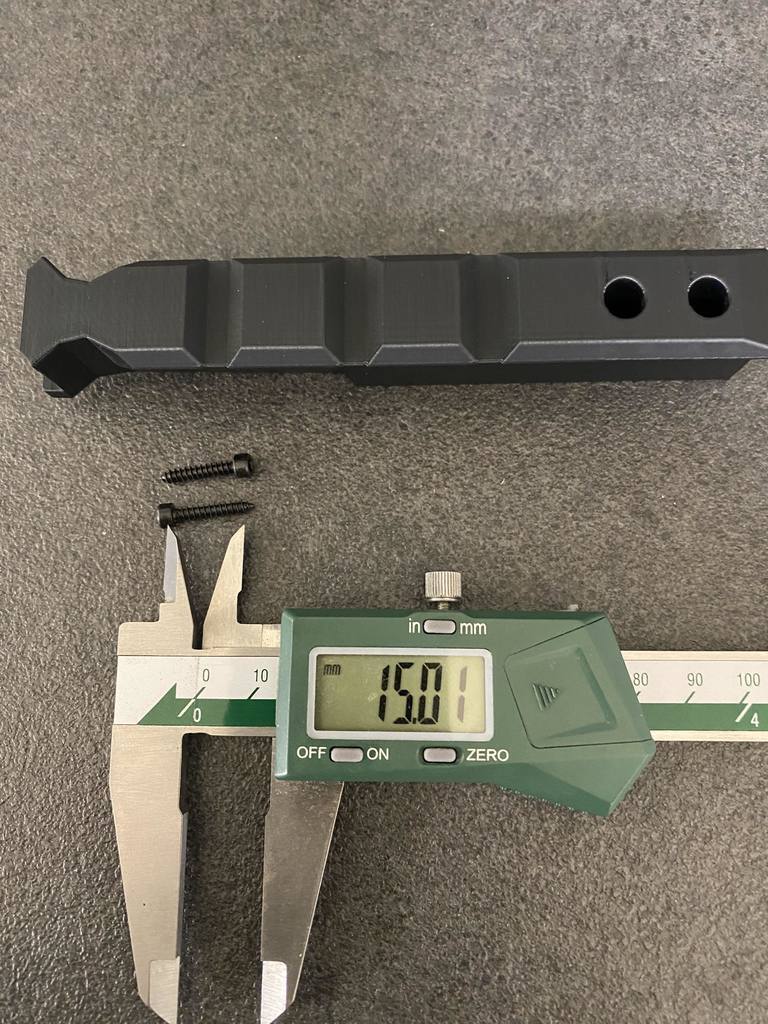

P Rail:
M3 15mm L x2

Attachments/Accessories:

Fishing Reel:

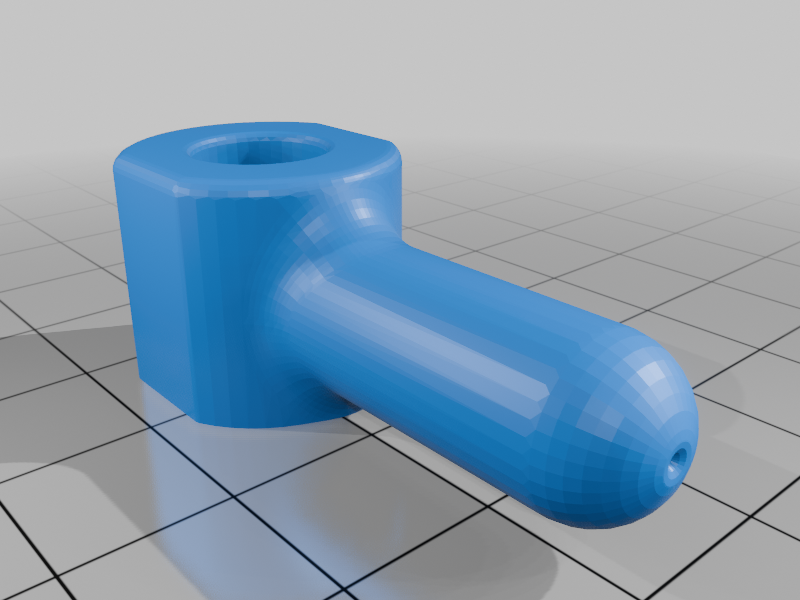

Winding Handle
M6 60mmL Furniture screw

Spool (Files found on version1)
M6 60mmL hex screw + Lock Nut

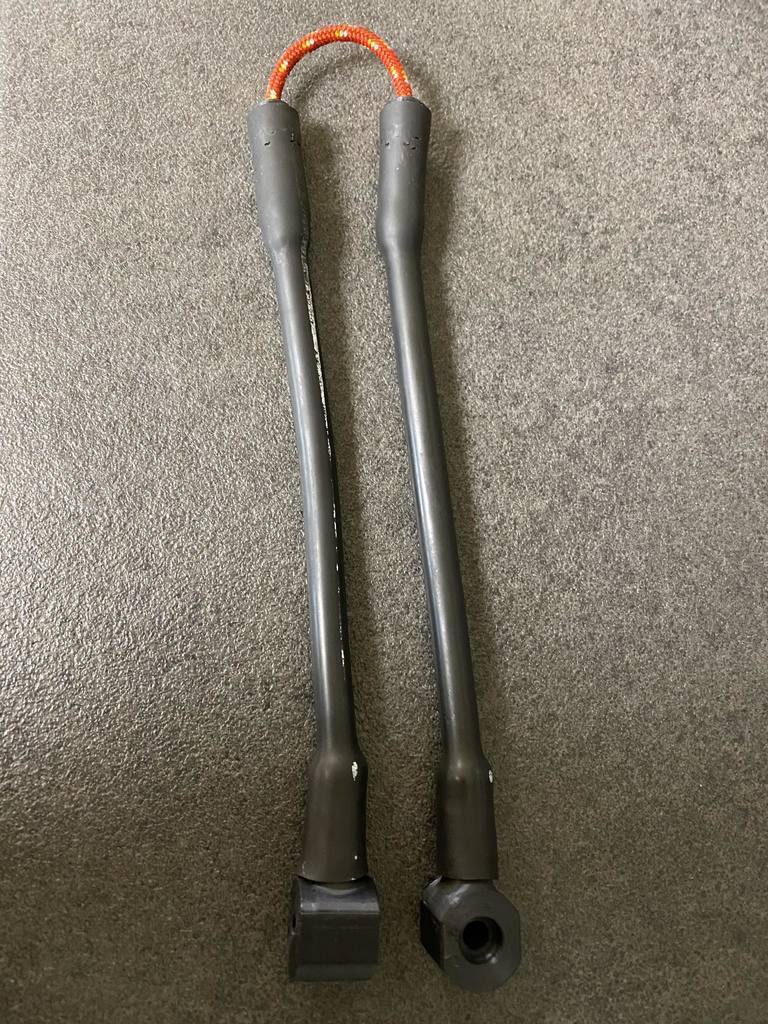

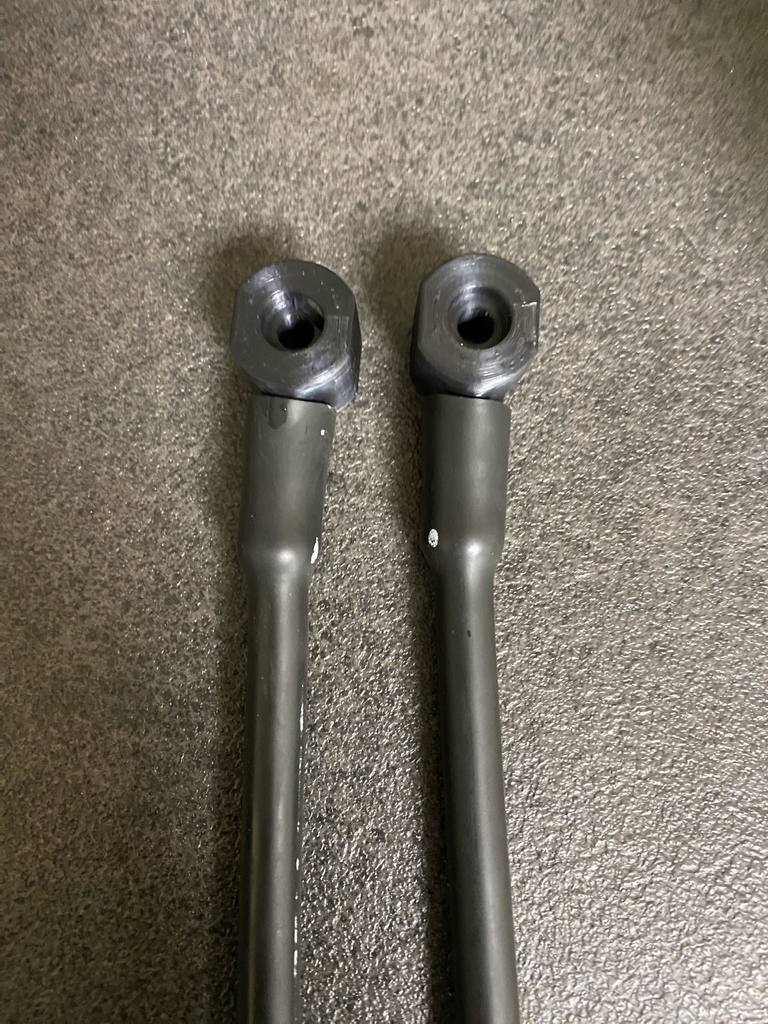

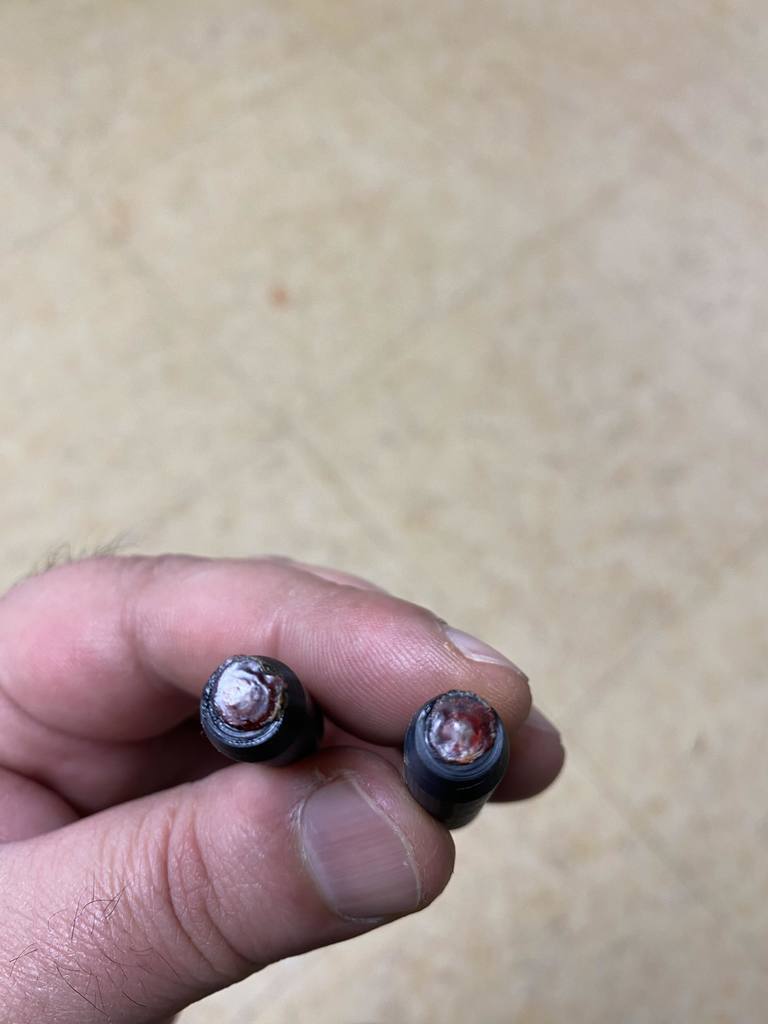

Bands cut 50mm from each end to give you the equivalent of a 30lb bow at 28" draw length. If you cant find the exact ones you can use any tube band with 8mm OD and 4mm ID x 180mm L... https://bbguns4less.co.uk/products/trumark-slingshot-power-band-heavy-pull-rr-2.html or https://www.amazon.com/Barnett-Natural-Catapult-Slingshot-Elastic/dp/B00279U8S6

Takedown Arrows: https://www.amazon.com/gp/product/B09WVT3J6T

Furniture Screws: https://www.amazon.de/-/en/Furniture-Cylindrical-Connecting-Galvanised-Connector/dp/B09NLTT3Z3/ref=sr_1_14

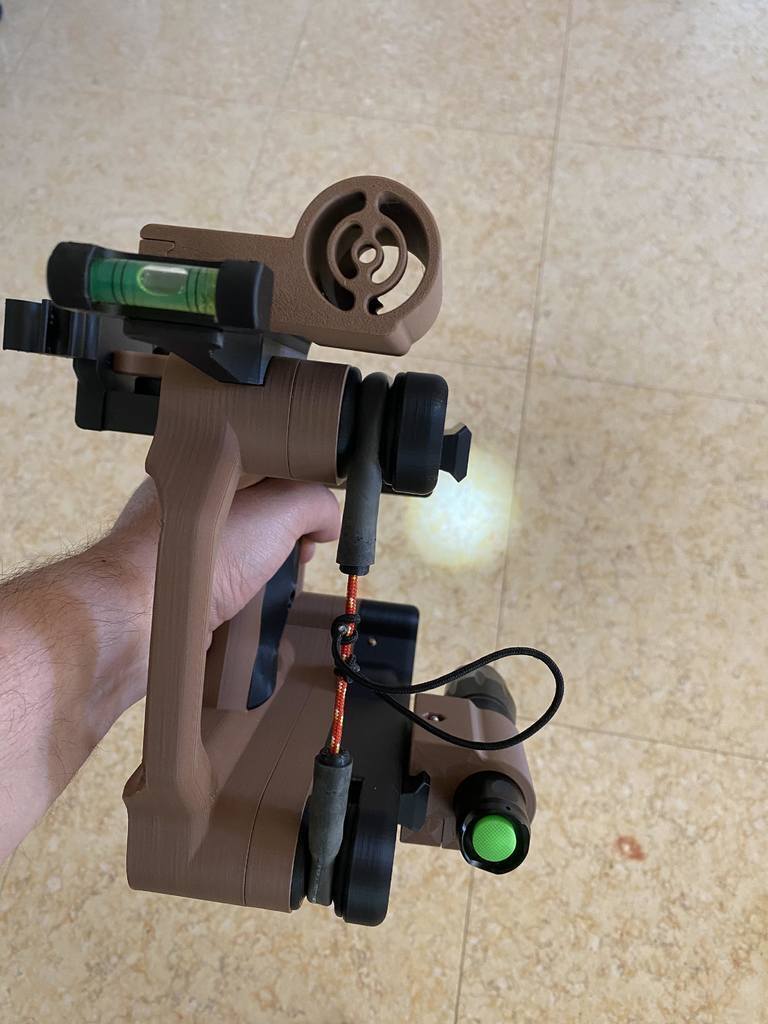

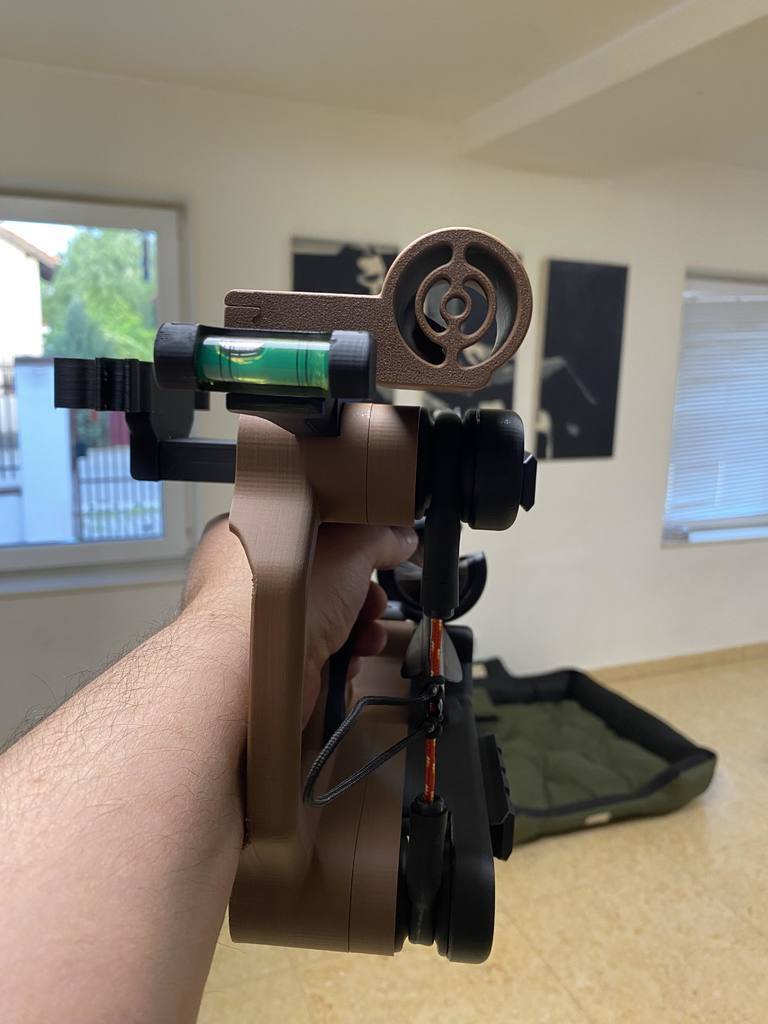

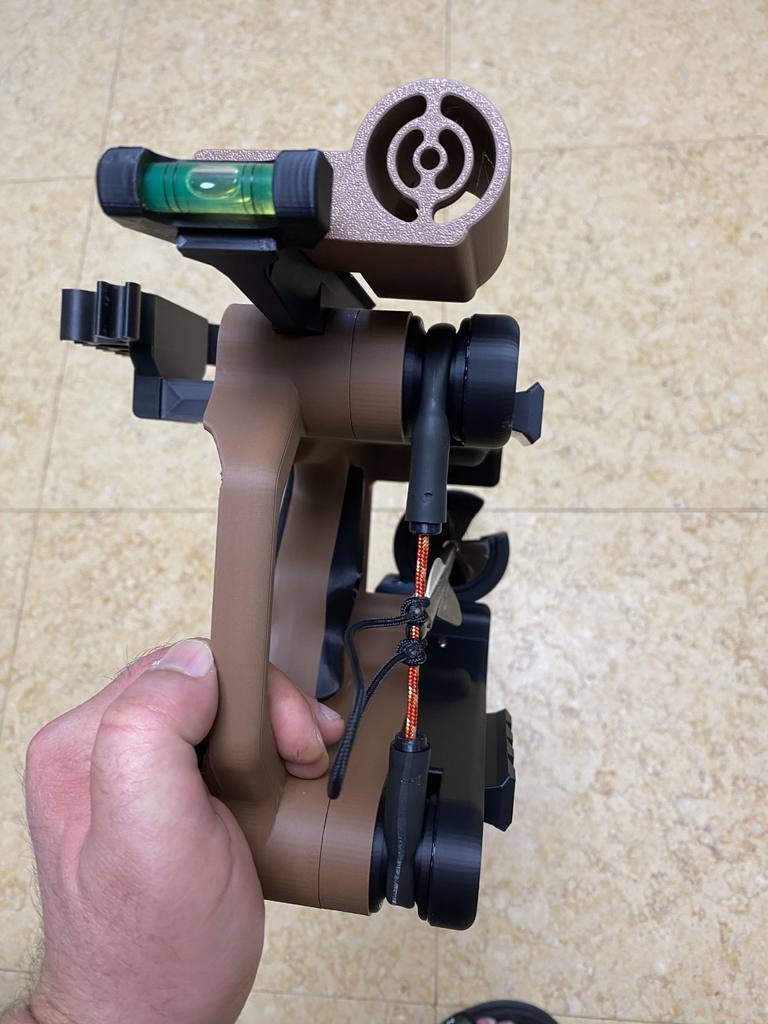

Bubble Level: https://www.amazon.de/dp/B0C5ML9QXD?

Whisker Biscuit https://www.amazon.de/dp/B002L9CJHK/ref=pe_1604851_66412761_SRTC0202IMG_cm_rv_eml_rv0_dp? or https://www.ebay.com/itm/293492131209? SIZE SMALL

Testing: https://www.youtube.com/shorts/lVDLl8R8F2E & https://www.youtube.com/shorts/coq2-F3OdlM & https://www.youtube.com/watch?v=QtruCNdfnFA&ab_channel=CrizzledOne

If you are interested in other prop firearms, Airsoft parts, tutorials and designs do join our group on Matrix:
https://app.element.io/?pk_vid=f12152aac29bbc4a166549437941781a#/room/#GCI-General:matrix.org

!!!Note: I'm always open for suggestion and help on improving the design and proof of concept.
