Simple triple switch bracket for small boat electronics

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 186 views
  • 1 like
  • 1 download

3D model description

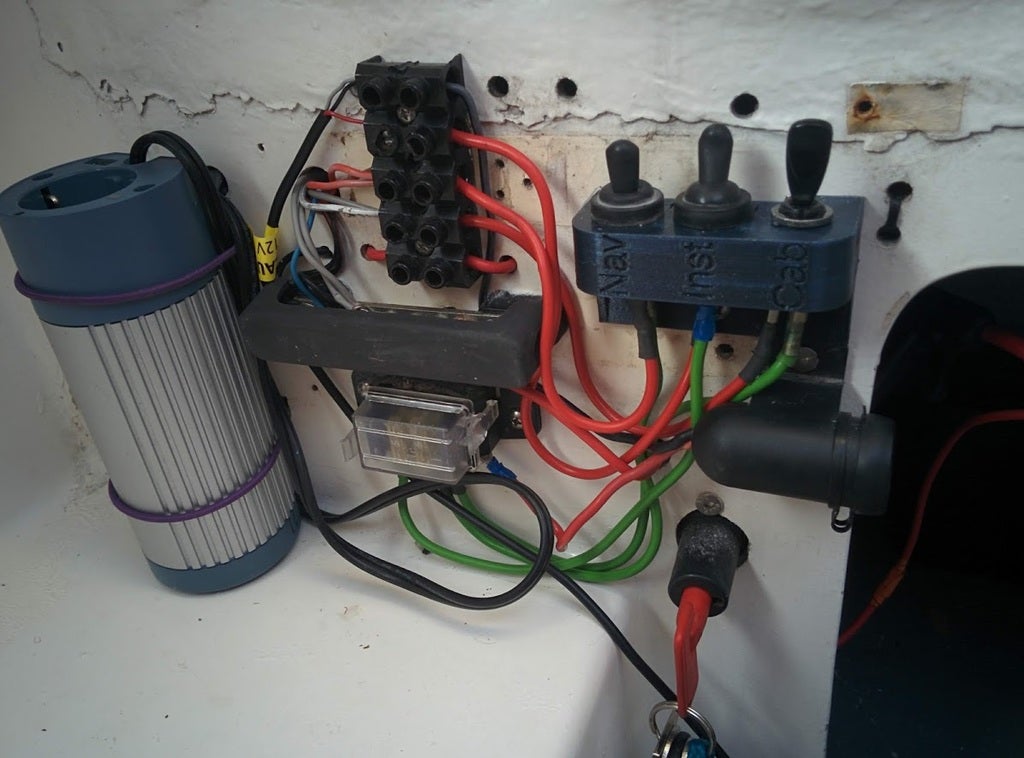

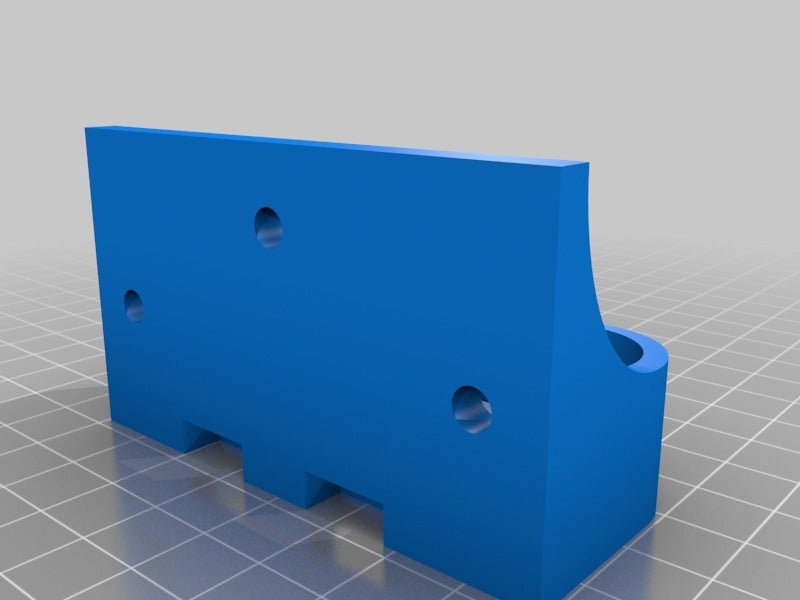

Rebuilding the electrics in my boat I designed this as part of my 'bring the wires out into the open away from damp' policy(*), it securely holds three standard boat/car paddle switches (12mm diameter mount) with good access to the terminals. three screwholes on the backplate help attachment, there are even some cable channels, though I do not use them.

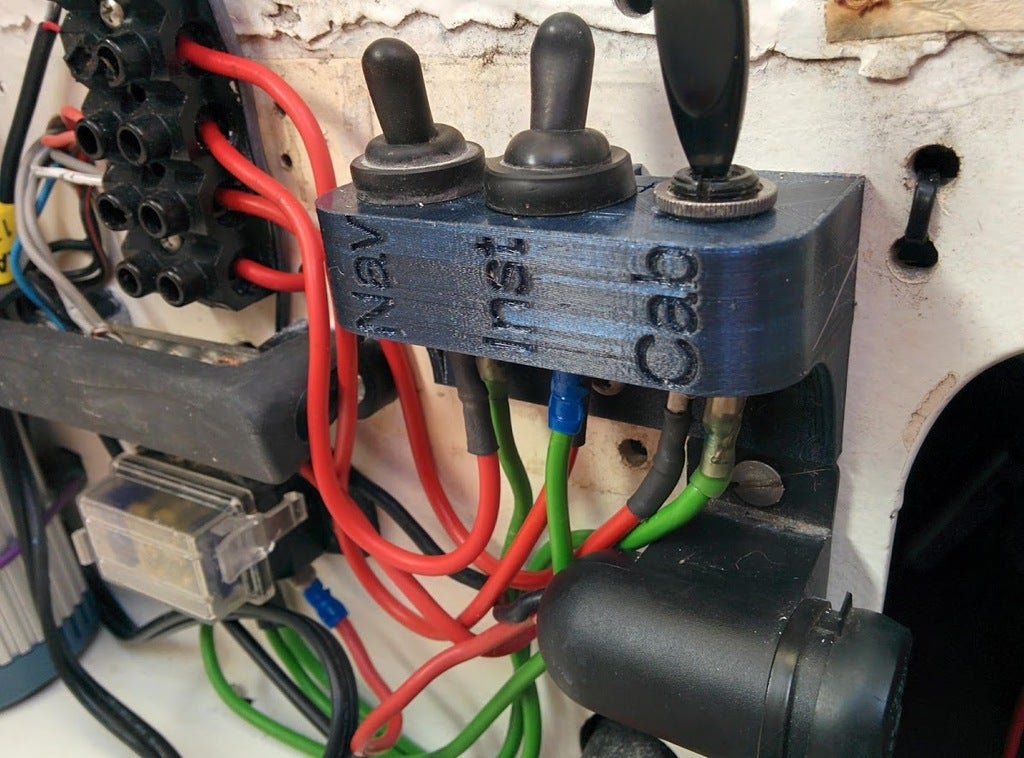

The 'notext' version is plain, but I have three switched circuits: Interior lights, Navigation lights and Instruments on my boat, so I labelled them up in the final version.

Scad file included, you can play with labelling etc with this.

(*) I was rebuilding for a reason :-O
