Raspberry Pi case

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 518 views
  • 15 downloads

3D model description

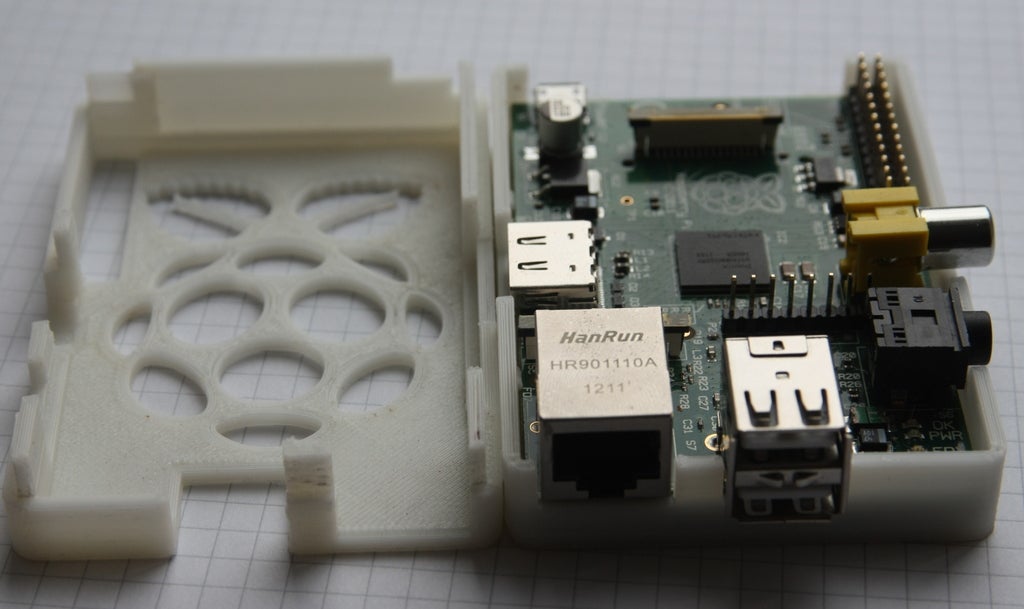

Case for Raspberry Pi.
Derived from http://www.thingiverse.com/thing:24945 but with dimensions that fit my Raspbery Pi more accurately.
Wanted to clarify- there were several things I modified:
1) Merged lincomatic's version with latest from Hans.
2) Made the micro USB power connector hole about millimeter taller- otherwise it didn't quite fit.
3) Shaved 0.5mm off from wall which is next to GPIO hole- otherwise it did not fit next to GPIO pins (the pins themselves did fit, but pins have a wider base).
4) also, moved SD card hole a bit. Card reader was in a way of case otherwise.
5) Made the case mating walls longer- otherwise they break too easy.

3D printing settings

I'm planning to add two things to this case:
1) Some mechanism to better lock top and bottom together. I'm thinking of simple 0.5-1mm bits on outside of bottom wall and identical holes on the inside of top walls.
2) Vesa mounts.

  • 3D file format: SCAD and STL
  • Publication date: 2019/07/30 at 15:42

Tags

Creator

License

CC BY SA
