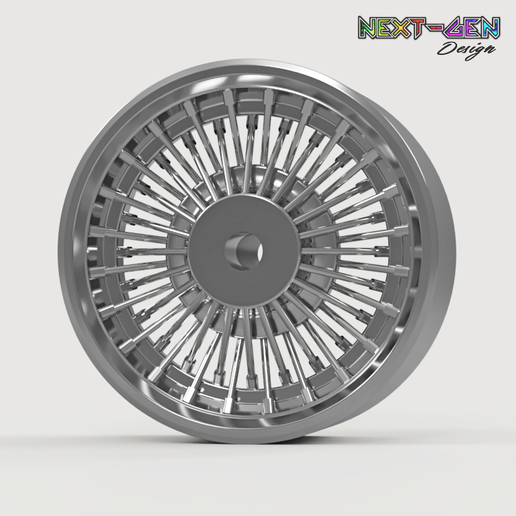

1966 Ford Mustang Wire Rim Hubcap (with and without a dust cover)

Next-Gen Rim Design | Precision. Flexibility. Detail.

Experience the realism and flexibility of our Next-Gen Rim Design—crafted for scale model cars from 1:64 through 1:18.
Each file is designed with exceptional accuracy and strength, ensuring stunning results even at small scales.

What's Included

You’ll receive a comprehensive set of STL files, giving you full control and customization
Options. These consist of:
1. Rim with Hub
2. Rim with Hub (No Badge)
3. Rim with Hub (No Badge, Larger Center)
4. Rim without Hub
5. Rim without Hub (No Badge)
6. Rim without Hub (No Badge, Larger Center)
7. Rim Face
8. Rim Face with Badge
9. Outer Rim
10. Sleeve
11. Hub (Standard)
12. Badge

Key Features

• Accurate Design: Modelled directly from the original rim for true-to-scale detail.
• Solid Construction: Thicker faces and outer rims provide enhanced durability—ideal for smaller prints.
• Dimensions: 100mm x 50mm with a 10mm center (@100% print).
• Scalable: Easily adjust for 1:18, 1:25, 1:32, 1:43, and 1:64 scales.

Scaling Guide

To calculate scale:
- 1:18 Scale: Real rim ÷ 18
- 1:25 Scale: Real rim ÷ 25
- 1:32 Scale: Real rim ÷ 32
- 1:43 Scale: Real rim ÷ 43
- 1:64 Scale: Real rim ÷ 64

Example:
A real 19" rim in 1:32 scale → 19 ÷ 32 = 0.59 inches / 25.4mm (≈25.4% of file size).

If using our tyre files (sized for a 100mm rim), scale them by the same percentage. For best fit, make tyres slightly larger to allow for print, cure, and paint tolerances.

Compatibility

• Standard Hub: Perfect for 1:64–1:43 models using push axles.
• Through Axles (Hot Wheels style): Use the "With Hub, No Badge, Larger Center" file — drill if necessary for smooth rotation.
• Larger Scale Models: Use "Rim Without Hub"; compatible hubs are available separately from our store. link
• Rubber Tyres: For secure mounting, use our Tyre Retainer Ring Set available from Cults3D store. link

License & Usage

• Files are for personal use only — not to be shared, sold, or uploaded elsewhere.
• To sell physical prints, a Commercial License is required. link

At Scale Model Wheels and Design, we take pride in crafting authentic, print-ready files that bring real-world wheels to scale.

Follow us for new releases and see how our designs can transform your next build.

#ScaleModelWheels

Recommended Print Settings

Printer:
Resin printer for smaller scales (1:64–1:25)
FDM printer for larger scales (1:25–1:18)

Material:
Resin / PETG / PLA

Print Orientation:
Rotate -45°, with the rim face angled upward for best surface finish.

Supports:
Where possible, add supports to the outer rim and center hub only.
Avoid excessive supports on the rim face, particularly with spoked designs, to preserve fine detail.

Quality Control

Each file has been thoroughly checked for geometry faults and print readiness prior to listing to ensure consistent quality.
If you experience any issues with your print, please contact us at scalemodelwheels@outlook.com
— we’ll work with you to resolve it promptly.
