Nema 17 Motor Mount - Horizontal Bracket

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 2 likes
  • 79 downloads

3D model description

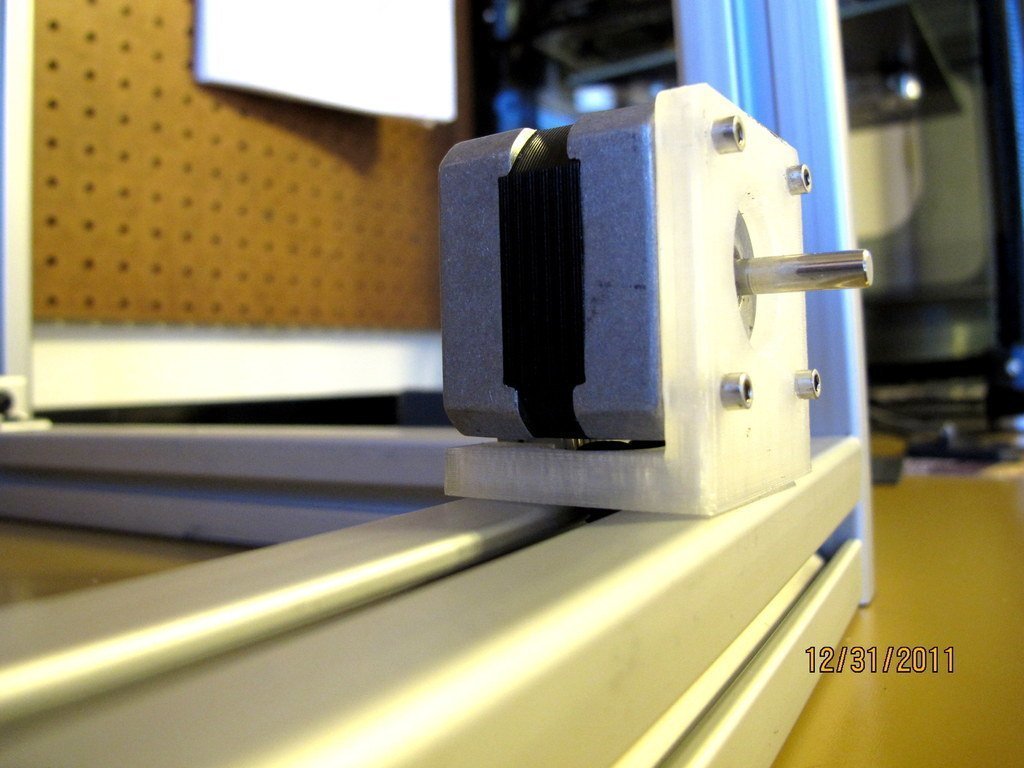

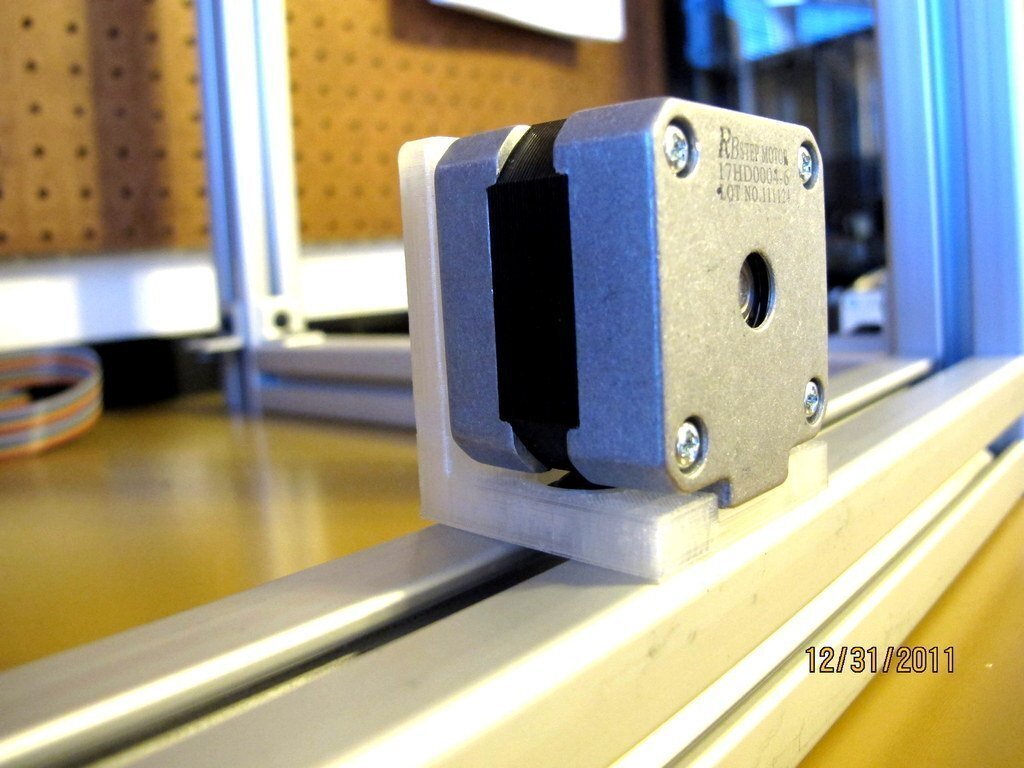

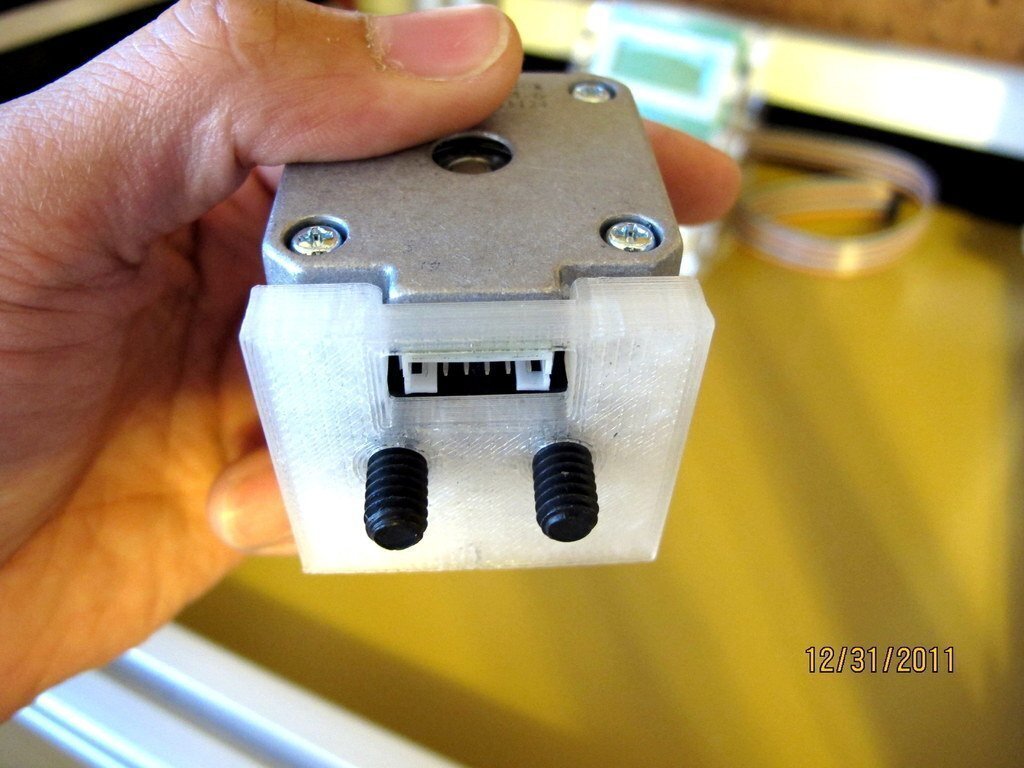

Nema 17 Motor mount drawn in Google Sketchup. Hidden hardware design allows for a clean setup. Use this Motor mount to Mount a Nema 17 Motor Horizontally with 1/4 holes. The motor i designed it for is 32mm width front to back. Counter Sunk holes for a clean stealth look, No wires showing! Enjoy :)

3D printing settings

  1. Download
  2. Open in Replicator G or Software. (I am scaling it to 2515% on Axon 2)
  3. Print!
  4. Share your Comments and "Like" us on Facebook www.facebook.com/mintingmill

Check out my other Creations.
http://www.thingiverse.com/MintingMill

  • 3D file format: STL
  • Publication date: 2019/04/11 at 17:17
