MINI & LARGE PDW (Airsoft Carbine Conversion Kit)

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 8.2k views
  • 25 likes
  • 401 downloads

3D model description

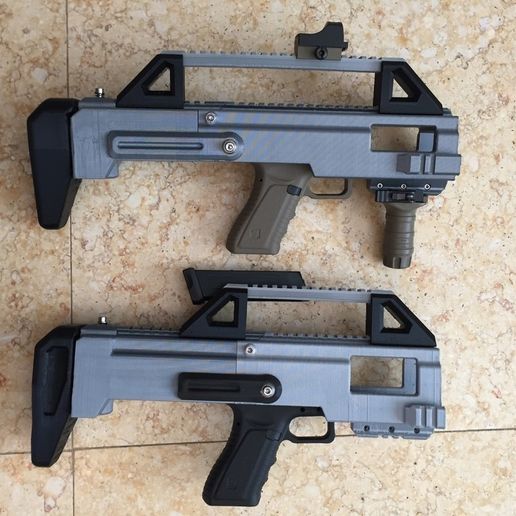

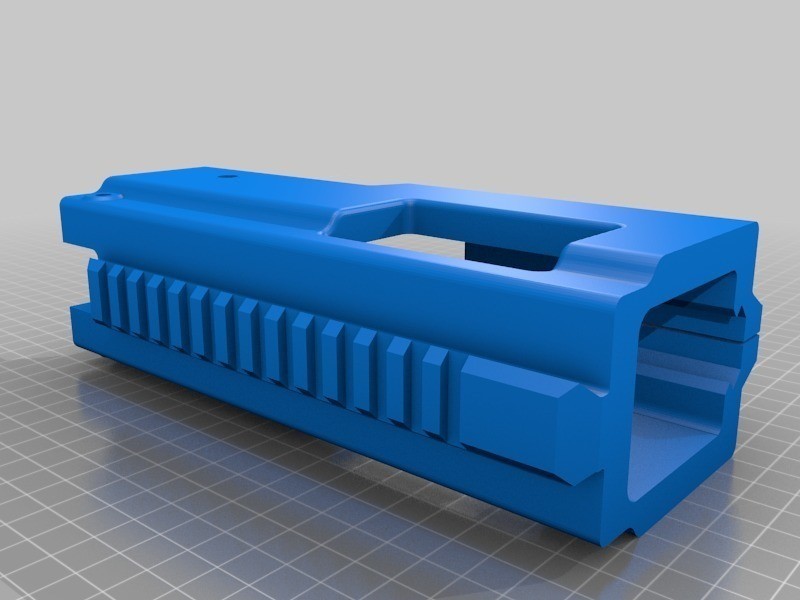

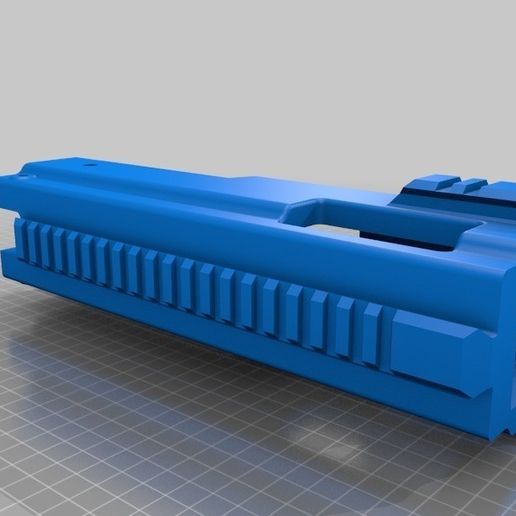

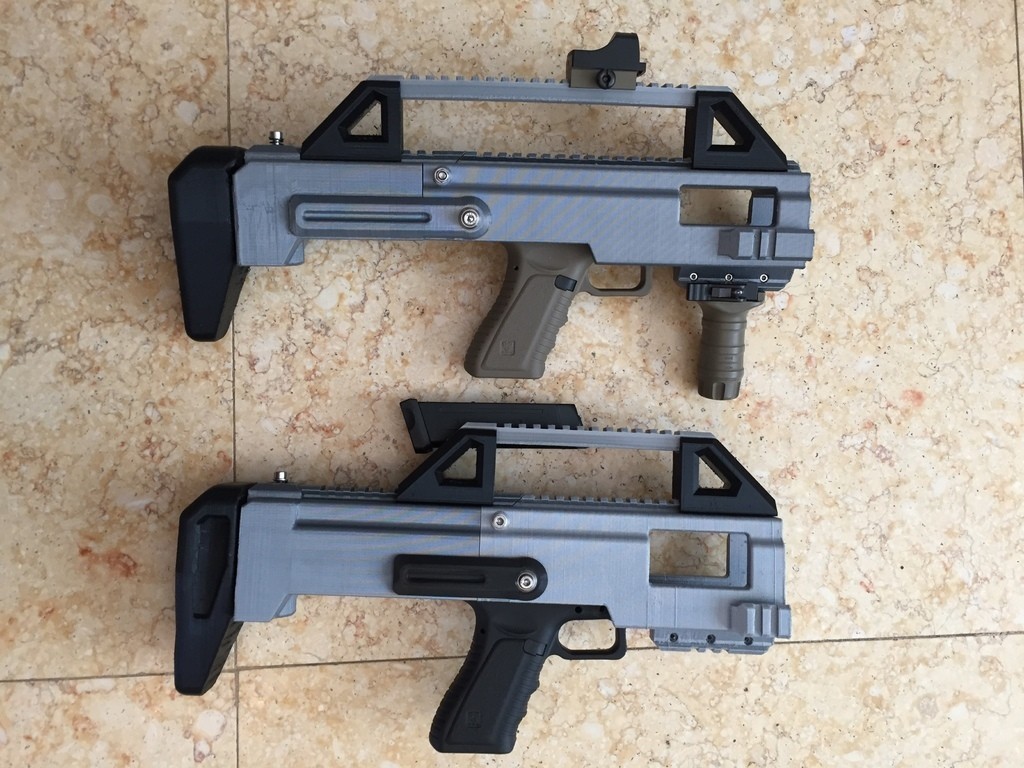

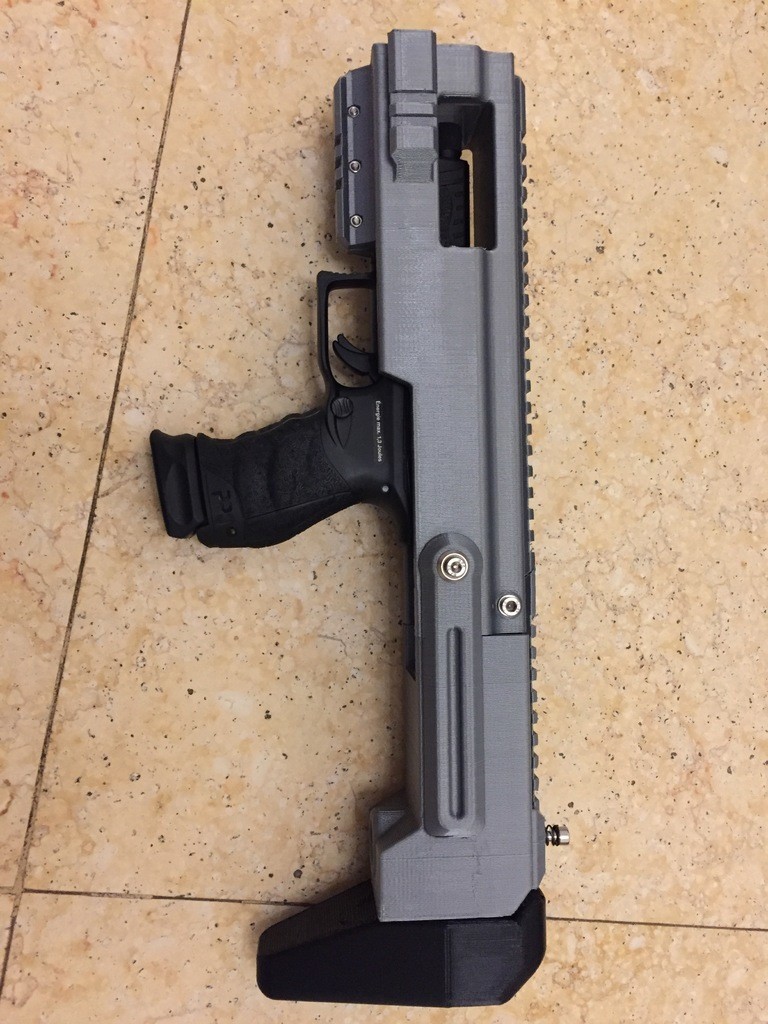

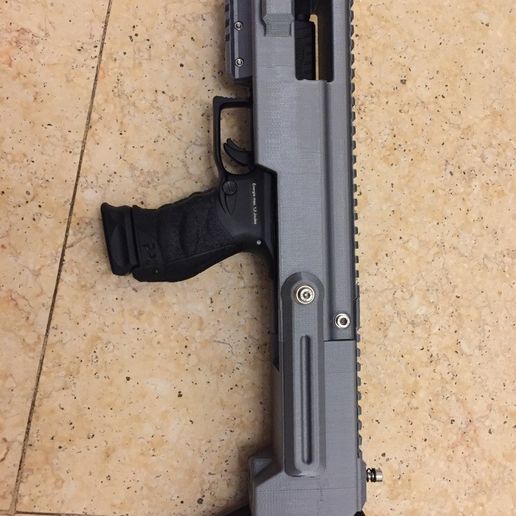

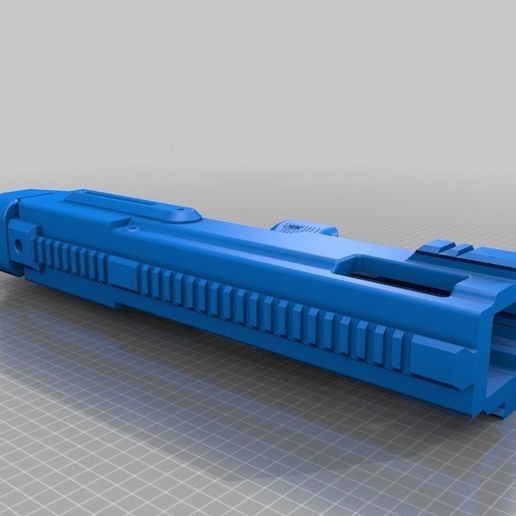

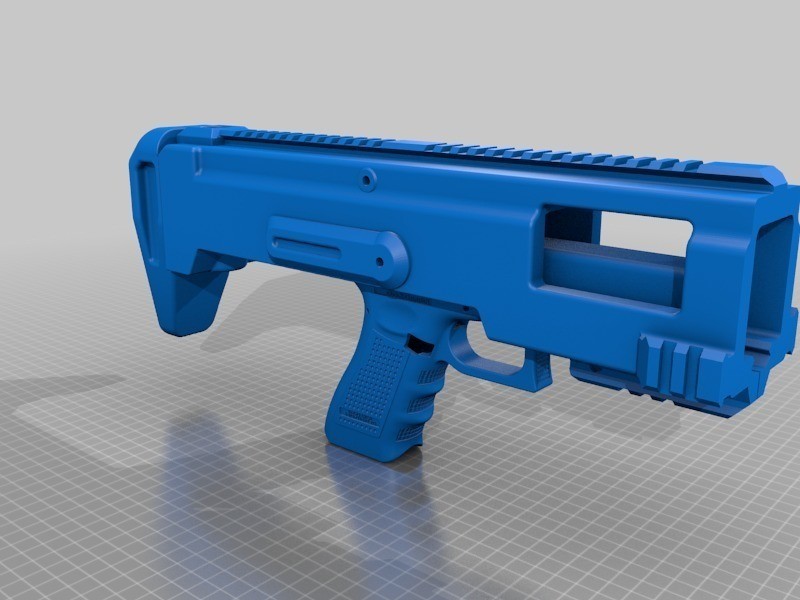

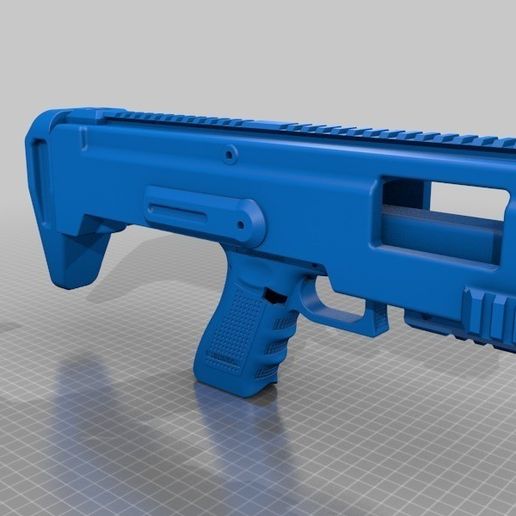

This is V3 of my RONI KITS its MINI & LARGE PDW Carbine conversion kit can be attached to any Airsoft pistol and converts it to a cool futuristic Version of the M41A PULSE RIFLE, as long as there is a P-Rail attachment on the pistol. This is only a case and does not have any mechanical parts (Apart from the retractable stock) so the reliability of your pistol stays the same.

Features Include:
4 Rails
Retractable stock
Improved Clamping System
Very Lightweight
10mm Higher than my previous designs
15mm Wider than my previous designs
Ambidextrous Charging Handle
Accept a compensator or suppressor

Requires a 200mm print bed

Mini RONI: https://www.thingiverse.com/thing:3030223
Medium RONI: https://www.thingiverse.com/thing:3041440

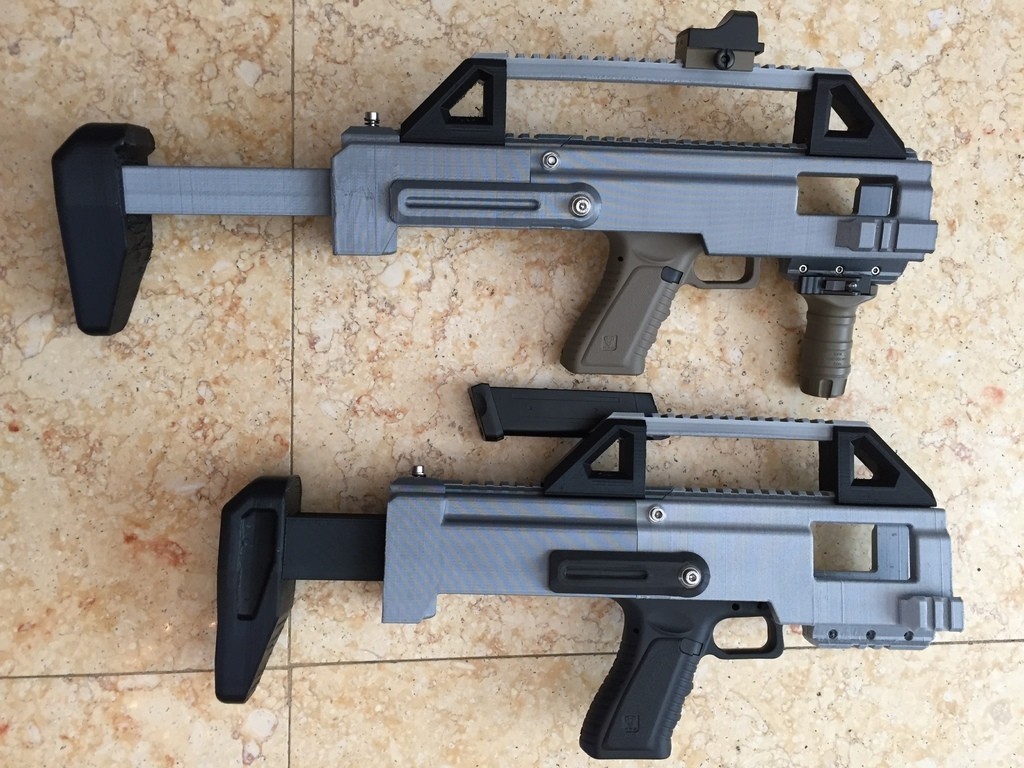

I have given you the option to choose from 2 different kits
V1 works on GLOCK 17 & 18c
V7 works on 1911, Walthers, & other polymer framed pistols

List & Links of Items Required:
1 X M5 Bolt X 75mm L: https://www.ebay.co.uk/itm/5mm-M5-A2-STAINLESS-STEEL-ALLEN-BOLT-SOCKET-CAP-SCREW-HEX-HEAD-ALLEN-KEY-DIN-912/221219027052?ssPageName=STRK%3AMEBIDX%3AIT&var=520142714057&_trksid=p2057872.m2749.l2649
1 X M5 Bolt X 45mm L + Nut + Washer: https://www.ebay.com/itm/10-20-50-100x-M2-M3-M4-M5-Stainless-Steel-Hex-Bolt-Socket-Cap-Screws-Head-DIN912/122707452535?hash=item1c91ef2277%3Am%3Am-laZAqvayzunL9D18NyTUQ&var=423118719676&_sacat=0&_nkw=m5+x+45&_from=R40&rt=nc&_trksid=m570.l1313
2 X M5 Welding Nut: https://www.ebay.com/itm/WELD-T-TEE-NUTS-WITH-SMOOTH-FLANGE-STEEL-SELF-COLOUR-METRIC-BOLTS-SCREWS-WOOD/122340439673?hash=item1c7c0ef679%3Am%3Am1UFm7VZa4j-Cs6A-1CiXxQ&var=422823896425&_sacat=0&_nkw=M5+welding+nut&_from=R40&rt=nc&LH_TitleDesc=0
2 X M5 Bolts X 16mm L: https://www.ebay.com/itm/20-Pcs-M5x12mm-Metal-Hex-Socket-Head-Cap-Screws-Fasteners/351788314234?epid=1078430341&hash=item51e837ae7a%3Ag%3Aa2sAAOSw9fRZ0pLj&_sacat=0&_nkw=M5x12+socket+head+fastener&_from=R40&rt=nc&LH_TitleDesc=0
3 X M3 Bolts X 12mm L: https://www.ebay.com/itm/24-50-100pcs-M3-Black-12-9-Alloy-Steel-Hex-Socket-Cap-Head-Screw-Bolt-Fasteners/282721477376?hash=item41d3836300%3Am%3Am0qO-eYtsmBbM_jJeVyc0lA&var=581974137743&_sacat=0&_nkw=m3+socked+head+fasteners&_from=R40&rt=nc&_trksid=m570.l1313
3 X M3 Black Carbon Nuts: https://www.ebay.com/itm/100pcs-Din934-M2-M3-M4-M5-Black-Carbon-Steel-Metric-Hex-Hexagonal-Nuts-High-Q-im/182569695932?var=485141872087&hash=item2a82007abc%3Am%3AmJkeqAMXRMVJSq5qwIUUs1Q&_sacat=0&_nkw=m3+black+nut&_from=R40&rt=nc&LH_TitleDesc=0

As always full build details will follow in the MAKE

!Please leave a comment because a comment to me means 1000 likes :)

!Don't forget to check out my other Cool designs and Follow my weekly KooKoo uploads, Enjoy ;)

3D printer file information

  • 3D design format: STL Folder details Close

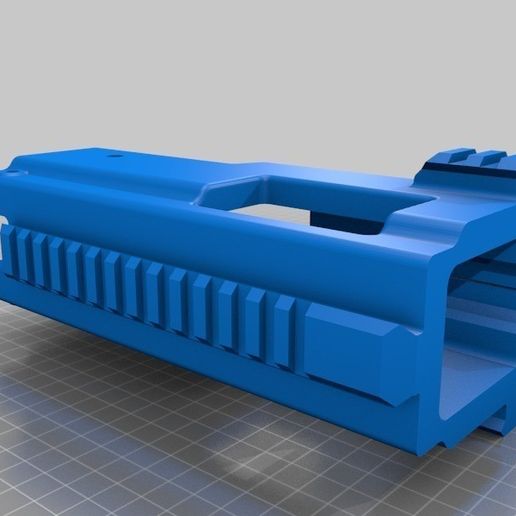

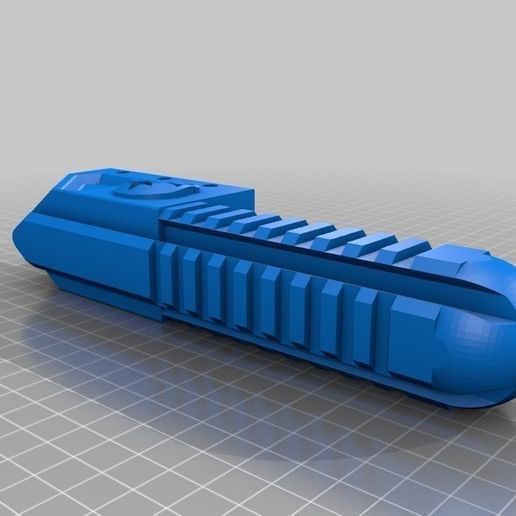

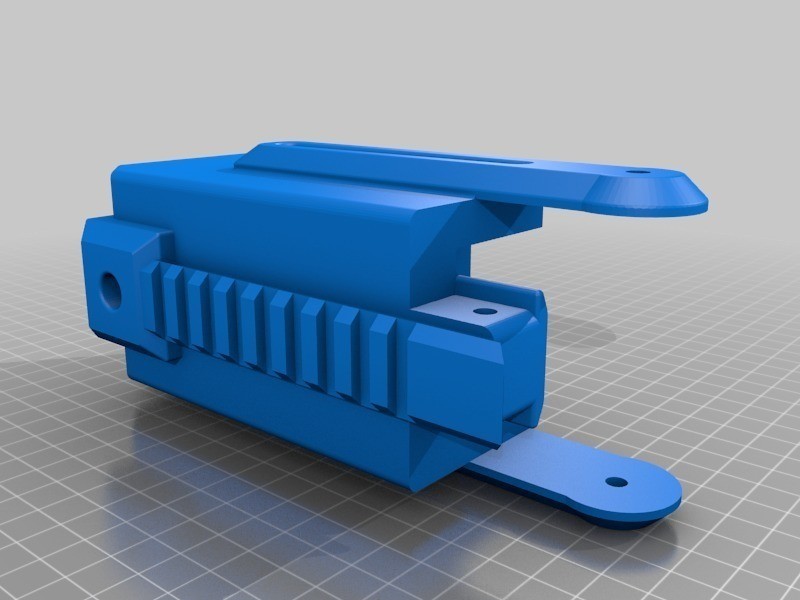

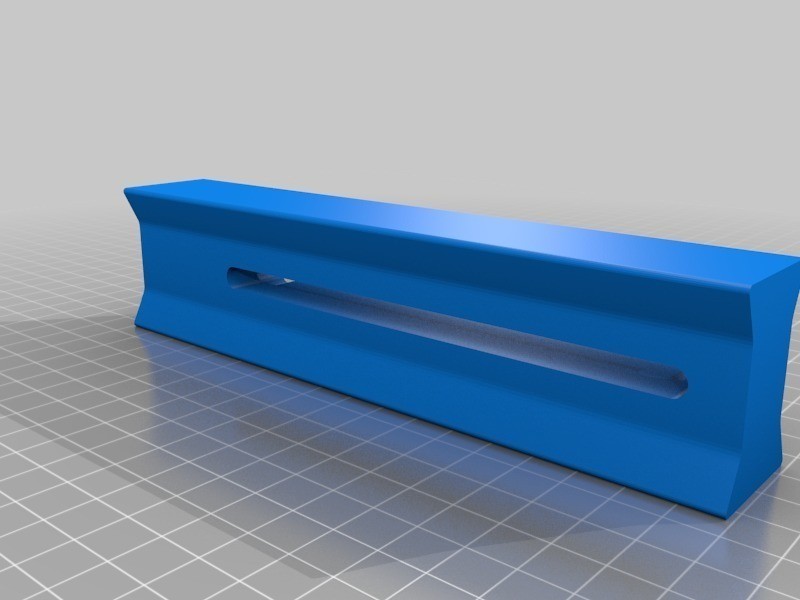

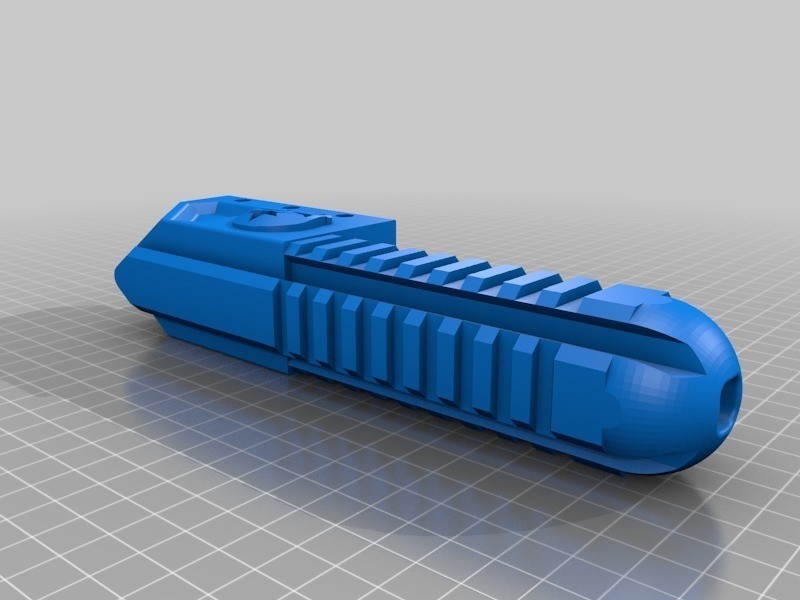

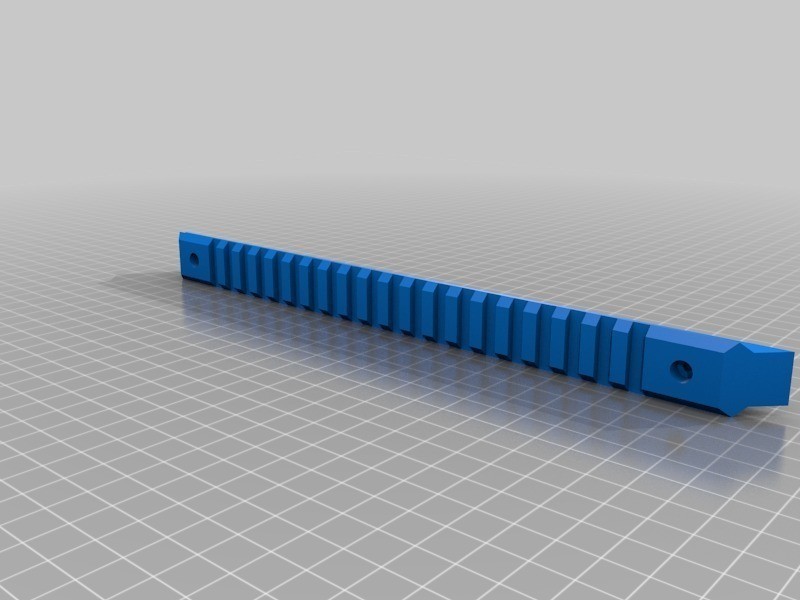

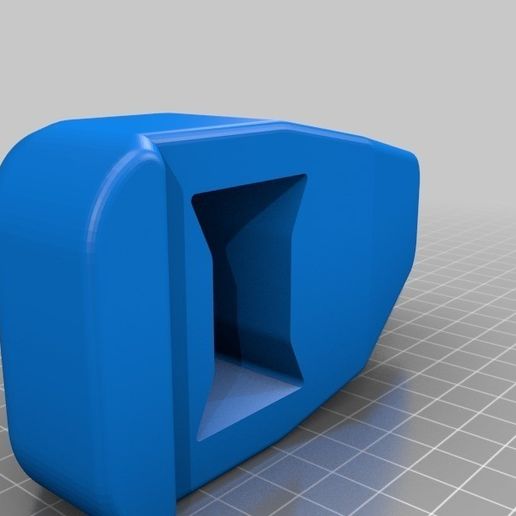

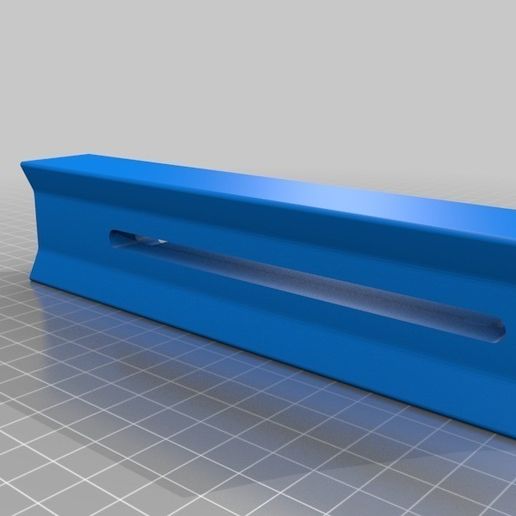

    • 195mm_Rail.stl

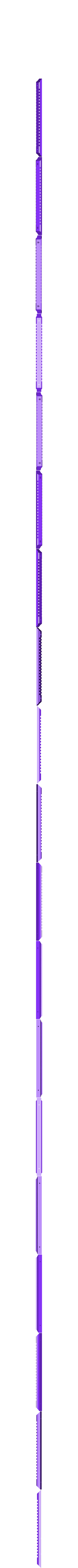

    • LARGE_PDW_LONG_RAIL.stl

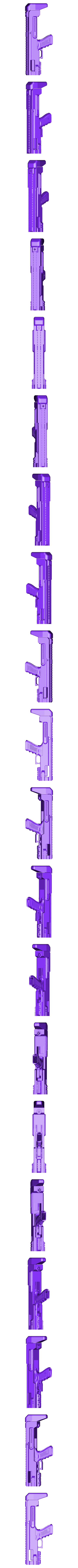

    • LARGE_PDW_V1_COMBINED.stl

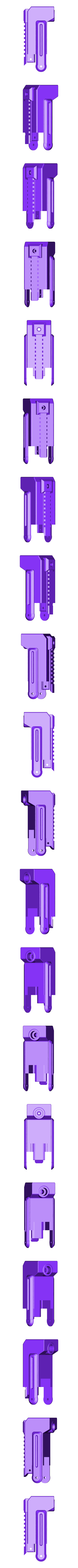

    • LARGE_PDW_V1_REAR.stl
    • LARGE_PDW_V1_STOCK_A.stl

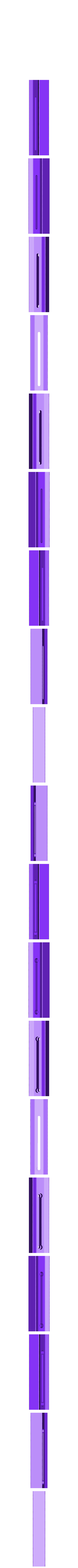

    • LARGE_PDW_V1_STOCK_B.stl

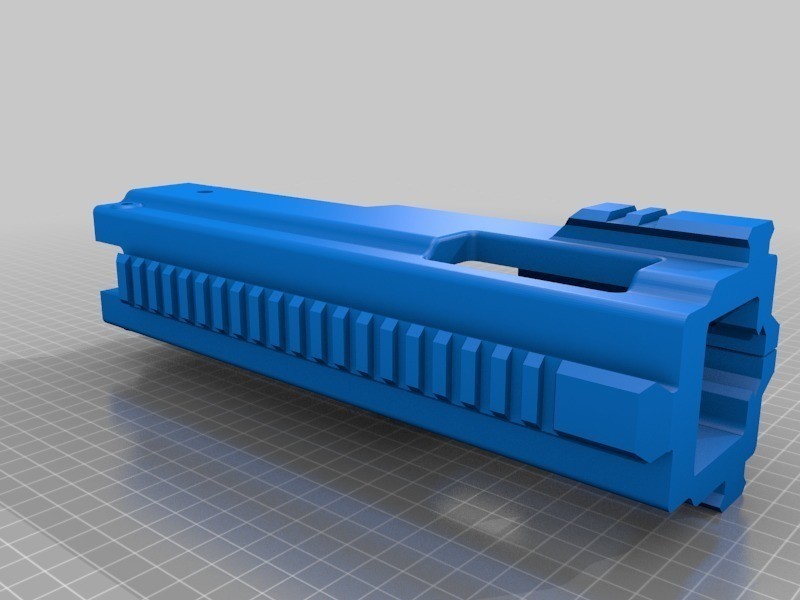

    • LARGE_PDW_V1_UPPER.stl

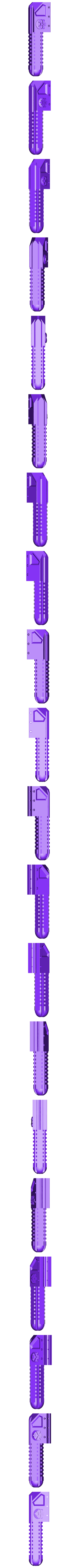

    • LARGE_PDW_rails.stl
    • LARGE_PDW_stock_button_v2.stl
    • LARGE_PDW_triangle_rails.stl
    • MINI_PDW_V7_COMBINED.stl

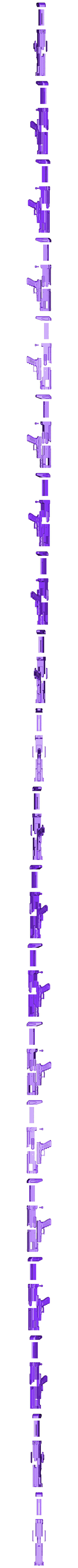

    • MINI_PDW_V7_SCHEMATICS.stl

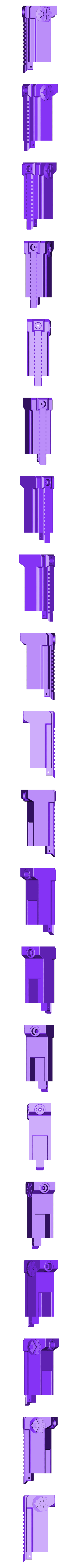

    • MINI_PDW_V7_short_REAR.stl

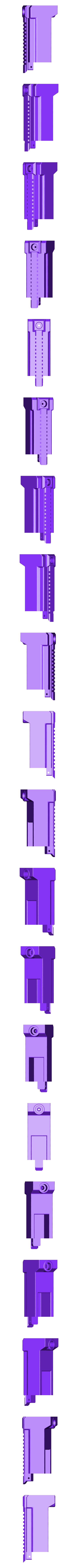

    • MINI_PDW_V7_short_REAR_NO_LOGO.stl
    • MINI_PDW_V7_short_SIDE_PLATES.stl

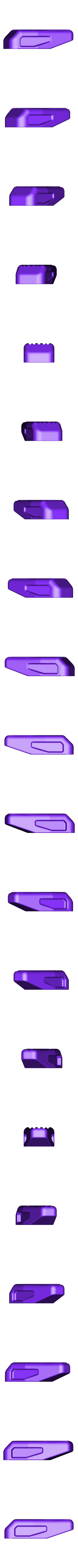

    • MINI_PDW_V7_short_STOCK_A.stl
    • MINI_PDW_V7_short_STOCK_B.stl

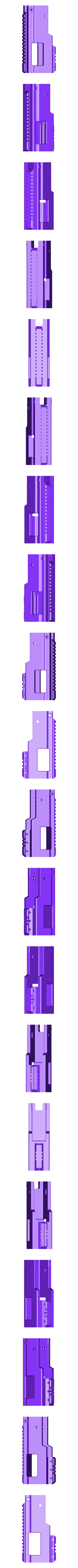

    • MINI_PDW_V7_short_UPPER.stl

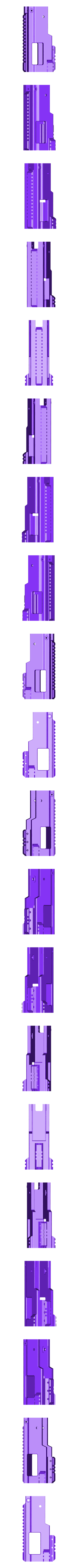

    • MINI_PDW_V7_short_UPPER_RAILS.stl

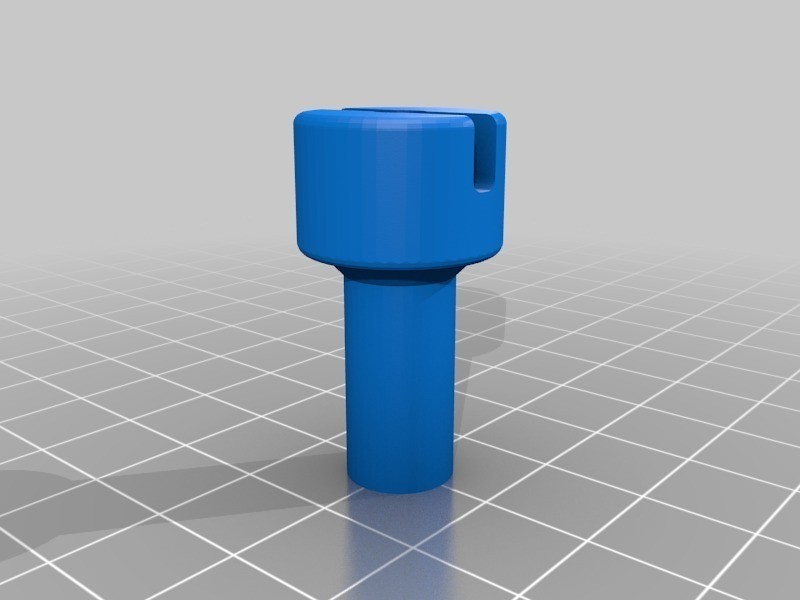

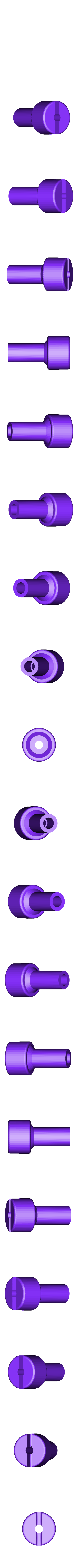

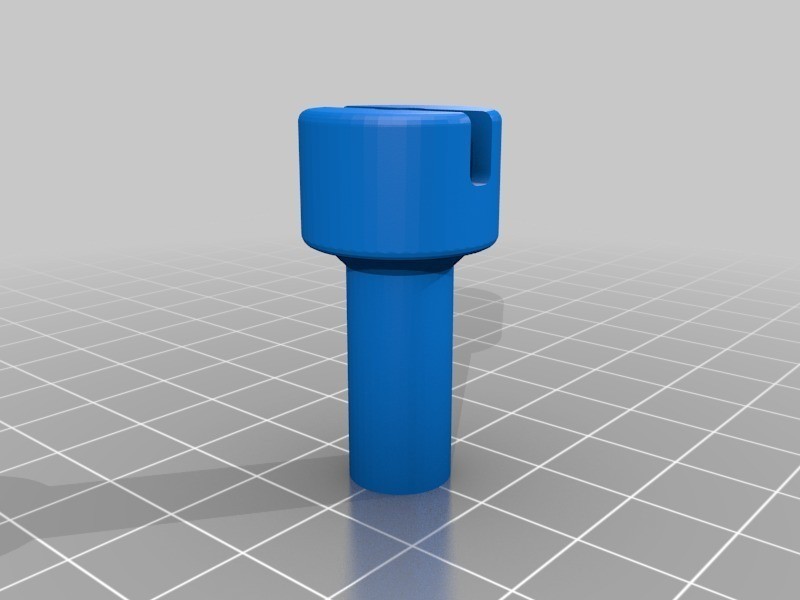

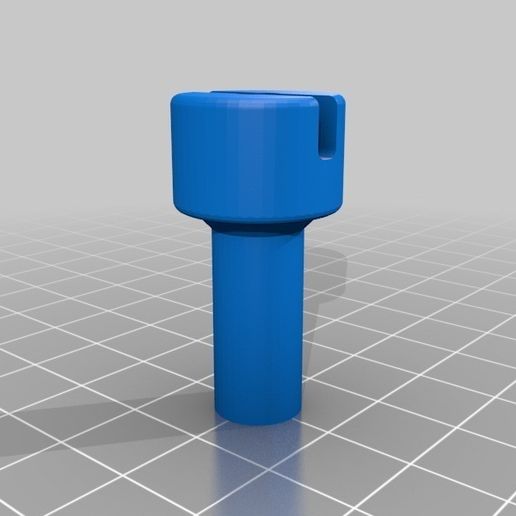

    • stock_button_v3.stl

    Learn more about the formats

  • Publication date: 2018/08/17 at 10:48

License

CC BY NC ND

Tags

Creator

I'm from the UK, I've been printing since Feb 2015, but I also Weld, Wood working, Gunsmith, Customize Motorcycles, Dive Master, Build buggies, Air soft, RC, Electronics, And have over 30 years experience in Tinkering.(love beer and still single lol)
I have the following printers:
Makerbots Mini, Rep plus, 2X & Z18 .
XYZ Printing Da Vinci 1.0.
Original Prusa i3 MK2s
Wanhao Duplicator i3 plus
Flashforge Creator Pro
Homemade double height Z axis prusa I3 with Flexion Extruder
Ender 5+
Ender6
CR10v3
I have been collecting my work shop over the last 15 years and hopefully will be ready at the end of this year, Future interests, Mill and Lathe, Laser Cutter. upcoming projects: FLARE DRONE, ELECTRONIC FLASH GRENADE, SELF AIMING 40 mm Grenade Launcher, FAT-MAN CO2 Launcher, Slingshot Fishing Rod, Slingshot Rifle.
Please Note: These items are "NOT" part of any firearm and can't be changed into a firearm part. They're TOY items, UK LEGAL and VCRA compliant,
!NOTE: I POST AT LEAST ONE DESIGN PER WEEK! Enjoy ;)
If you wish to sell any of my designs please contact me and I'll be more than happy to give you permission, Thanks
Email- mussy73@yahoo.com
https://www.instagram.com/mussydesign/

Issue with this design? Report a problem

Collection associated with this 3D model


Best sellers of the category Various


Add a comment

One comment

Hello. Many thanks for this project! After a lot of research i decided for your design. this will be my first project with big parts. i will print in ABS. My question is: Do you think i need to increase the scale a little bit since abs suffer from retraction?
