Galaxy Tab Dock

Download free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumberDownload free 3D printing files Galaxy Tab Dock, DelhiCucumber

Did you 3D print this model?

3D model description

Yo,

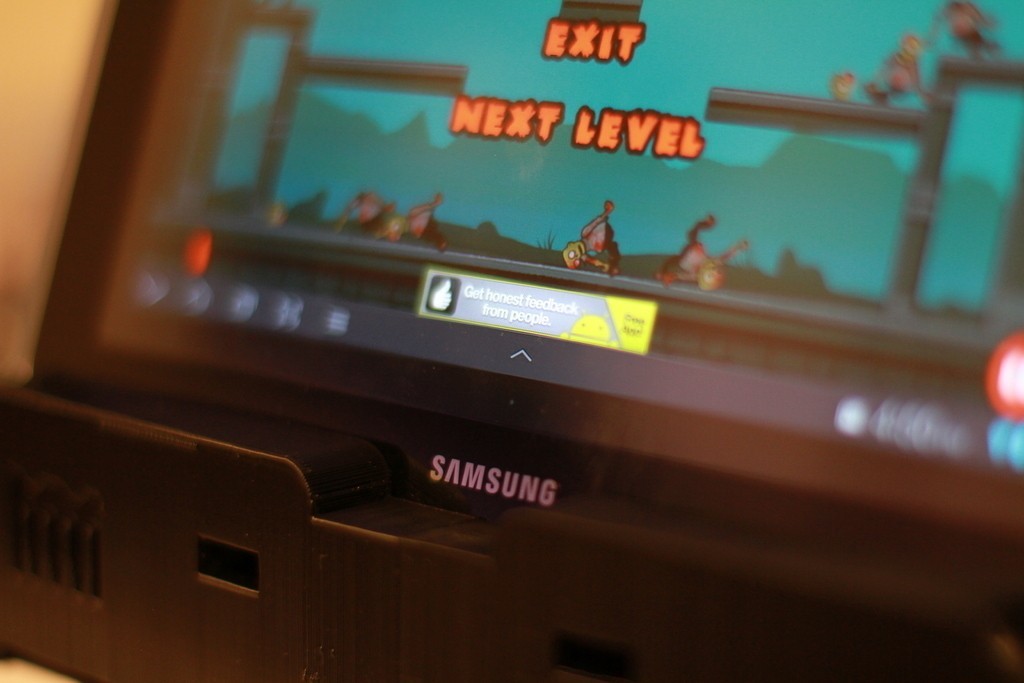

Do you have a Samsung Galaxy Tab 8.9" or 10.1" tablet?? If so here is a full featured docking solution!

At work we bought a fleet of 8.9 LTE Tab's and I immediately began creation of a dock that would work with a naked unit or with a TPU case on it.

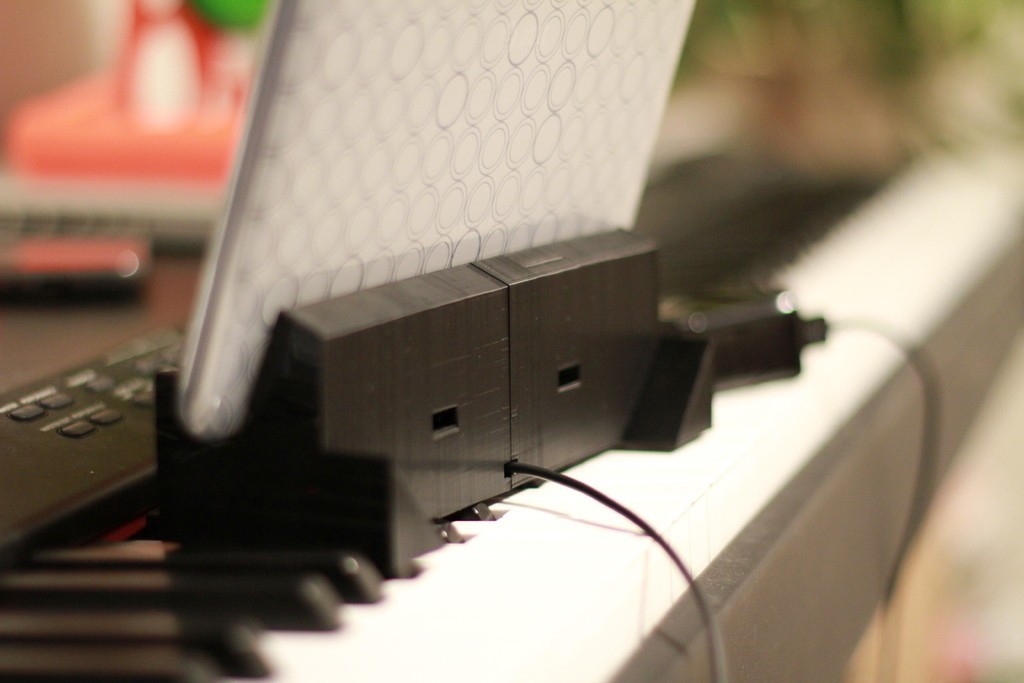

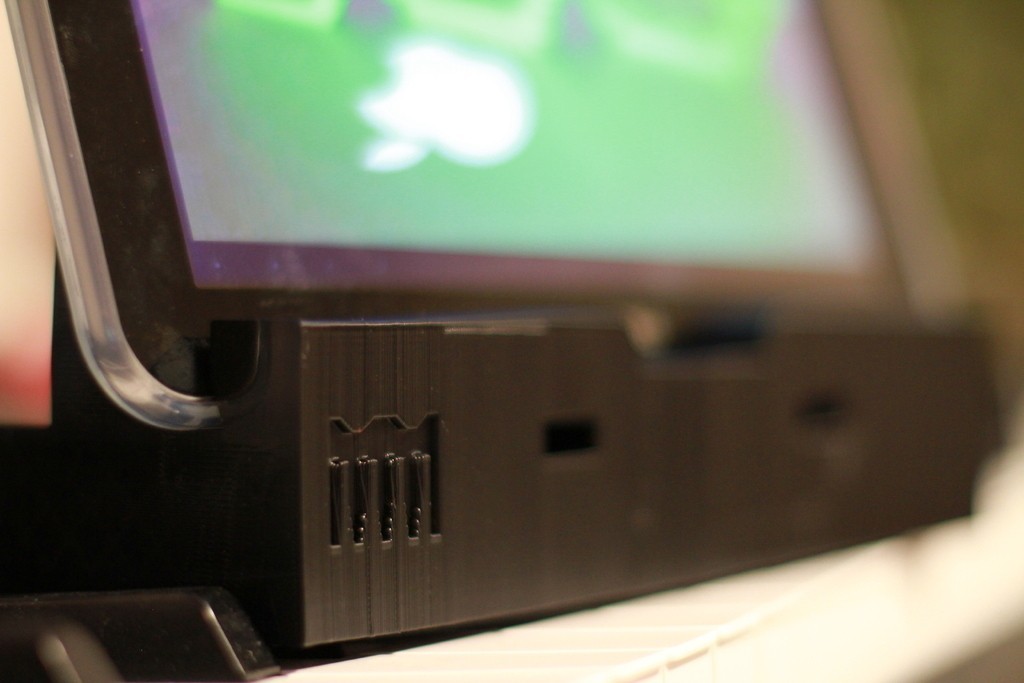

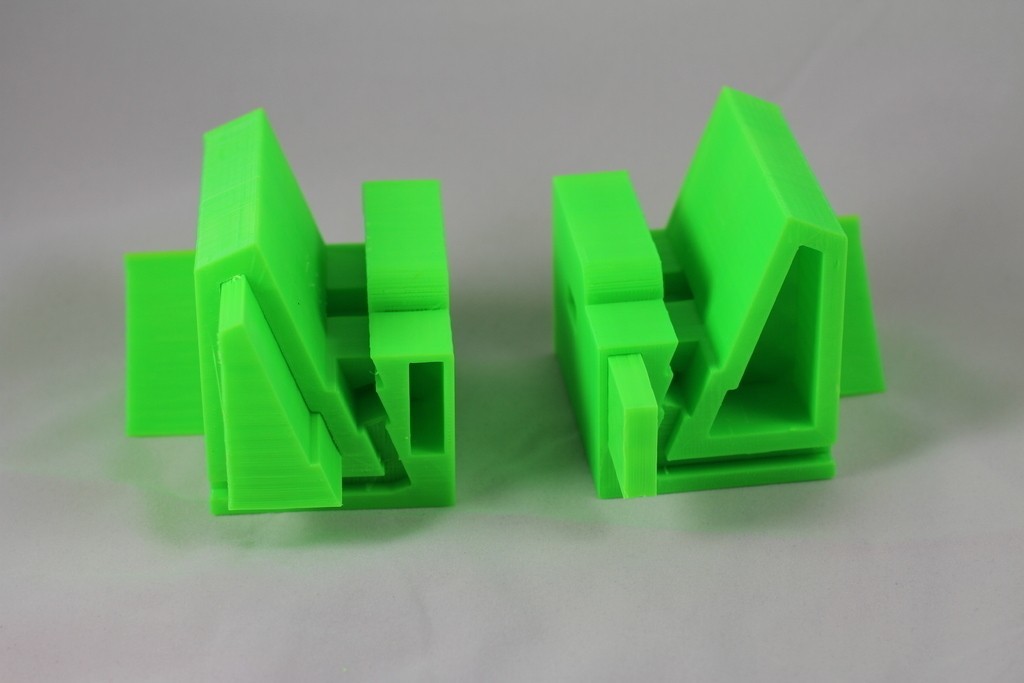

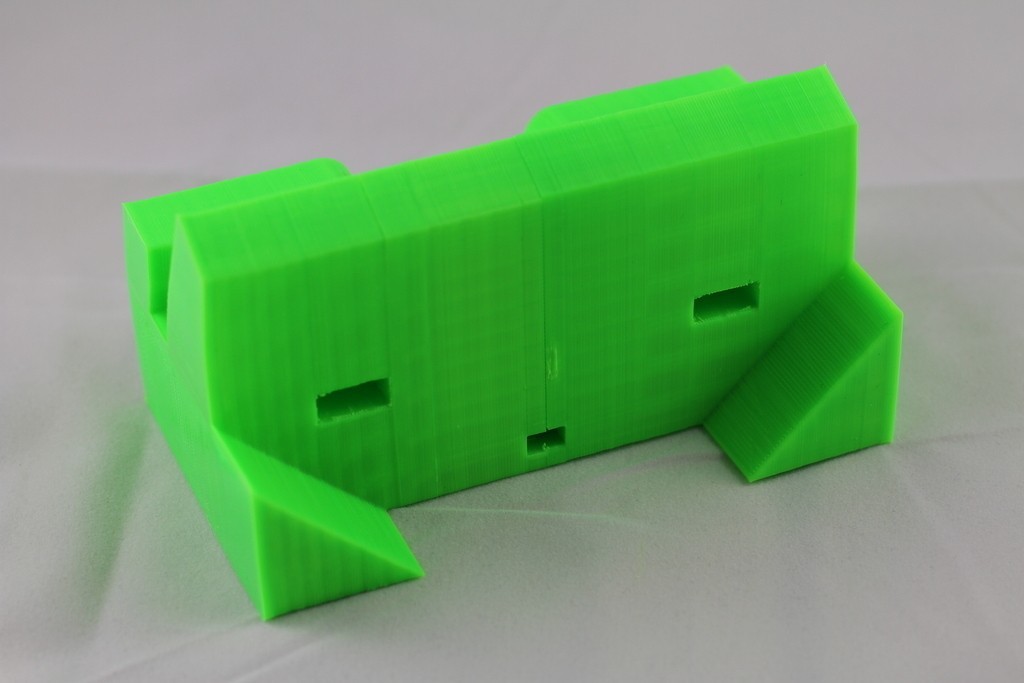

Each dock has an adapter locking center channel and cable tunnel for the 30 pin power/data cable. I included 2 40mm unique dowels so you can easily slide the unit apart for addition and removal of the cable. The unit holds your Tab at a 20 degree angle perfect for desk usage or next to the bed. I widened the stance with the rear wedges so you can rest assured there will be no tipping even if your a hardcore screen basher. There are also dual front and rear speaker ports so you can mega jam even when docked with the 8.9!

I have uploaded 2 different solutions that work on each tablet variant (not physically tested on the 10.1 but the qualifying dimensions are the same):

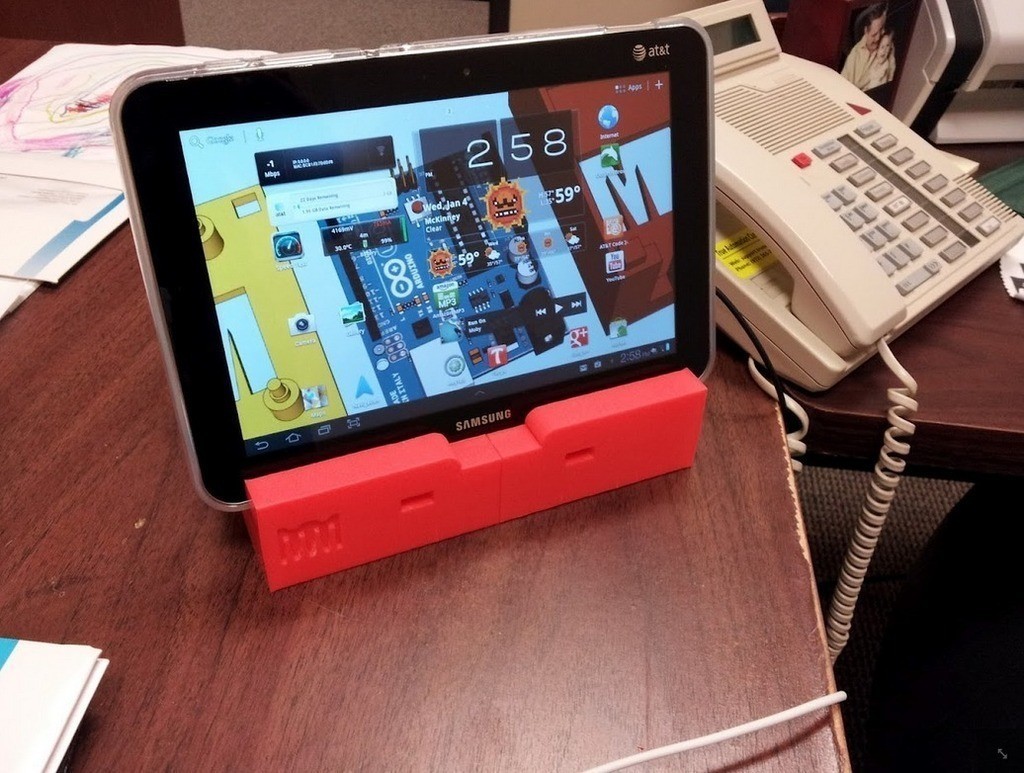

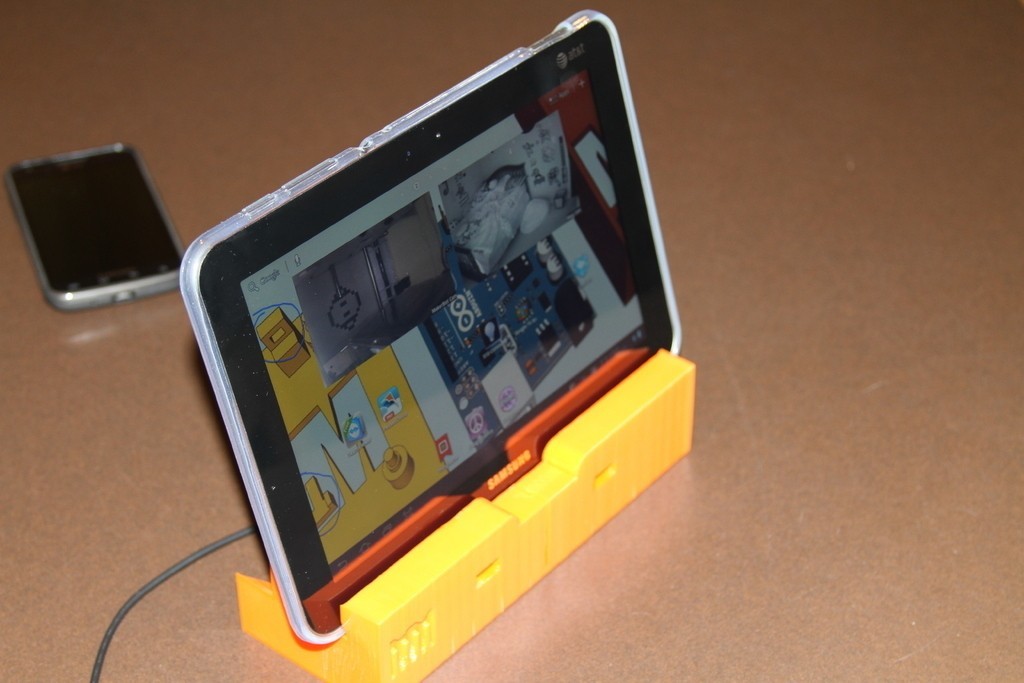

1.) A standard sized dock that minimizes plastic used and print duration. This dock allows you to grip the side of the Tab in the dock and easily use a thumb keyboard without pulling it from the dock!

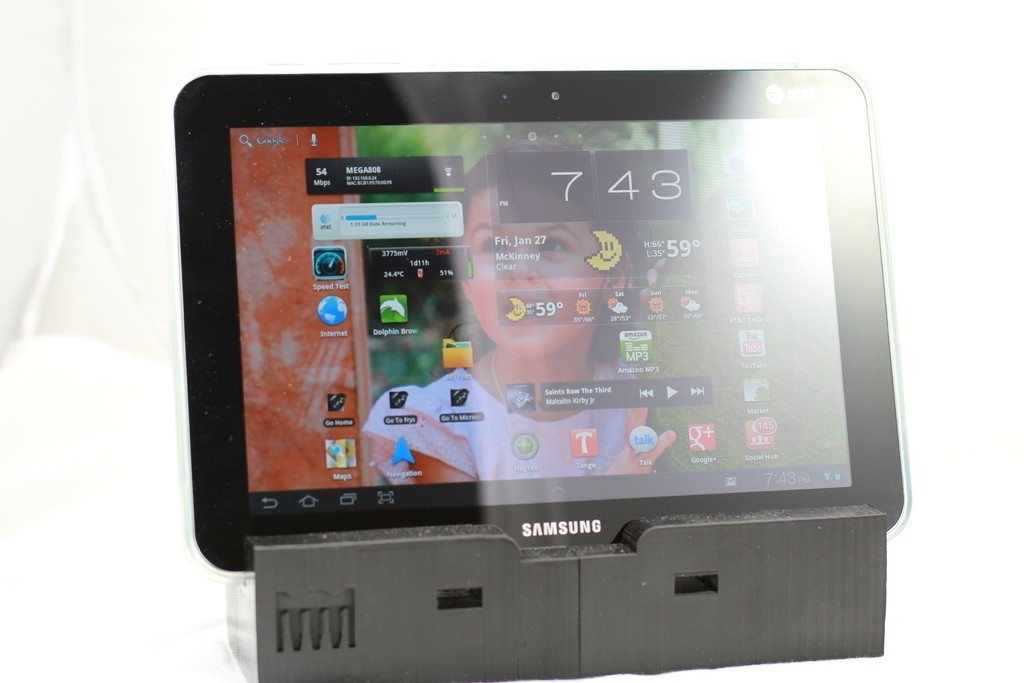

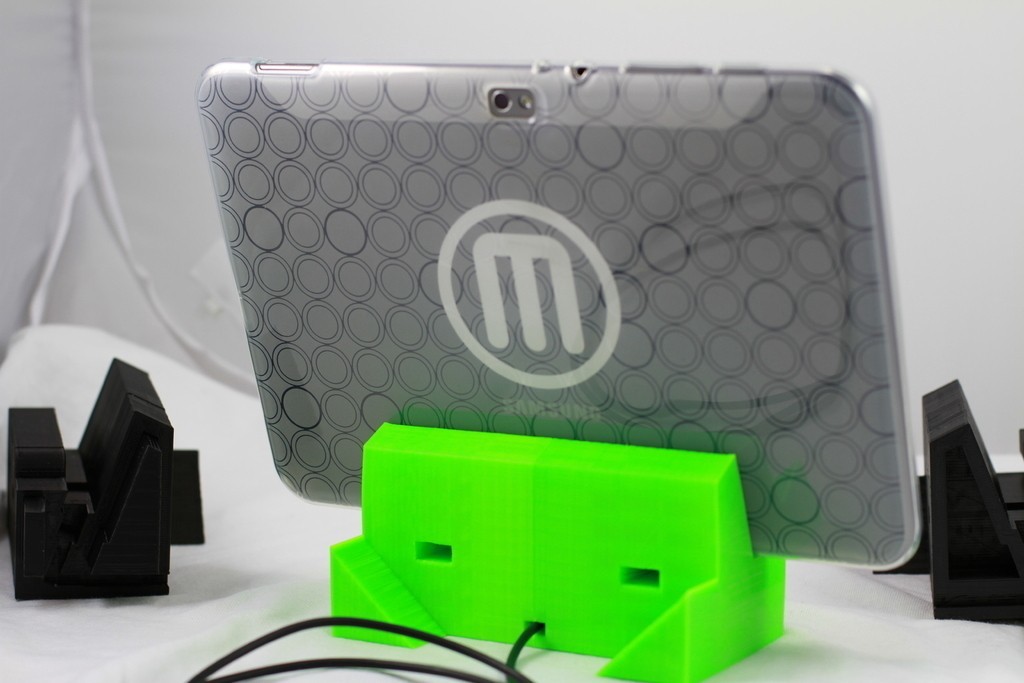

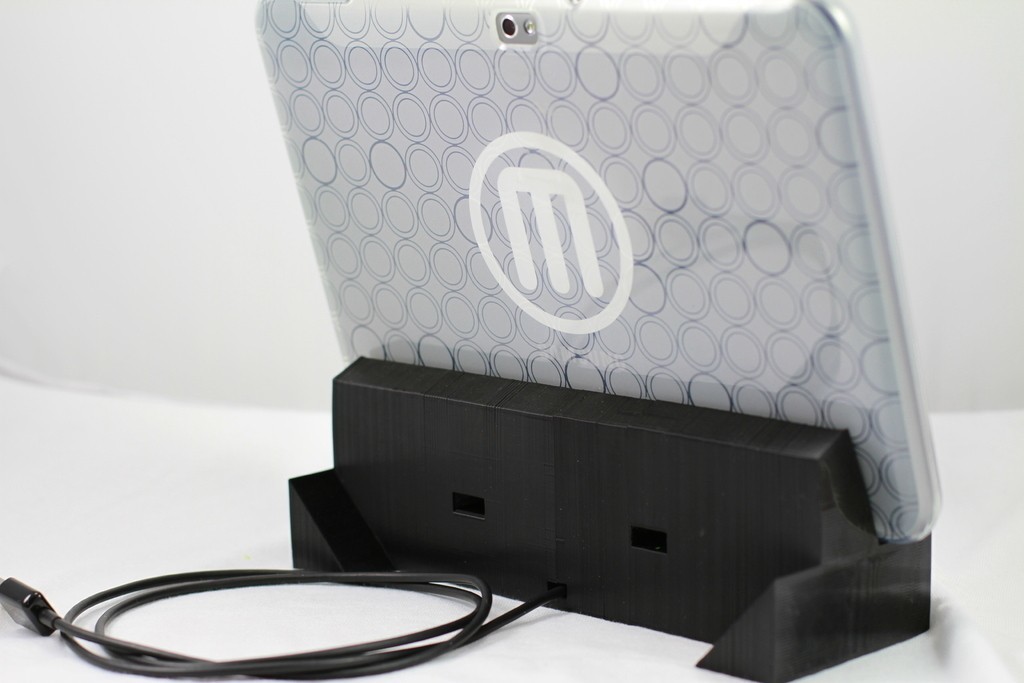

2.) A jumbo dock that goes almost to the edge of the 8.9 and looks like a dock that you might buy at a retailer (or at least I like to think so...).

All docks pictured with logos were on my beta units only and all uploaded docks are free of any branding.

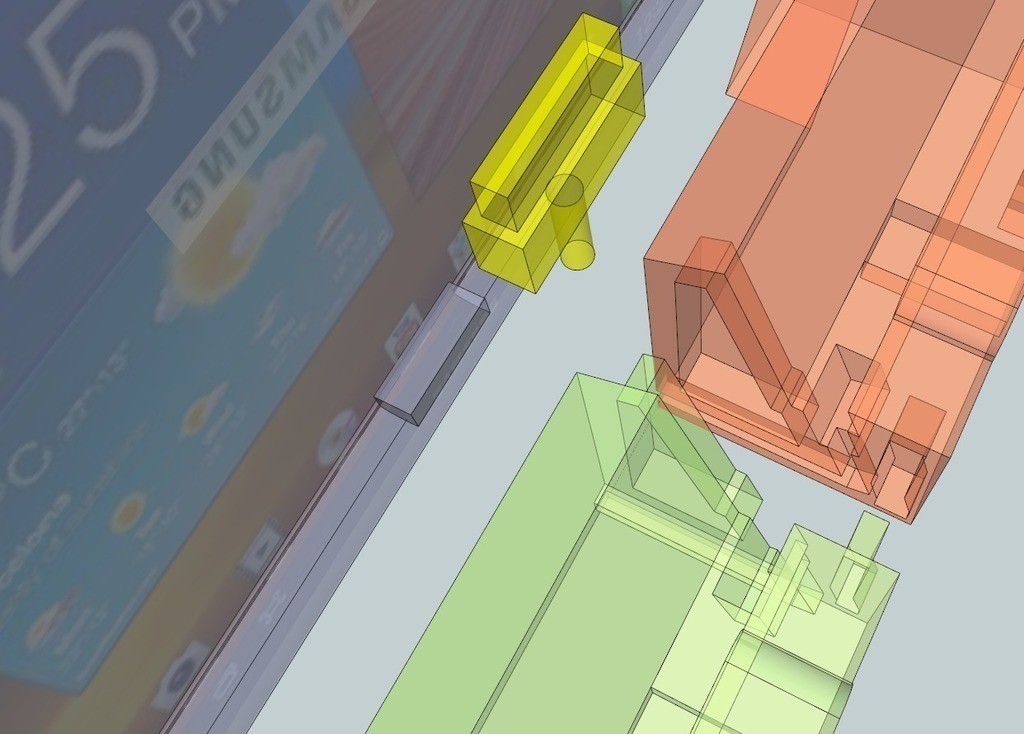

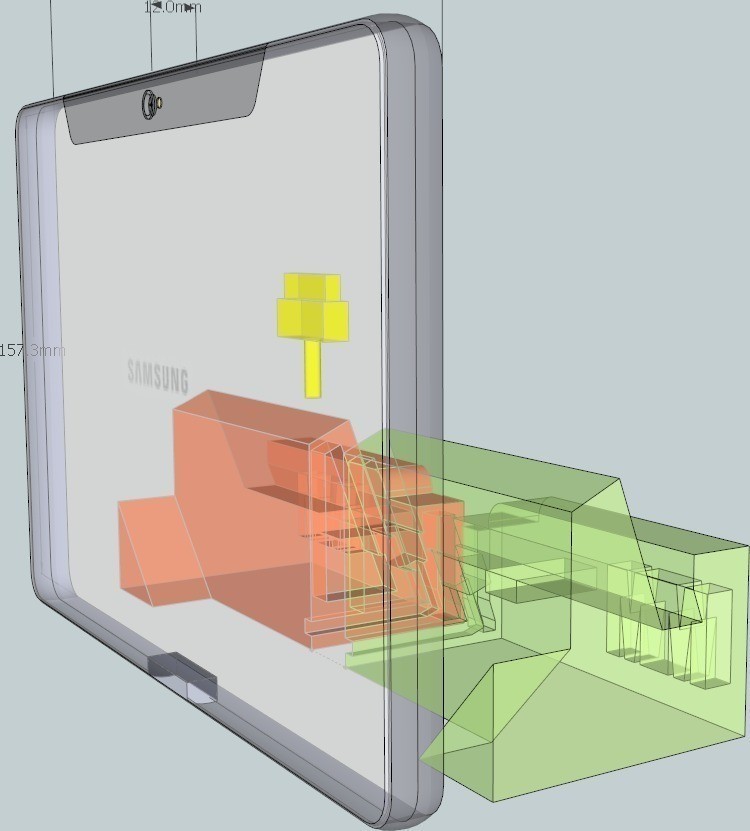

I have also attached my Sketchup master for your modding pleasures.

3D printing settings

Make up your mind using the description above:

Go standard:

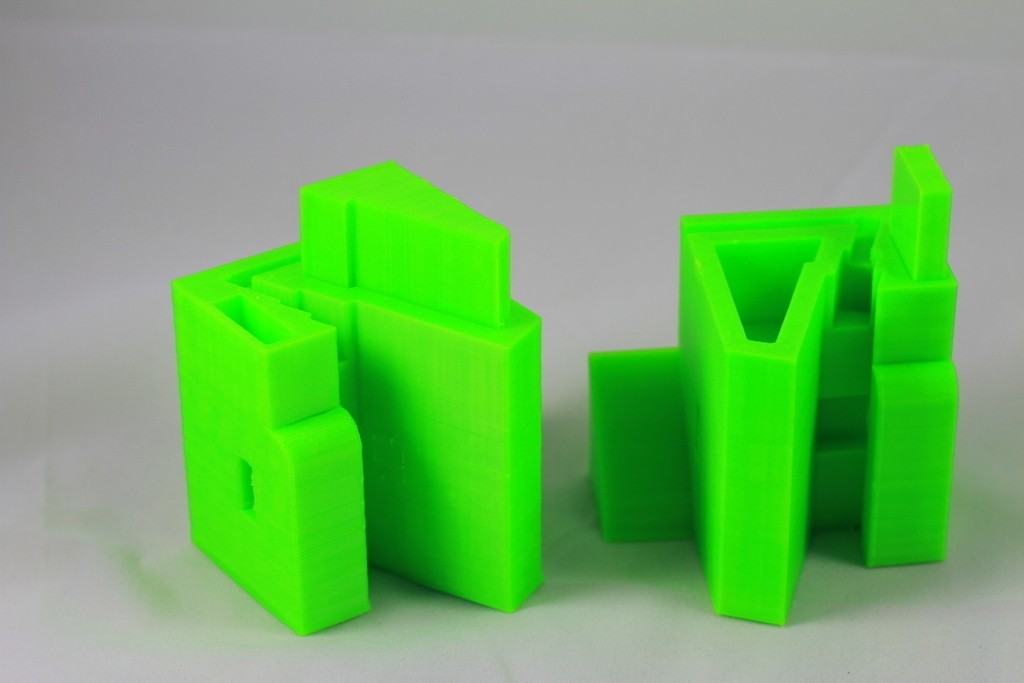

-Print "GalTabDockLeft.stl" and "GalTabDockRight.stl"
-Clean with a knife
-Insert connection dowels
-Insert data/power cable in to indention
-Push halves together
-Slide Tab in
-Enjoy home made dock-it-ization!

Go Jumbo:
-Print "GalTabDockBigLeft.stl" and "GalTabDockBigRight.stl"
-Clean with a knife
-Insert connection dowels
-Insert data/power cable in to indention
-Push halves together
-Slide Tab in
-Show your friends your a regal tablet balla!

Printed on:

TOM # 4890
MK6+
1.75mm
.4 nozzle
ABP with aluminum plate topper and titanium belt covered in kapton

Peep what I'm currently printing on my bot at: mega.dlinkddns.com:4445/snapshot.cgi?user=megaweb&pwd=1l1k32v13w and click refresh in your browser to request another snap shot.

  • 3D file format: STL

Tags

Creator

License

CC BY SA
