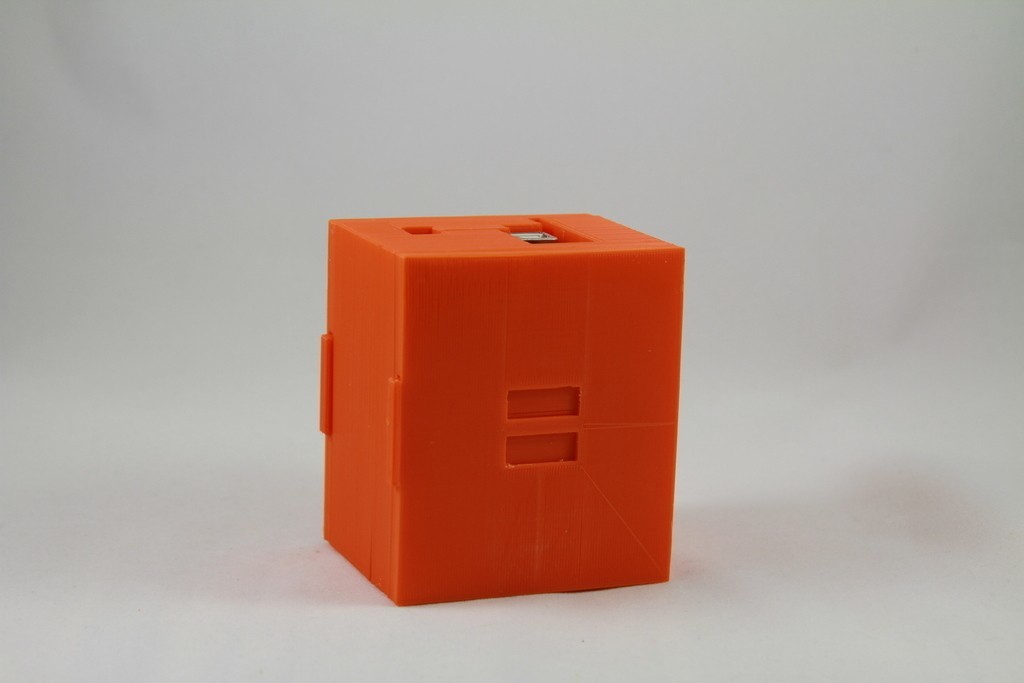

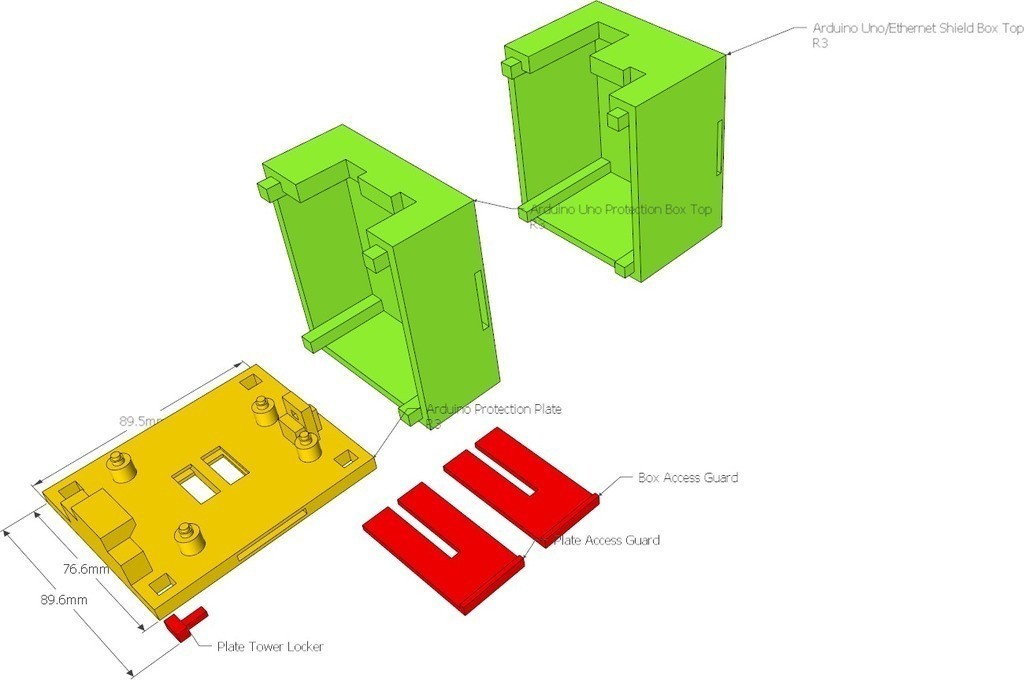

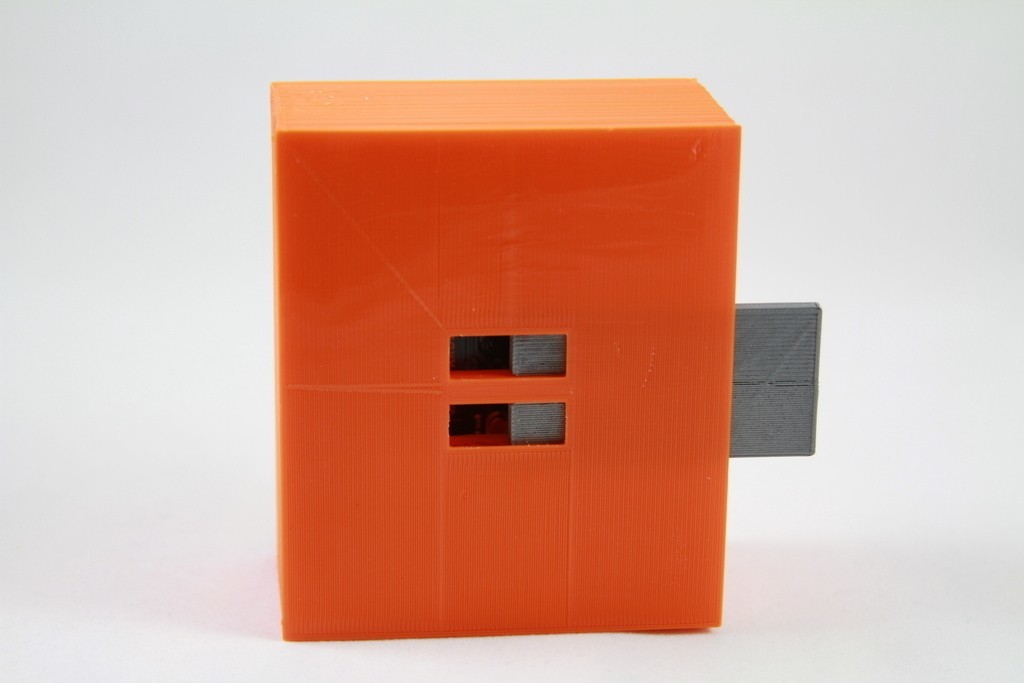

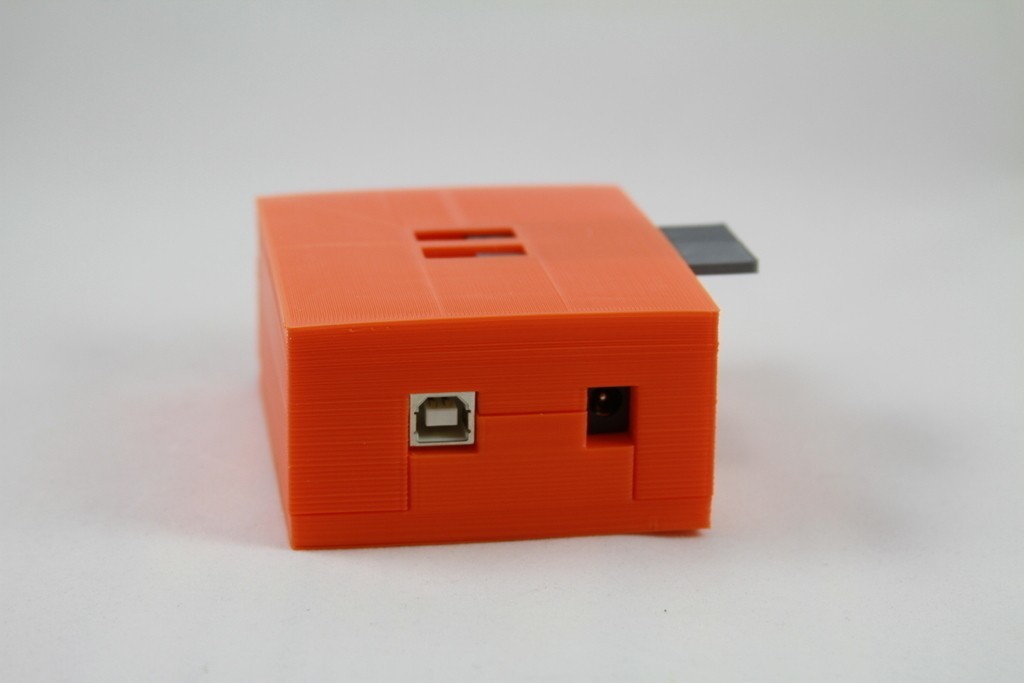

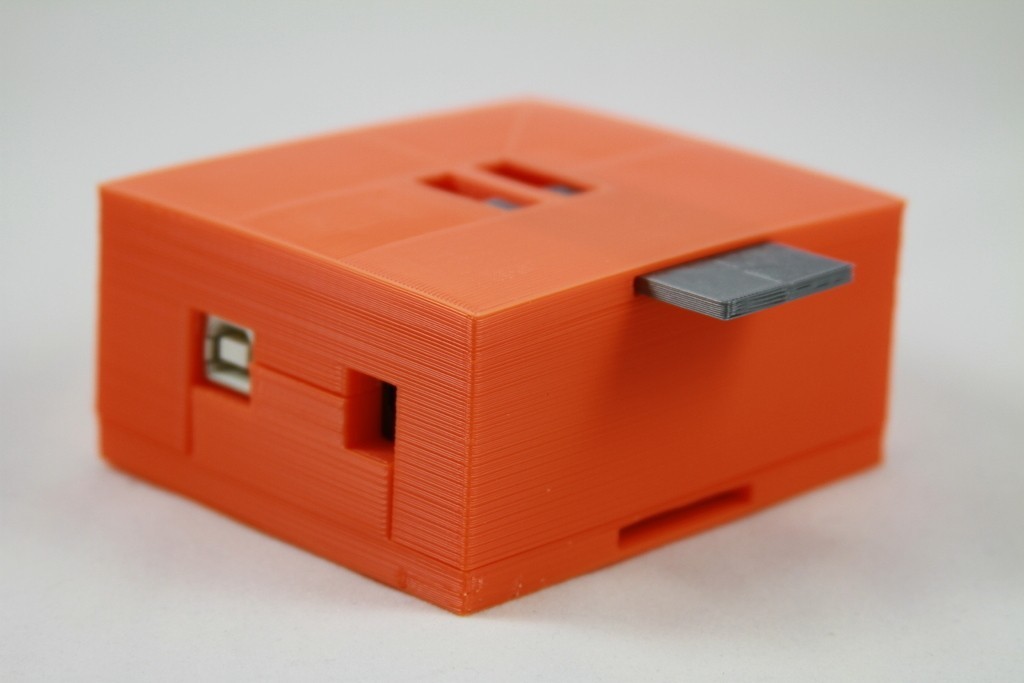

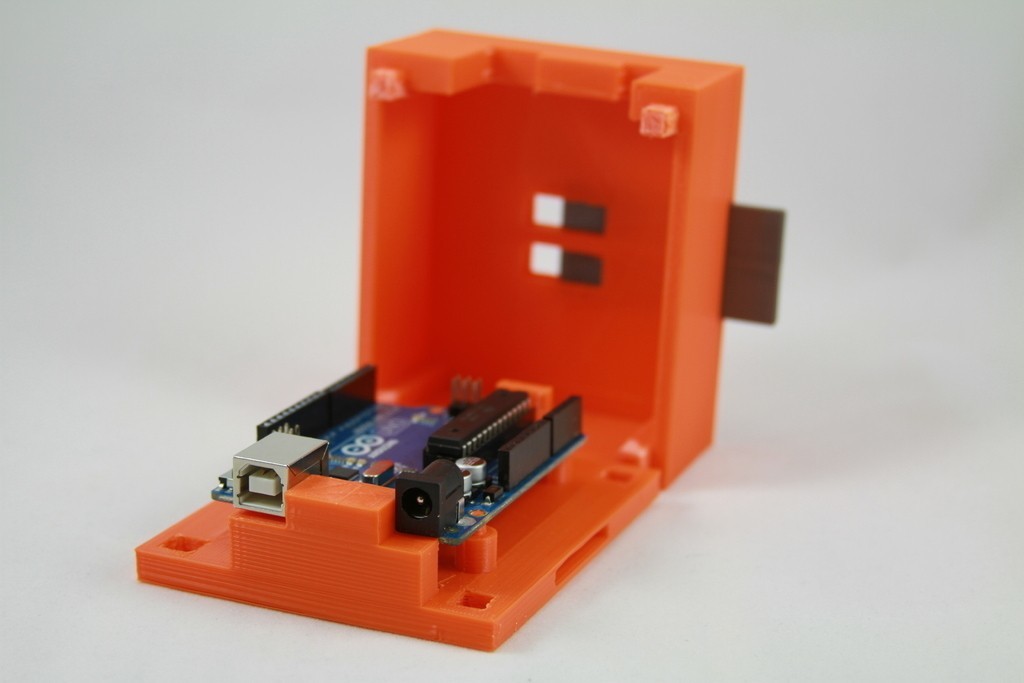

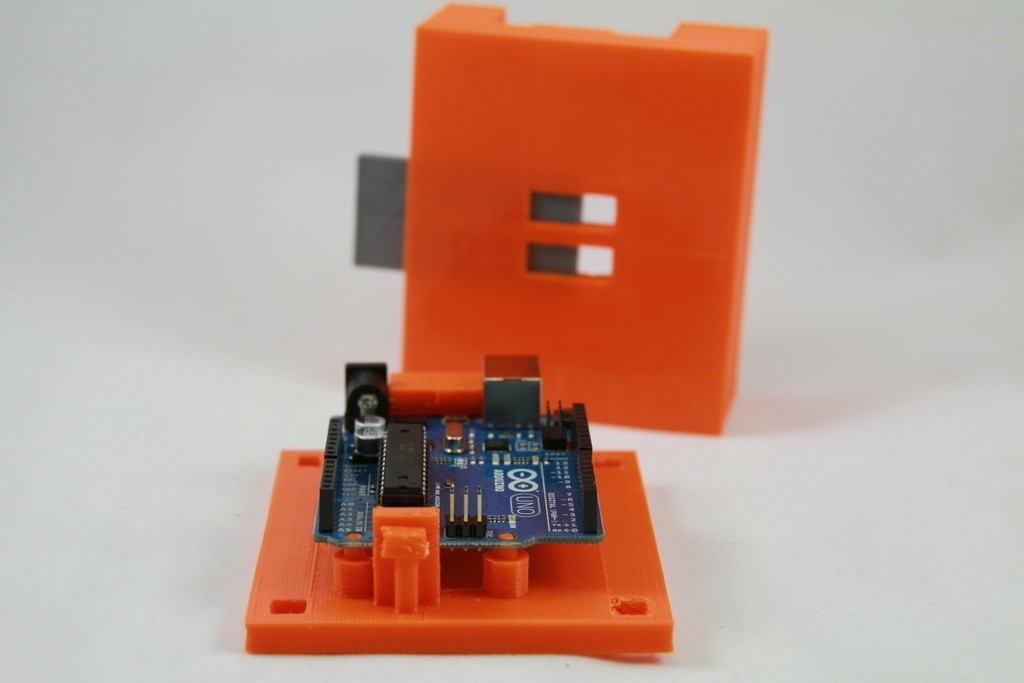

Need a secure Uno/Ethernet Shield plate and box combo that will keep assets safe during a fall and allow for under and over plate wire runs to your pins?

If so, print this puppy!

3D printing settings

I ended up with a thick post base plate and box setup with an integrated Uno locking clip. I created the attached stl files from the also attached SketchUp file so you can feel free to mod. Also, if you haven't tried Google SketchUp for 3D modeling it is pretty nice (and free) you just need to add an stl export plugin ( (skp_to_dxf.rb) http://www.guitar-list.com/download-software/convert-sketchup-skp-files-dxf-or-stl ) and then export in mm for Gcode creation.

All units pictured were printed via:
MK6+
1.75mm filament
.4 nozzle
ABP with aluminum plate topper and titanium belt covered in kapton

Print the plate for sure, then decide if you need one of the tops depending on your setup.

Arduino on!
