Ultimaker Belt Tensioner

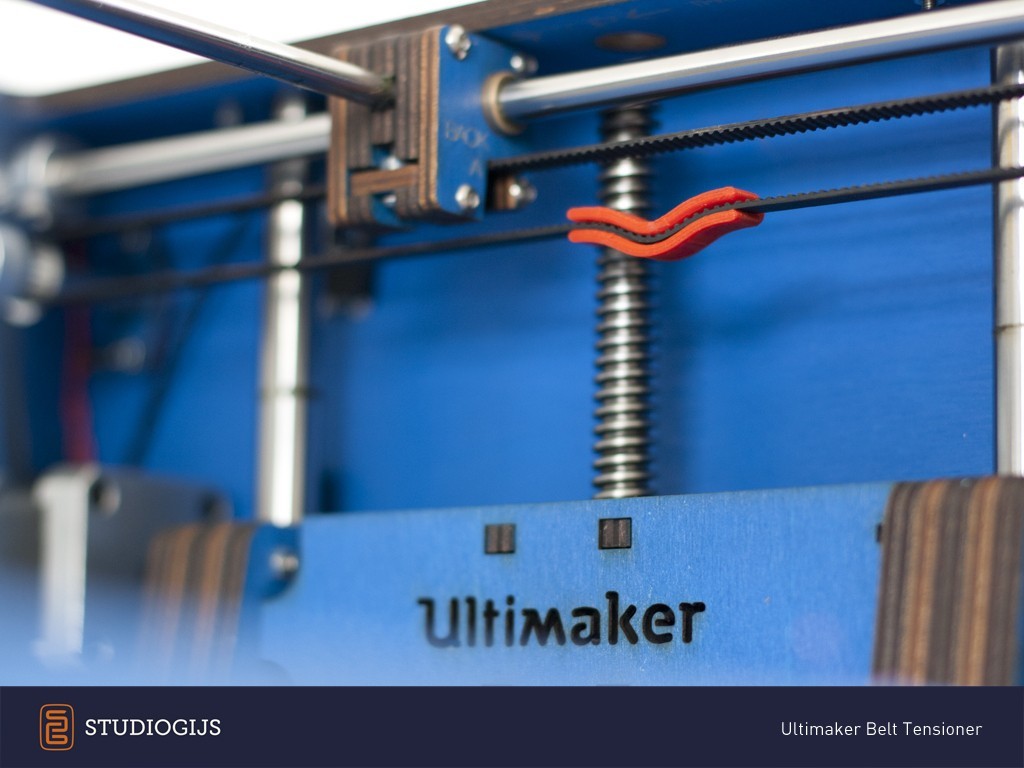

ultimaker-belt-tensioner-01_display_large_display_large.jpg Download free STL file Ultimaker Belt Tensioner • 3D printable design, DelhiCucumber

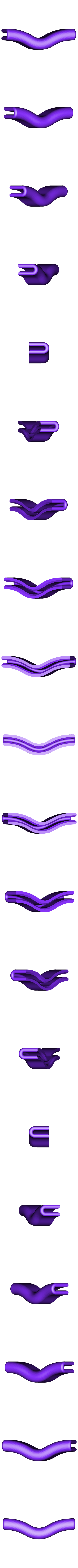

belt-tensioner-wave.stl Download free STL file Ultimaker Belt Tensioner • 3D printable design, DelhiCucumber
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 3 likes
  • 138 downloads

3D model description

Belt tensioner for the long belts. The wave shape is designed to minimize point stress as in other designs.

3D printing settings

loosen pullies before installing, then realign the X and Y axis.
The belts for the Y axis are a bit more difficult to install than the X axis. It's important to put the open side pointing inwards, otherwise they will run against the sliding blocks.

  • 3D file format: STL
  • Publication date: 2018/10/29 at 15:45
