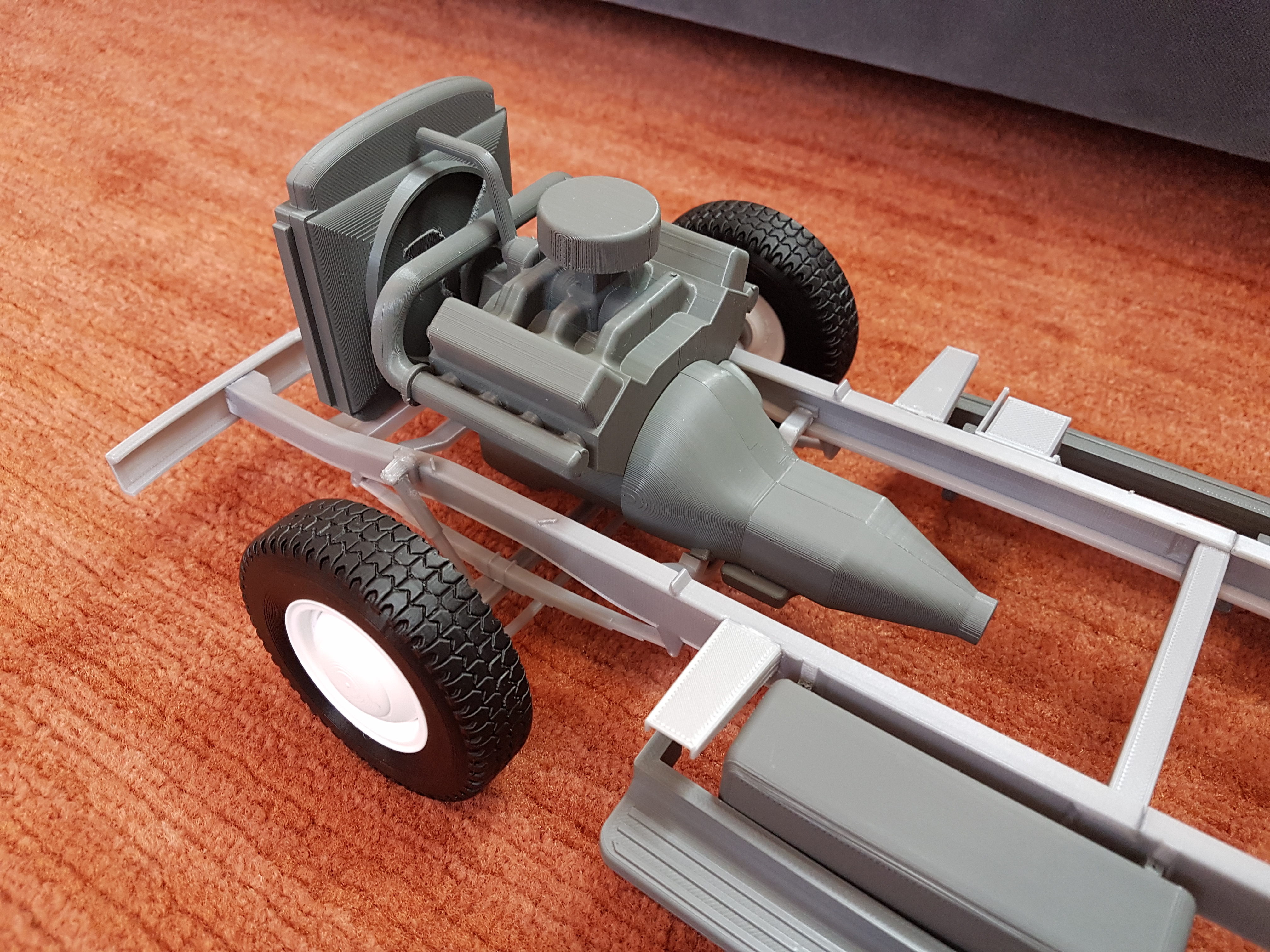

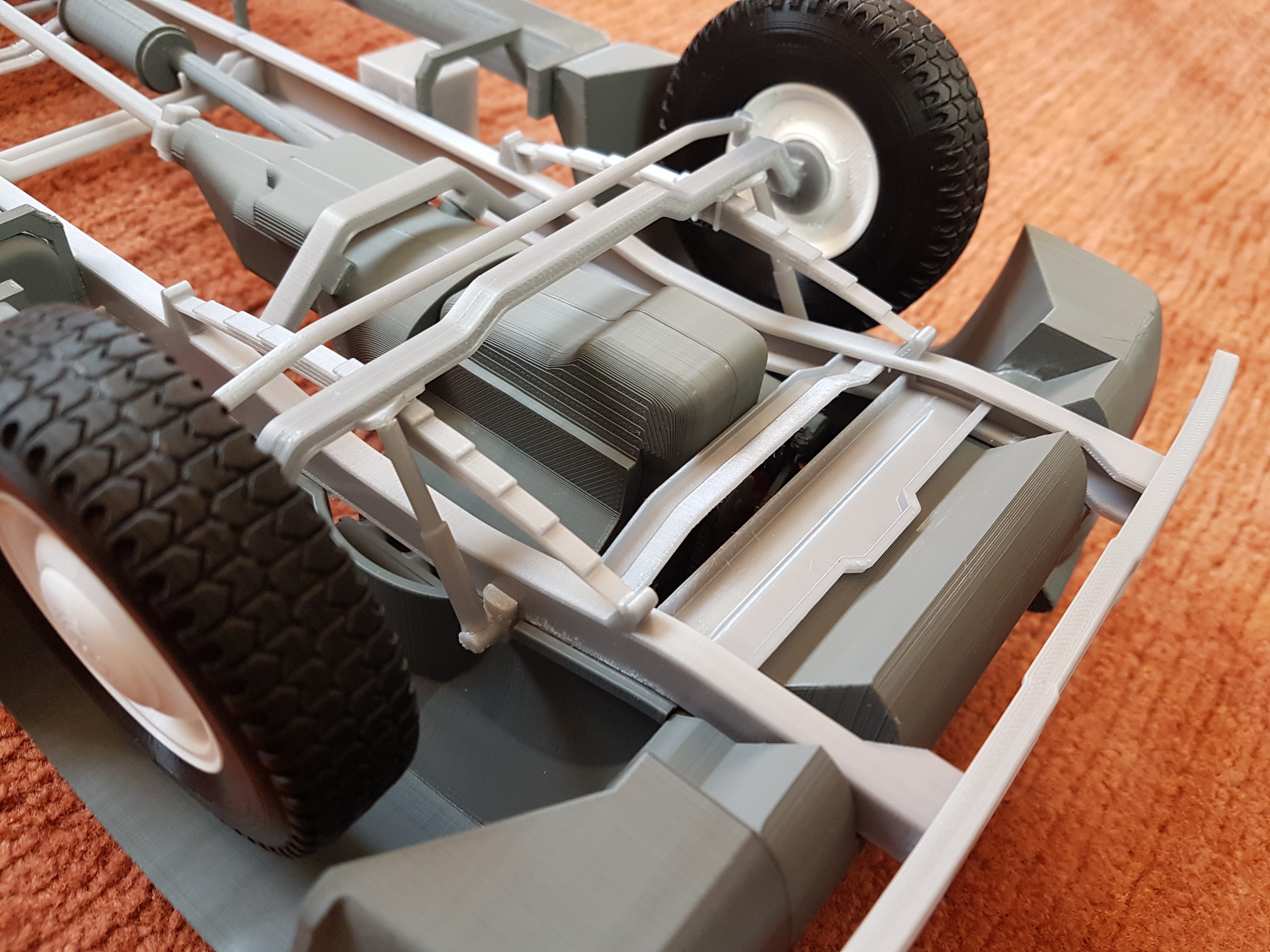

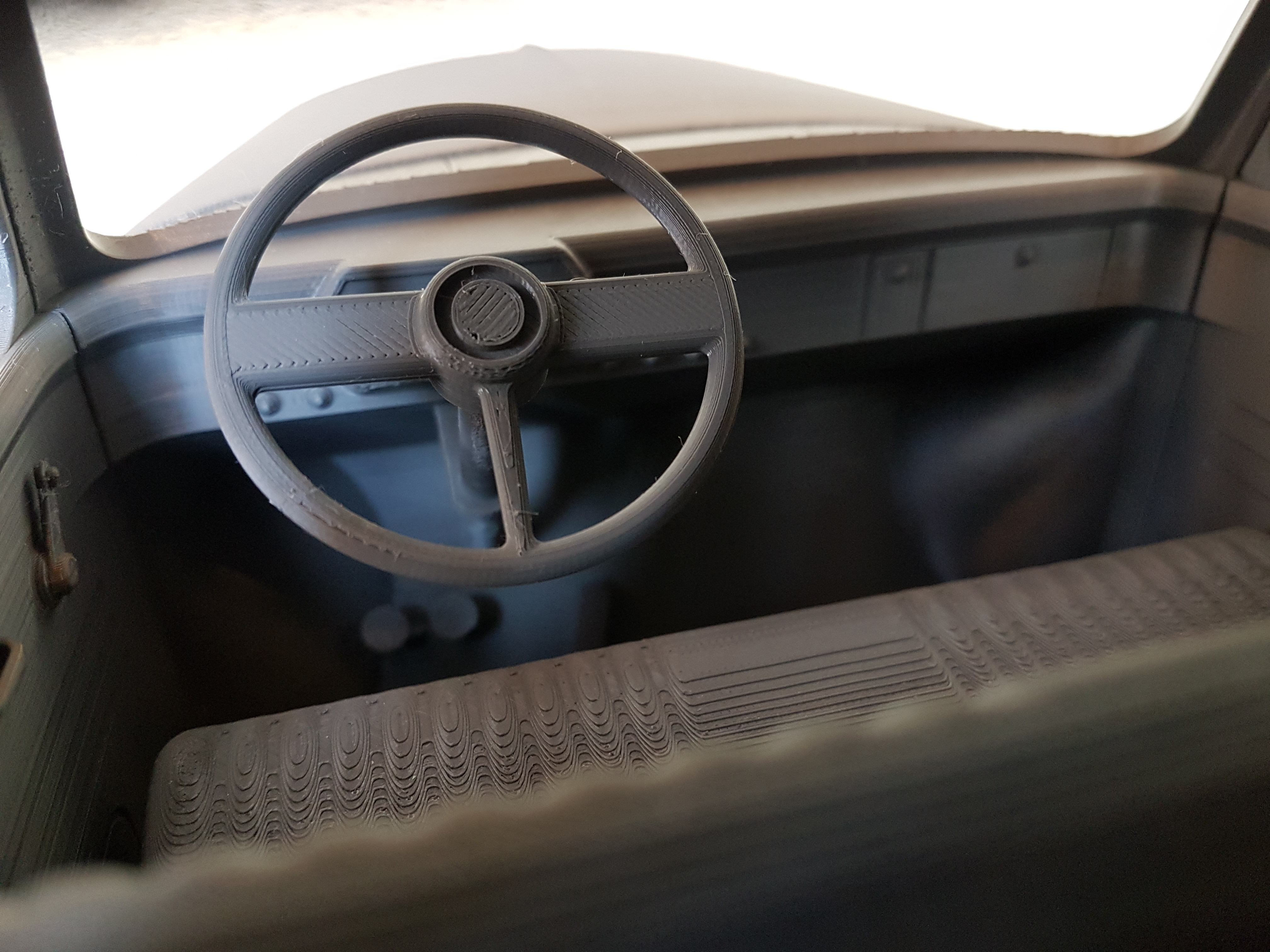

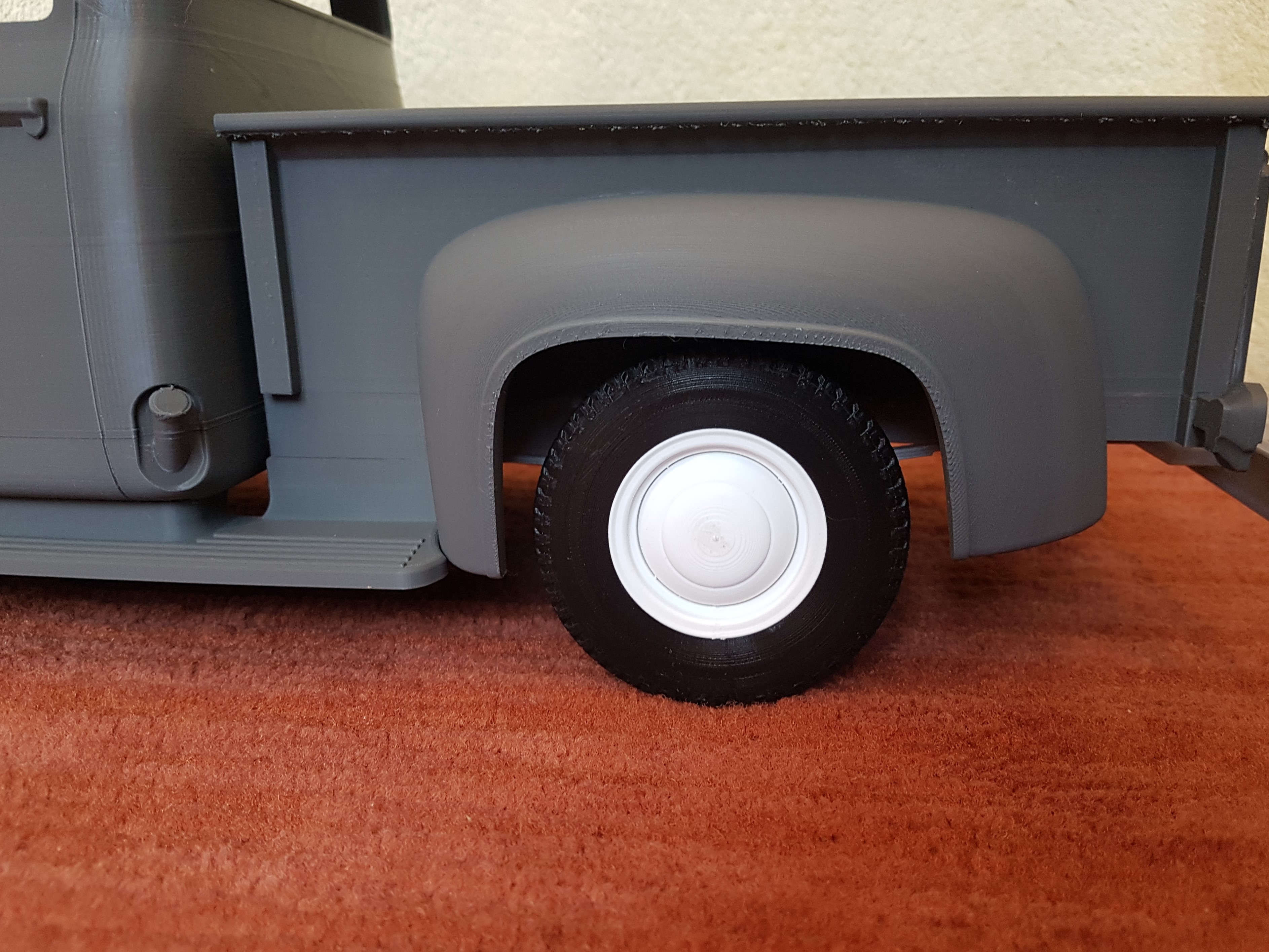

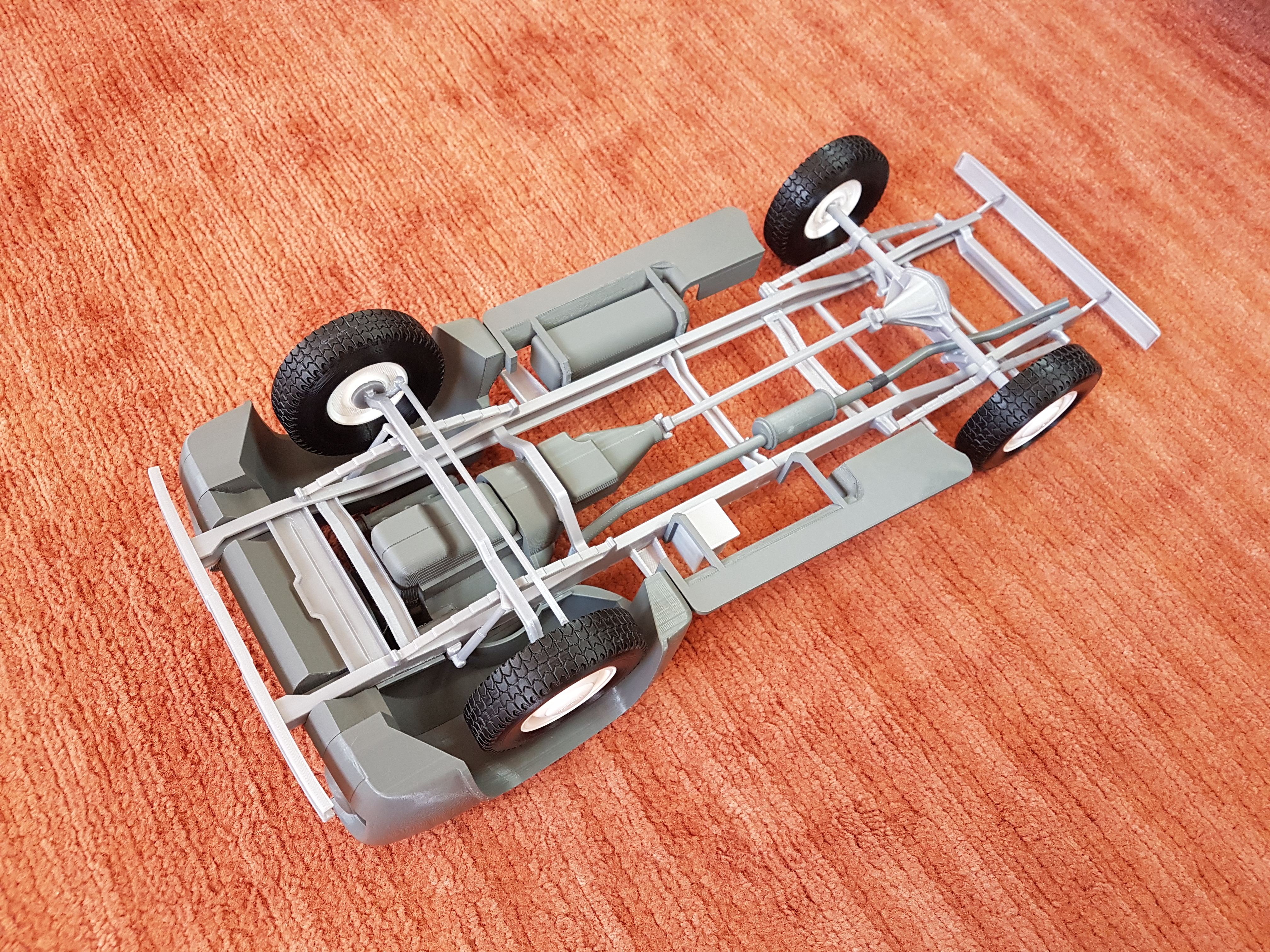

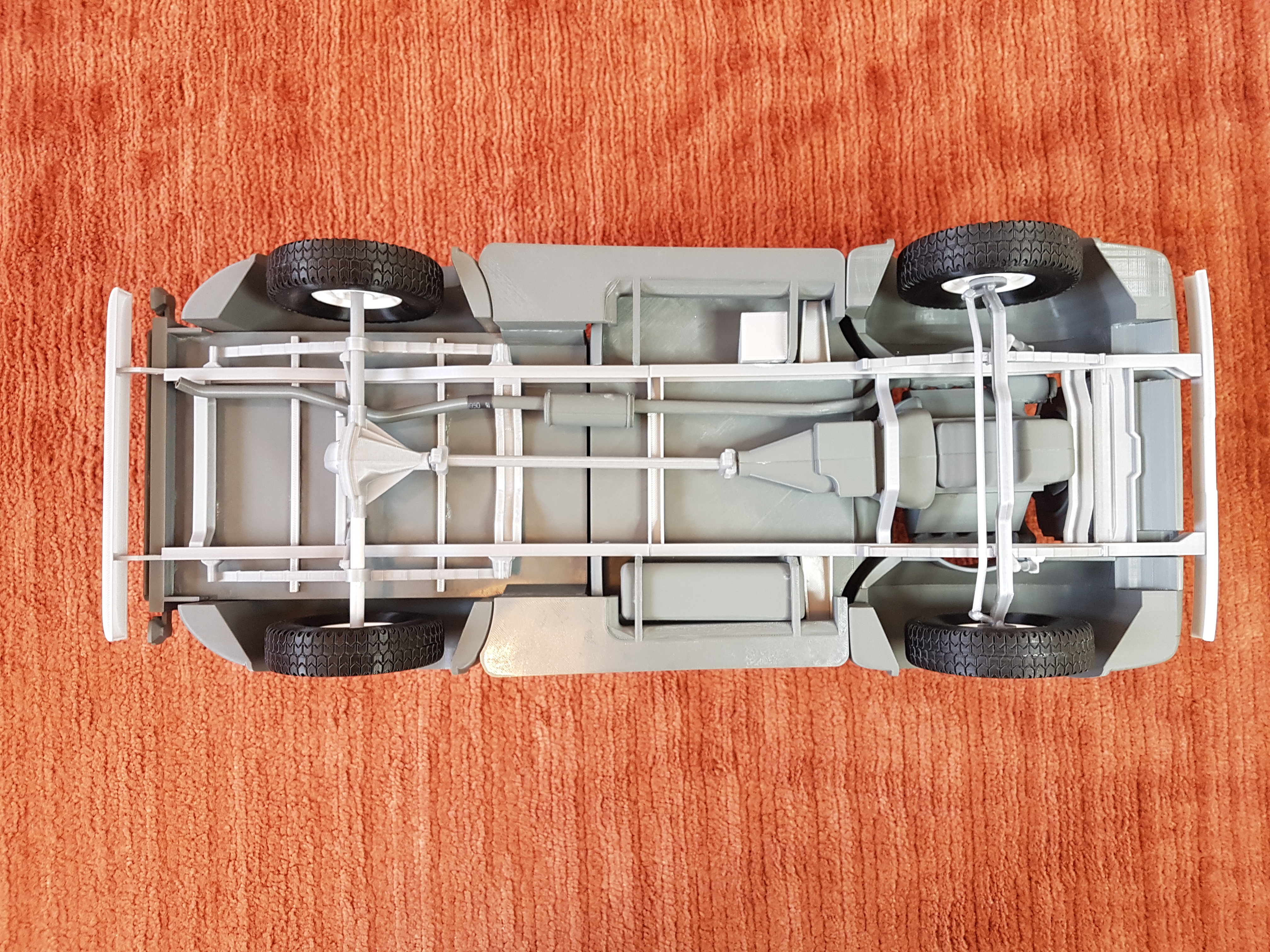

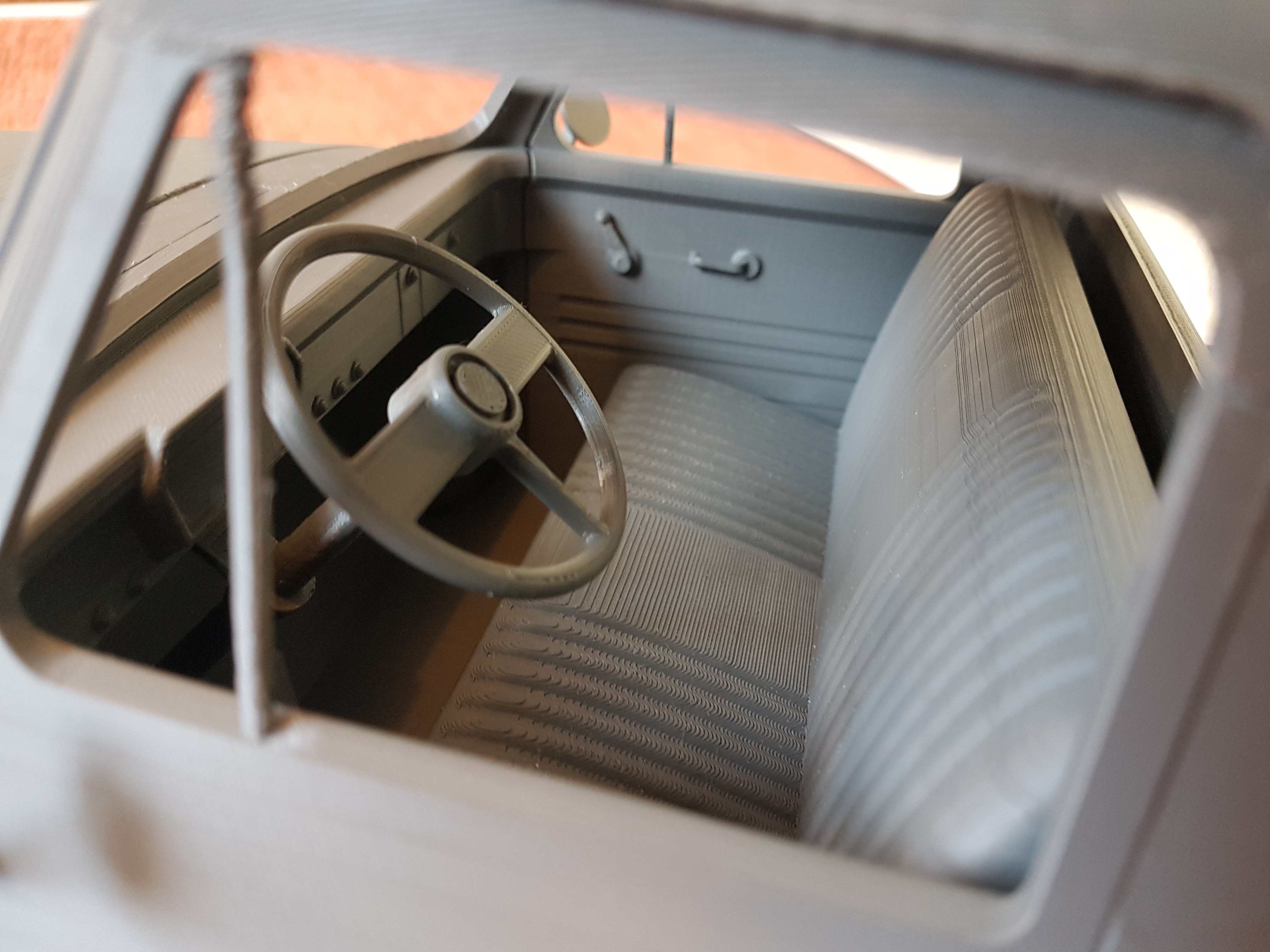

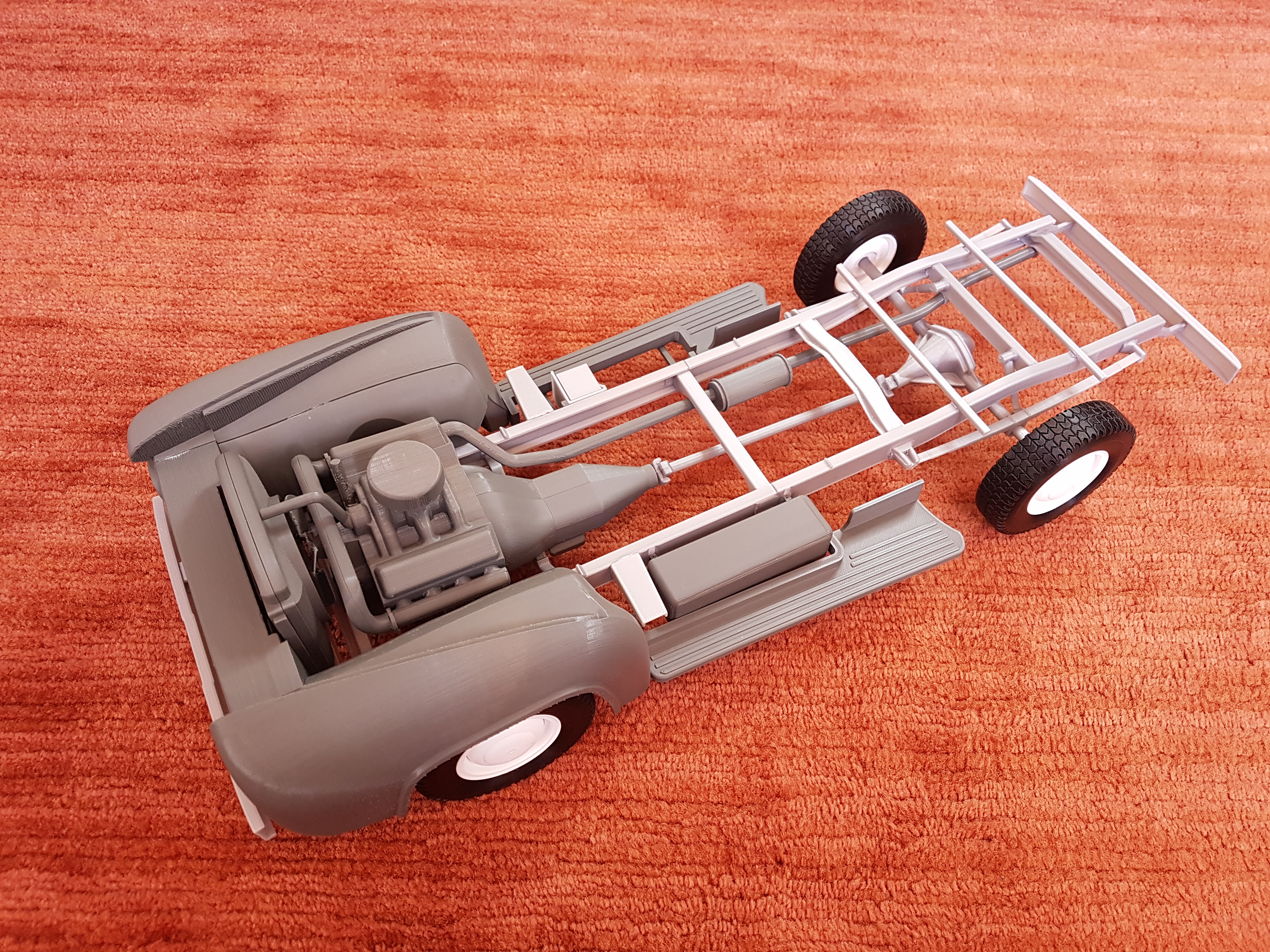

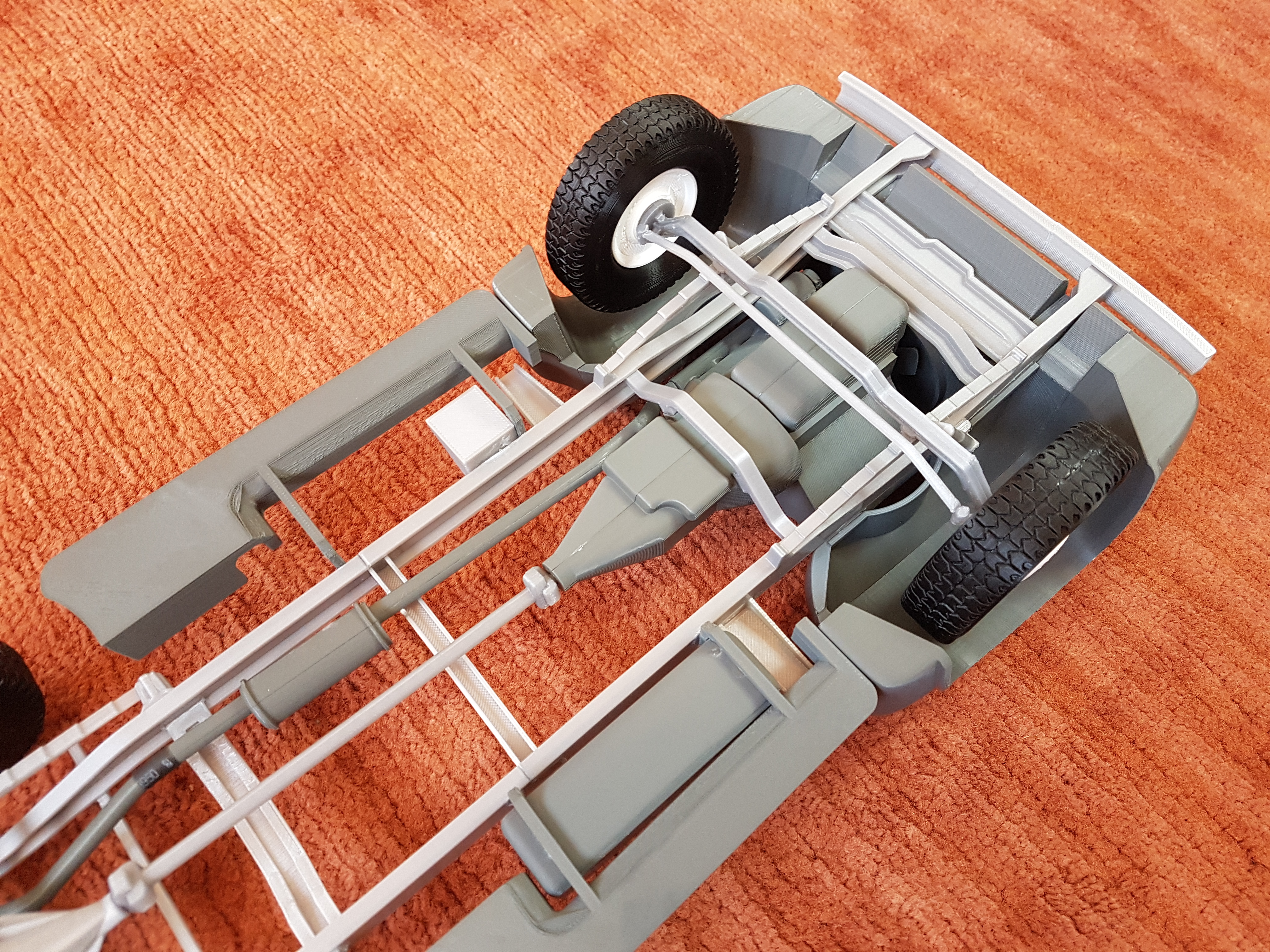

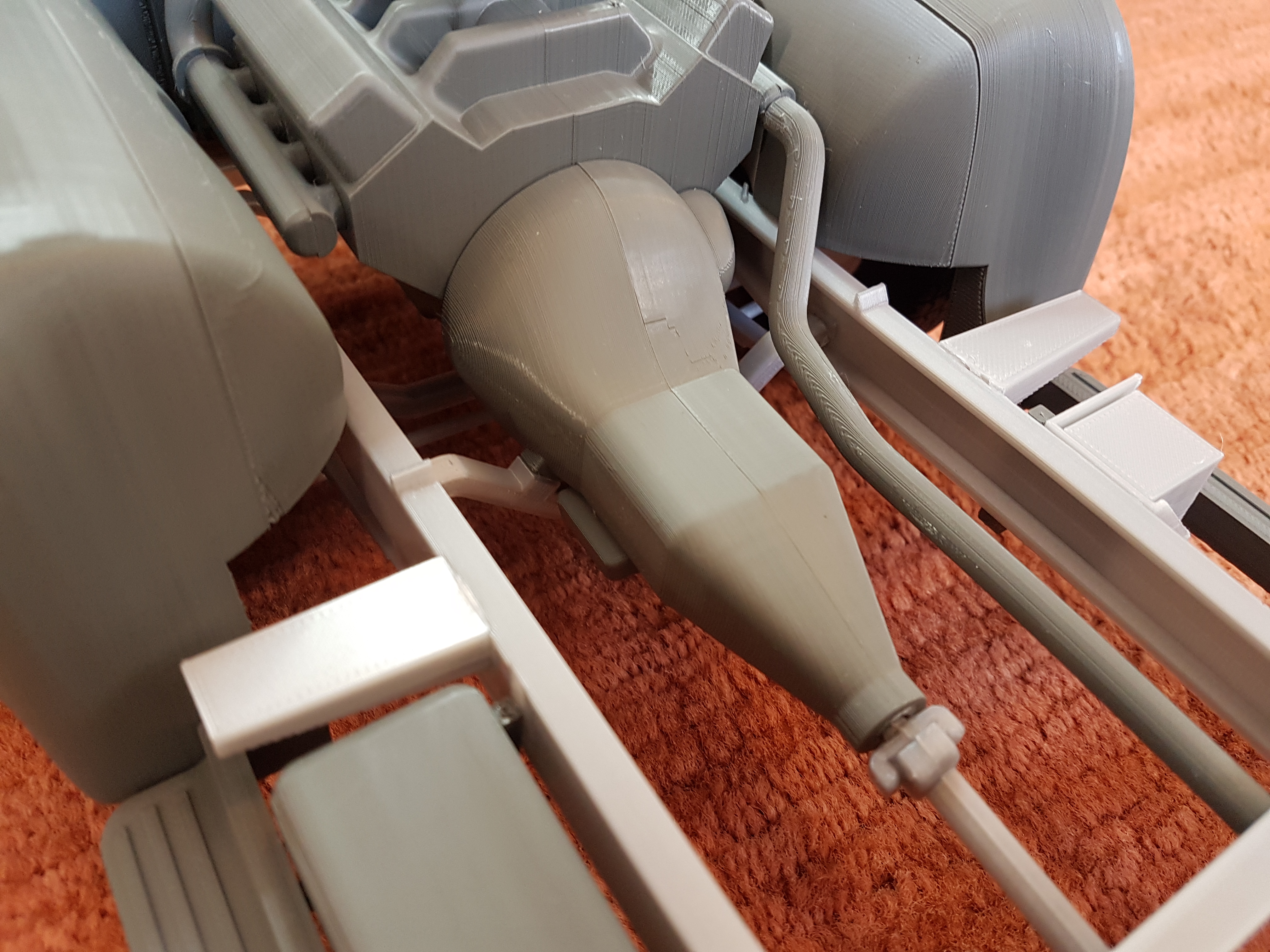

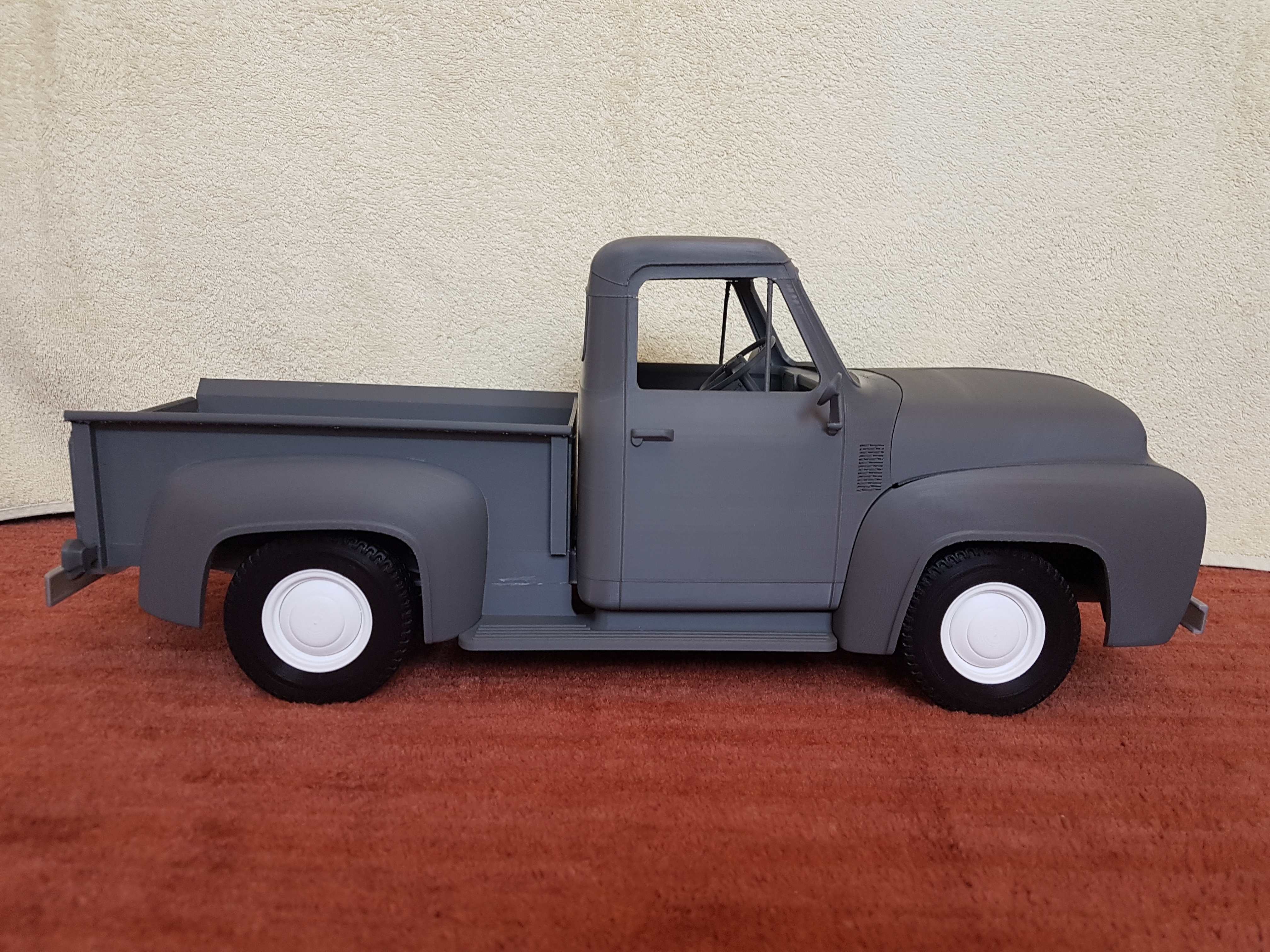

Model kit of Ford F100 1955 pickup truck. It's assembled from around 80 parts. It's been designed to be printed with FDM 3D printers. Some objects are already cut to more pieces, but original parts are also included, so you can cut them yourself. Wheelbase is 277.6mm.
You can check assembly pictures here https://1drv.ms/b/s!AtFJxPeeKm3VoLdb-Izyu2oikITCaQ?e=gs0ncX
Required print bed size is 220x220mm and 160mm height.
Always double check printed parts if they fit together before gluing them. Model is 48cm long and weights around 1300grams. To assemble this model you will need printed parts and superglue.
Parts a01-a09, b01-b11 needs to be strong, so use 2-3 perimeters and 100% infill.
I've printed big parts with 0.4mm nozzle and 0.15 layer height. Smaller parts with 0.3-0.35mm nozzle and 0.08-0.12mm layer height. Infill can be set to 10-15%.
Model includes fitting tolerances and has been printed and assembled with several different printers. If parts don't fit well, double check your printer calibration please. Perfectly calibrated X, Y, Z dimensions, extruder and good quality filament are a must have. I recommend calibrating X and X with 100mm (or bigger) square, Z with at least 10mm height. Even a little overextrusion or first layer "elephant foot" can cause problems fitting parts together.
I like to create and print useful objects. But my main focus is to model and print detailed scale model kits. It requires hundreds hours of modeling and printing, but final product is always worth it.
