Dolly Slider

A Dolly Slider is a motorized dolly for dynamic video shooting .

rotations around an object, time laps, close-ups of objects, a whole host of very cool sequences.

the editing video:

https://youtu.be/YFzV0xmaRCI?si=TTQ-Pi3tRt0f8guw

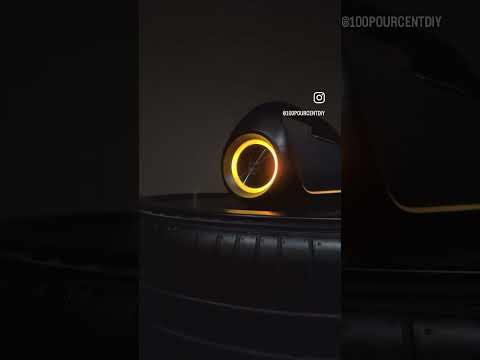

what you can do with it:

https://youtube.com/shorts/XAN2vPuHnqM?si=zPaCtL6b3Ybapfa_

shopping list:

Screws and bolts:

-M3x8 10 pieces, domed head BTR, motor mount and control plate.

-M3x18 (20mm max) 3 pieces, BTR domed head, fix drive wheel.

-M4X10 4pieces (domed head BTR) fix motor plate.

-M4x6 4pièces , Cylindrical head BTR, feet in turntable mode.

-M4x8 1piece, hex head, battery door knob.

-M6x45 2pieces BTR domed head, wheel fix + 6 Nylstop nuts M6 + 2 washers M6.

-M6x55 7pieces cylindrical head fix housing + 7 nuts M6

Heat inserts:

-M3x4pieces.

-M4x9pieces.

-1/4 x1 photo.

Wheels:

-3 Decathlon 70mm roller wheels.

-4 636ZZ bearings :6x22x7 (6mm int axis x22mm ext x 7mm thickness )

https://fr.aliexpress.com/item/1005005478195126.html?spm=a2g0o.productlist.main.23.3bdd469czEv3Qj&algo_pvid=a36c56dc-7099-4730-9b12-a069426f7302&aem_p4p_detail=20240111083325884477702725250009842032&algo_exp_id=a36c56dc-7099-4730-9b12-a069426f7302-11&pdp_npi=4%40dis%21EUR%213.85%211.50%21%21%2129.59%2111.54%21%402103872a17049908057933459e84ed%2112000033243872244%21sea%21FR%21705403579%21&curPageLogUid=jmNbhOlZA2lL&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=20240111083325884477702725250009842032_12

-12v 20 rpm Aliexporess motor

https://fr.aliexpress.com/item/1005002820843944.html?spm=a2g0o.order_list.order_list_main.22.65f05e5bpayzXt&gatewayAdapt=glo2fra

https://fr.aliexpress.com/item/32587420240.html?spm=a2g0o.detail.pcDetailBottomMoreOtherSeller.4.3d3almvSlmvSAS&gps-id=pcDetailBottomMoreOtherSeller&scm=1007.40196.444363.0&scm_id=1007.40196.444363.0&scm-url=1007.40196.444363.0&pvid=6aaeb97c-8dfb-45fd-83db-21b1d8895fe7&_t=gps-id:pcDetailBottomMoreOtherSeller,scm-url:1007.40196.444363.0,pvid:6aaeb97c-8dfb-45fd-83db-21b1d8895fe7,tpp_buckets:668%232846%238111%231996&pdp_ext_f=%7B%22order%22%3A%22205%22%2C%22eval%22%3A%221%22%2C%22sceneId%22%3A%2230050%22%2C%22fromPage%22%3A%22recommend%22%7D&pdp_npi=6%40dis%21EUR%214.24%213.99%21%21%214.79%214.50%21%40211b628117628896473983039ead0d%2112000050555120621%21rec%21FR%21705403579%21XZ%211%210%21n_tag%3A-29919%3Bd%3A92f18de0%3Bm03_new_user%3A-29895&utparam-url=scene%3ApcDetailBottomMoreOtherSeller%7Cquery_from%3A%7Cx_object_id%3A32587420240%7C_p_origin_prod%3A

-Control electronics:

https://fr.aliexpress.com/item/1005005932385078.html?spm=a2g0o.order_list.order_list_main.5.65f05e5bpayzXt&gatewayAdapt=glo2fra

https://fr.aliexpress.com/item/1005009268437919.html?spm=a2g0o.detail.pcDetailBottomMoreOtherSeller.1.254ctRlYtRlYJv&gps-id=pcDetailBottomMoreOtherSeller&scm=1007.40196.444363.0&scm_id=1007.40196.444363.0&scm-url=1007.40196.444363.0&pvid=27a414f7-840e-4eb0-bdd0-b8a0fa8d1e18&_t=gps-id:pcDetailBottomMoreOtherSeller,scm-url:1007.40196.444363.0,pvid:27a414f7-840e-4eb0-bdd0-b8a0fa8d1e18,tpp_buckets:668%232846%238111%231996&pdp_ext_f=%7B%22order%22%3A%2215%22%2C%22eval%22%3A%221%22%2C%22sceneId%22%3A%2230050%22%2C%22fromPage%22%3A%22recommend%22%7D&pdp_npi=6%40dis%21EUR%212.07%211.85%21%21%2116.62%2114.85%21%40211b617b17628910521386403e2450%2112000048549811555%21rec%21FR%21705403579%21X%211%210%21n_tag%3A-29919%3Bd%3A92f18de0%3Bm03_new_user%3A-29895&utparam-url=scene%3ApcDetailBottomMoreOtherSeller%7Cquery_from%3A%7Cx_object_id%3A1005009268437919%7C_p_origin_prod%3A

The parts are printed with supports only for the location of screw heads or nuts, no support under the 45° chamfers, it passes without support.

the underside, the top, the battery hatch, on parts that have '(° no need for support.

Between 10 and 20% Gyroide.

for the walls of the wheel supports, I recommend 4 walls for greater strength and 20% Gyroide filling.
