Deans Connector Soldering Stand

Download free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3dDownload free 3D printing designs Deans Connector Soldering Stand, idig3d

Did you 3D print this model?

3D model description

After showing a buddy my Solder Fingers he wanted something to hold a Deans connector for soldering So I thought this up, and way over engineered, but a fun little challenge.

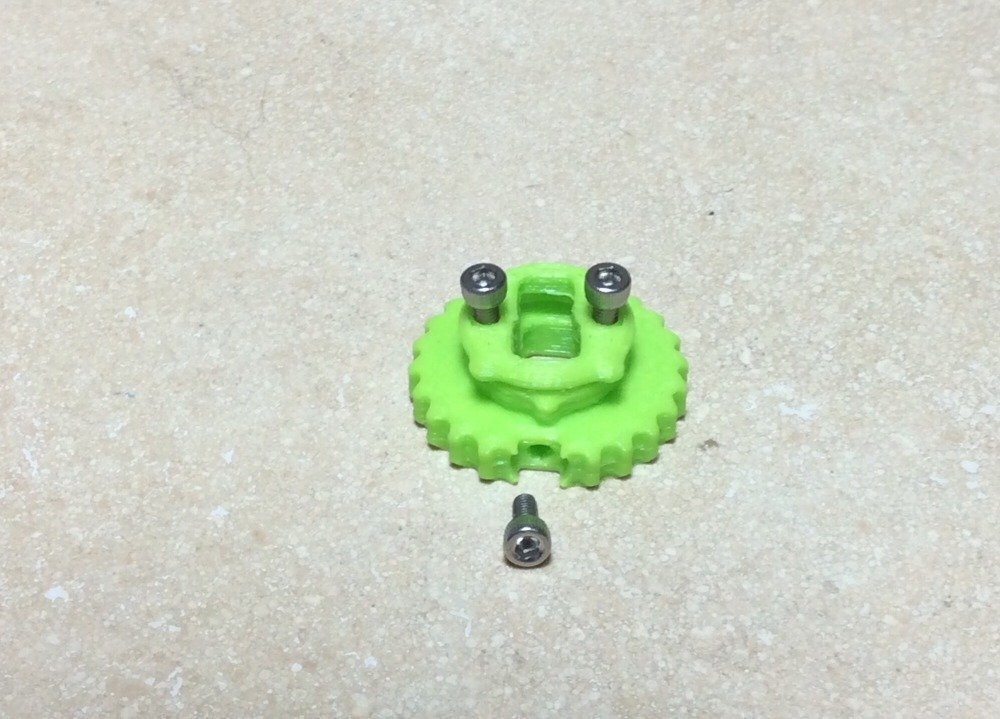

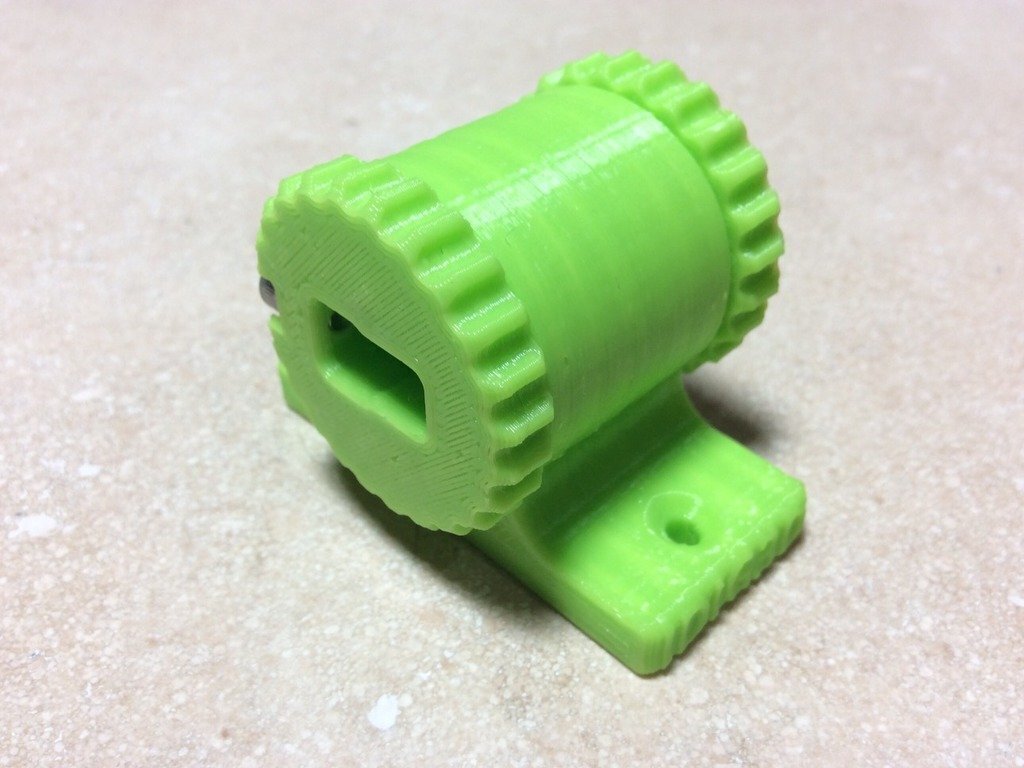

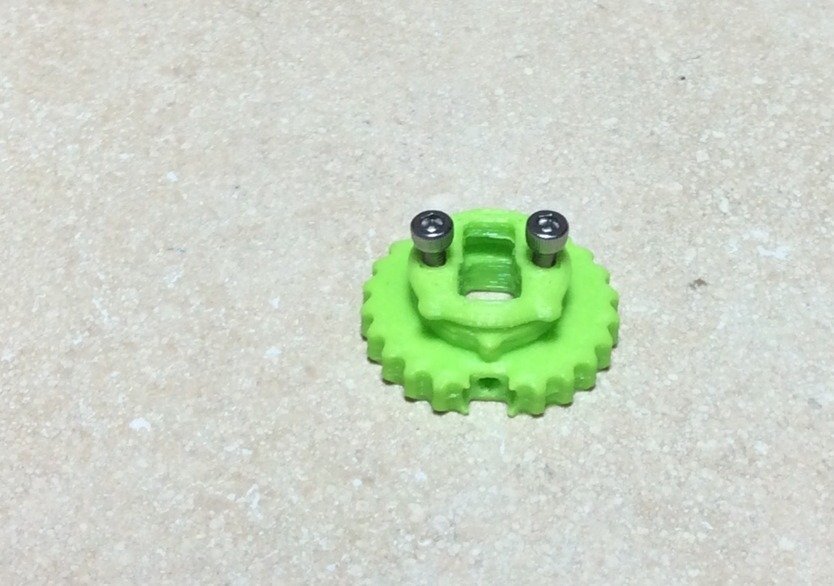

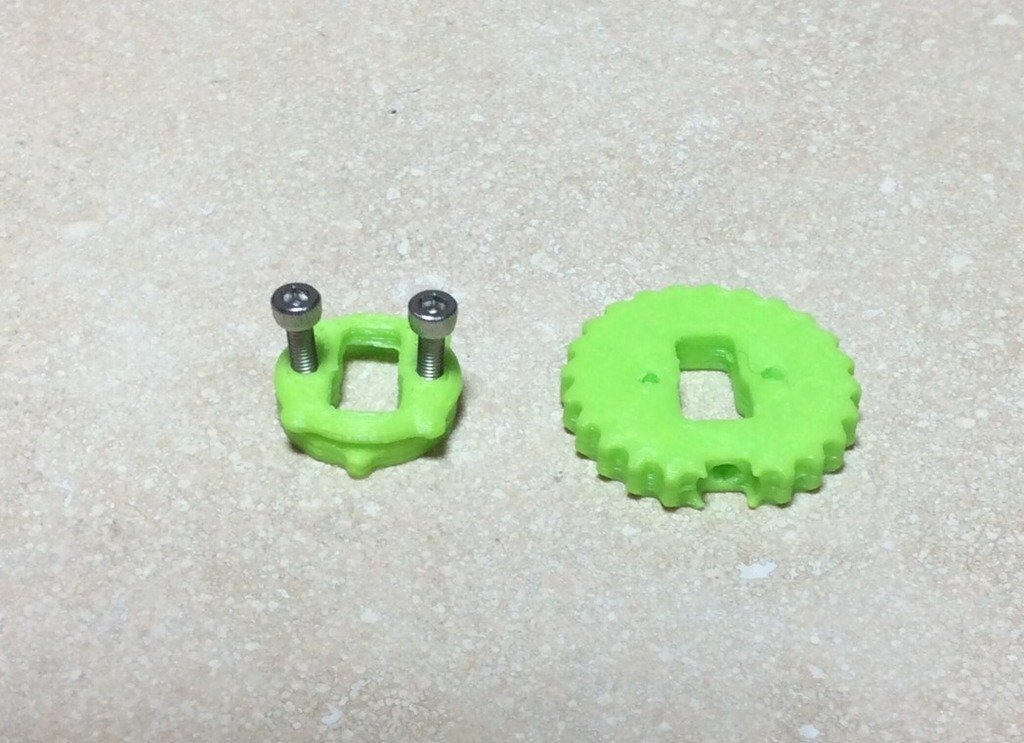

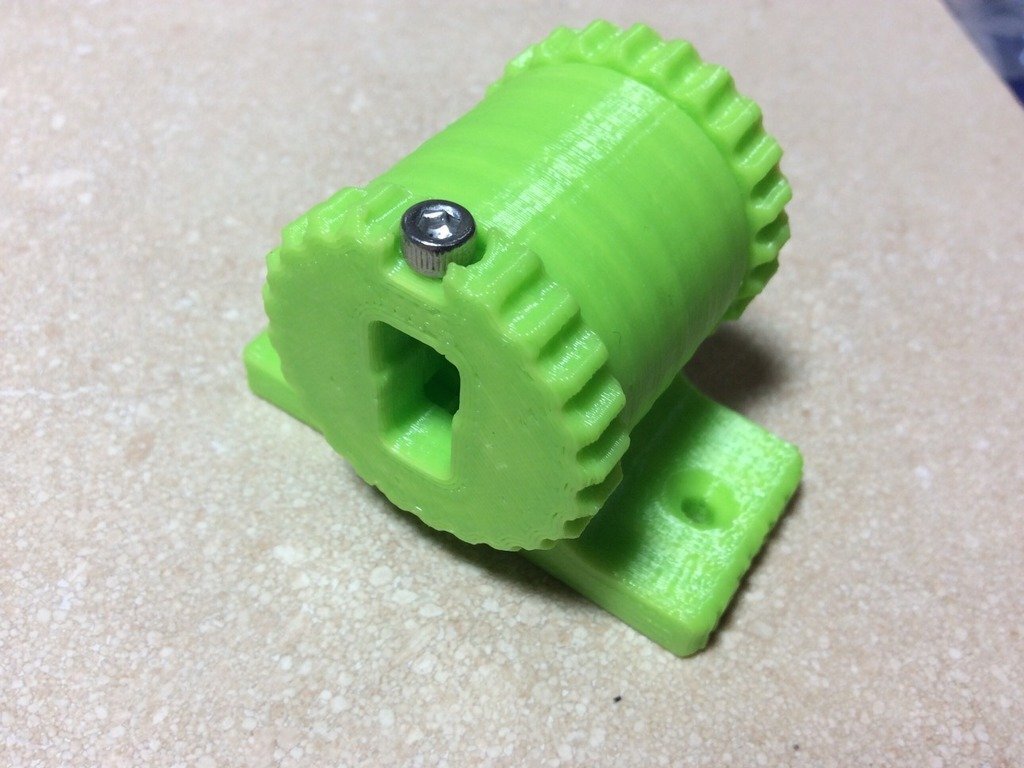

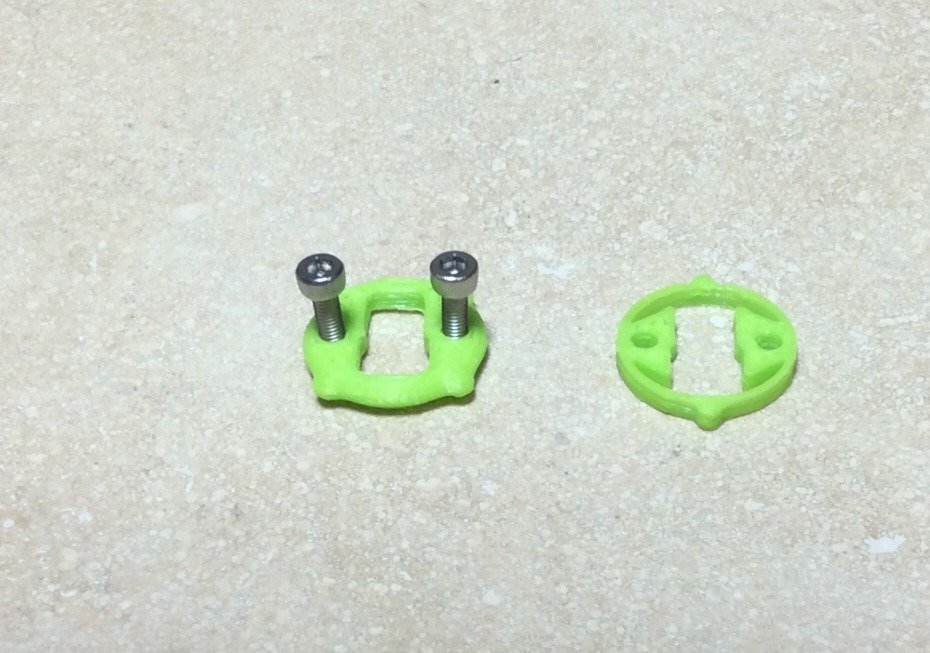

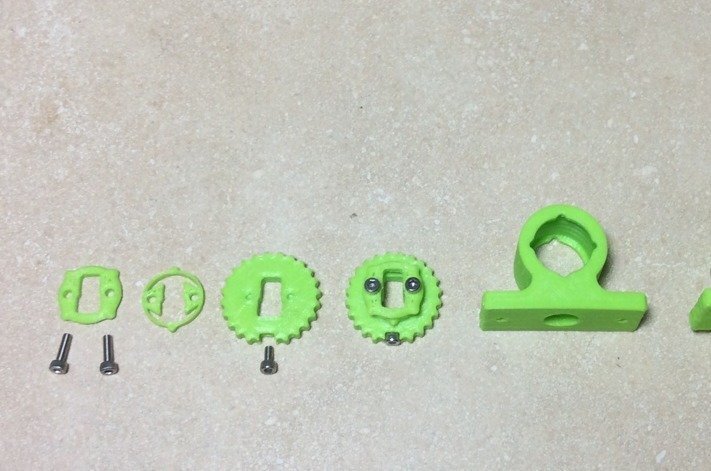

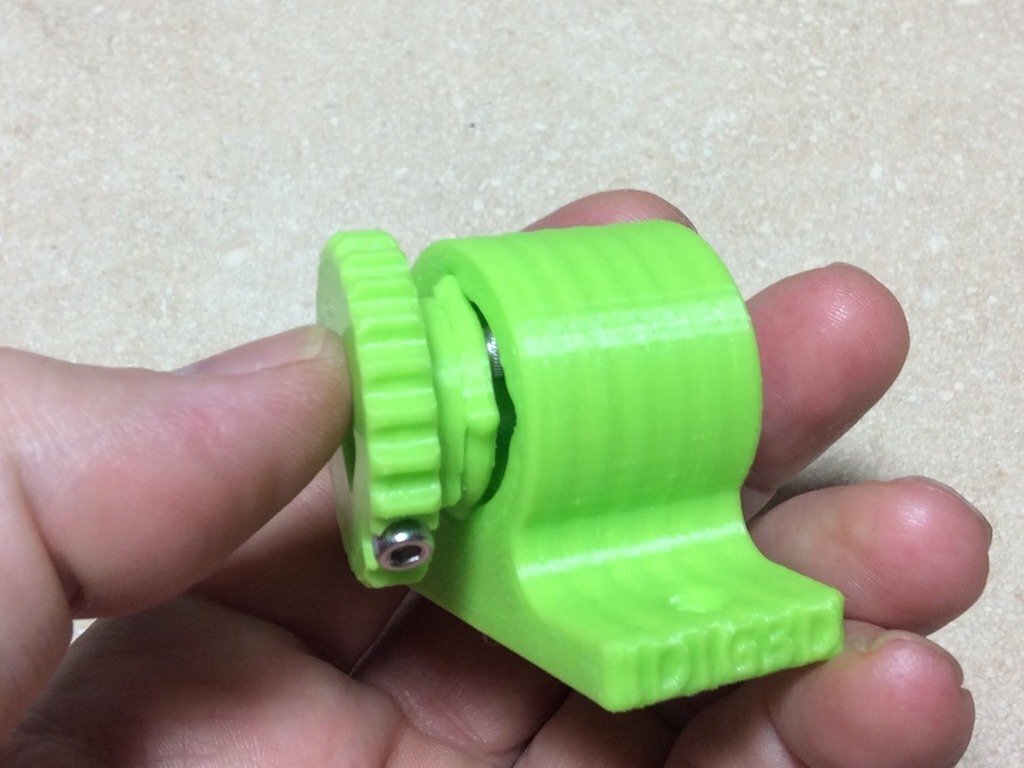

The thumbwheels rotate and click in on 90º. You can insert a mating connector and tighten the set screw to hold it so it can hold the connector and act as a bit of a heatsink. Screw holes to mount to bench or snap in a magnet.

Printed best in something more flexible than standard PLA--high-temp PLA, ABS, PETG, or ASA.

Needs:
4 M3x10 screws for dial assembly
2 M3x6 screws for set screws to hold mated connectors
12mmx3mm magnet for base

https://youtu.be/tqZjS9RRJLI
