CRAWLER RC CAR "WHALE" ECOV MK1 _1/8 RC Body and Chassis

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
5 files (PDF, STL, and ZIP) Close
  • Dashboard.zip
  • ECOV MK1 Whale.zip
    • Body/Body panel front left.STL
    • Body/Body panel front right.STL
    • Body/Body panel middle left.STL
    • Body/Body panel middle right.STL
    • Body/Body panel rear.STL
    • Body/Body panel side left.STL
    • Body/Body panel side right.STL
    • Body/Cockpit.STL
    • Body/Elvis Emblem.STL
    • Body/Exhaust pipe front left.STL
    • Body/Exhaust pipe front right.STL
    • Body/Exhaust pipe left.STL
    • Body/Exhaust pipe rear left.STL
    • Body/Exhaust pipe rear right.STL
    • Body/Exhaust pipe right.STL
    • Body/Hinge x16.STL
    • Body/Light box front left.STL
    • Body/Light box front right.STL
    • Body/Light box rear left.STL
    • Body/Light box rear right.STL
    • Body/Radiator grill.STL
    • Body/Seat back.STL
    • Body/Seat bottom.STL
    • Body/Seat bracket TPU.STL
    • Body/spacer 10mm.STL
    • Body/spacer 5mm.STL
    • Body/Steering wheel bracket.STL
    • Body/Steering wheel hinge.STL
    • Body/Steering wheel.STL
    • Body/Top frame front.STL
    • Body/Top frame rear.STL
    • chassis/Battery tray bracket.STL
    • chassis/Battery tray.STL
    • chassis/Link mount.STL
    • chassis/Main frame front left.STL
    • chassis/Main frame front right.STL
    • chassis/Main frame rear left.STL
    • chassis/Main frame rear right.STL
    • chassis/Motor mount.STL
    • chassis/Servo mount.STL
    • chassis/Shock tower front.STL
    • chassis/Shock tower rear.STL
  • Link Length Gauge for ECOV.STL
  • Non 3d-printed parts list.pdf
  • Parts List.pdf

Learn more about the formats
Last update
Publication date
Design number 2237188
Elvis_RC_Studio

Elvis_RC_Studio

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

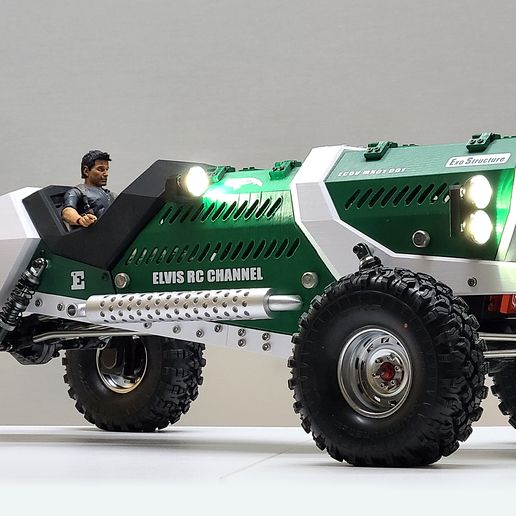

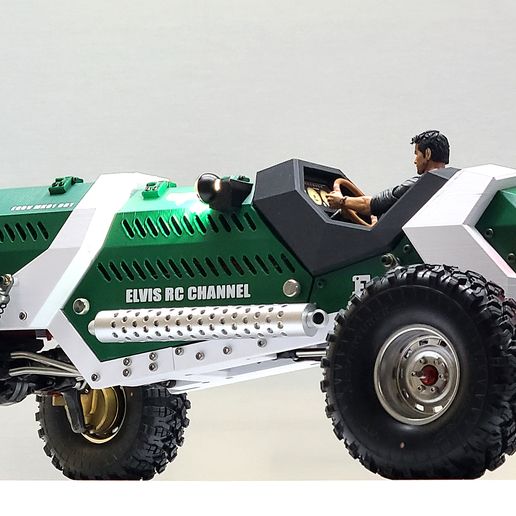

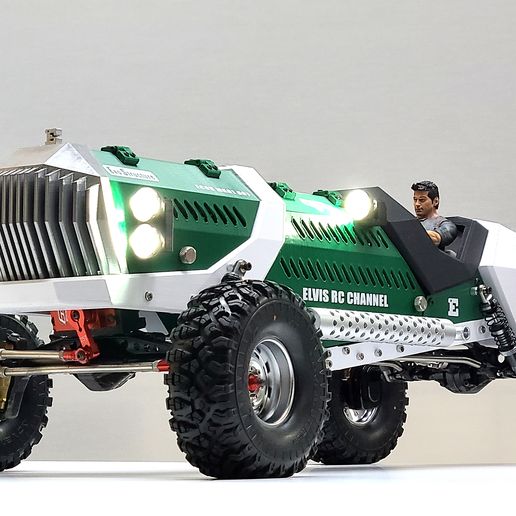

Here is the Crawler RC car, a redesigned classic car with an edgy style.

The body and chassis are 3D printed, while the drivetrain uses metal parts for durability and to allow greater design freedom for the body.

The design was inspired by slender and elongated whales, with the radiator grille resembling whale baleen. The heavy gearbox and motor are positioned as low as possible for a lower center of gravity.

We designed a frame that doubles as the body, featuring an exoskeleton structure to protect the body panels and internal components.

We recommend watching the assembly guide video as you build the model.

Even before purchasing the 3D data, you can check the parts and quantities needed for assembly, along with purchase links, in the description section of the assembly guide video.

A short introduction video on the entire manufacturing process will also be uploaded for your enjoyment.

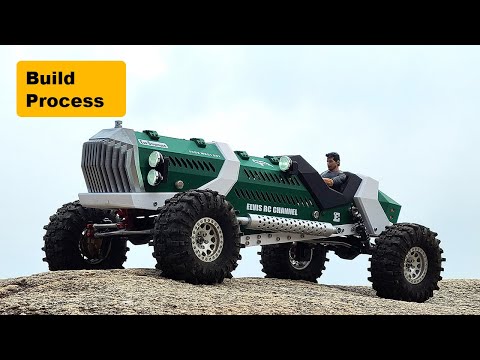

https://www.youtube.com/watch?v=TMCmI74MF1g&t=11s - introducing video

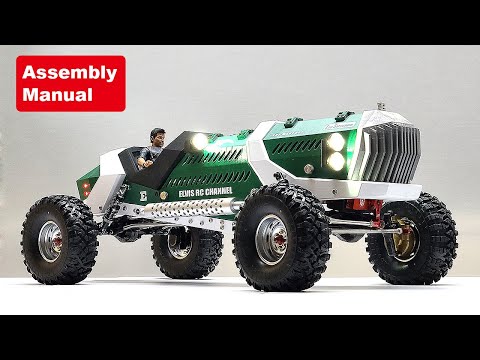

https://youtu.be/HjrjqHfDX78 - assembly manual video

Vehicle Specifications
560 x 148 x 147 (height) - excluding wheels
Wheelbase 380 mm

The Elvis RC Community is hosted on a Facebook group, providing a space to ask and answer questions related to assembly.

In this group, you can explore other builders' creations, share ideas, and connect with fellow enthusiasts.

Join us to gain insights and enjoy the fun of building RC cars together!

https://www.facebook.com/groups/1297721991377726

3D printing settings

3D printing settings
0.4mm nozzle
0.15mm layer height
bed temp: 50℃
nozzle temp: 230-240℃
top and bottom: 5 layer
wall: 2.0mm
fill: 40%
