Airsoft sound grenade (using toy cap ring)

VID_20230530115234_AdobeExpress-1.gif STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
DSC02839.jpg STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
DSC02837.jpg STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download

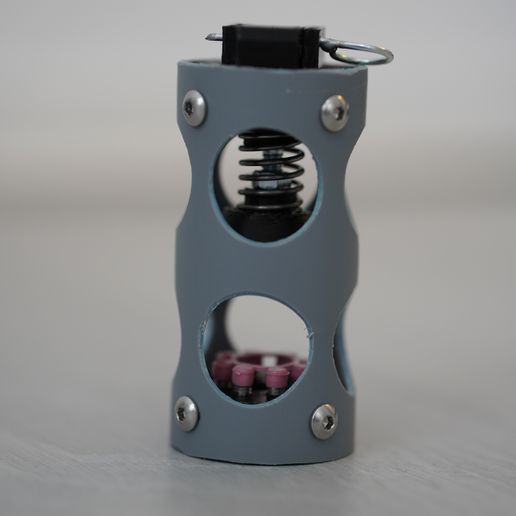

DSC02829.jpg STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
DSC02832.jpg STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download

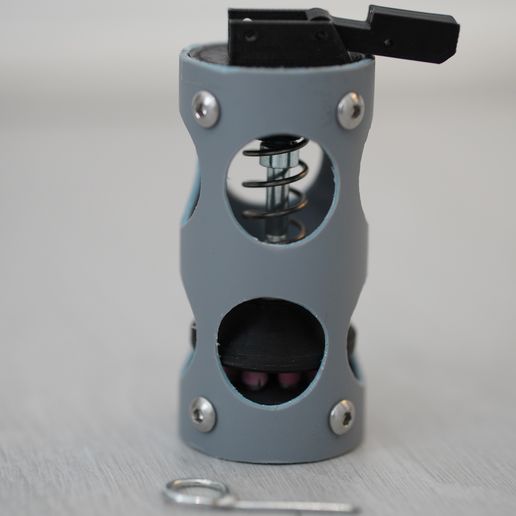

DSC02835.jpg STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
arm.stl STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
bottom.stl STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
cut_tool.stl STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
piston_head.stl STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
piston_head_2.stl STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
predrill.stl STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
top.stl STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download
piston_head_3_30.3x11.8.stl STL file Airsoft sound grenade (using toy cap ring)・3D printing design to download

🔫 3D models of guns or weapons are dummy objects or prop toys and have no real functionality as weapons. They are intended for entertainment or decorative purposes only. For any design violating our T&Cs, please report them.

Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

mariusc

mariusc

3D model description

The idea behind this model was to create an airsoft sound grenade that is safe to use, to be as cheap as possible, easy to assemble, to use all 8 caps from the ring in the same time (for a higher sound) and to have all the printed parts inside the PVC pipe (as much as possible) to avoid mechanical failures.

You need:
- 40mm PVC pipe (OD ~40mm ID 36.5mm)
- 8x M4x8mm
- 8x M4x12mm (for cap ring triggers)
- one big washer 29.5x11x2mm
- half of M90 spring
- 1x M5 screw
- some big paper clips (or something similar with 1.75mm diameter)
- step drill (I've used 20mm)
- superglue

Instructions:
See the attached PDF.

THIS IS JUST A TOY USED FOR AIRSOFT. THE CAPS ARE SAFE - ARE DESIGNED FOR CHILDRENS!

But ... Alway use safey glases and handgloves!!

If there are some problems, just throw me a message.

3D printing settings

Print it with brim and support (only touching buildplate)

PLA: 0.2 layer size
Infill: 30%
Walls: 5

3D printer file information

  • Design number: 1218724
  • 3D design format: PDF and STL Folder details Close
    • arm.stl
    • bottom.stl
    • cut_tool.stl
    • instructions.pdf
    • piston_head.stl
    • piston_head_2.stl
    • piston_head_3_30.3x11.8.stl
    • predrill.stl
    • top.stl

    Learn more about the formats

  • Last update: 2023-06-08 at 06:14
  • Publication date: 2023-05-13 at 17:43
