1/16 scale Dodge WC-51 wpl/jjrc RC

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
27 files (STL) Close
  • Left Hood.stl
  • Left rack.stl
  • Servo bracket.stl
  • Tail gate.stl
  • Windshield.stl
  • grill.stl
  • right hood.stl
  • right rack.stl
  • wc tire 5.stl
  • wc51 body.stl
  • wc51 crate 2.stl
  • wc51 crate.stl
  • wc51 dash.stl
  • wc51 rear bumper.stl
  • wc51 seat pins.stl
  • wc51 seats.stl
  • wc51 spare tire mount.stl
  • wc51 steering coulum.stl
  • wc51 steering wheel.stl
  • wc51 suspention kit.stl
  • wc51 tie rod.stl
  • wc51half front cab.stl
  • wc51half rear bed.stl
  • wc51hook.stl
  • wc51rim.stl
  • wpl n30 mount lid v2.stl
  • wpl n30 mount v2.stl

Learn more about the formats
Publication date
Design number 1002195
AmericanTanker

AmericanTanker

Issue with this design? Report a problem.

3D printer file info

3D model description

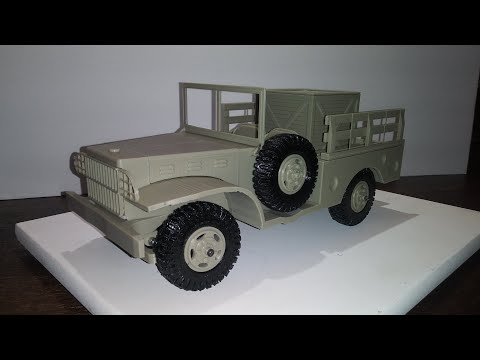

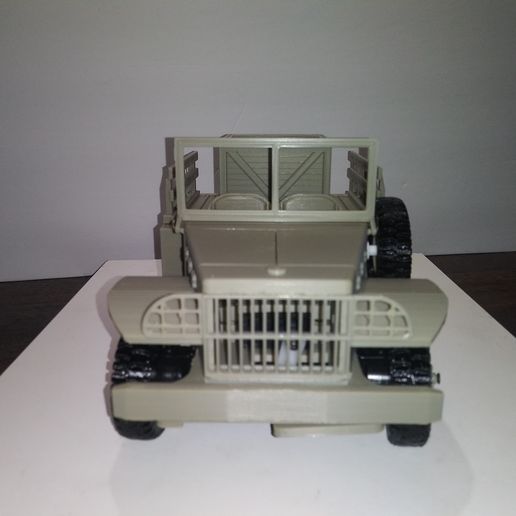

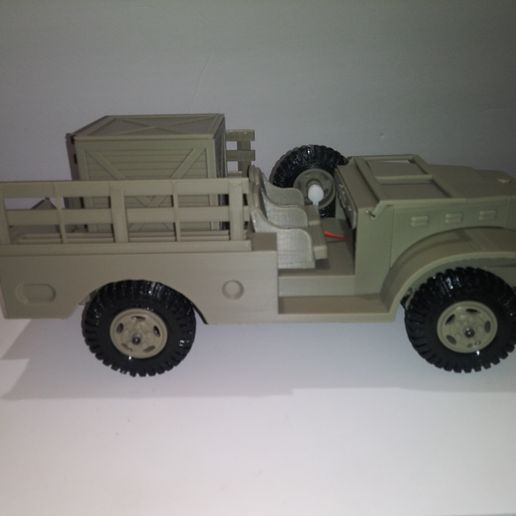

RC Dodge WC-51 in 1/16th scale uses wpl/jjrc drivetrain.
You can print the main body of this truck in two ways: Two halves or one full piece.
You will need a printer capable of printing a minimum of 142mm x 133 mm x 53mm if you want to print the truck frame in two halves. Two halves will require you to print two more seat pins to help align the halves while you glue using super glue/CA glue.

If you want the main body printed as a one piece you will need a printer able to print 280mm. Printed as a whole piece the size is 276mm x 132mm x 55mm.

Uses 2 N30 motors with gearbox.
Printed tires and springs suspension with flexible filament TPU.

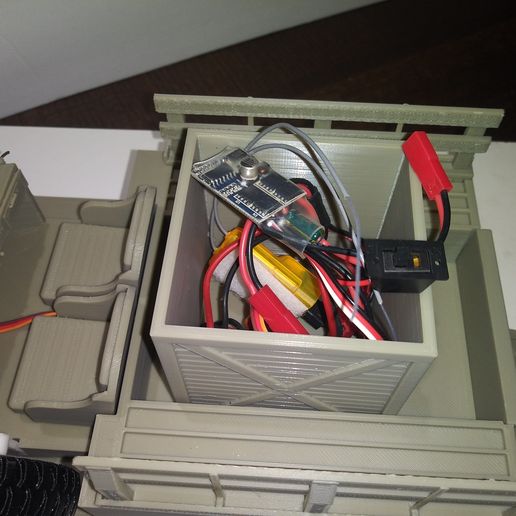

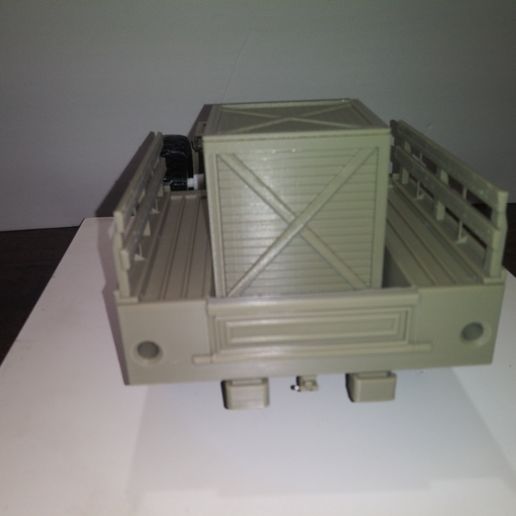

Included 2 crates to store electronics in the rear.

You might be able to adapt your own stock WPL motors to this but not sure of the ground clearance.

You can see more details by watching
https://youtu.be/lcHhOiRnjw0

Parts needed:
WPL axles and driveshafts
2 N30 motors/gearbox.
1mm metal rod for hinged parts
M3 brass threaded inserts
M3 screws various sizes
wiring, speed controller, battery, receiver
Use wood crafting sticks for the seats in the back.

3D printing settings

PLA, TPU
