Z axis Servo Endstop

Did you 3D print this model?

3D model description

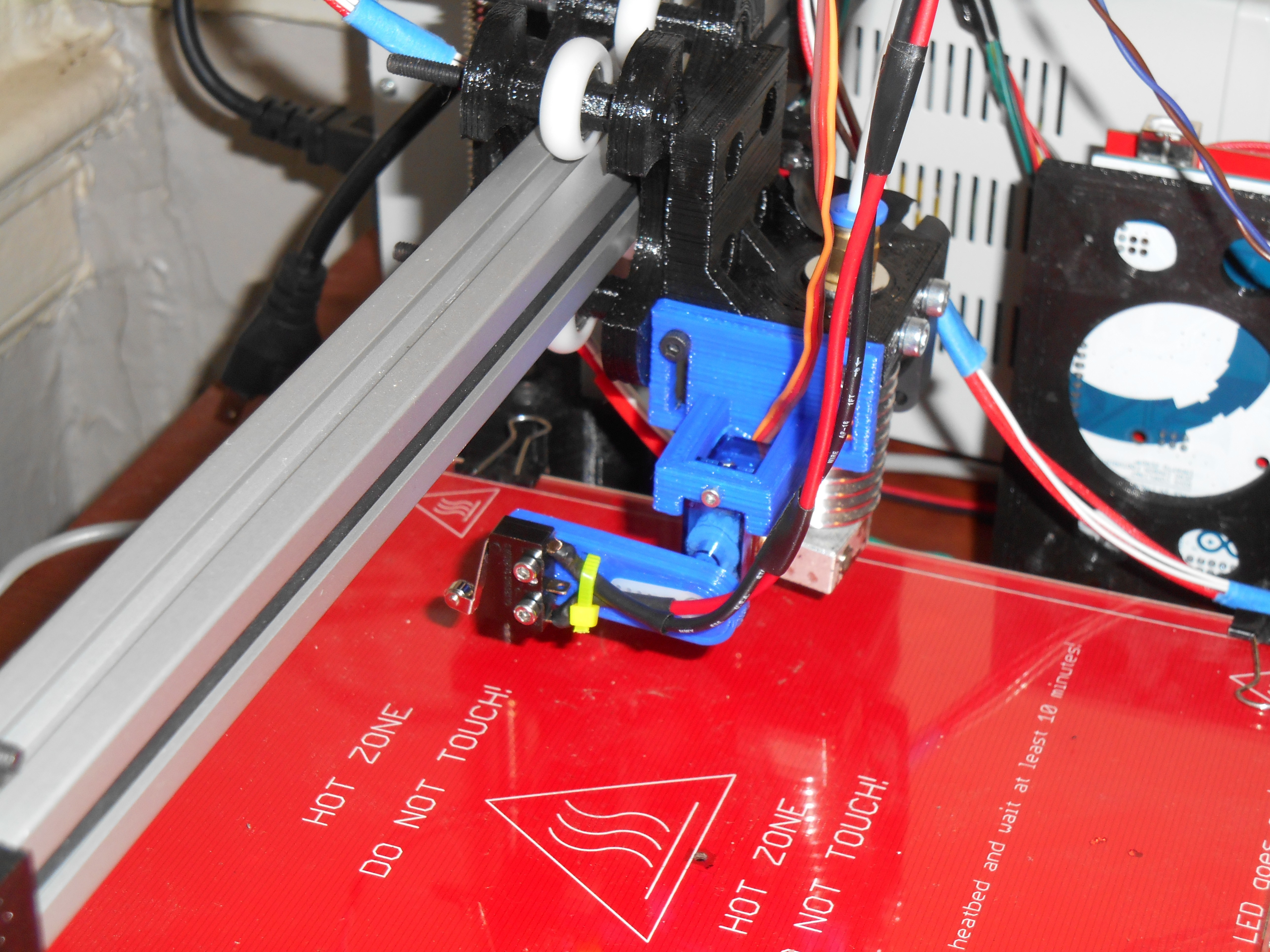

This a a simple z axis end stop driven by a servo.

It's designed for the following printer:
https://www.thingiverse.com/thing:2534072

hardware parts:
3 - M2.5 x 16mm
1 - M2.5 nut
1 - TEMCo Micro Limit Switch Roller Arm Subminiature SPDT
1 - 9G SG90 Micro Servo motor

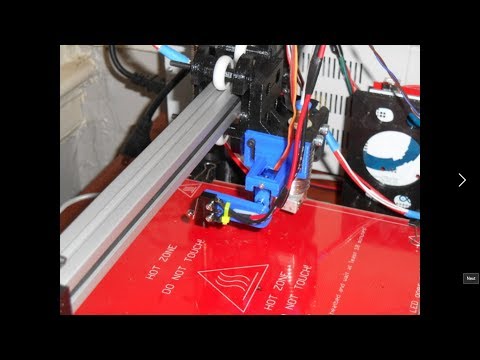

Install instructions:
https://youtu.be/6uELnoxRtSs

3D printing settings

.2 Infill
.2 Layer height

  • 3D file format: STL

Tags

Creator

License

CC BY ND
