vernier caliper

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 5k views
  • 15 likes
  • 443 downloads

3D model description

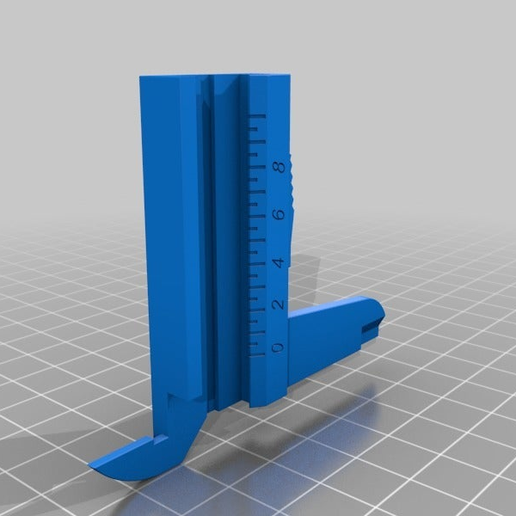

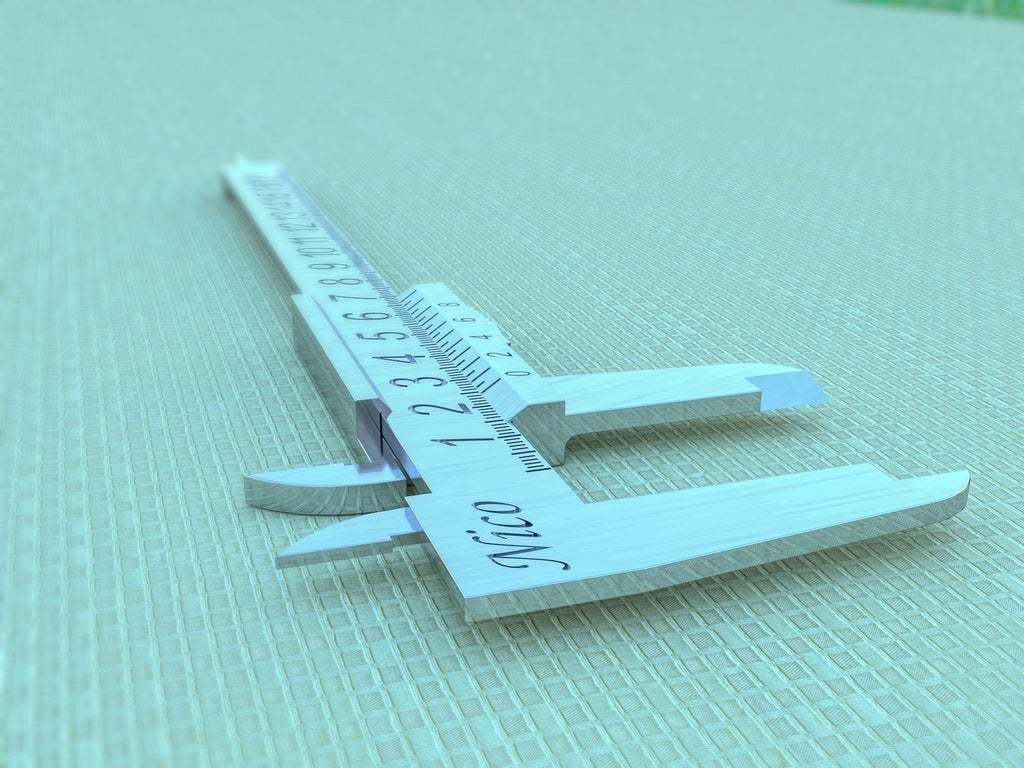

Vernier Caliper of metal creation by Nicolas Galvan, adaptation for 3d printing by Saginau. All tolerances are considered in terms of the limitations of the 3d printing.
04/01/18 Final optimization, achieved. I have added the new files, they must be printed in a published position, it is equally important that the resolution is 0.2mm, that way you get accurate markings.
04/02/18 mobile arm correction.
We appreciate any input and suggestion, keep in mind that it is in the development stage.
https://youtu.be/WBoiXt5EELw

3D printer file information

  • 3D design format: STL Folder details Close
    • coliza.stl
    • nonio.stl
    • regla.stl
    • tope_de_nonio.stl

    Learn more about the formats

  • Publication date: 2020/04/30 at 15:11

License

CC BY

Tags
