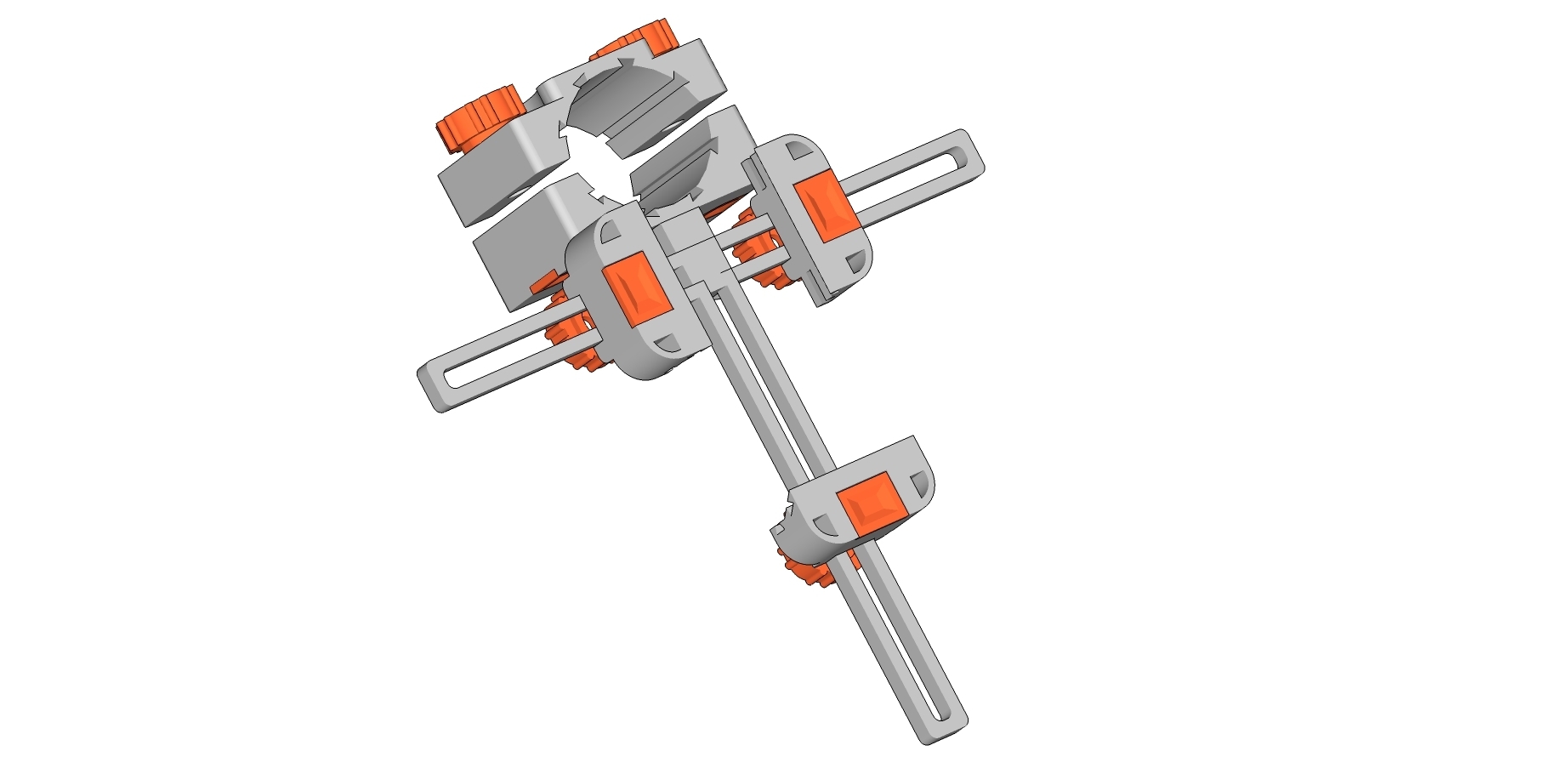

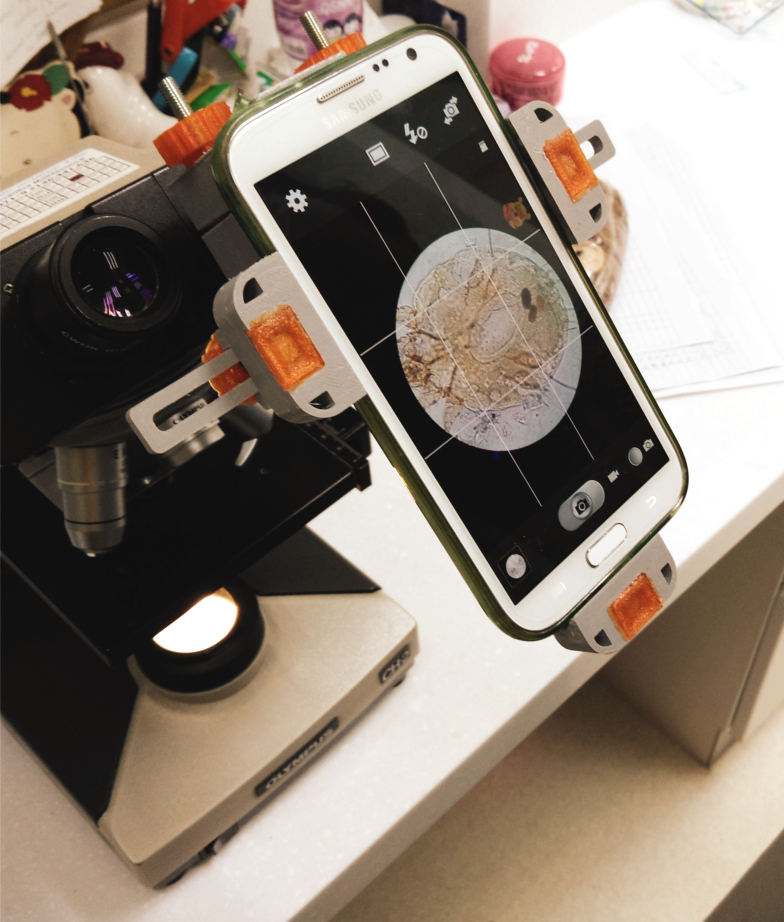

This is a remix of user Universal Camera Phone/Microscope Adapter by ggoss.

Modifications include:

  1. Accommodates 5mm hex bolts (5x25mm x3 & 5x50mm x2);
  2. Includes permanently friction-welded hex bolt retainer caps;
  3. Channels for applying hot glue which, when cool, acts as rubbery grips (eyepiece & phone grips) and;

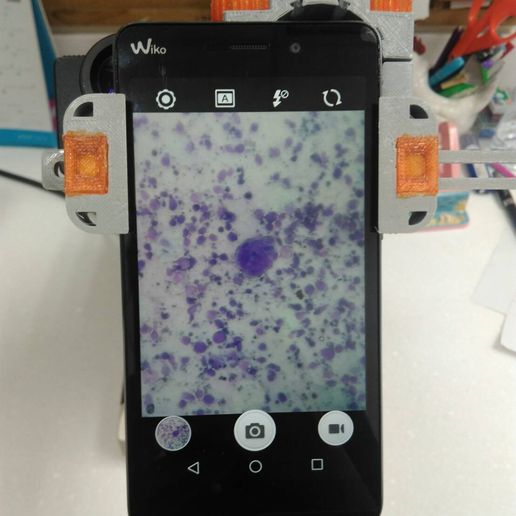

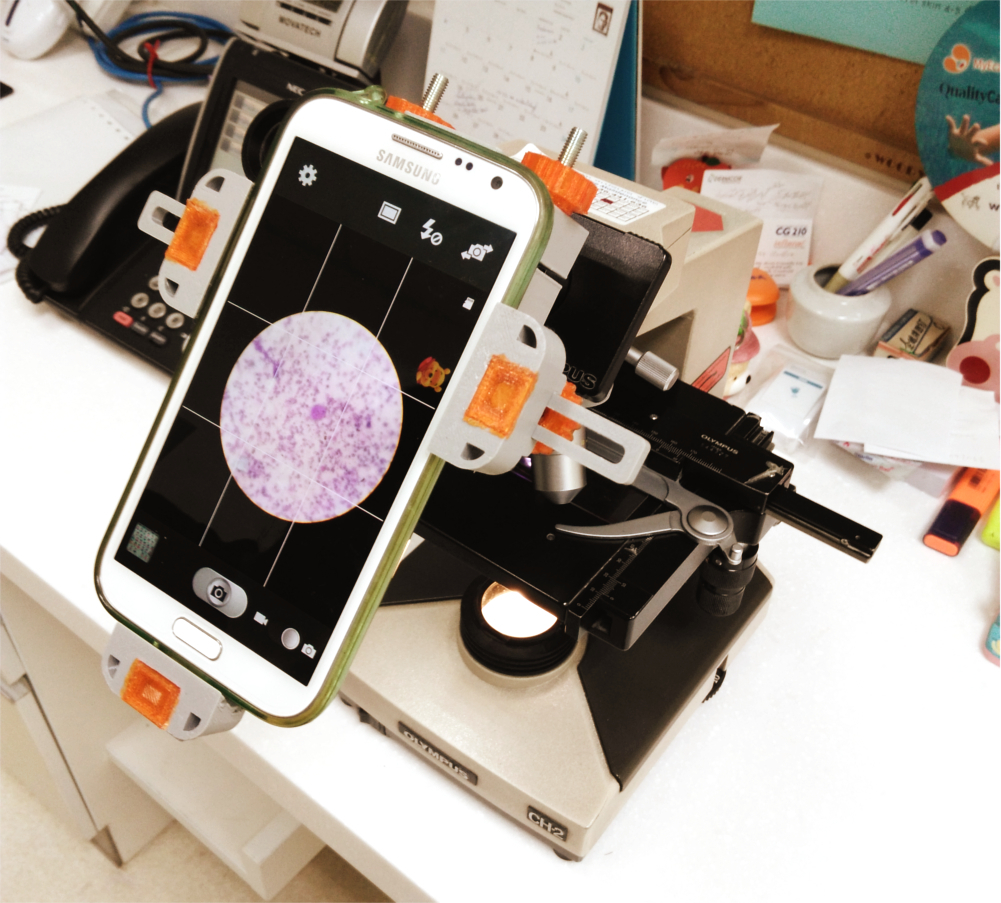

  4. Larger frame to accommodate larger smartphones (including Wiko Pulp Fab).

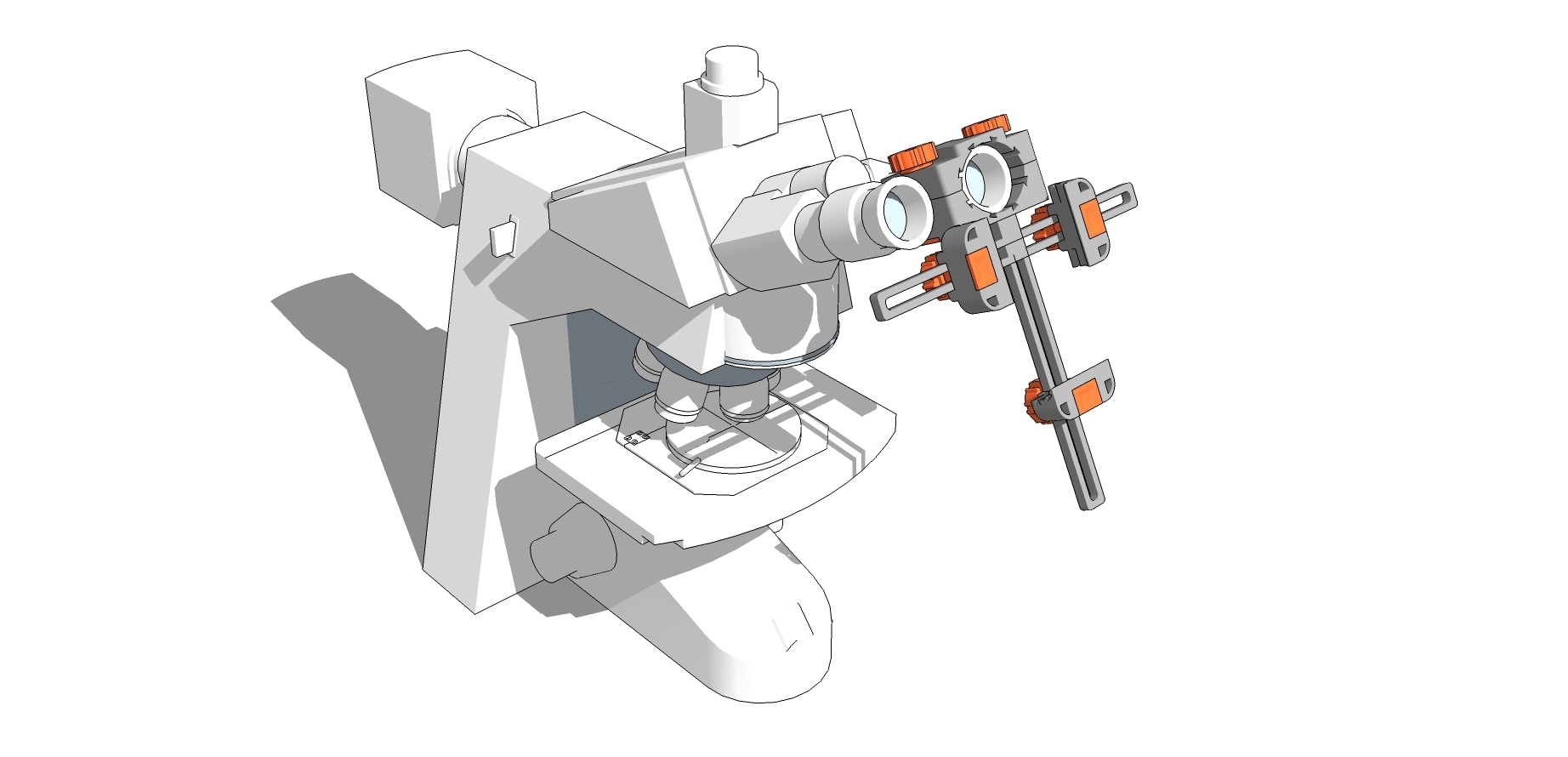

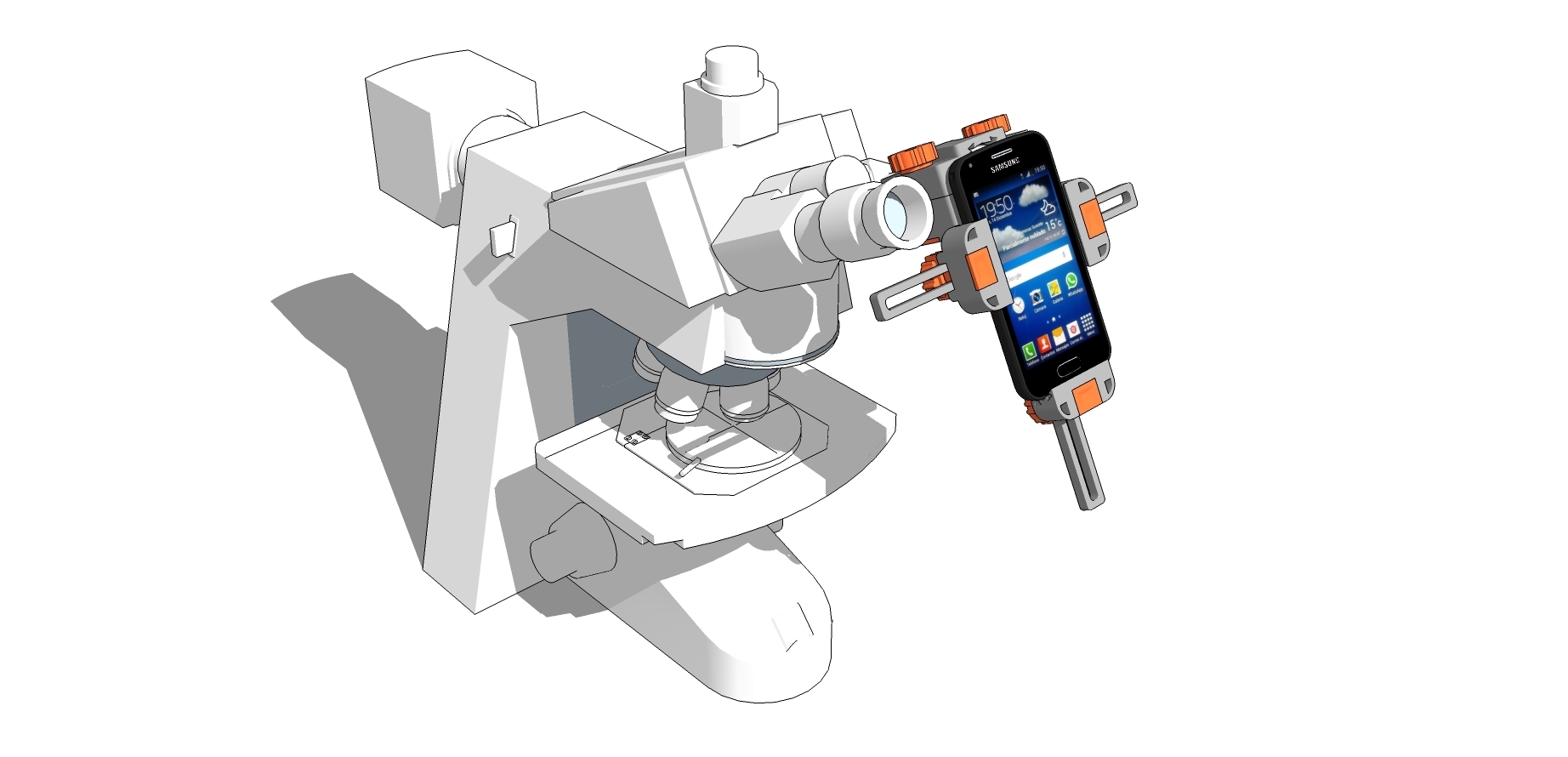

We've included the SketchUp 2015 file for those wishing to edit it using SketchUp.

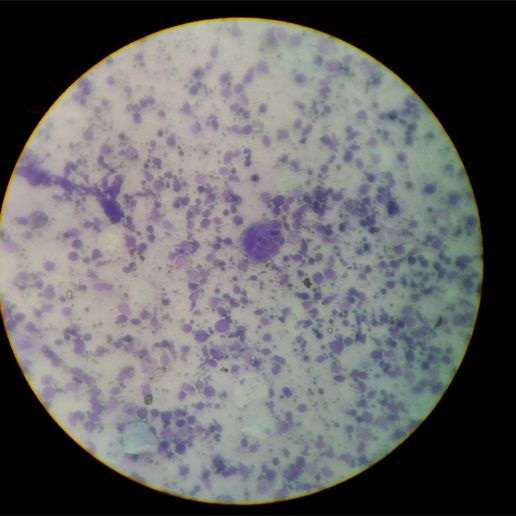

For more information about how and why we modified and built this mount read here: http://www.progressth.org/2016/09/3d-printing-microscopy.html
