TEVO Tarantula Pro Filament Holder

?
Creation's quality: 4.7/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.8k views
  • 8 likes
  • 269 downloads

3D model description

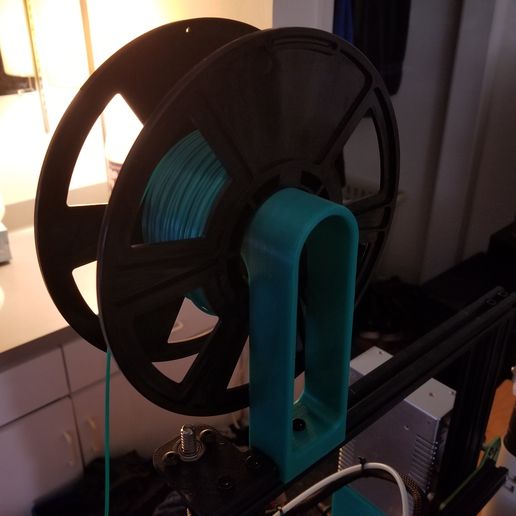

This filament spool holder is intended for the TEVO Tarantula Pro, but will also work on any other 3D printer with 20X20mm extrusion on its top, or a 20X40, or 60,or 80, etc. extrusion on its top, as long as the 20mm side is facing up. Works with v-slot or t-slot extrusions.

This is suiting for everyone with a TEVO Tarantula Pro because, as everyone of you probably noticed, the kit doesn't come with a filament holder, and the one supplied on the SD card to print is kinda lackluster, in my opinion. Also this spool holder positions the spool out of the way of the x-axis regardless of the z height.

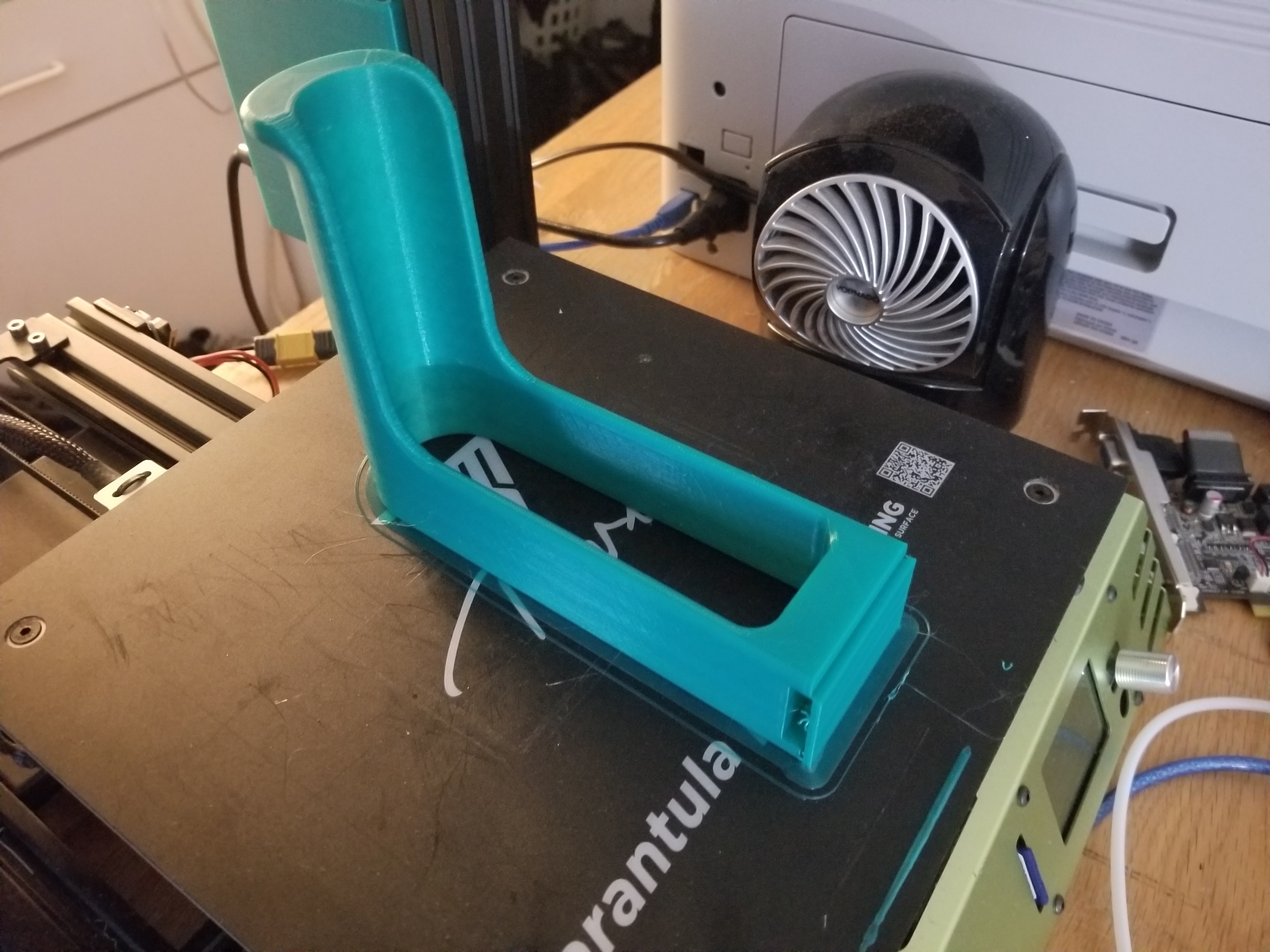

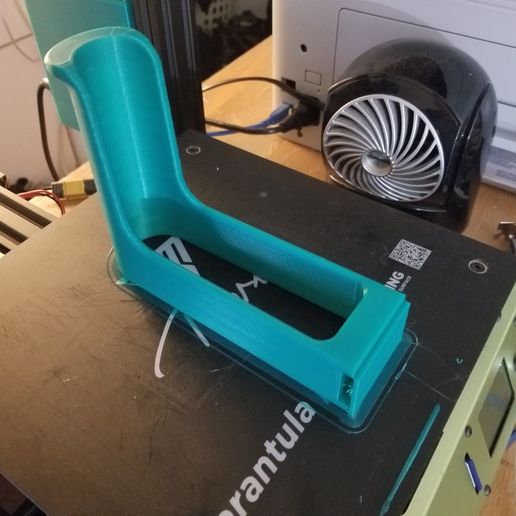

This minimalistic spool holder requires no supports, and only takes around 6 hours to print. No special print settings needed. If you feel more comfortable using a brim, I say why not.

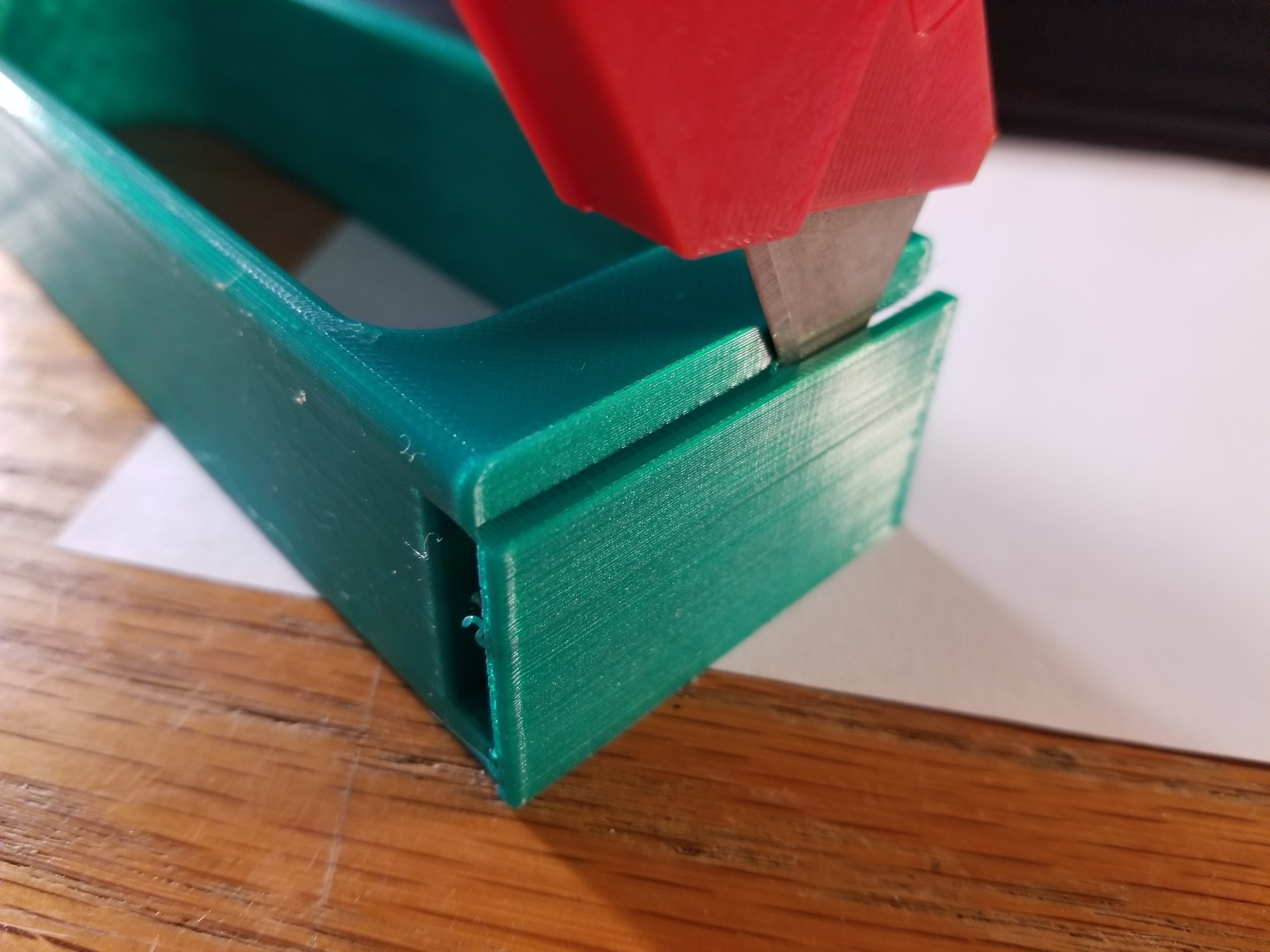

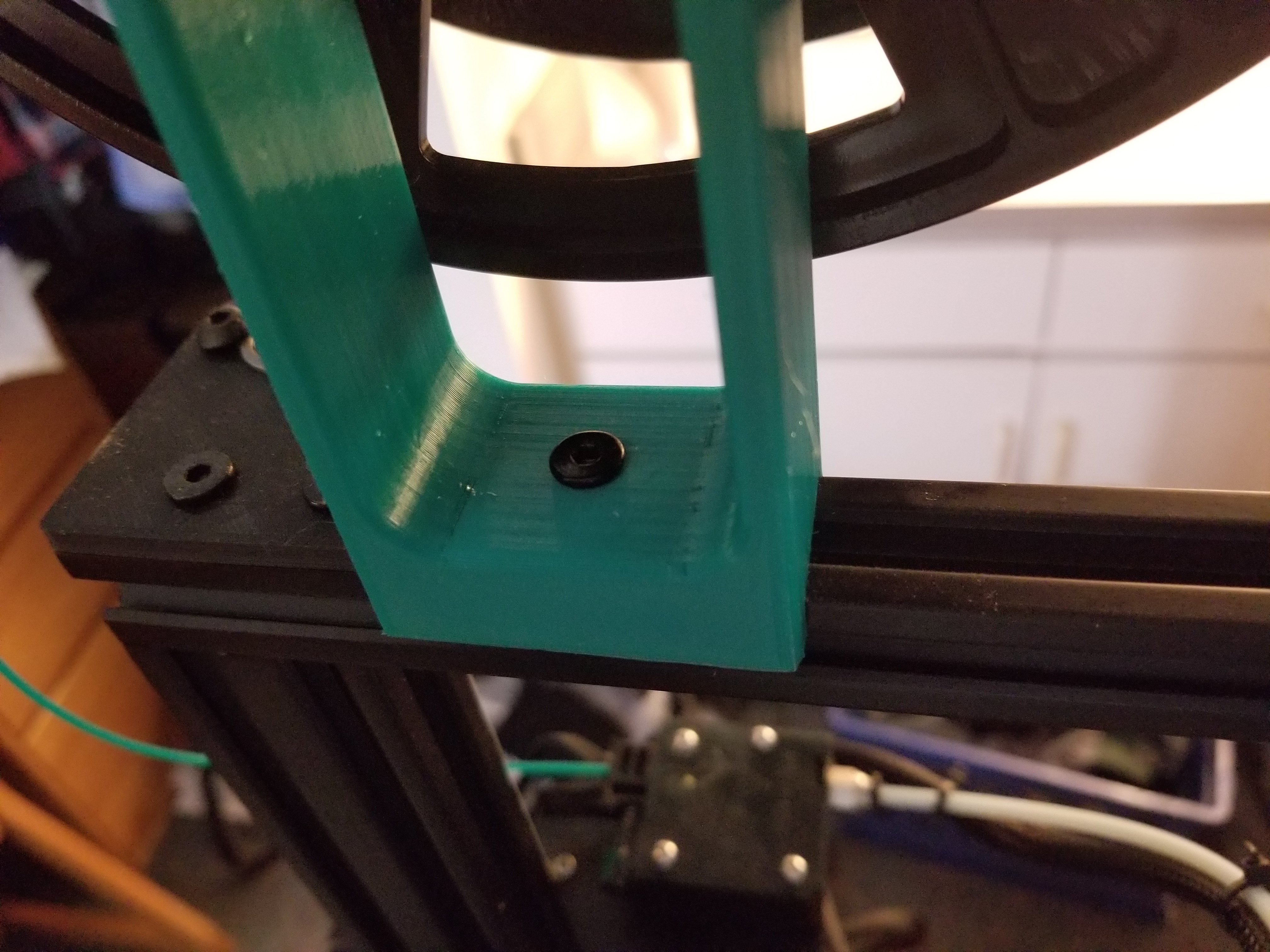

After printing, remove the bridge tower thing that is at the mounting end using a knife (be careful), as the pictures depict. Then use a M5x15 bolt and a T-nut supplied in the extra parts bag of your Tarantula Pro kit to mount the spool holder to your printer as shown, or in any another position you feel called to mount it.

If you are unsure whether your printer can accommodate this spool holder, a small test mount is included.

  • 3D file format: STL
  • Publication date: 2019/10/24 at 11:16

License

CC BY

Tags

Creator
