SSP1 CarbineKit

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 329 views

3D model description

LIMITED TIME PRICE!!!! 50% OFF!

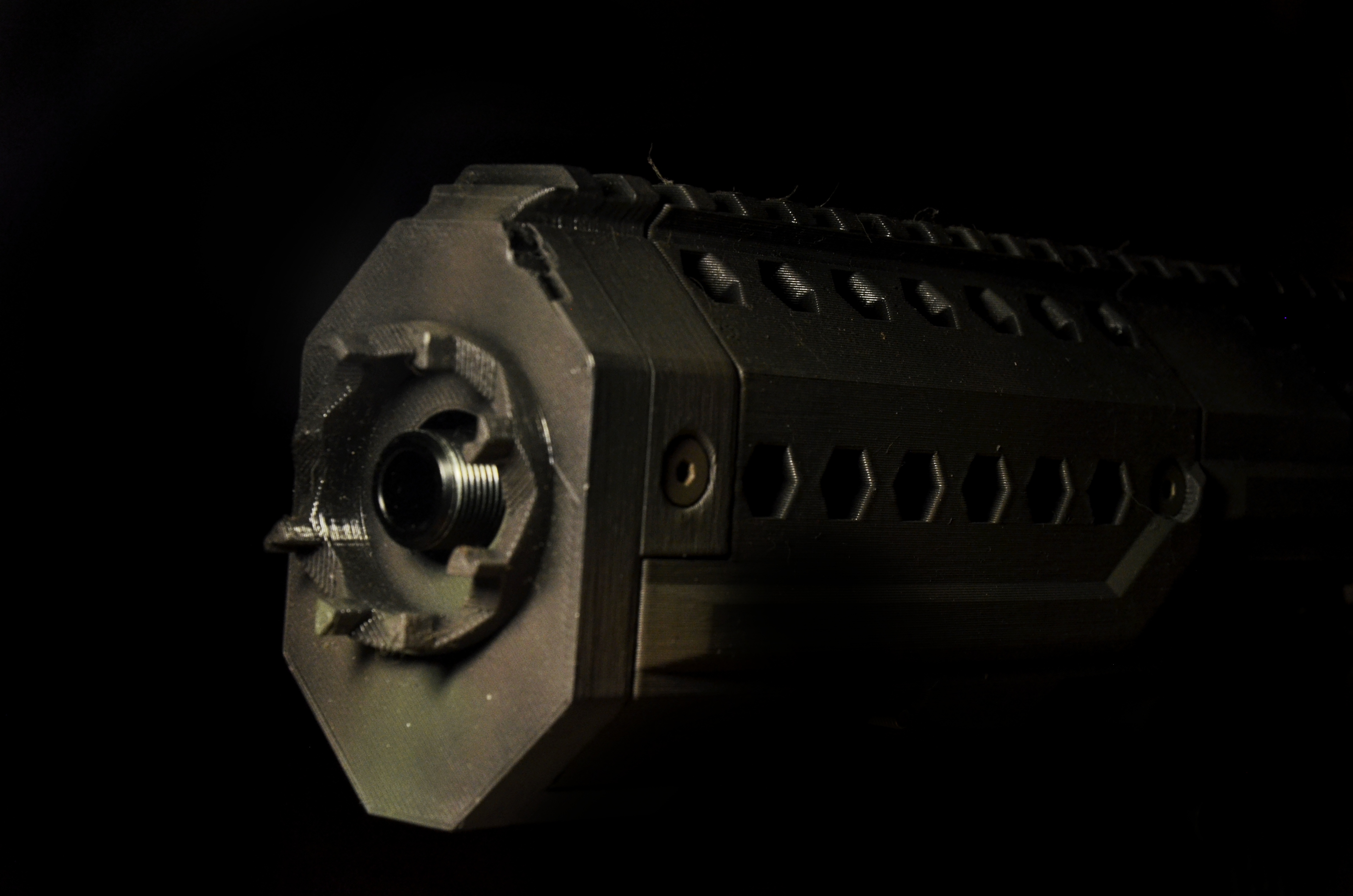

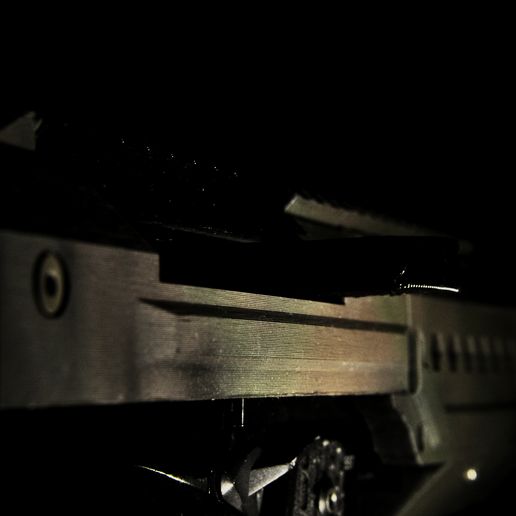

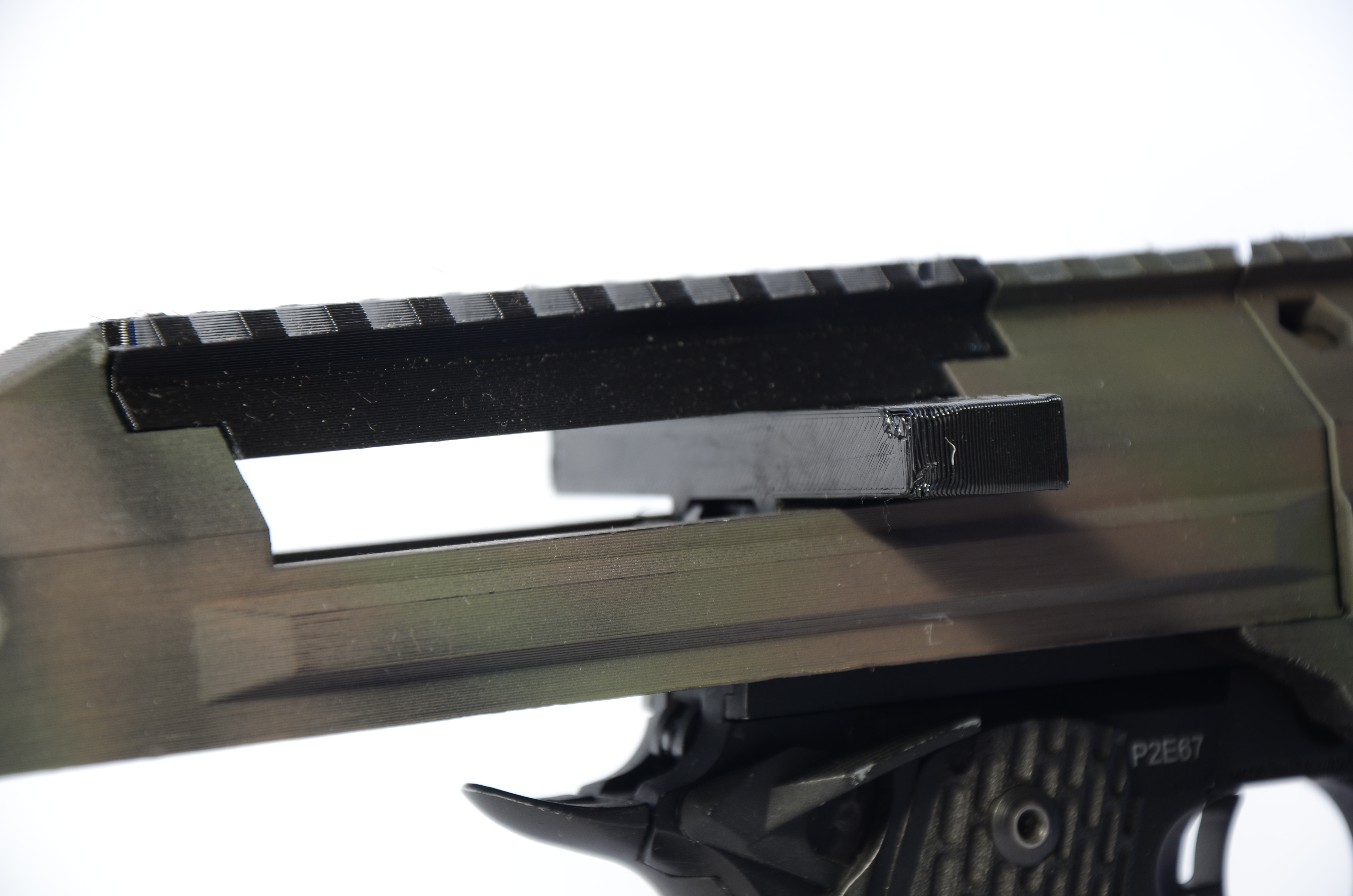

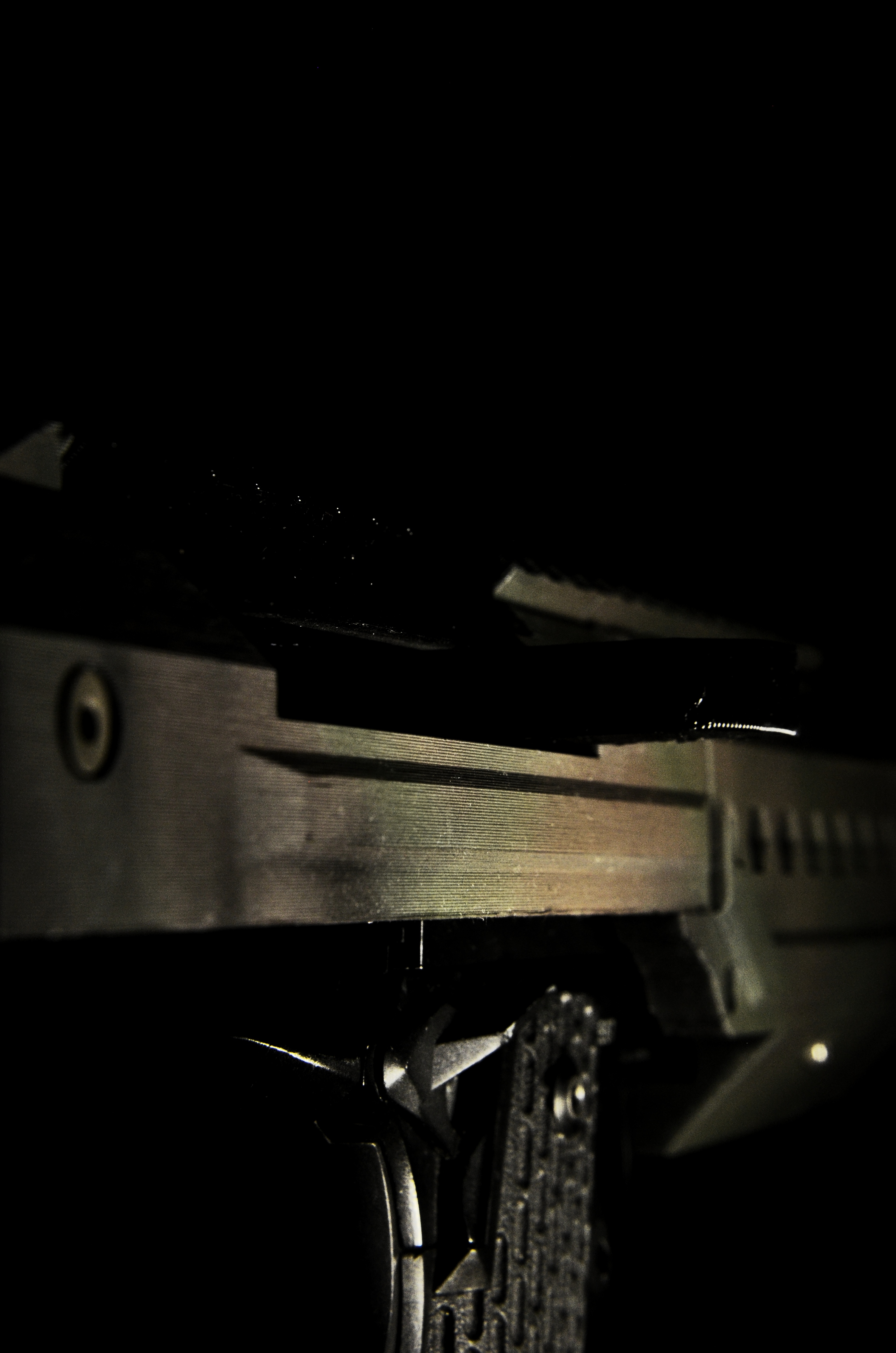

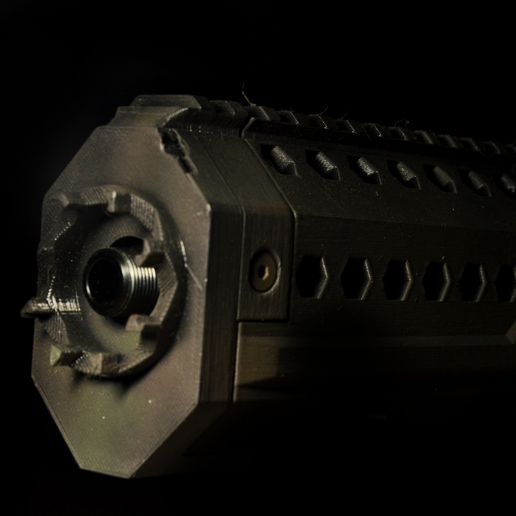

This is a carbine kit designed for the Novoritsch SSP1.

It's designed in a way so it would never ever break. It looks like a brick, but you don't have to print new parts after every game!

It uses a lot of M4 machine bolts and nuts to lock the whole system together. There are 4 parts that all go together.

It locks the pistol with an M3*42 mm screw and an m3 nut. This locks in under the pistols Picatinny rail.

You need
13 nuts & 13 bolts.

9 M4*12*
4 M4*16*

*You can also use smaller/bigger bolts in some cases. So look around the house and see what you can find.

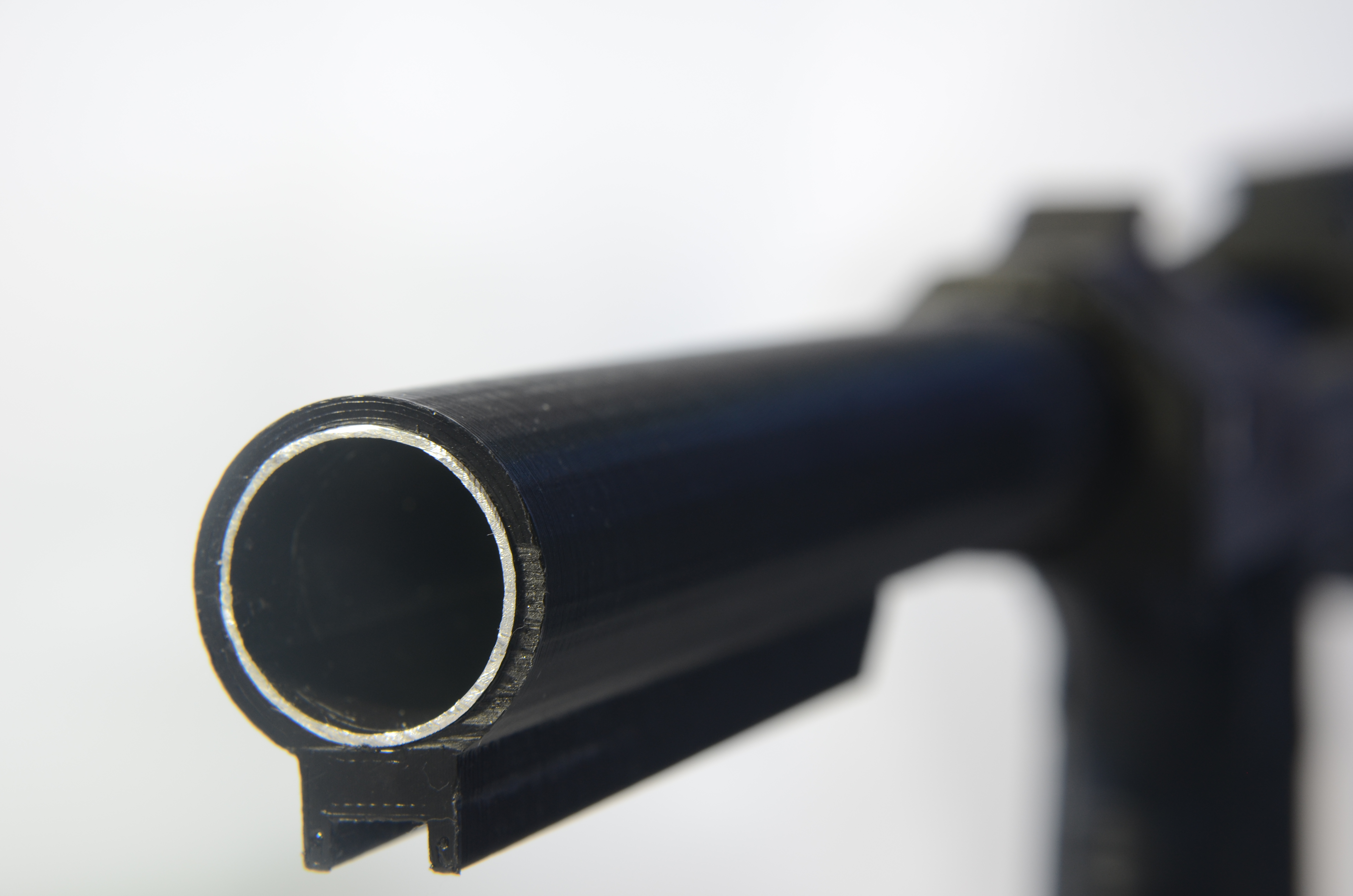

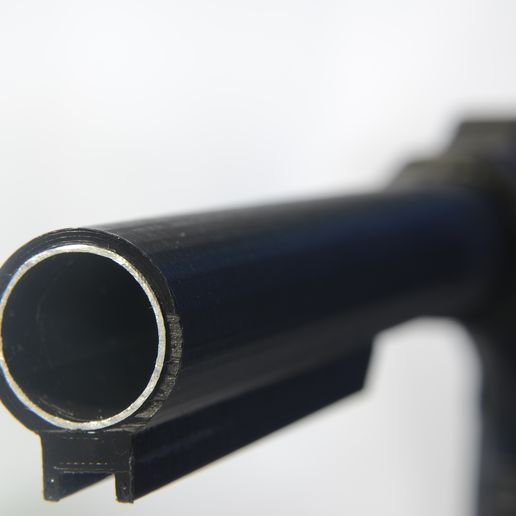

You do also need an aluminum piece for the stock so it doesn't break. (See pictures)
Size = diameter = 25 mm
Thickness = 1 mm
Length 205 mm

Use file (DrillGuide) to drill holes into the aluminum + 3d printed stock

You can also add a 2mm rod inside of the carbine kit, just for added support.

3D printing settings

It printed on the Prusa MK3S+

  • Support needed for some parts.
  • 0.3 mm pr layer.
  • Print in PETG for best results.
  • 3D file format: STL
  • Publication date: 2021/06/16 at 11:05
