Design Concept
Bolt that is good for Toys,Easy Assemblance & Practical 3D Printing
Inclusive Assets now available with more focus Considering Faster 3D modelling and secure 3D printing Nozzles accomodations to details!

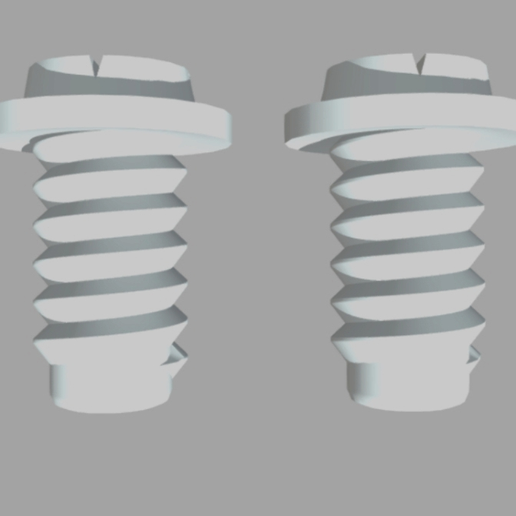

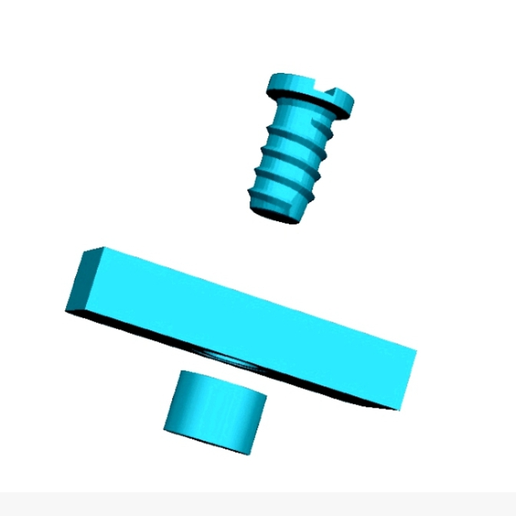

Set of bolts ;
designed with simplicity and practicality in mind, suitable for use in toy,constructions ,
general DIY projects. The straightforward structures ensure easy integration with other 3D printed parts.
And more attainable Thread details that can be achieved with Nozzle Sizes larger than 0.4 mm or 0.6mm

Purpose
The primary purpose of this bolt is for building toy structures or small-scale mechanical models. It can also be used in prototyping where a non-metal bolt is beneficial.
.

Simplified, Tessellated to to be easily untriangulated.

3D printing settings

Printing Suggestions
Consider printing this bolt using PLA material for a balance between strength and ease of printing. Use a layer height of 0.2mm to ensure sufficient detail on the threads, and a 20% infill for practicality
Split or with undermatte placement placement
Scaling of 60mm- 80mm Height
That's
6cm - 8cm Height
