Raspberry Pi 3d Printer Camera Mount for PRUSA Printers

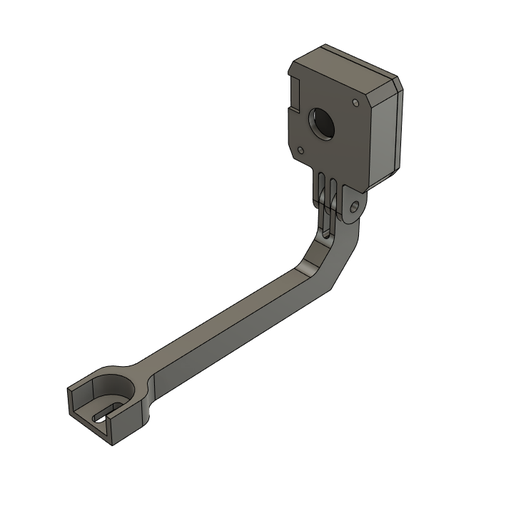

This is a mount for Raspberry Pi v2 camera designed to attach to Prusa printers. It proved very useful for making timelapses and monitoring prints. It is constrained to the printbed, so recorded footage doesn't move.

There are two versions of the case file, as the camera can be mounted either vertically or horizontally. Print the one you like.

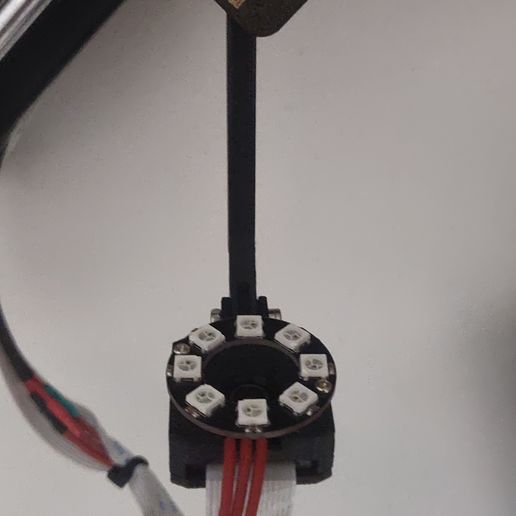

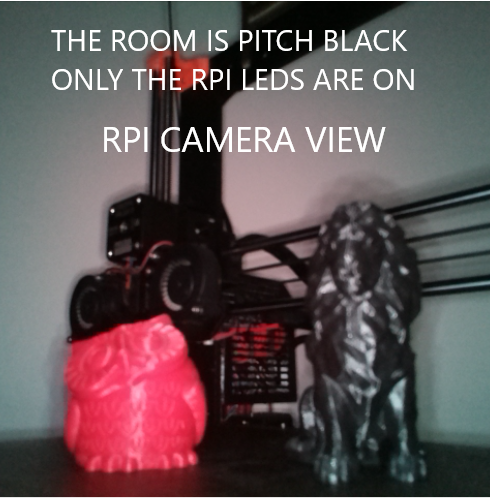

The mount has additional holes to attach a NeoPixel 8 LED ring. It gives a fair bit of light, definitely enough to watch your prints at nighttime if the need arises.

The mount attaches to the bottom of the print bed with an M3 screw (you will have to replace the one that's already there with a longer one). It also requires an M3 screw and a nut for the tilting joint. You will likely find some leftover screws from the printer kit itself which you can use for this.

As for the case itself, the camera just pops inside and you put the case cover on the back to keep it in place. It is a press fit.

This should work with Prusa MK2.5, MK3, MK3S and any other model that shares the same printbed.

Nothing special here.
0.2 mm layer height will do just fine, no supports required.
