Proxxon MB140S laser module mount

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 115 views
  • 1 like

3D model description

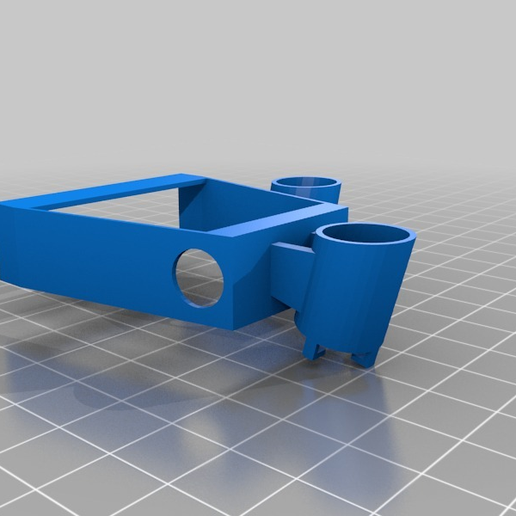

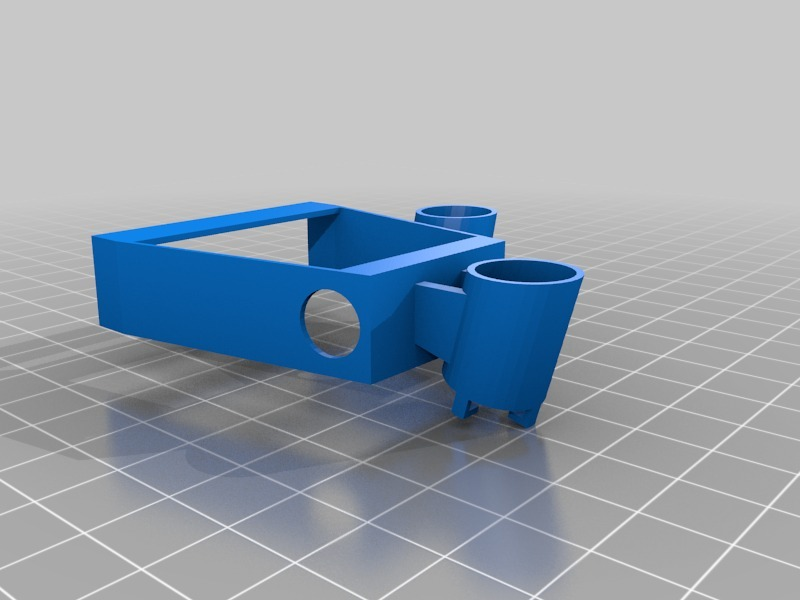

Slides over the Proxxon MB140S drill stand to allow two laser line modules to project a cross at the drill point, making lining up your work significantly easier.

The laser modules used are standard HLM1230 (search for "5v laser line" and you'll find them). Using two line modules instead of one cross module ensures the cross remains on the same spot regardless of height.

The mount is kept in place with the stand's tightening handle on one side (around the handle, ensuring there's no pressure on the mount itself), and an optional M5 bolt on the other side to prevent warping.

Designed using Blender. I've included the original file. Enjoy!
