Pendulum Clock

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Look at the Pendulum Clock Modeling and Simulating:
https://youtu.be/0fKlIuXlZNE

Look at the Pendulum Clock Assembly and Working:
https://youtu.be/Nfx181k6iBw

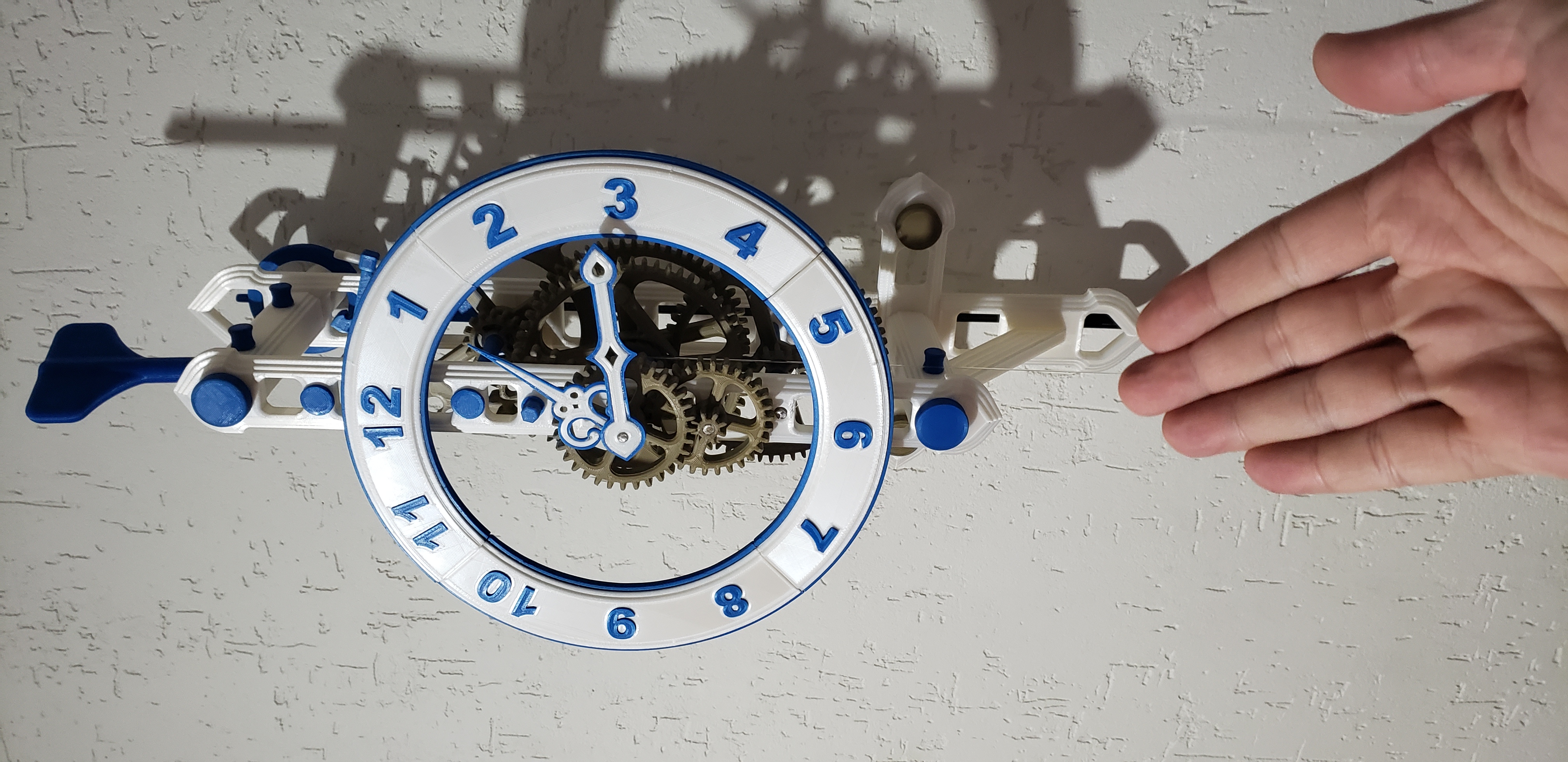

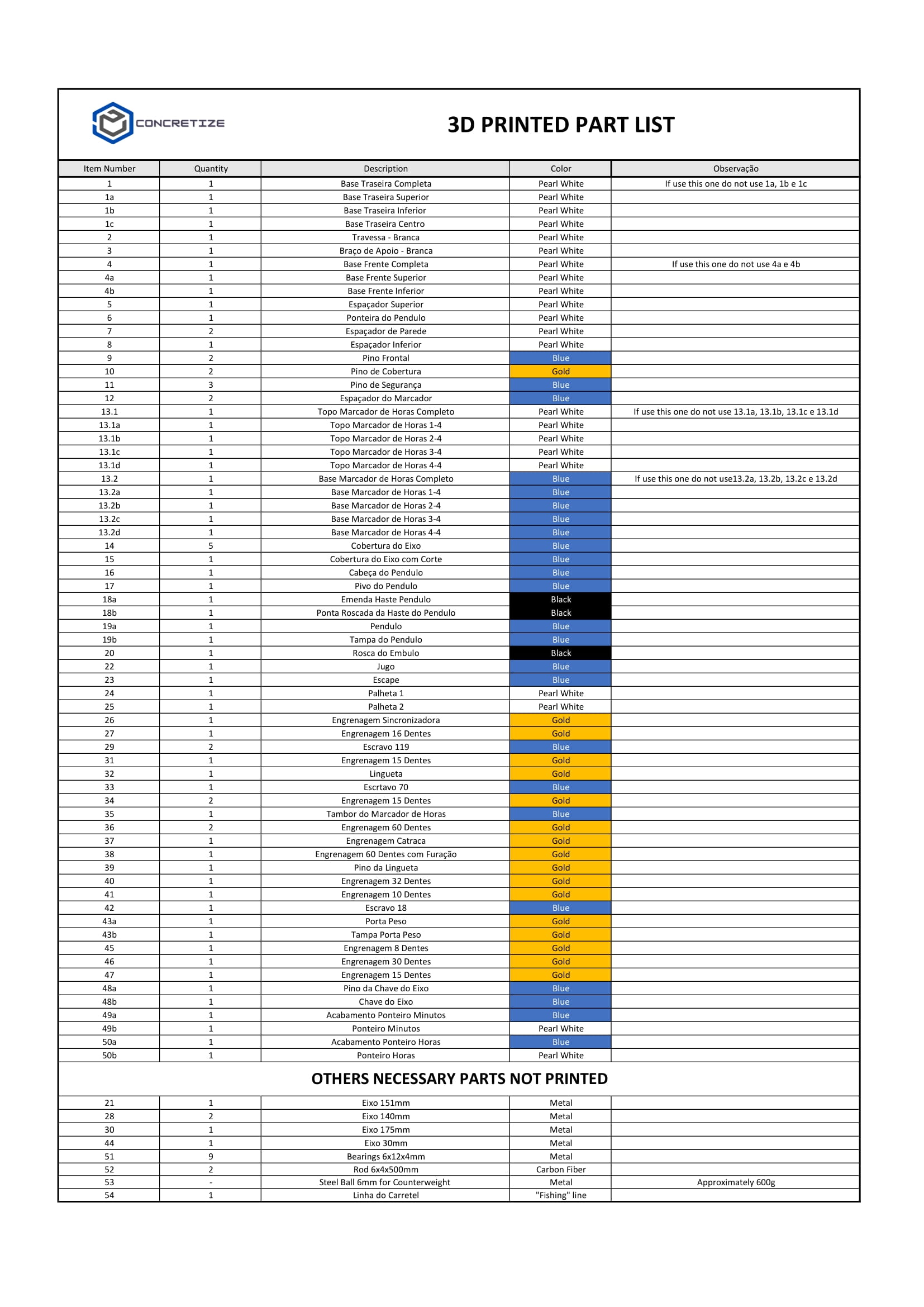

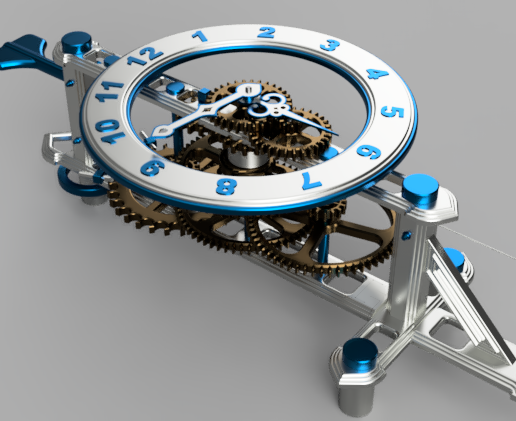

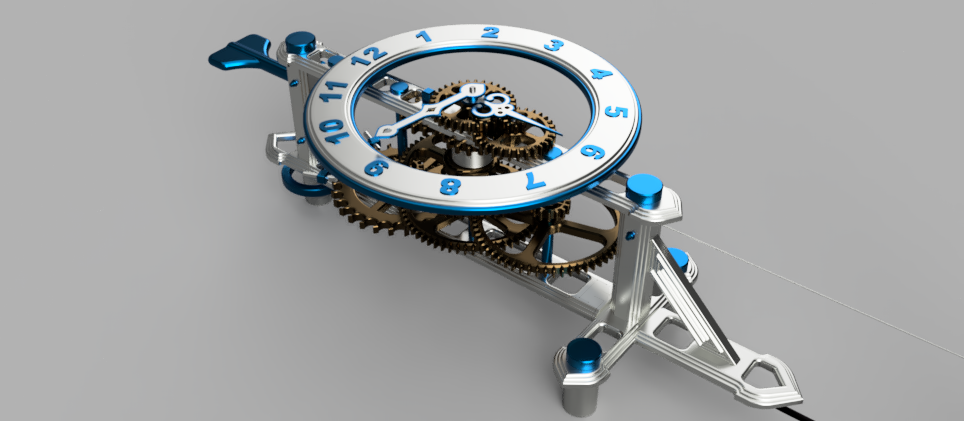

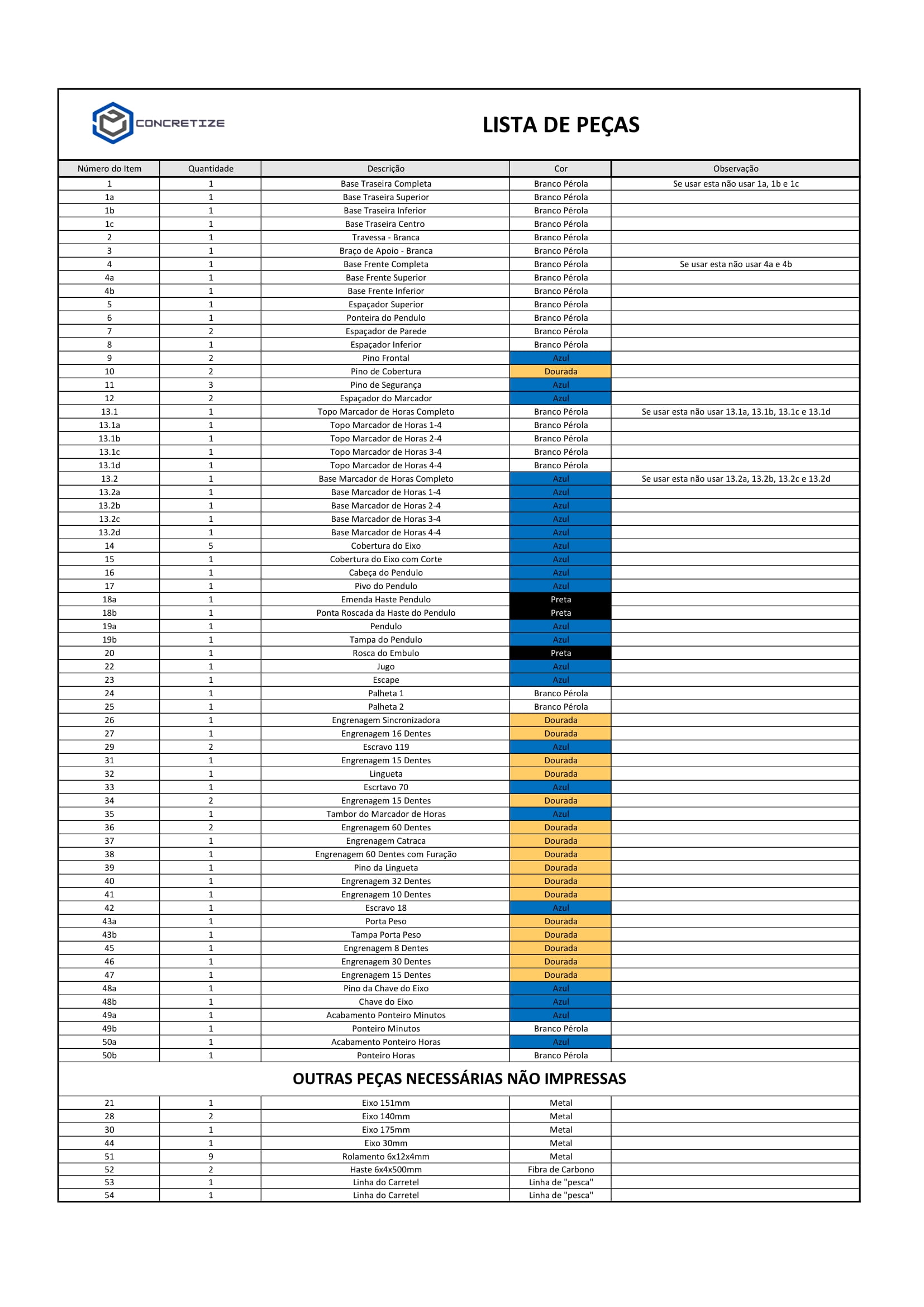

In this project I developed a pendulum wall clock, similar to those old wooden clocks, you will only need:
- carbon fiber tube for the pendulum shaft;
- 6mm steel shafts for the clock shafts;
- 6x12x4mm bearings;
- steel balls for the counterweight;
- nylon fishing line to attach the counterweight to the system drive drum
All other parts are 3D printed. Did you like this project? Tell me what you think in the comments and
leave suggestions for new projects!!! 😊


3D printing settings

  • Todas as peças foram projetadas para ser impressas em impressoras padrão com área de impressão de 200x200x200;
  • Altura de camada de 0,2mm;
  • Temperatura de extrusão 105°C;
  • Preenchimento de 40% para as engrenagens;
  • Preenchimento de 20% para as demais peças.

3D printer file information

  • 3D design format: PDF and ZIP Folder details Close
    • Pendulum Clock - Assembly Manual.pdf
    • Pendulum Clock - Stl Files.zip

    Learn more about the formats

  • Last update: 2022-03-24 at 20:26
  • Publication date: 2022-01-15 at 19:55
