MiniLathe tailstock crank

Download free 3D print files MiniLathe tailstock crank, KarmaPrintingDownload free 3D print files MiniLathe tailstock crank, KarmaPrinting
Download free 3D print files MiniLathe tailstock crank, KarmaPrinting

Did you 3D print this model?

3D model description

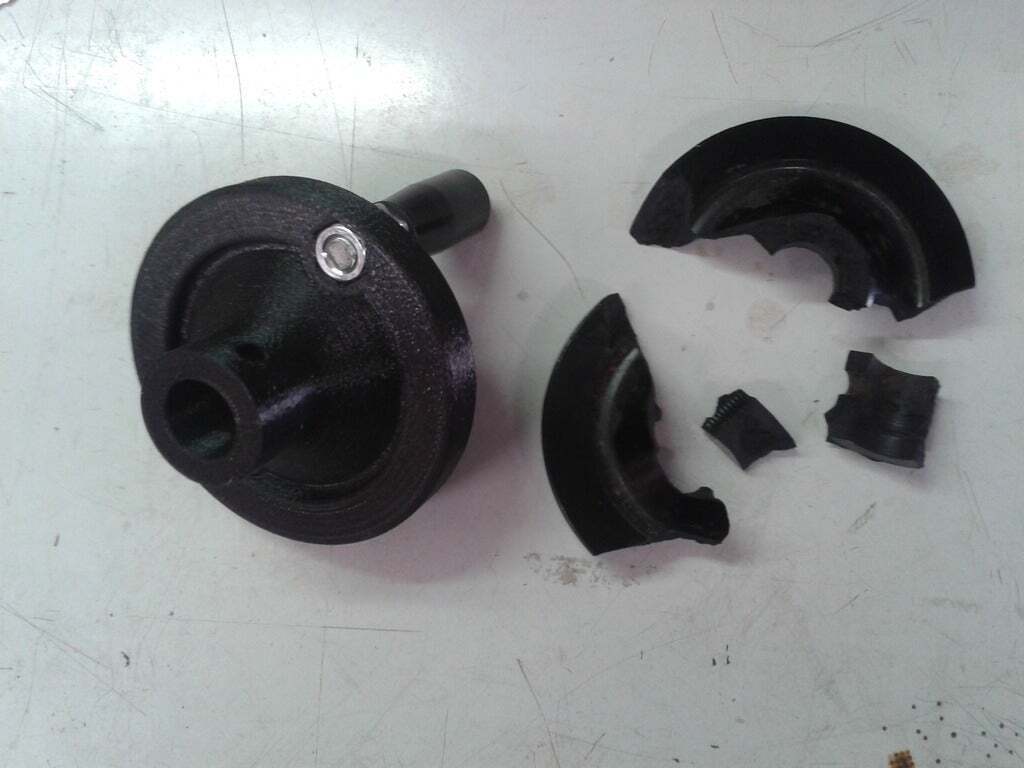

Just today I broke the crank wheel on my mini lathe.

So I sat down and printed a new one.

I guess its more durable than the original one.

3D printing settings

Just remove the thin support mesh from the 16mm hole with a xacto knife. Then press fit the original metal bushing, make sure the hole for the worm screw is aligned properly.

insert a M8 nut into the hex cavity and screw in handle peg and worm screw.

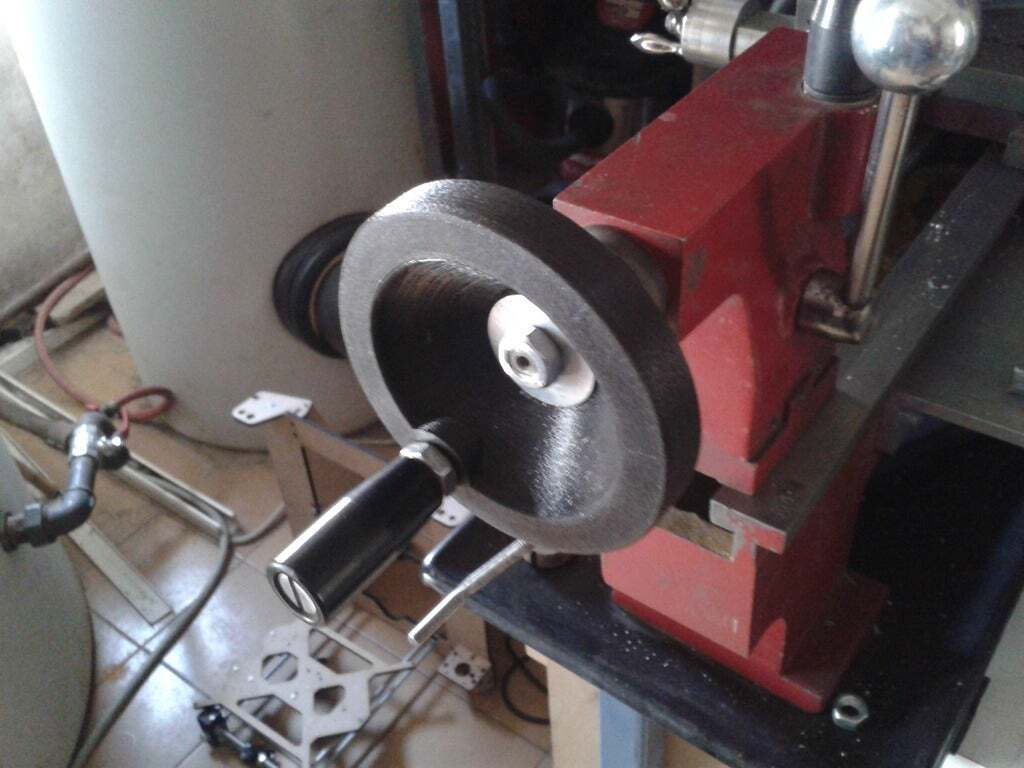

Voila! working again!!

  • 3D model format: STL
