3D model description

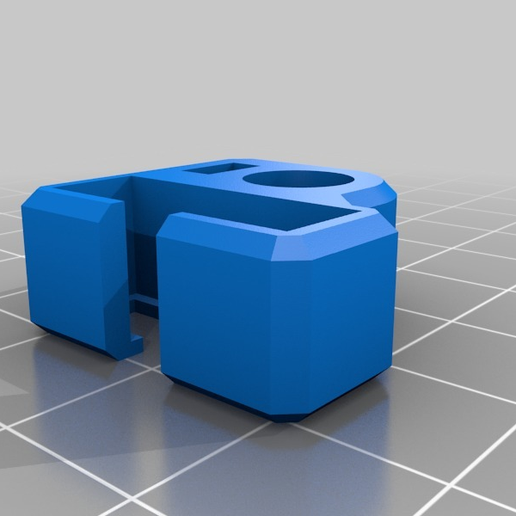

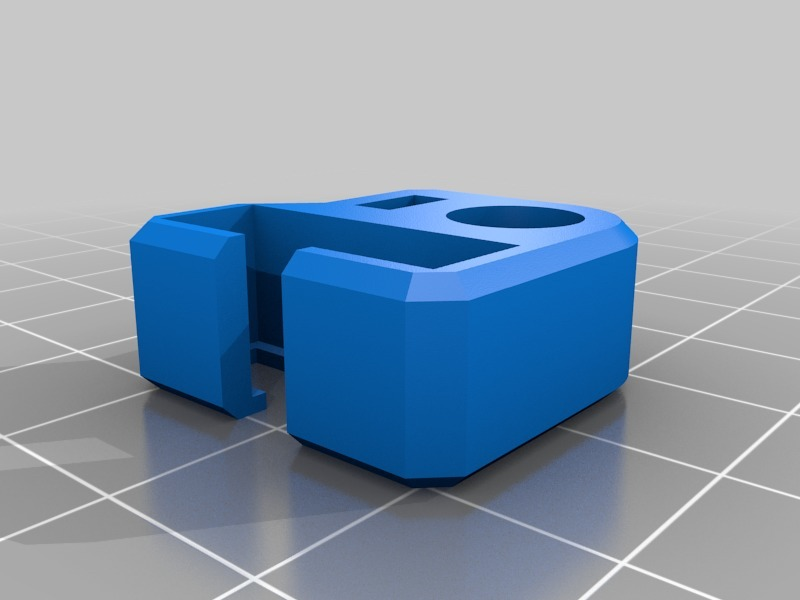

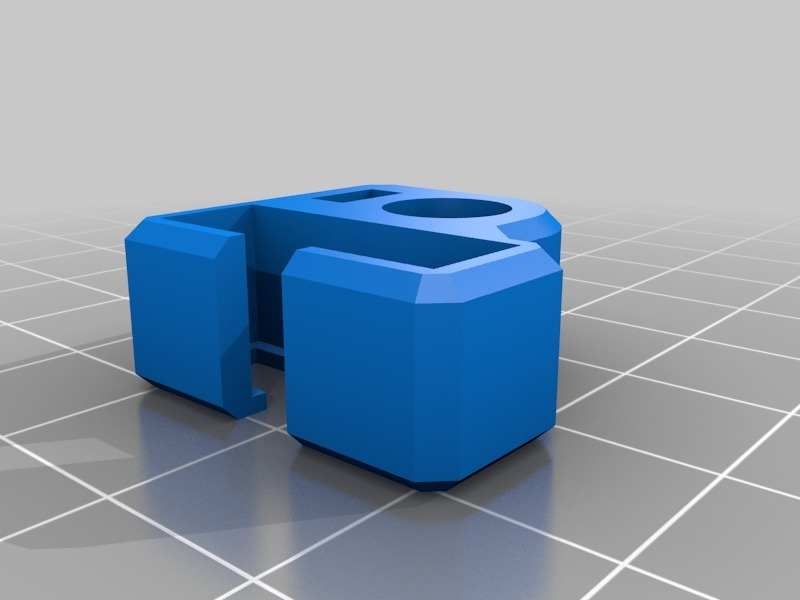

it is for switch 19.7MM x 10.6MM x 6.6MM and the hole for the sliding rod is 8MM
you will need a M3 screw and its nut.
there is two model in case you need different position for the switch.
one with the sliding rod in the center and another one on a side.
