LASER ENGRAVER ROTARY CHUCK

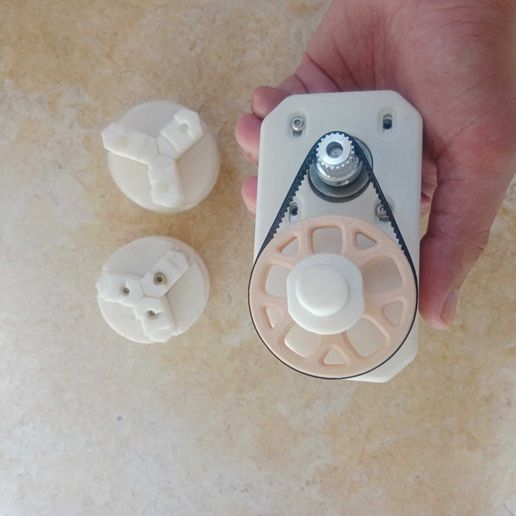

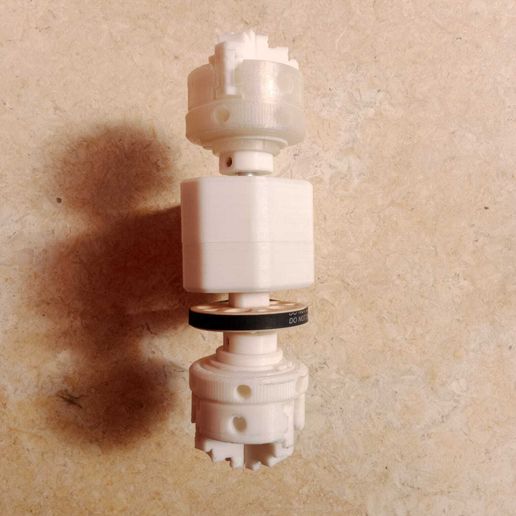

•Small in size, works from both directions to save some time, It is possible to install one chuck or both together to save some time and drill two parts at the same time.

https://www.youtube.com/watch?v=OR5oWseC-ZI

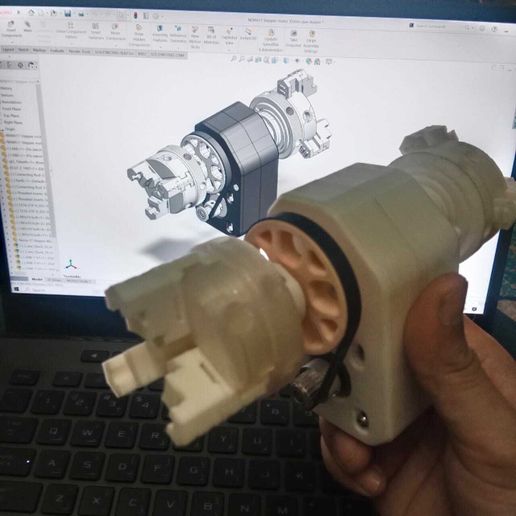

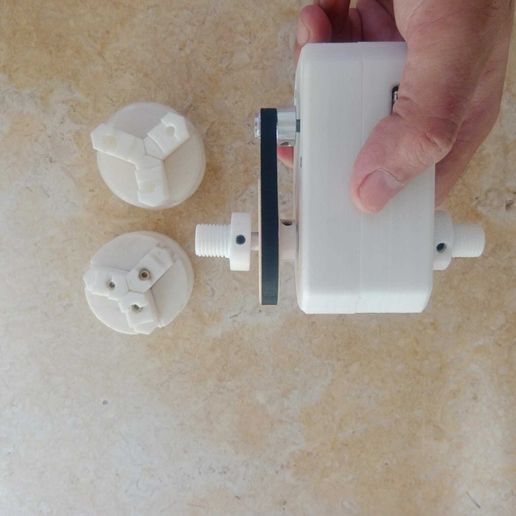

•3-jaw chuck 50mm is suitable for catching small parts during the laser engravings process, such as rings, wooden pens, and anything with a diameter of 25 mm or less.

•The three self-centering jaws are reversible to allow the holding of larger workpieces. jaws installed in order 1, 2, and 3 to match the numbers on the housing. To fit them reversed, insert them in the order 3,2,1. Fit the slider plate into the housing and place the Circlips over the shaft to secure it. Turn the slider over so that the front end of the slider is about to pop into one of the slots. Feed into Jaw 1, large end first, and rotate the slider plate to snap it. Repeat with Jaw 2 in the next hole, then Jaw 3 in the next hole.

•There are three versions of jaws that you can choose between to suit your needs.

•For high envelope stability, the printed 30x1.5mm Plain External Circlips can be replaced with a metal steamer.

•It can be printed with any filament.

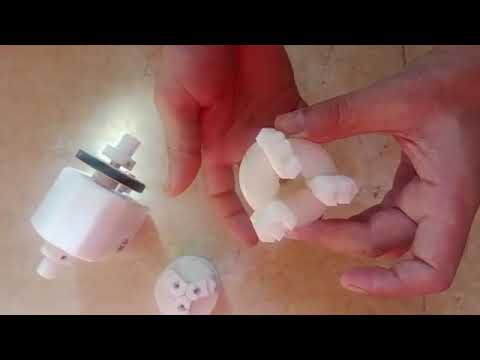

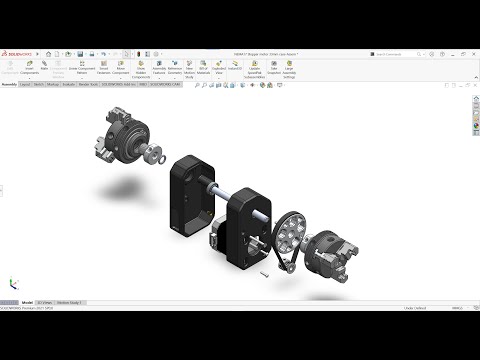

•The file contains 23 compressed files for each part and the assembly method is shown in the video
https://www.youtube.com/watch?v=cu8d6MDAeH8

• Layer Height 0.16
• Wall Thickness 1.6
• Infill 35%: 70%
• Support Structure Normal

Parts list

• 688Z Ball Bearing 8x16x5mm 2X

• linear Shaft 8mm Length =90mm 1X stainless steel

• Timing Pulley GT2 (20 Teeth-5mm Inner Diameter) 1X

• Timing Belt GT2 200 1X

• Nema17 Stepper Motor Length 33mm or Length 38mm 1X

• Coupling 5mm to 8mm flexible

• M3x8 bolt 4X

• M3x25 Socket Countersunk Screws 2X

• M4 Headless screws 6X

• M3x3Threaded inserts 9X

• M3x5.7Threaded inserts 2X

• 47130 Circlip external 30x1.5mm DIN471 2X
