IRONMAN LED Light/Nighlight
- 3.5k views
- 6 likes
- 139 downloads
3D model description
Here's a video of it in action...
Here's a group I made for my LED lights and things, if you like my LED designs, join the group and you'll be updated as I upload new ones... I plan on making a lot more logos just like this. So if you have and suggestions, please tell me and I'll make it.

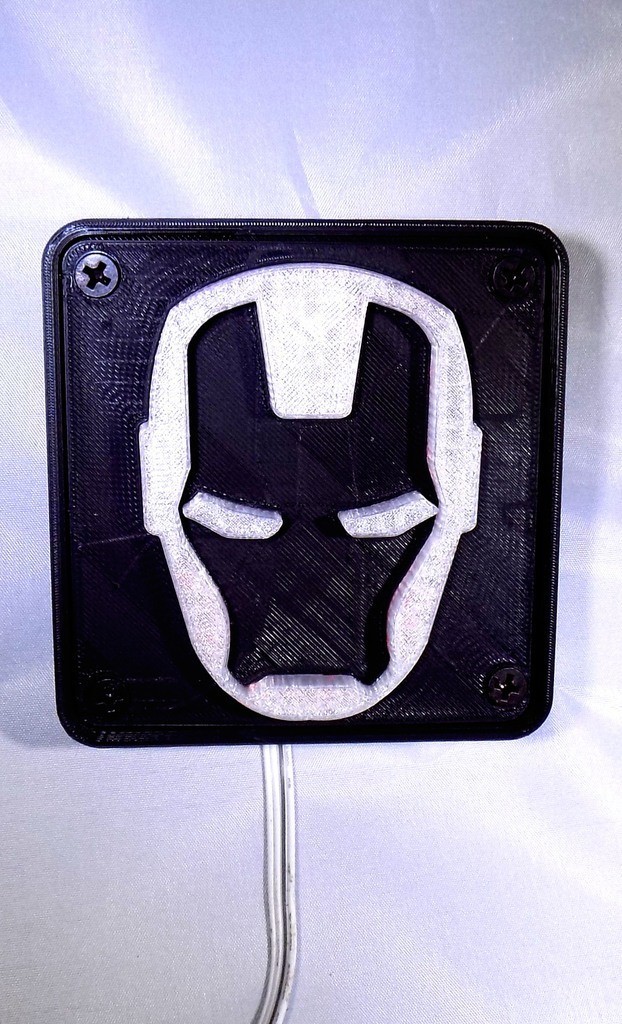

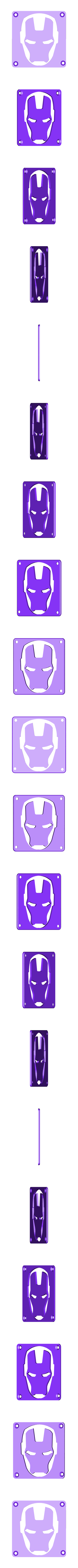

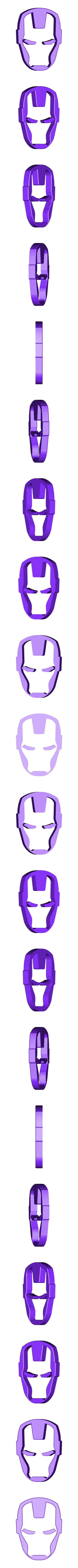

This is a extruded LED IronMan I printed on my dual extruder... I took a JPEG of the IronMan and traced it in Solidworks... I then extruded and filleted the IronMan and saved it as its own STL to be used in dual extrusion... I then designed a plate around the IronMan, added holes for screws and save that as its own STL... Lastly, I design a shell to go around the plate and IronMan, the shell has aligned screw holes so it can be fastened to the plate...

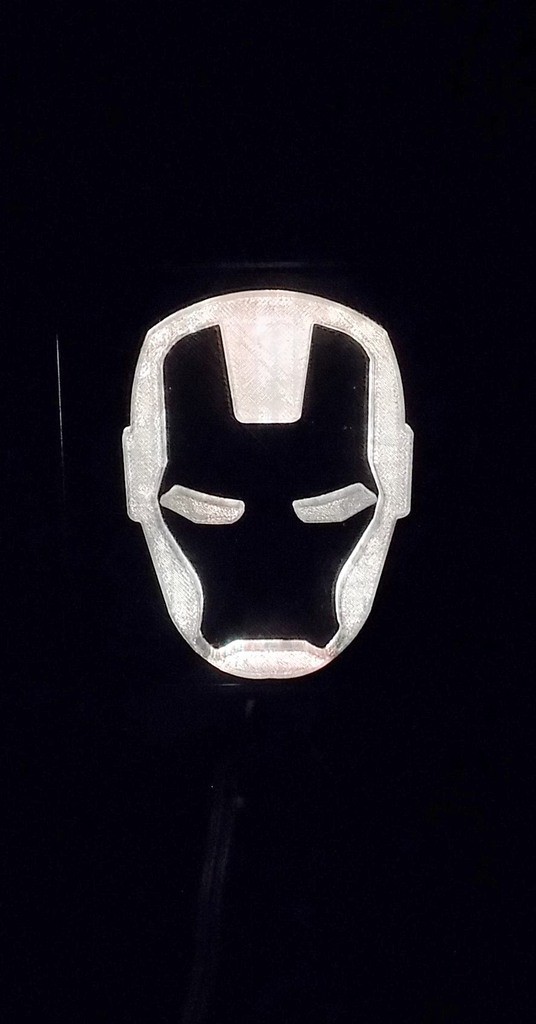

I then printed the shell in regular ole black PLA on my Rep 2... And I did the dual extrusion using the same black PLA for the plate and I used Bendlay (link below) to print the IronMan... I used Bendlay because it is extremely translucent (91% of light passes through)...

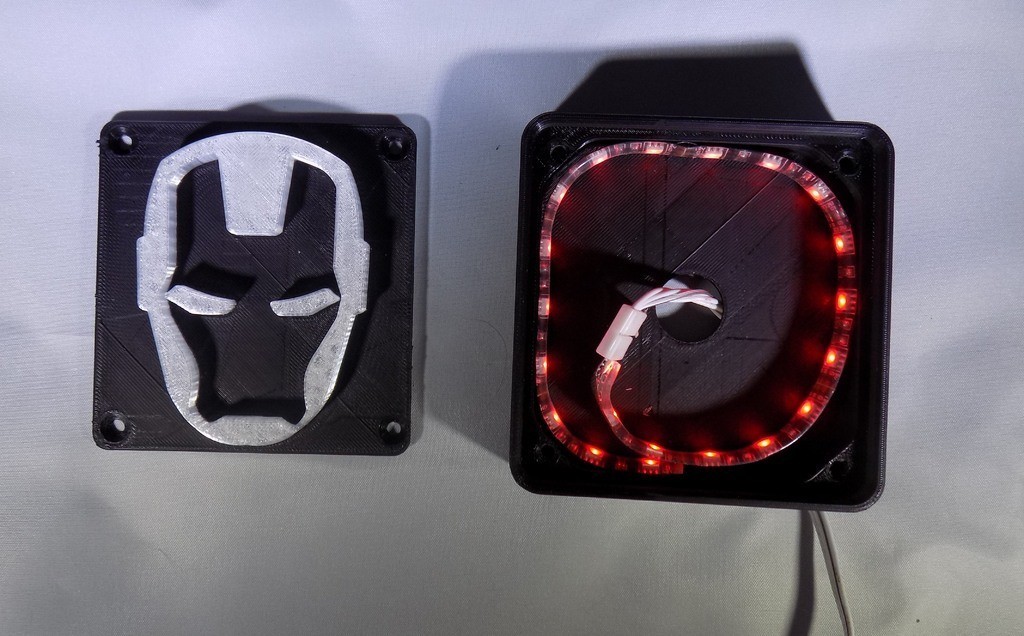

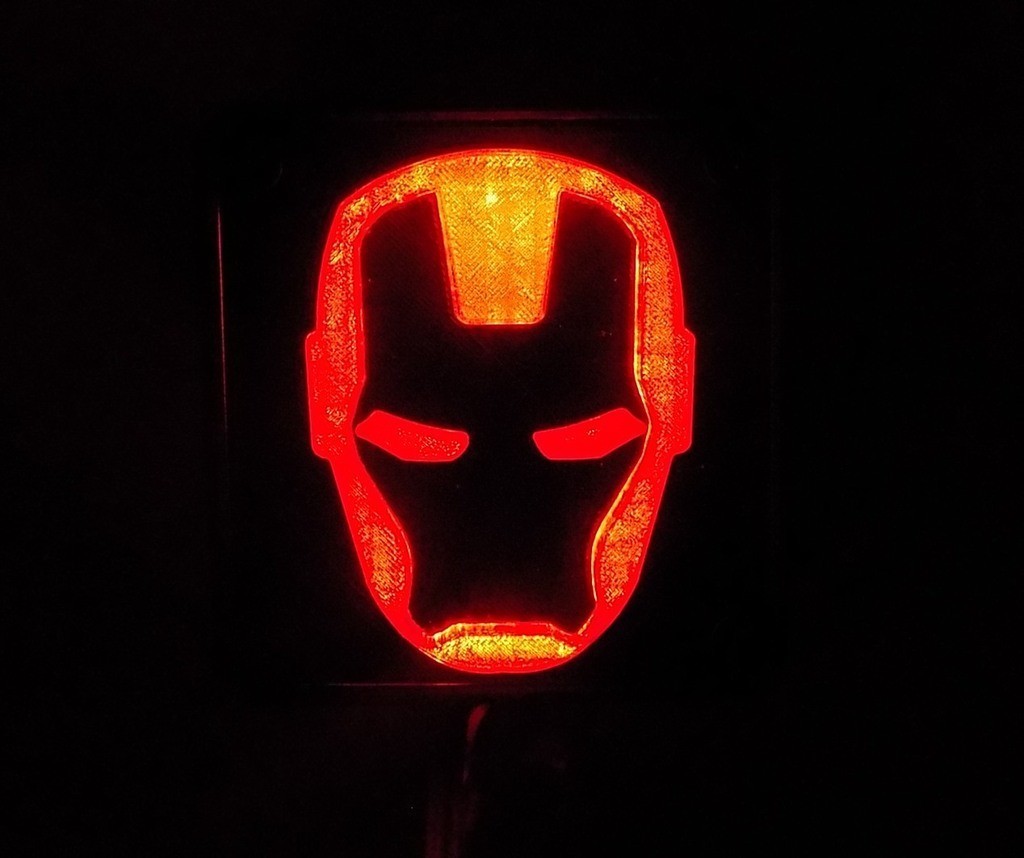

I then hooked up an RGB LED strip, wrapped it around the inner shell and hooked it up to an IR receiver so it can be controlled with a remote...
I've also made the following logo's, designs for LED hookup...
3D printing settings
Pretty straight forward, You're going to want to dual extrude the plate and IronMan together... I used PLA Black for the plate and Bendlay for the IronMan due to the fact Bendlay is extremely translucent (91% of light passes through)... But you could use Natural PLA or a translucent filament, but they aren't as translucent as Bendlay is...
I did not print a floor on the plate and IronMan print so it would allow more light to pass through... I did too much infill (10% linear) on mine... I wish I would have done about 5
3D printer file information
3D design format: STL Folder details Close
- Publication date: 2018-12-20 at 16:58
