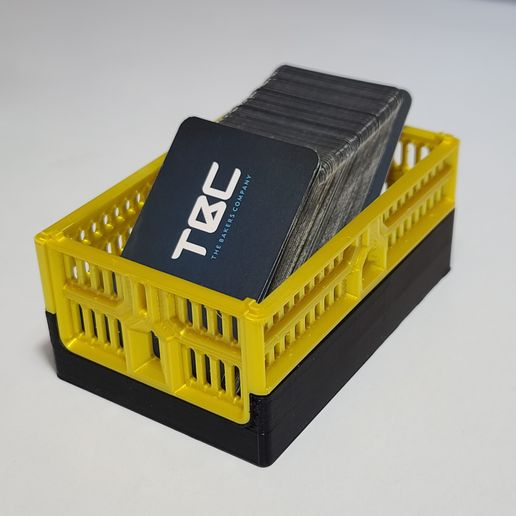

FLIPBOX - Foldable Mini Box

!!! Please check the INSTRUCTION PDF before printing the product!!!

Hi Makers,

Here is our new foldable mini boxes/containers.

Specs:
--------Foldable design
--------6 different door variants
--------Easy to print
--------Supportless print
--------Easy customisation

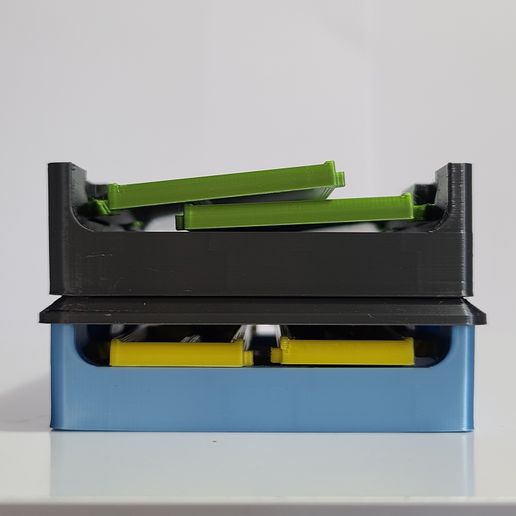

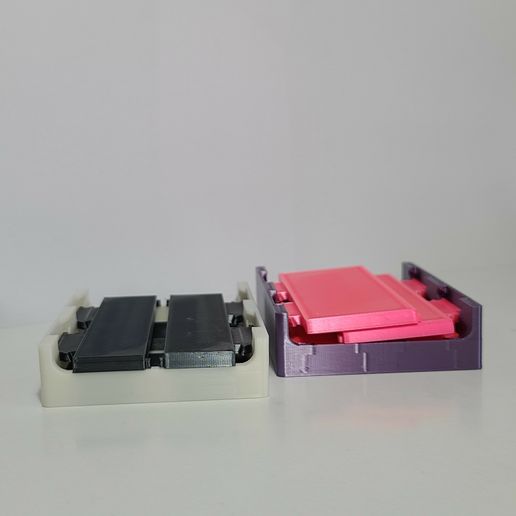

--------Able to fold in seconds
--------Easy to fold with a hinge system
--------Less filament
--------Short printing time

External dimension

Large size: 120 mm x 80 mm x 68 mm (internal height 67 mm)
Mini size: 120 mm x 80 mm x 50mm (internal height 49 mm)

+1 standard base
+6 types of doors

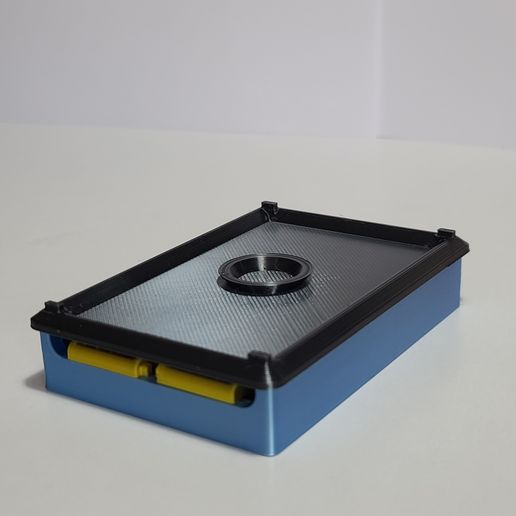

+1 standard lid

New features will be added periodically.

The print was made using a 0.6mm nozzle and a 0.2mm layer height for a quick print, but if you want higher quality, a 0.4mm nozzle would be more suitable.

Not much infill is needed 15%, 20%, zigzag infill pattern
Top layer bottom min 2-4, depends on the infill percentage.
No support is needed, but if you are having trouble with your cooling fan, you can add support as demonstrated in the instruction PDF.

Print time:
Approximately 1-2 hours for the doors and lid.
3-4 hours for the base
