Filament Sharpener -- 1.75mm

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

My filament kept catching on the starting connector of my Bowden tube. So I got a pack of dollar-store cheap pencil sharpeners to try.

Nope. Way too big. So I modeled my own in SketchUp and printed my own to fit the blade they use. Works--after a third revision.


3D printing settings

  • Slice the STL at .2mm layer height to your printer's needs.
  • Print it.
  • Get a pack of cheap pencil sharpeners from a dollar store or their ilk.
  • Using a small phillips scewdriver, remove the screw holding the blade and CAREFULLY take out the blade.

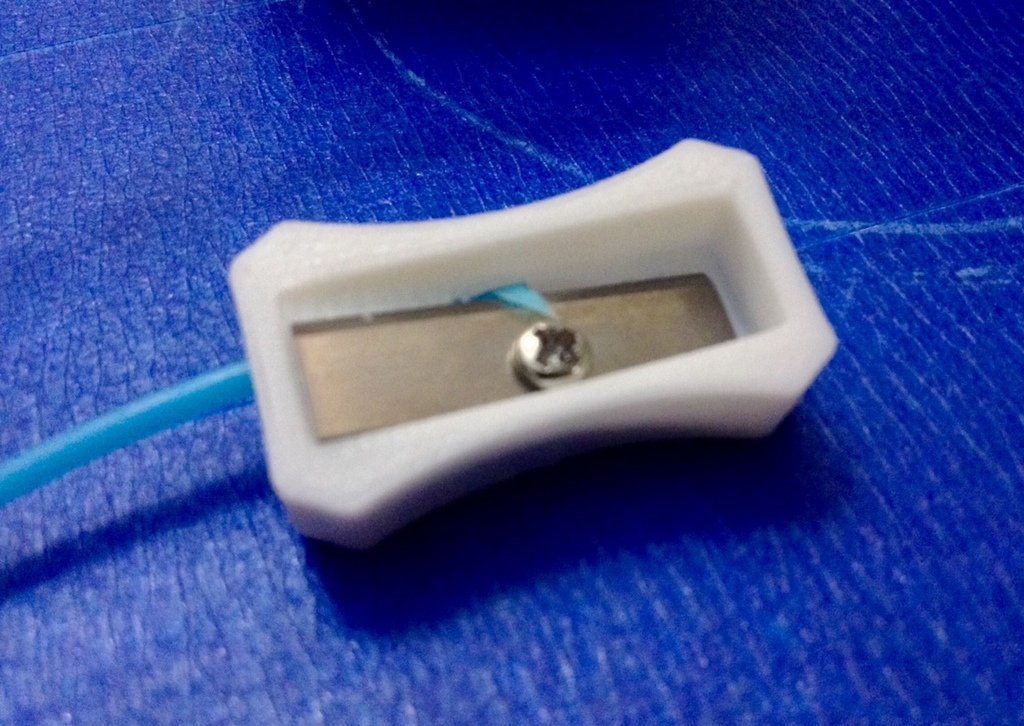

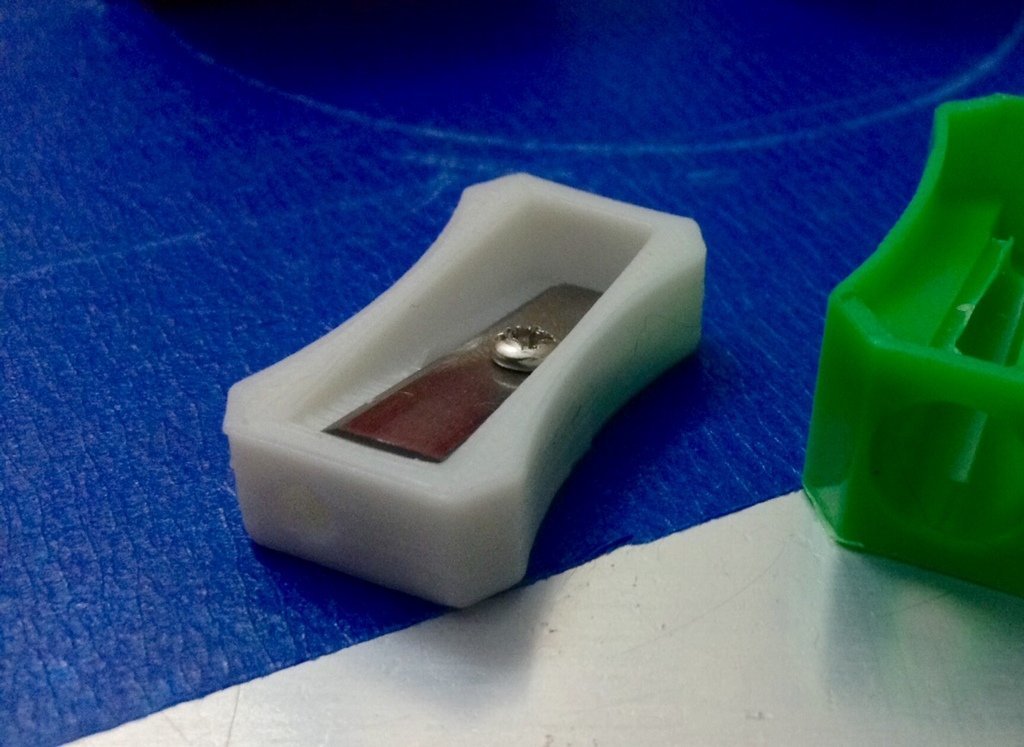

  • Put the blade in your printed sharpener with the business end over the angled hole.
  • Attach blade with screw form old sharpener.

To use:

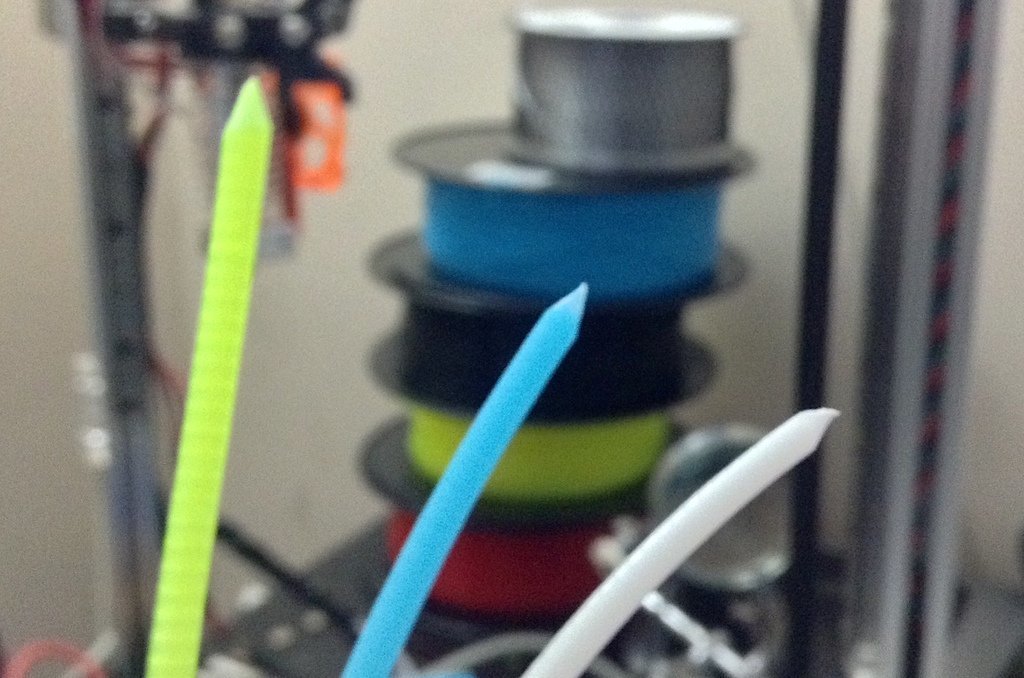

  • Place sharpener over 1.75 mm filament end.
  • Hold filament firmly and rotate sharpener.
  • Don't push too hard. Let the tool do the work.
  • Removed pointing filament.

3D printer file information

  • 3D design format: STL Folder details Close
    • sharpener.stl

    Learn more about the formats

  • Publication date: 2019-04-15 at 14:49
    ?
    Published to Thingiverse on: 2015-03-02 at 13:09

License

CC BY SA
