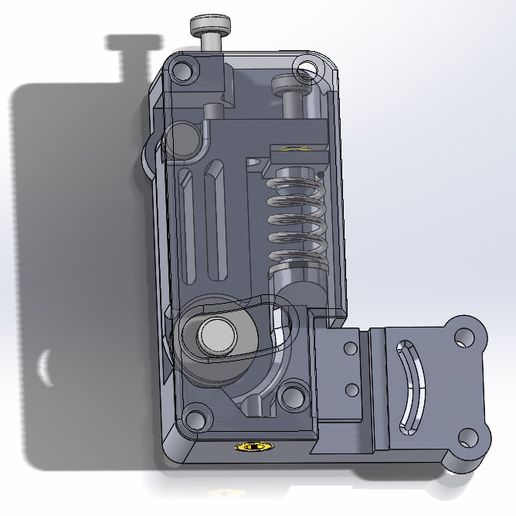

photo_2024-04-28_15-56-31.jpg Filament jam sensor "Ropuha"
photo_2024-04-28_15-56-39.jpg Filament jam sensor "Ropuha"
photo_2024-04-28_15-56-35.jpg Filament jam sensor "Ropuha"
ropuha V2 final assemble - прижимная лапка V2-1.STL Filament jam sensor "Ropuha"
ropuha V2 final assemble - упорний шток-1.STL Filament jam sensor "Ropuha"
photo_2024-04-28_15-56-31.jpg Filament jam sensor "Ropuha"
photo_2024-04-28_15-56-39.jpg Filament jam sensor "Ropuha"
photo_2024-04-28_15-56-35.jpg Filament jam sensor "Ropuha"
ropuha V2 final assemble - прижимная лапка V2-1.STL Filament jam sensor "Ropuha"
ropuha V2 final assemble - упорний шток-1.STL Filament jam sensor "Ropuha"
Advertising
Download Open priced
Share
Add to
Make
?
Creation quality: 5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
3 files (STL and ZIP) Close
  • ropuha V2 final assemble - прижимная лапка V2-1.STL
  • ropuha V2 final assemble - упорний шток-1.STL
  • ropuha.zip
    • bolt m3.SLDPRT
    • bolt m4.SLDPRT
    • nut M3.SLDPRT
    • nut M4.SLDPRT
    • ropuha V2 final assemble - V2-1.STL
    • ropuha V2 final assemble - V2-1.STL
    • ropuha V2 final assemble - -1.STL
    • ropuha V2 final assemble.SLDASM
    • spring.SLDPRT
    • .SLDPRT
    • V2.SLDPRT
    • V2.SLDPRT
    • .SLDPRT

Learn more about the formats
Last update
Publication date
Design number 1955437
shurf_dnepr

shurf_dnepr

Issue with this design? Report a problem.

3D printer file info

3D model description

For Ukrainian volunteers 3D printing, there is a promo code with the maximum possible discount. If you want to support the creator of this sensor, you can buy it without using the promo code. For the promo code go to telegram @de_001 or go to my youtube channel and in the "community" section find the promo code.

The 3D printer filament jam sensor, is essentially an addon to the standard filament sensor. The electronic part of the filament sensor is inserted into the housing of the filament jam sensor.

The filament jam sensor has two functions. The first function is a classic filament sensor. The second function is to detect when the filament is stuck on the spool or on the path of the filament on its way to the extruder.

The sensor has two settings. One allows you to adapt the sensor to the electronics module you install in it. The second setting allows you to set the necessary force to trigger the sensor in case of filament jamming and eliminate false triggering.

The sensor is not capable of triggering a jam in the extruder, but in case of filament jamming, it will pause printing until underextrusion starts.

The archive contains STL files as well as solidworks source files including the build file. The video shows how to assemble the sensor and how to mount it on the printer.

Video of the first version of the sensor, video language Ukrainian - https://youtu.be/korxhBE83_Q?si=Yvk2el3Wi99Z5HW7.

Video with sensor tests, video language Ukrainian - https://youtu.be/T5d1o9S1auE?si=XYhqY2XqatYSo1cl

Video with finalized version of the sensor, shows moments with sensor settings, video language Ukrainian - https://youtu.be/CBTFaw4T_os?si=EDSeM0SEQL7xcbTW

Assembly instructions for the filament jam sensor - https://youtu.be/sx_0z-xglss

3D printing settings

I used Petg plastic, the rest of the customization is up to you.
