Eryone ThinkerS Driect Drive Extruder Mount

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 4 likes
  • 24 downloads

3D model description

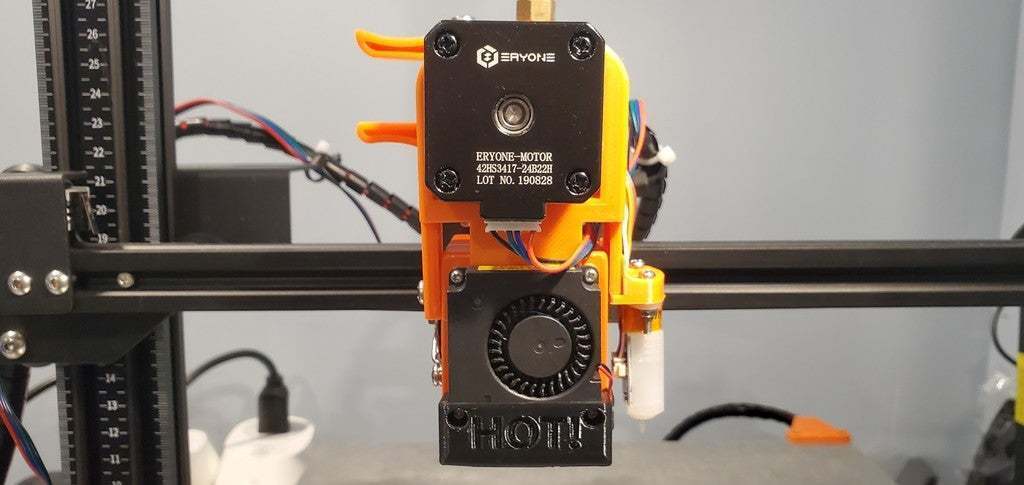

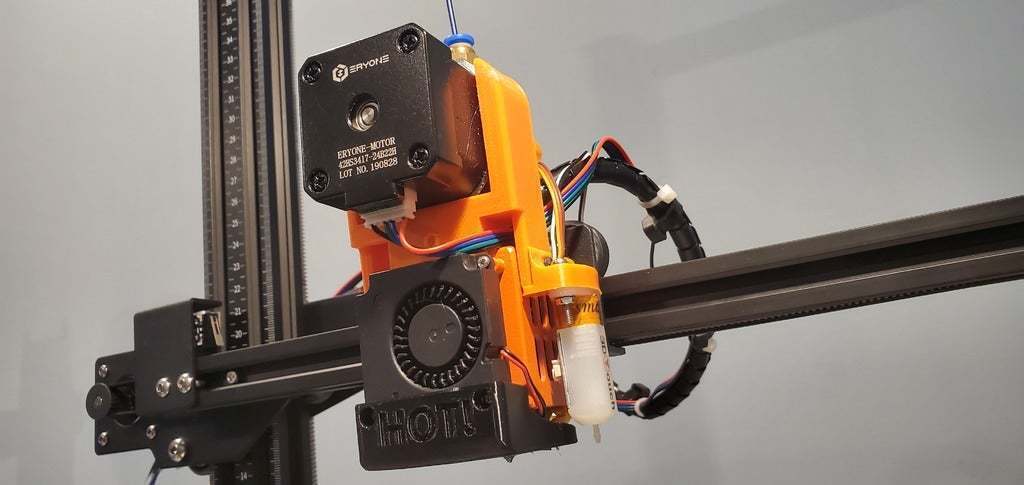

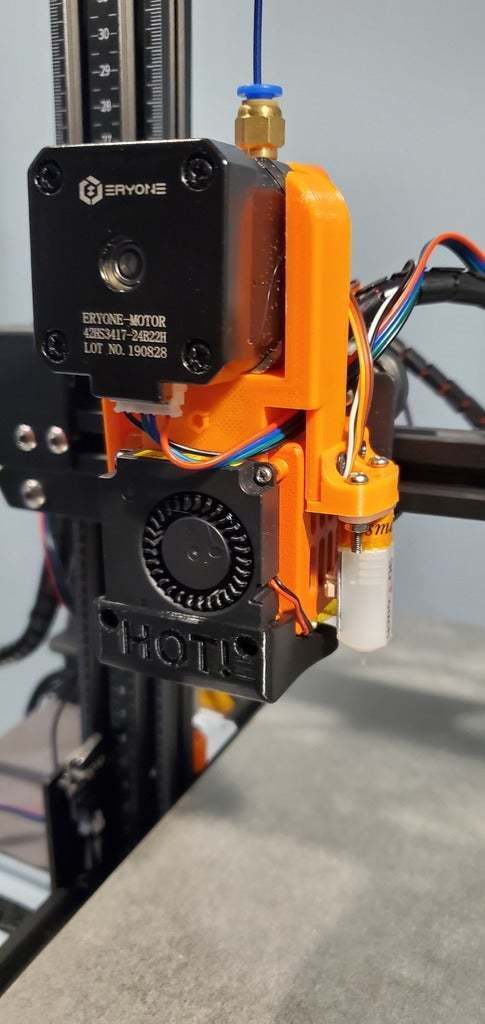

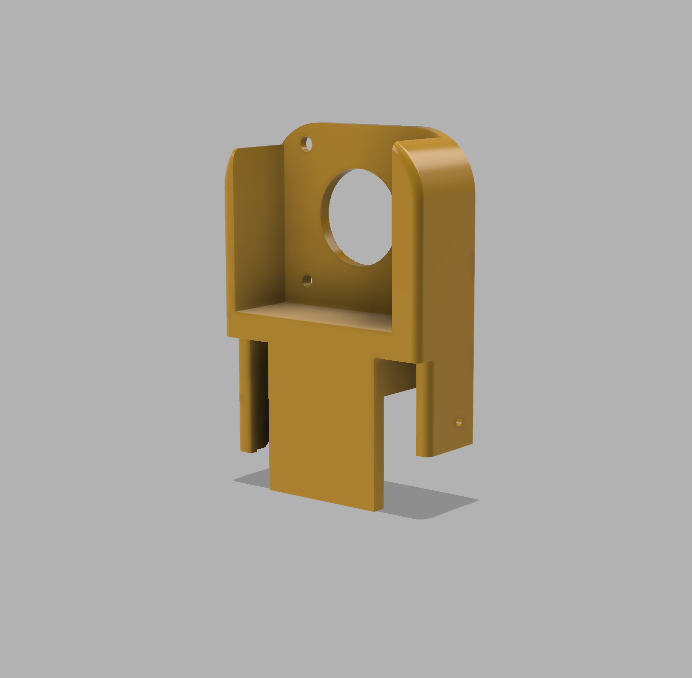

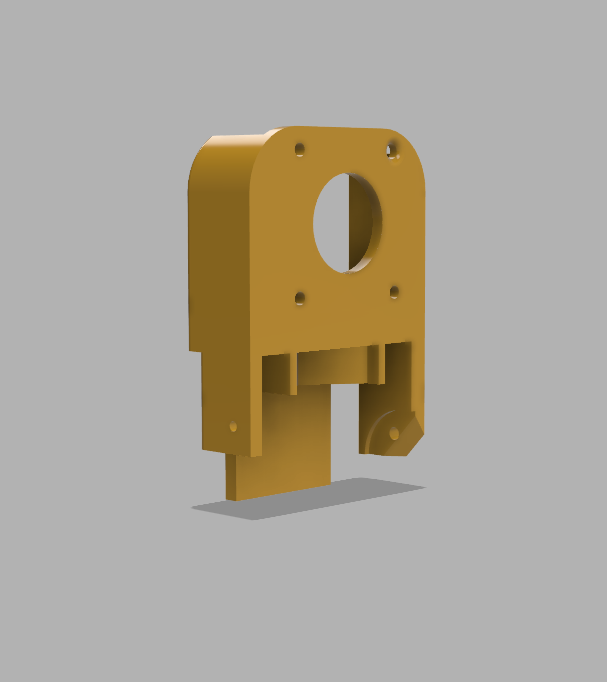

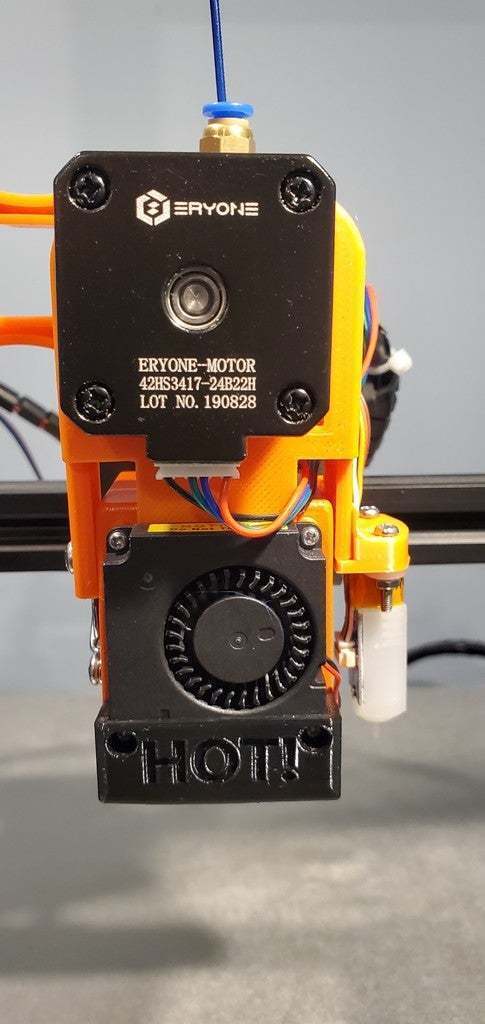

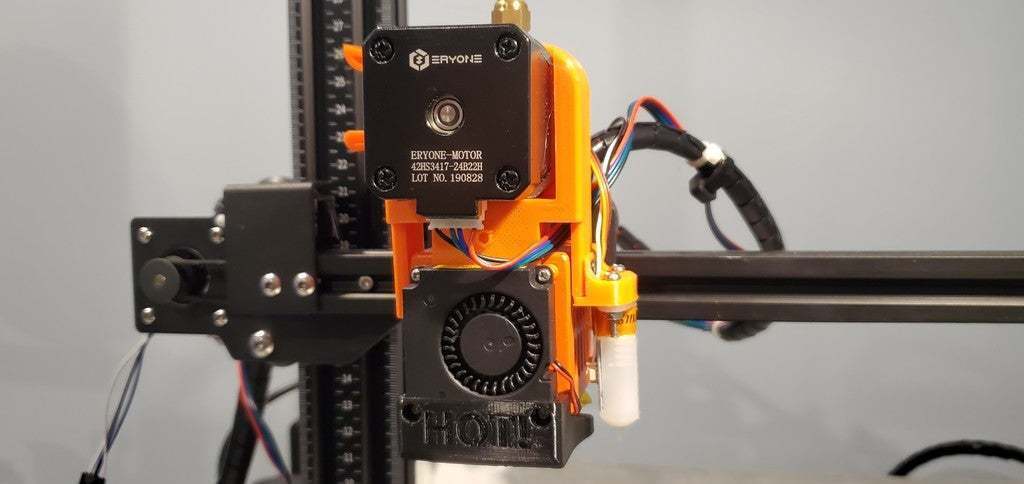

Eryone ThinkerS Driect Drive Extruder Mount V1

Dont like the bowden tube due to high drag, retractions. So I design this mount to eliminate bowden tube. Other benefits its easy to print super flexible filaments

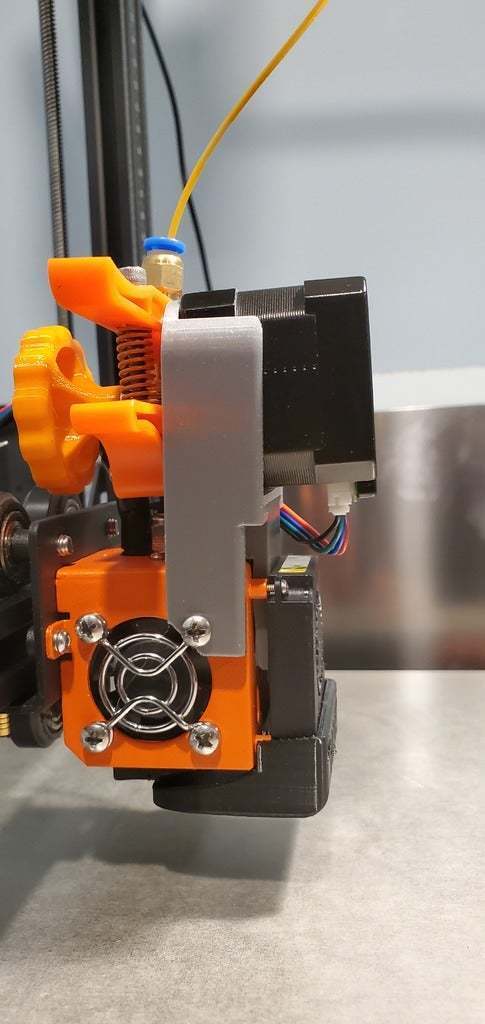

  • Use stock hotend to mount the driect drive system.
  • Better Extrusion with less extraction and speed
  • Wider Range of Filaments
  • Easy filament loading

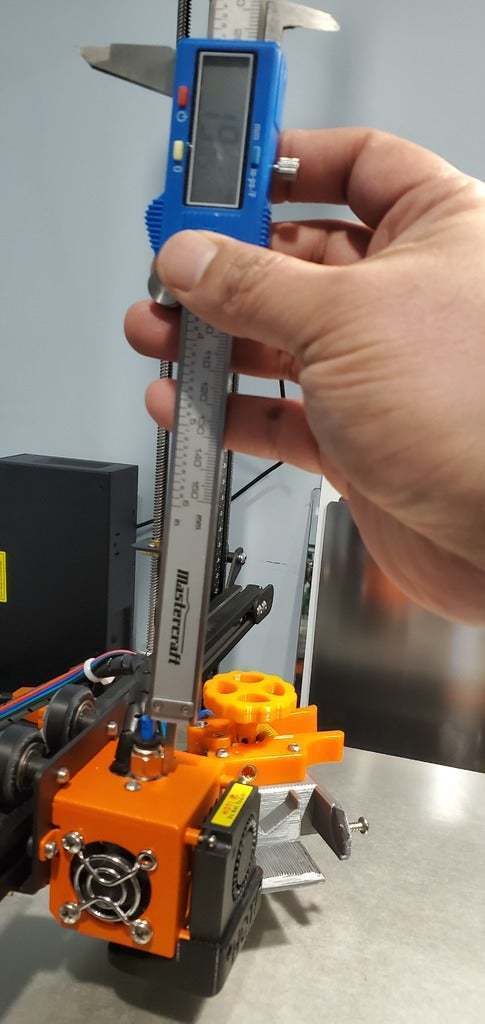

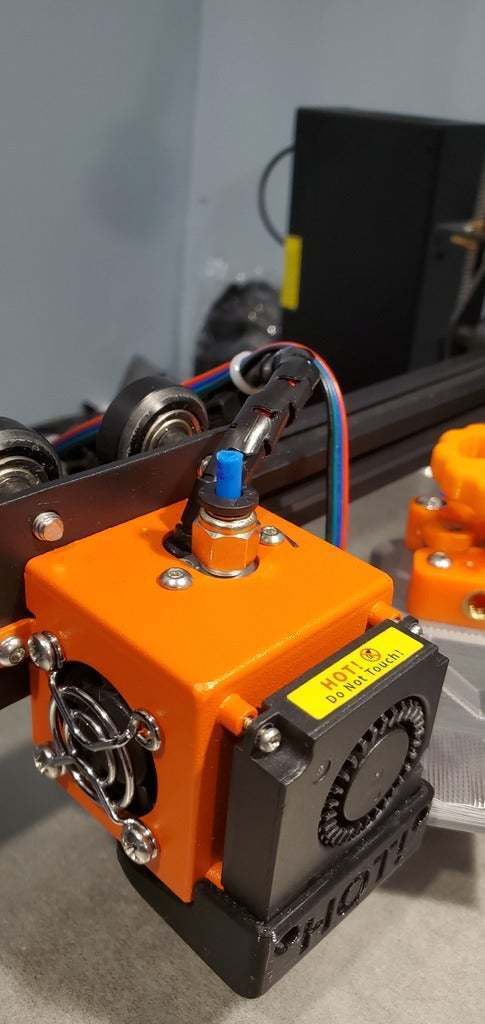

  • No need to open hotend, Just clip the bowden tube [19mm from top of hotend]

Note: You will need longer extruder stepper cable or extension as motor us move. Rerouting old cable from right side of printer might work but I havent tried it.

Files:

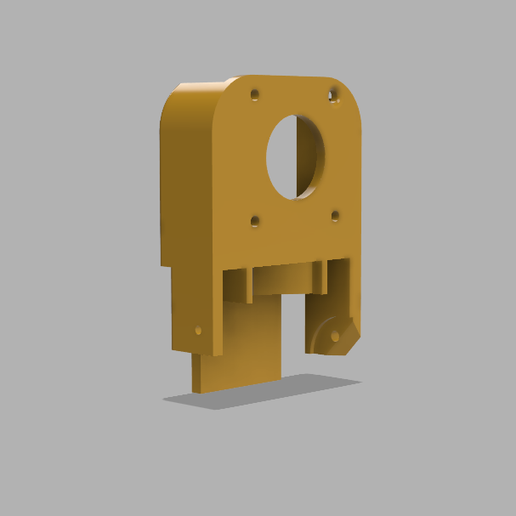

- ThinkerS -DirectDrive [No Logo]
- ThinkerS -DirectDriveL [with Eryone Logo]
- ThinkerS-DD-BL.stl [BL Touch Mount]

Enjoy!

YT:
https://www.youtube.com/watch?v=TXLjdwfAkwY&feature=youtu.be

##March 26 2020

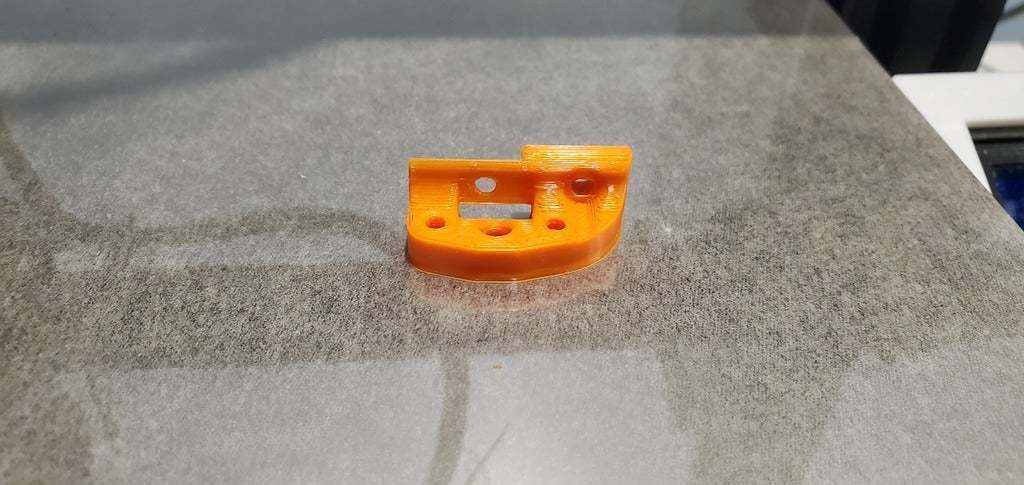

Added Bltouch mount ThinkerS-DD-BL.stl - Remix from https://www.thingiverse.com/thing:4144972 by madizmo

3D printer file information

  • 3D design format: STL Folder details Close
    • ThinkerS-DD-BL.stl
    • ThinkerS_-DirectDrive-Logo.stl
    • ThinkerS_-DirectDrive.stl
  • Publication date: 2020/12/01 at 17:28
