3D printer file info

3D model description

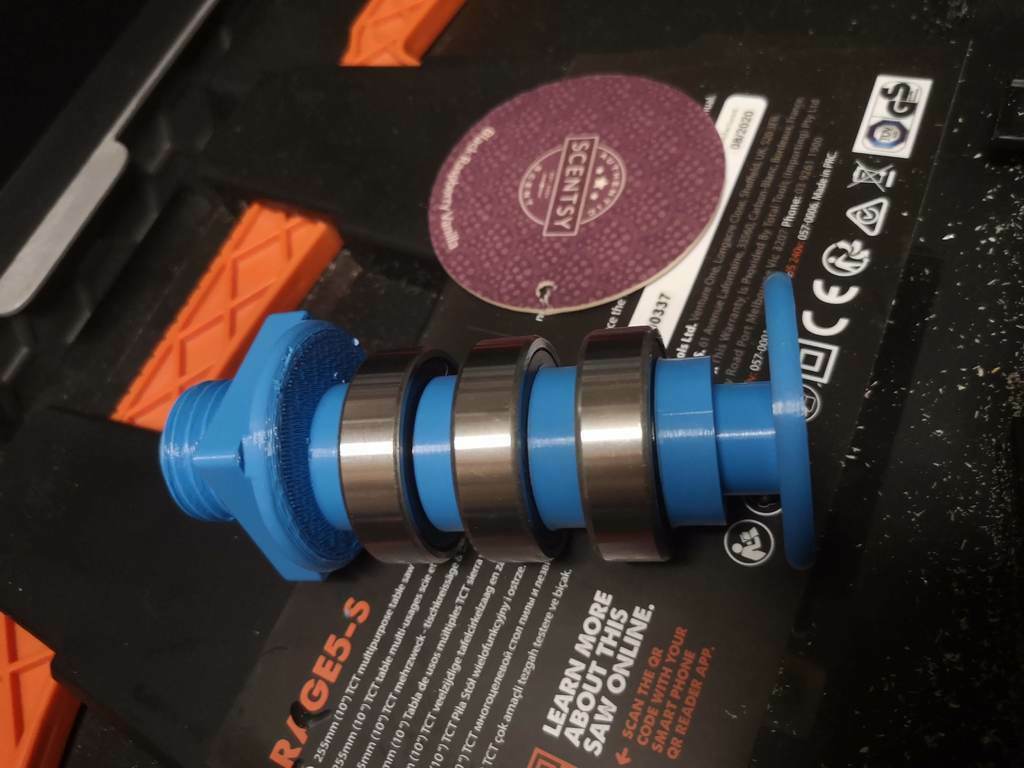

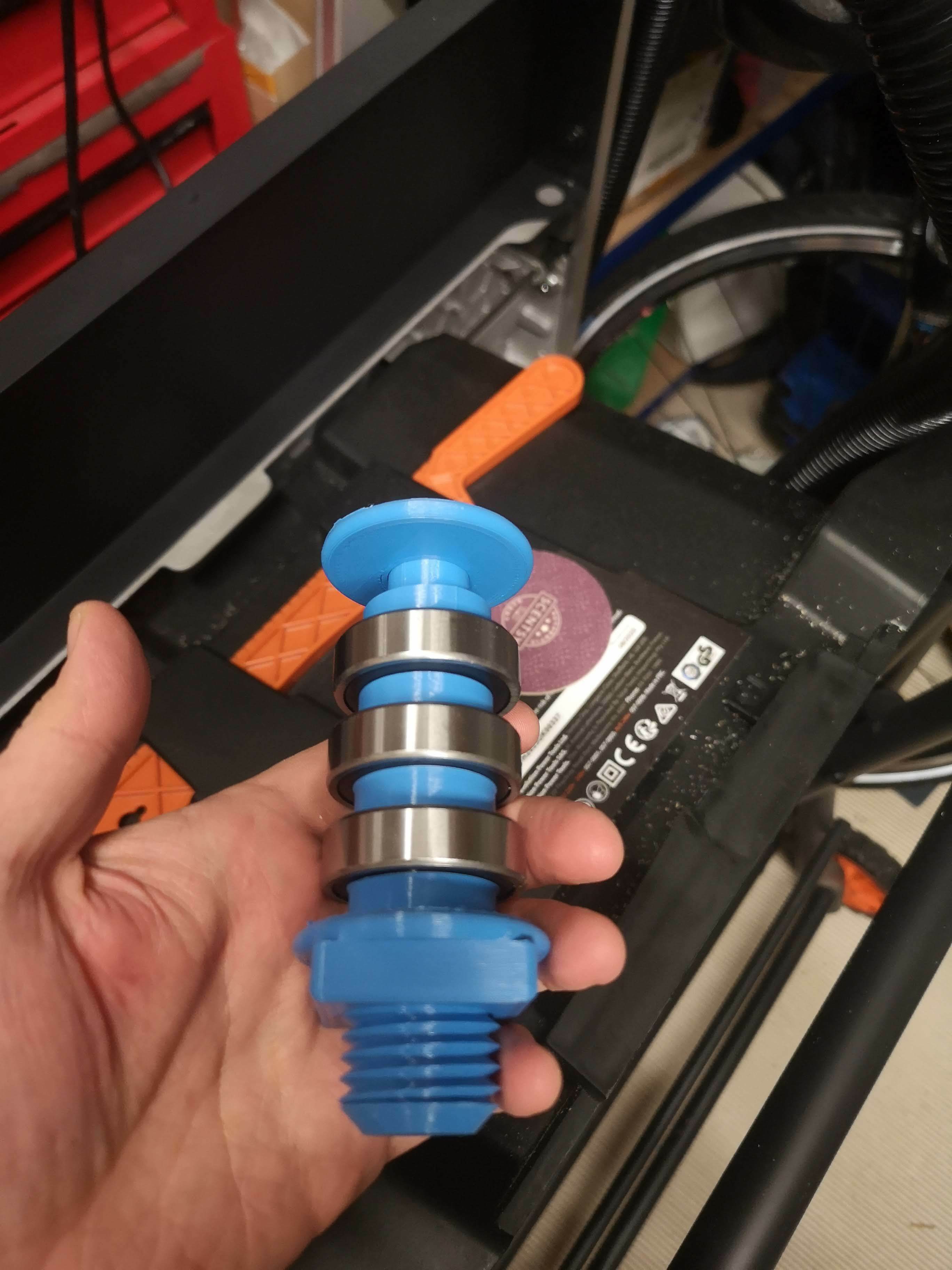

New design of filament spool holder using 3 6004-2RSH bearings.
I've cut it up into 5 different pieces but all of these fit on the build plate of the ender 3 easily.
You will need to print 1 of each and 3 of the spacers.

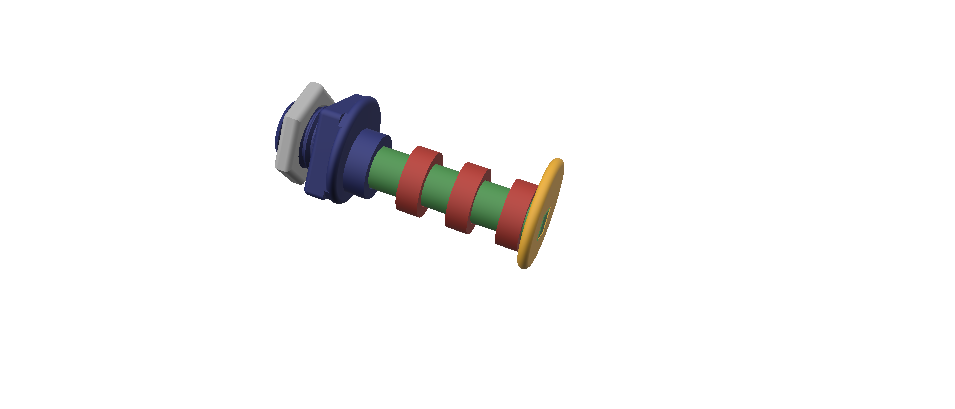

The rendering shows the way it should be put together. The gaps between the spacers are where the bearings should go.
On my printer the tolerances are set that I didnt need to glue any of the parts together and it seems to work just fine. Although I would probably glue the main shaft into the nut end for security but not other end piece just in case you need to remove it change the bearings.
When printing the nut you will need to support it and I would suggest you brim the main shaft to make sure it doesn't fall over.
