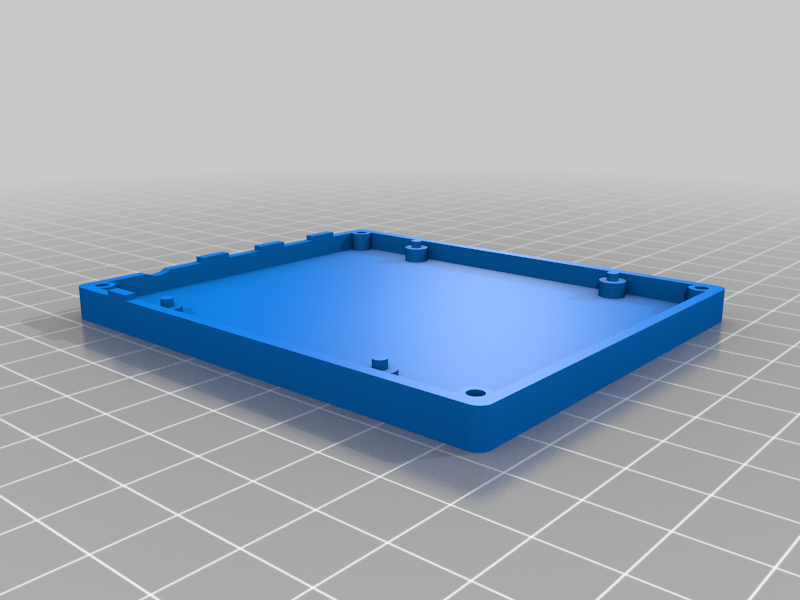

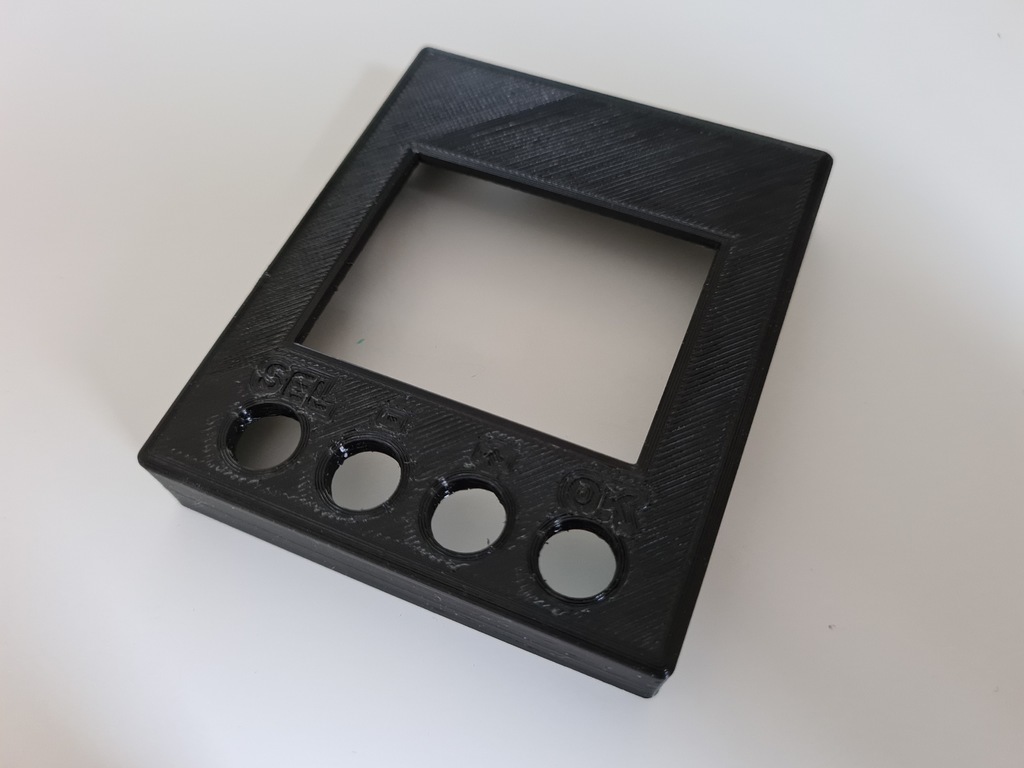

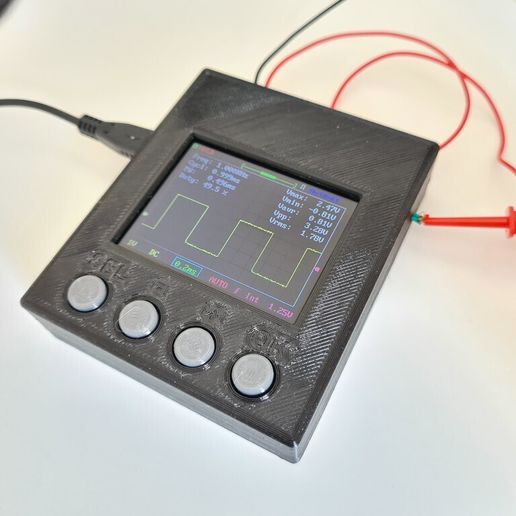

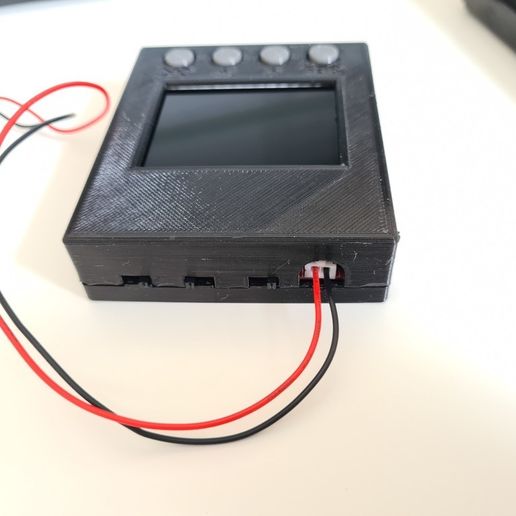

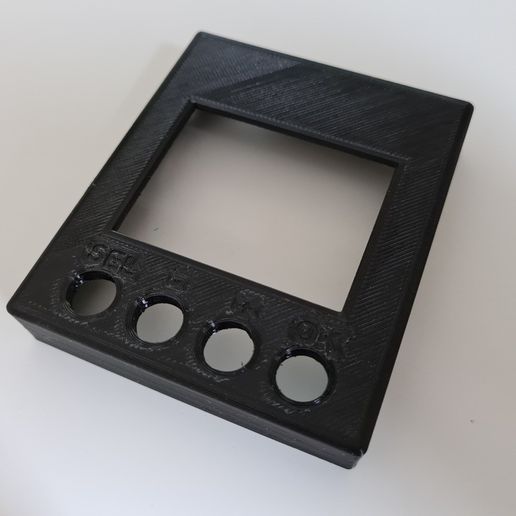

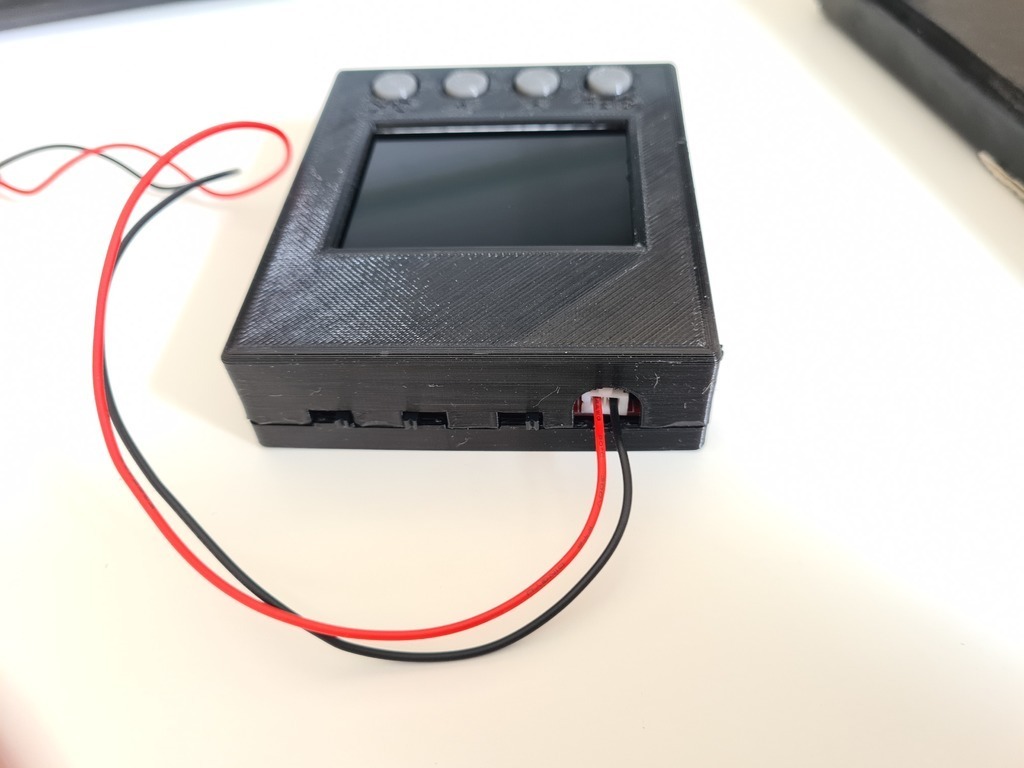

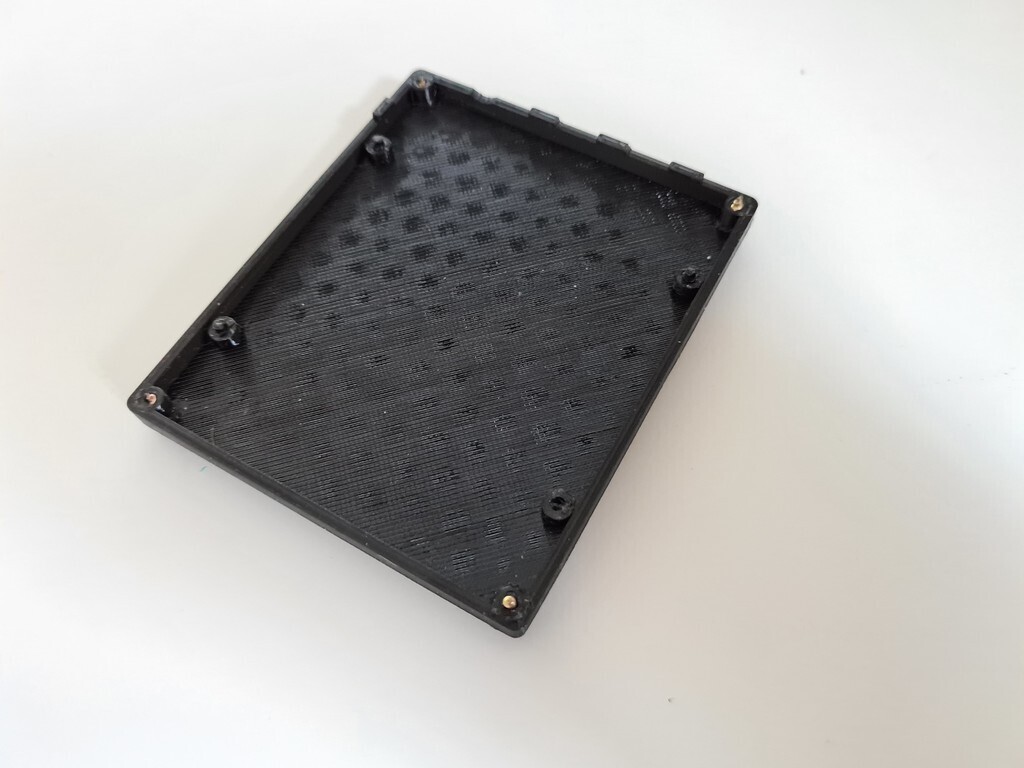

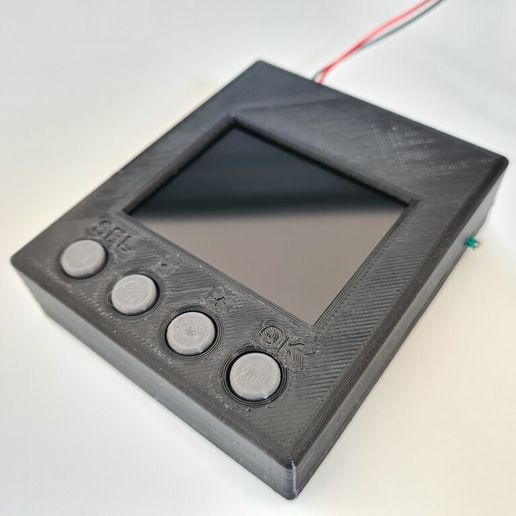

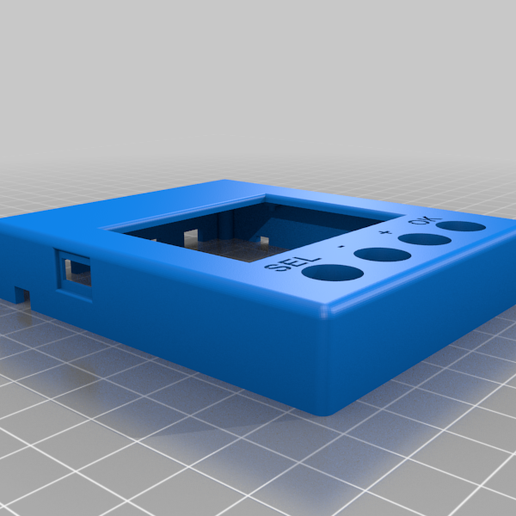

Case for a DSO138mini (J) Oscilliscope. Complete housing which can be used with the standard test lead plug (white) and with the BNC conncetor. It has openeings for all slide switches and power connection, also small hole for the test signal wire to poke out. I printed in black but this probably isn't the best for seeing the text on the surface. Just requires 4 small screws to assemble the top and bottom together (mine are 2.2mm x 10mm countersunk). Upper box can be printed either way up (it depends on what finish you prefer on the top) just remenber to add supports if you print with the top upwards.
