DIY Model Rocket Launcher

Advertising
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

  • 1k views
  • 4 downloads

Licence CULTS - Private Use
Last update 2023-08-02 at 04:43
Publication date 2023-08-01 at 03:21
Design number 1355744
3D design format
3MF Folder details Close
  • MissionControlBox Bottom v9.3mf
  • MissionControlBox v9.3mf
  • MissionControlBoxTOP v9.3mf

Learn more about the formats

apiary15

3D printer file info

3D model description

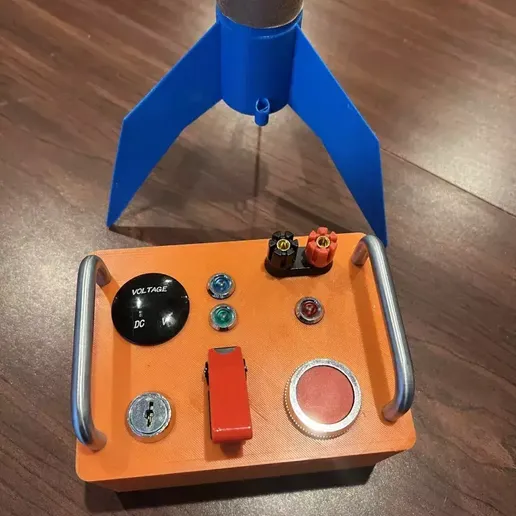

DIY Model Rocket Launcher

Build Plans here:
https://matthewmalham.com/diy-model-rocket-launcher

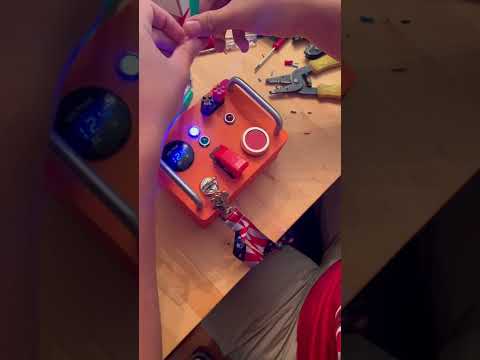

Video here:
https://youtube.com/shorts/5I3mBERsAW0?feature=share

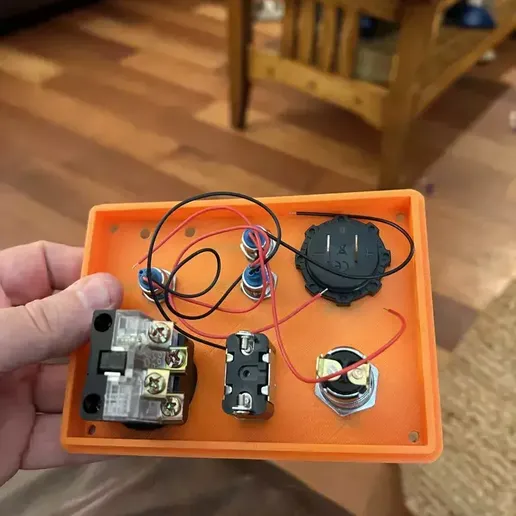

Bill of Materials:

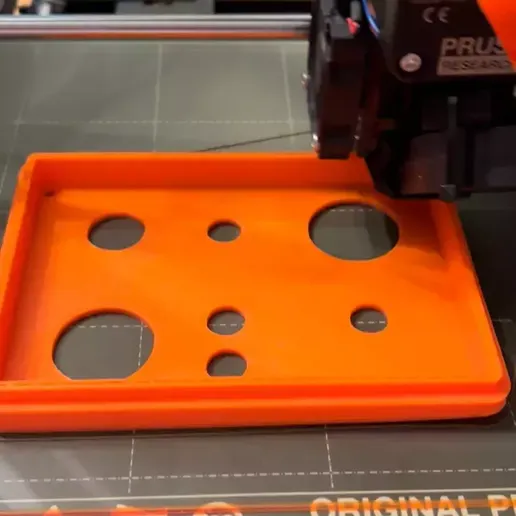

3D Printed enclosure (cover + base are my design)
Battery Enclosure (8 AA Batteries)
https://amzn.to/3TJrKcH

12V Battery Voltage display
https://amzn.to/3LNsg7w

3 Indicator LEDs (for power, continuity and armed status)
https://amzn.to/407c9pS

On/Off Key Switch
https://amzn.to/3ly8OAW

1 red cover toggle switch
https://amzn.to/3TBfgDQ

1 red push button switch
https://amzn.to/3z0tKUq

4mm banana plug female terminals
https://amzn.to/3Z3blAY

3” Metal Handles (Qty 2)
https://amzn.to/3TyiM21

Optional Swag: Launch Key Lanyard
https://amzn.to/44MVREY
