Creality Ender 3 Upgrade Cable Guide

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 7.6k views
  • 36 likes
  • 815 downloads

3D model description

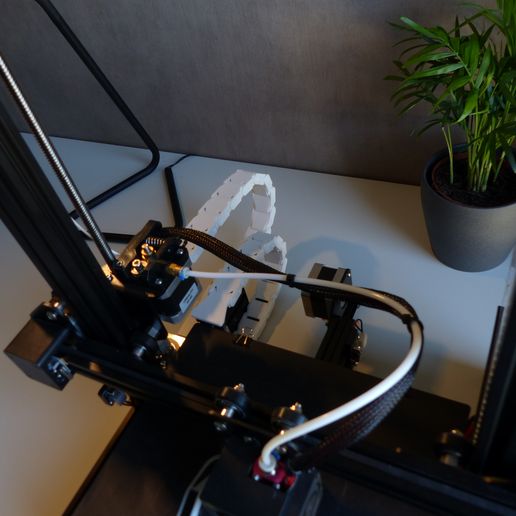

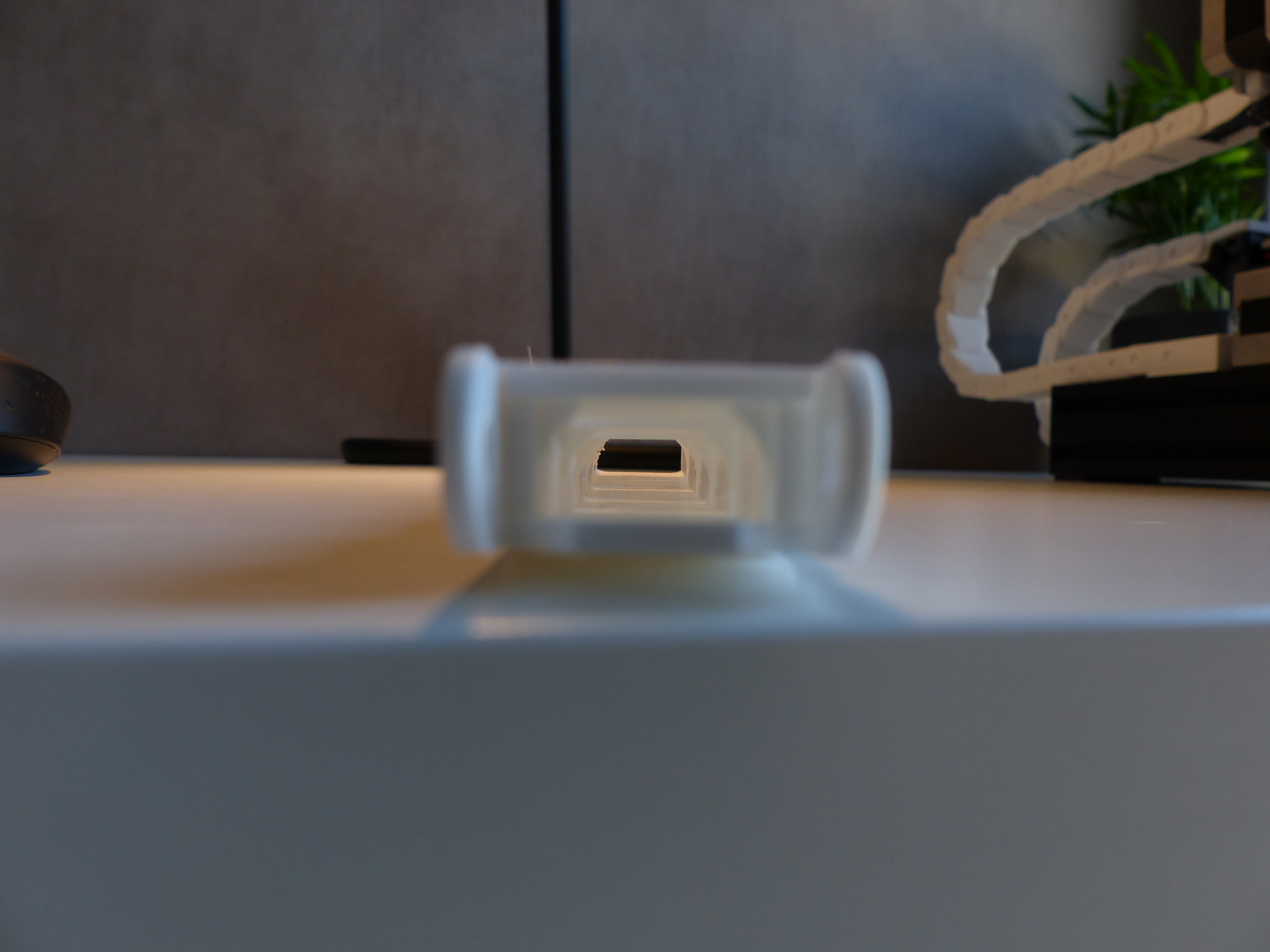

Cable guide for Creality Ender 3

Axis Y and Z

Print the following files :

Z axis :

  • 15x Segment

  • 15x Cover

  • 1x Up end Z

  • 1x Down end Z

  • 1x Down end cover Z

  • (You will need two M4 nuts and bolts [with the flatest heads possible (Max : 3-4mm)] to fix the upper end to the extruder plate [the two holes are already made on the stock printer])

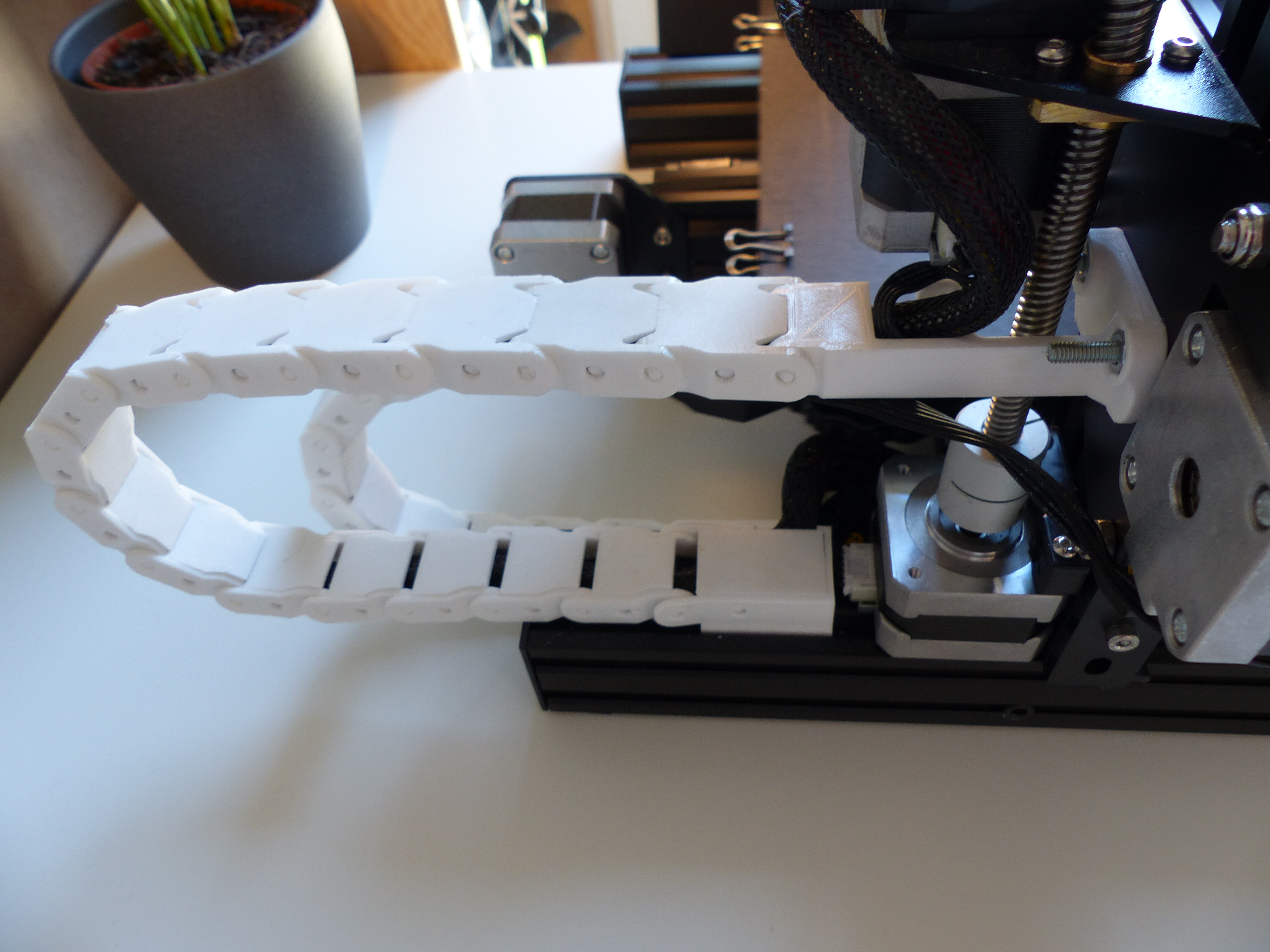

Y axis :

  • 10x Segment

  • 10x Cover

  • 1x Up end Y

  • 1x Down end Y

  • 1x Down end cover Y

Assembly :

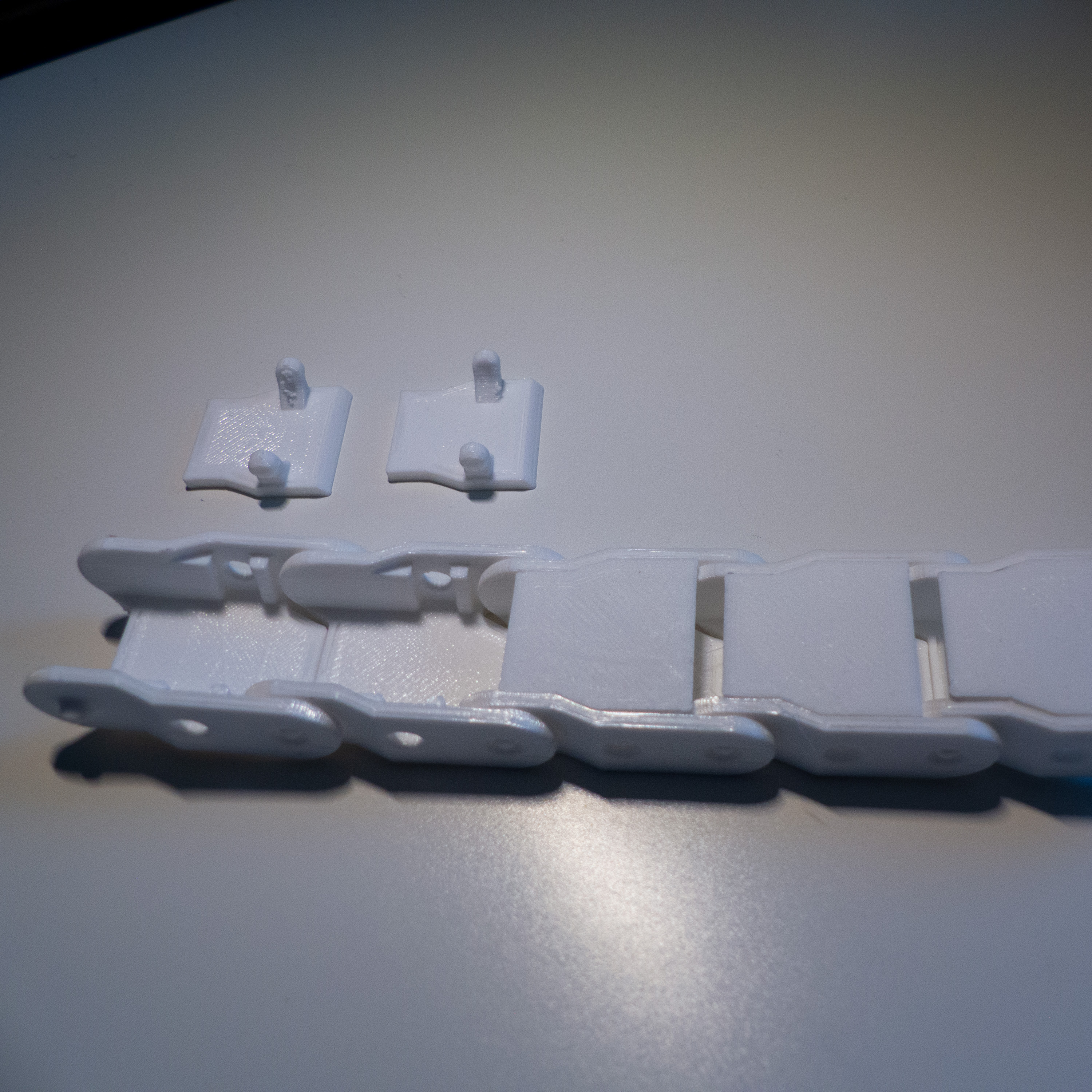

  • Clip all the segments and ends together (except Z axis upper end)

  • Slide the down ends in the printer's base 4040 profile

  • Clip the Y axis upper end over the stock plastic part

  • Remove the whole X axis to access the two holes on the extruder motor plate

  • Bolt the Z axis upper end with the two M4 nuts and bolts

  • Put back the X axis

  • Clip the end of the Z segment chain to the Z upper end

  • Carefully place the printers cable in the chains and put the covers on

  • You're done done!

Please share your make and a comment if you printed and liked the design or see an improvement:)

3D printing settings

0.4mm Nozzle

PLA (others materials might work)

  • 3D file format: ZIP
  • Last update: 2019/11/15 at 13:04
  • Publication date: 2019/10/26 at 17:09
