CR-10 V3 Hero Me Adapter (gen5/6) for Use with Stock Titan Extruder Mounting

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

This remix is a "drop-in" replacement for the stock Bowden/titan setup on the CR-10 V3. Most remixes require you to cut a new Bowden tube and/or move your Titan extruder up due to clearance issues with the 40mm hot-end fan. I'm too cheap to do that.

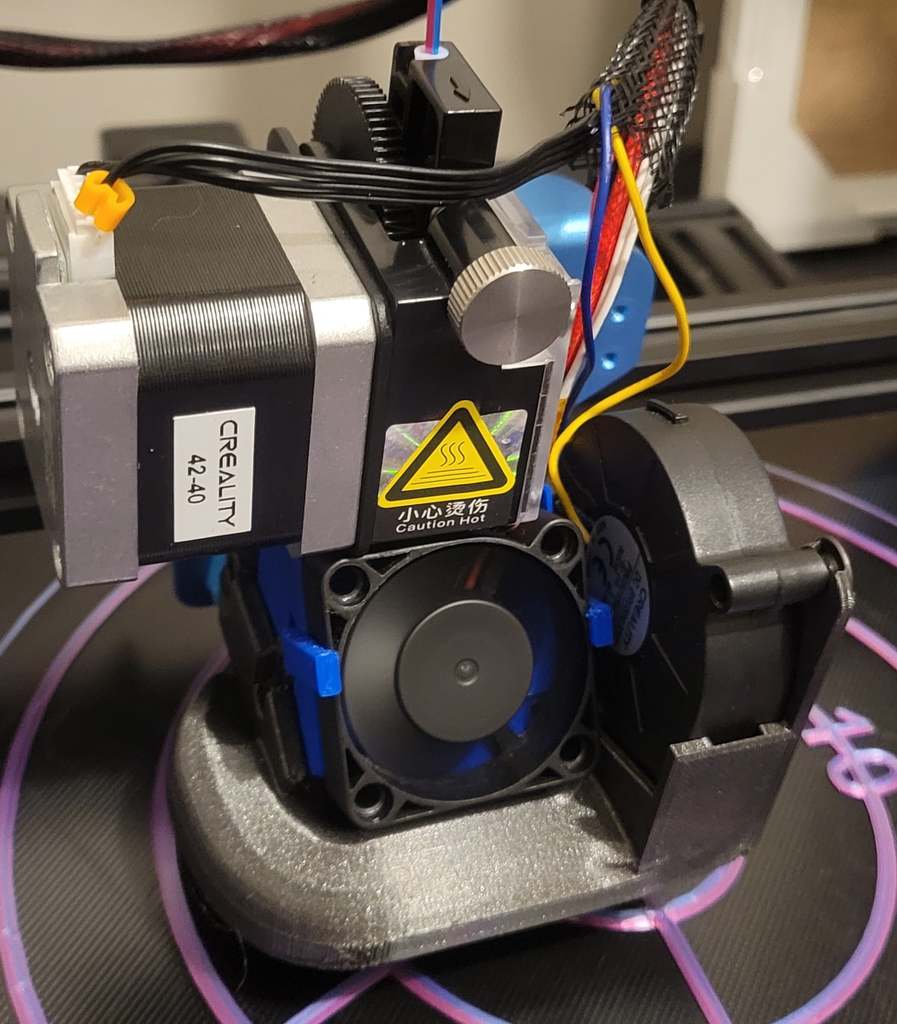

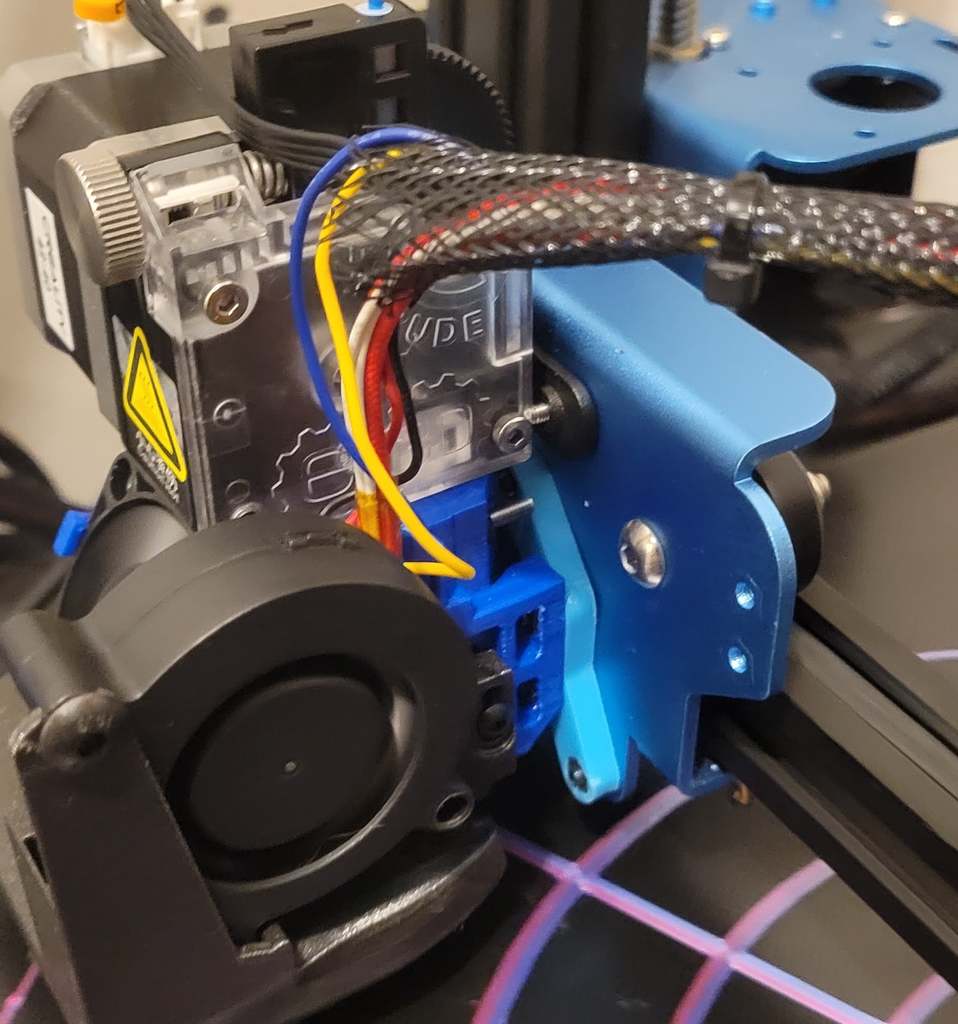

Instead, this remix just shifts down the 40mm fan using a small adapter piece. You will lose a minor amount of efficiency on the hot-end fan, but I haven't noticed any difference in maintaining an accurate hot-end temperature. The gantry adapter is necessary to align the holes of the titan mounting plate as they are about 8mm left of the included Hero Me Gen 5/6 adapter piece. Overall, just install everything as normal, but use this adapter for your stock 40mm hot-end fan and gantry adapter.

You will need the standard hardware for the Hero Me Gen 5/6 base, collar, and fan duct.

In addition, you will need:
3 x M3 nuts (inset in the gantry adapter)
7 x M3 x 8 screws (4 are used to screw in the adapter piece to the Hero Me base, 3 to screw into the gantry adapter from the back of the stock V-3 gantry plate)

As a FYI, the bowden tube length is ~81.5mm for the stock V3 orientation. If you want to move up the titan extruder, you will need a new bowden tube, elsewise the pressure will cause the bowden tube to rise out of the hot end.


3D printing settings

-

3D printer file information

  • 3D design format: Folder details Close
    • CR-10_V3_Gantry_Adapter.stl

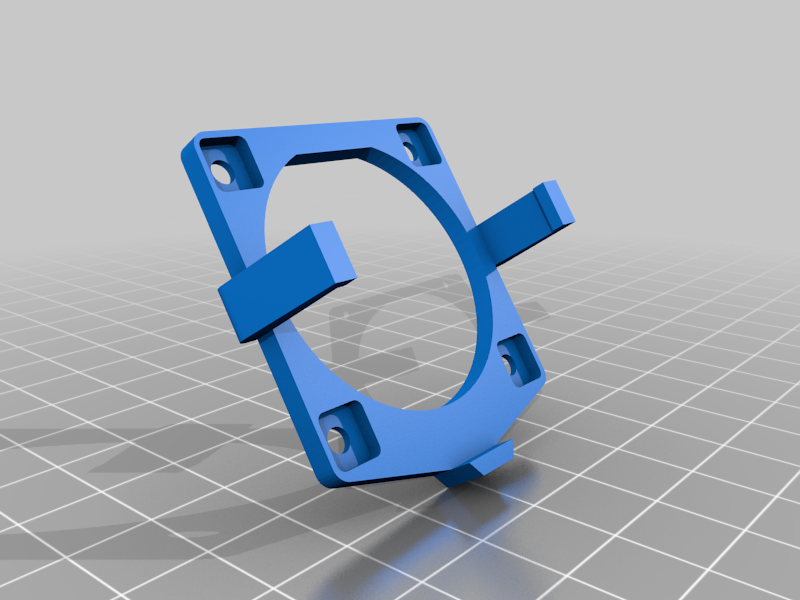

    • CR-10_V3_Stock_Fan_Adapter_Hero_Me_Base.stl

    Learn more about the formats

  • Publication date: 2022-12-04 at 23:10
    ?
    Published to Thingiverse on: 2022-05-09 at 14:38

License

CC BY-NC-SA - Attribution - Non commercial - Share alike
