CoreXY Motor Mount

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 446 views
  • 4 downloads

3D model description

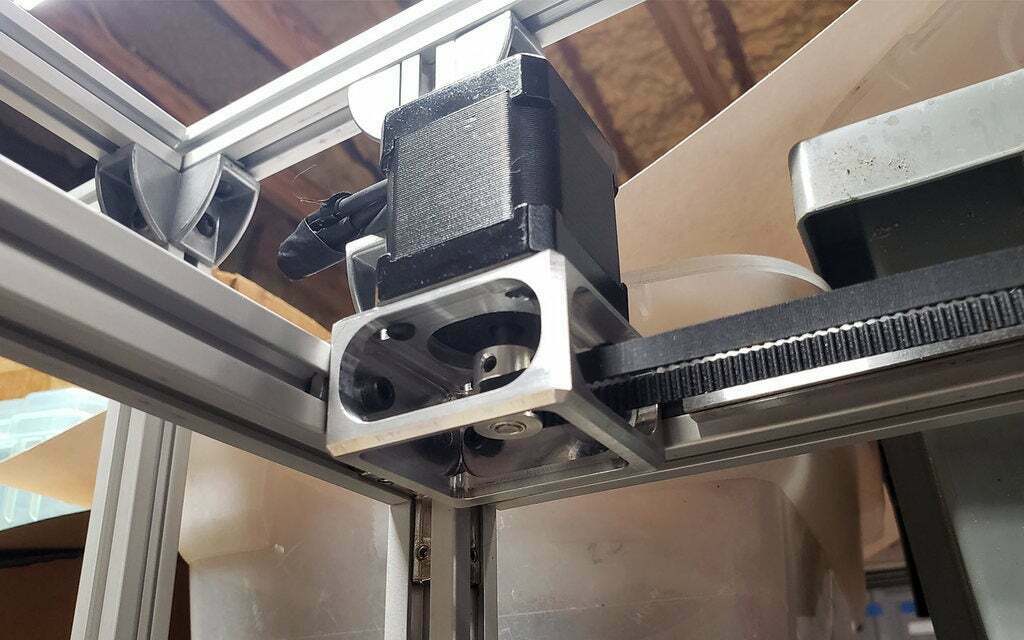

This is the new motor mount to the SolidCore 3D Printer.
see >> https://www.thingiverse.com/thing:4307266

I've been working on a modular and scalable corexy design called the SolidCore for over a year now. The plan is to have a platform or ecosystem of parts that can be used on any 3d printer that uses 2020 frame extrusion. The original motor plate had a 20mm cut out to seat in the corner of the frame. One of the problems I ran into was that many of the frames use square corner brackets that don't have the clearance needed in order to mount the motor plate mount. The new motor mount design mounts within the inside of the frame instead of on top of the frame.

For more information on the SolidCore Printer see >>> https://3ddistributed.com/corexy-3d-printer/


3D printing settings

-

3D printer file information

  • 3D design format: STEP and STL Folder details Close
    • SolidCore_Motor_Mount.step
    • SolidCore_Motor_Mount.stl

    Learn more about the formats

  • Publication date: 2021/03/25 at 03:33

License

CC BY SA
