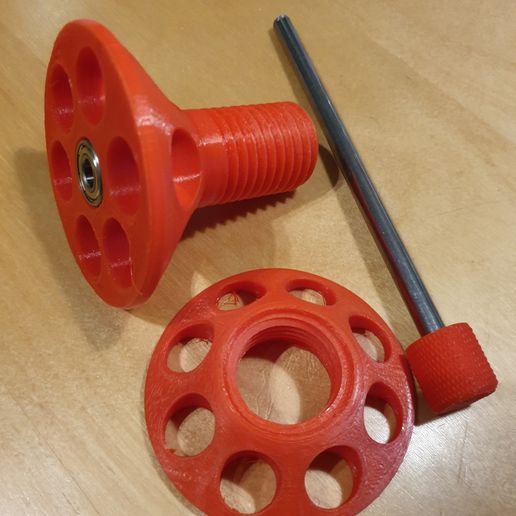

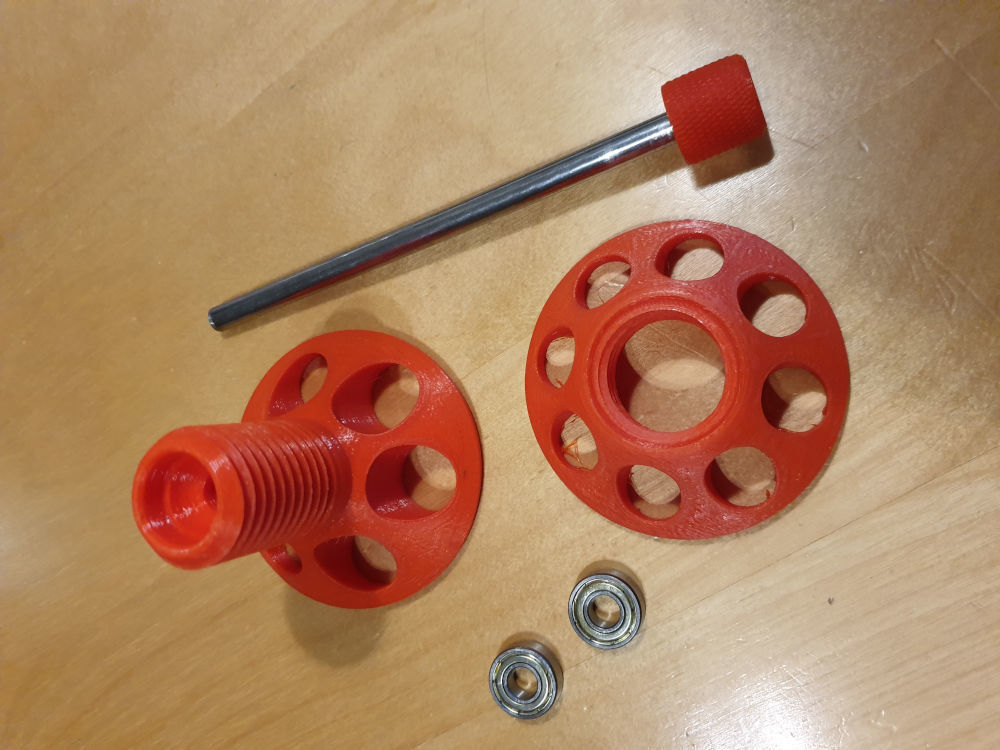

The system consists of a steel rod holder (diameter 8mm), a knurled stop to be pressed into one end of the rod and a 2-part universal coil.

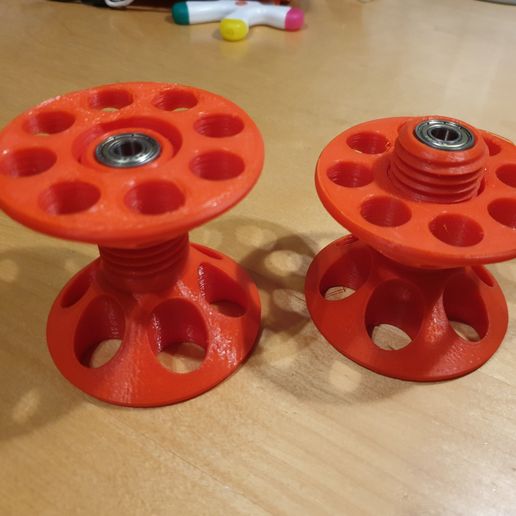

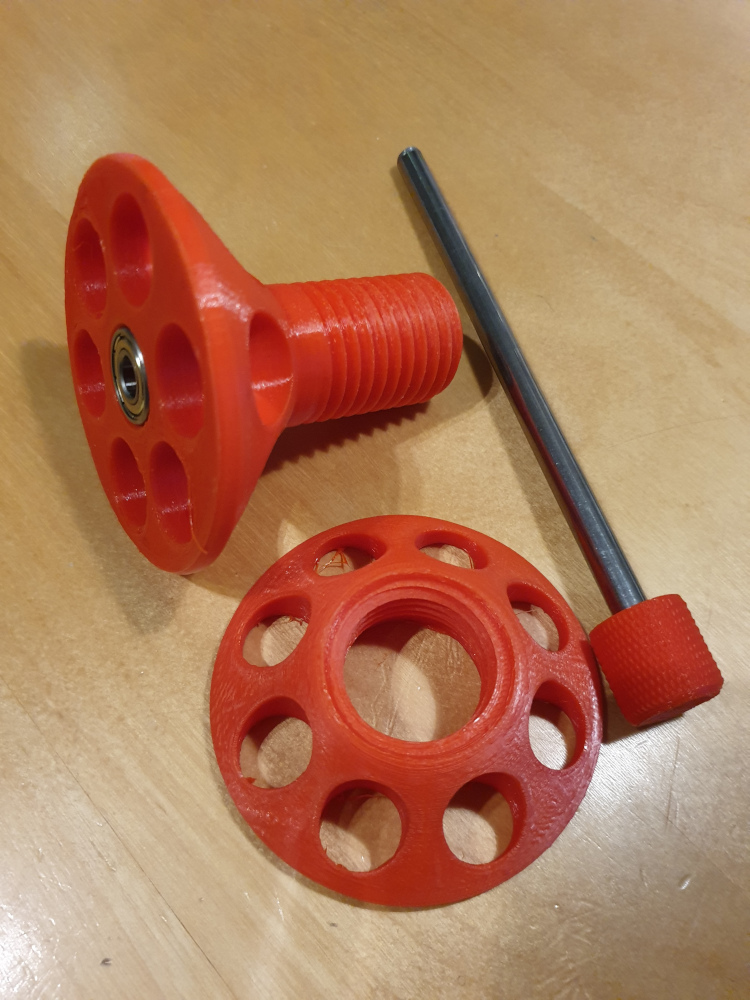

The 75mm long spool is suitable for spools with a central hole from 50mm to 78mm and can be fitted with a pair of 698 bearings (8x19x6mm) but the internal 9mm shoulders make it easy to do without.

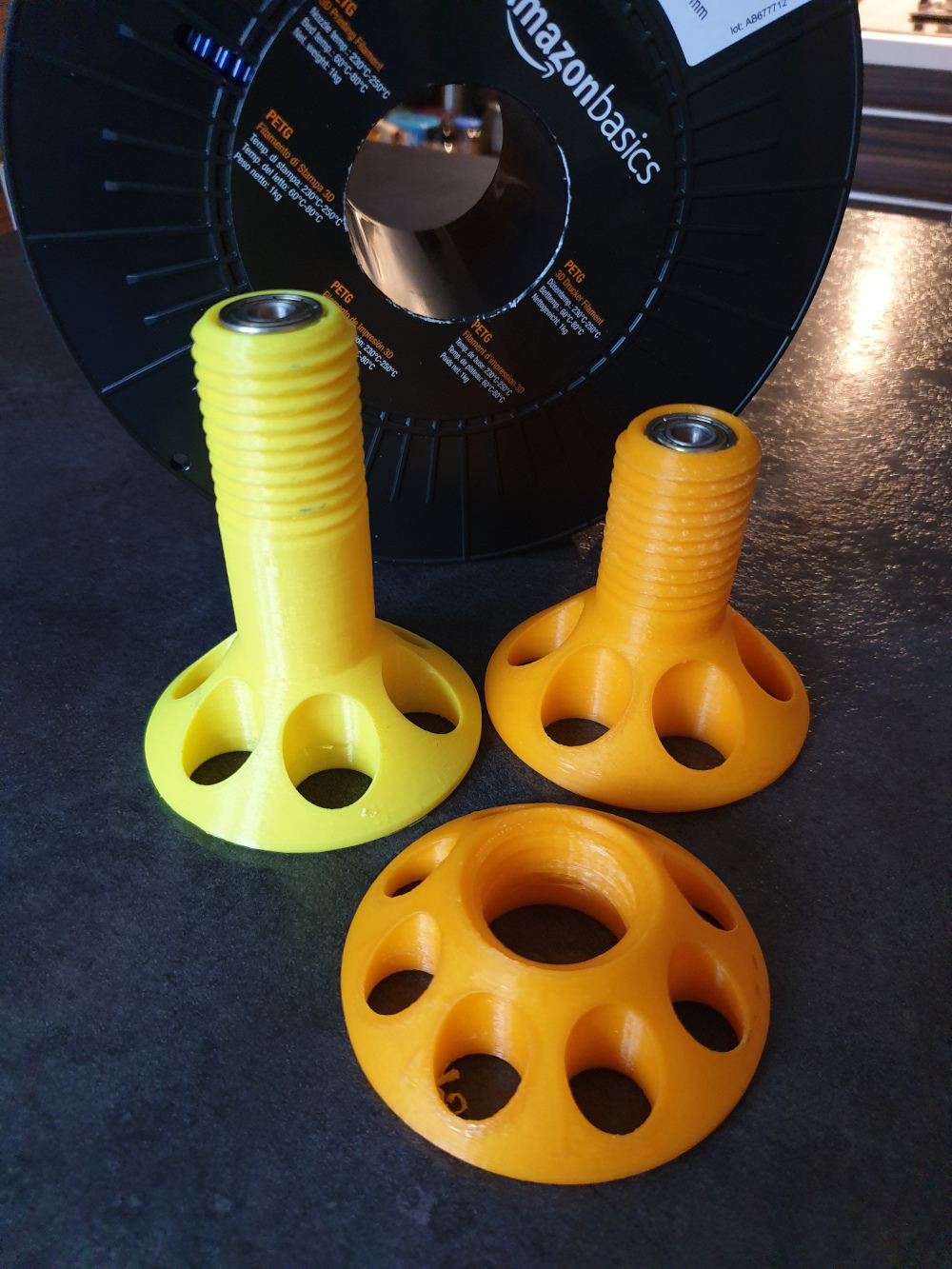

The Amazon Basics coils with 52mm center hole and very wide (75mm) require the 100mm long extended male coil, perfectly compatible with the female part.

A steel rod of one meter to 8mm costs about 4€, cut a section of 20cm.

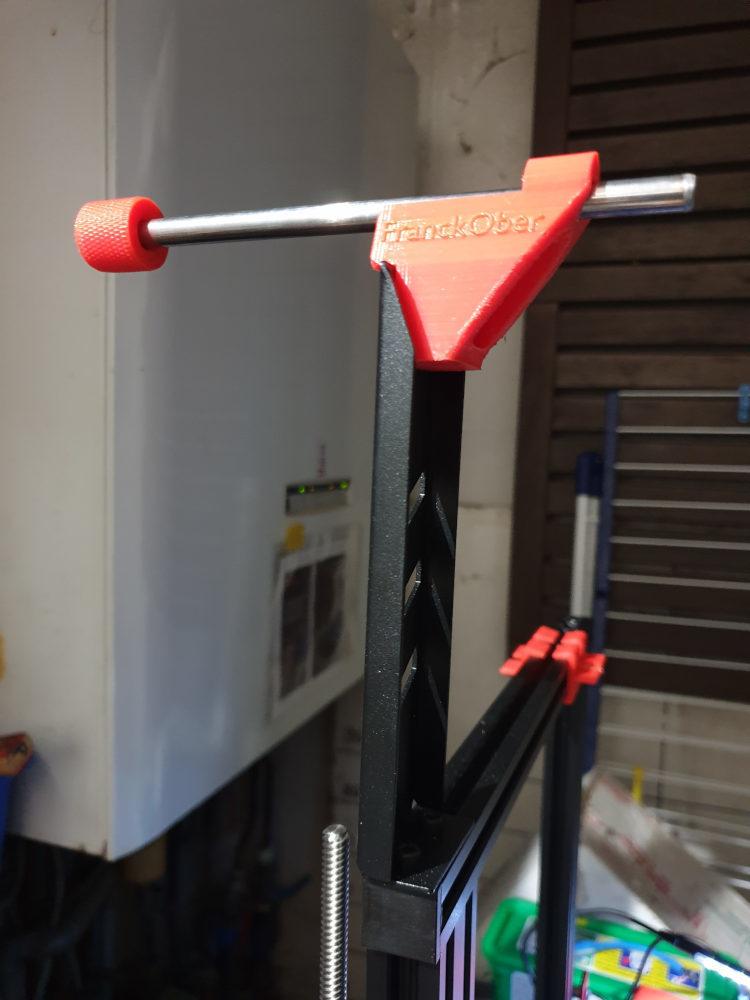

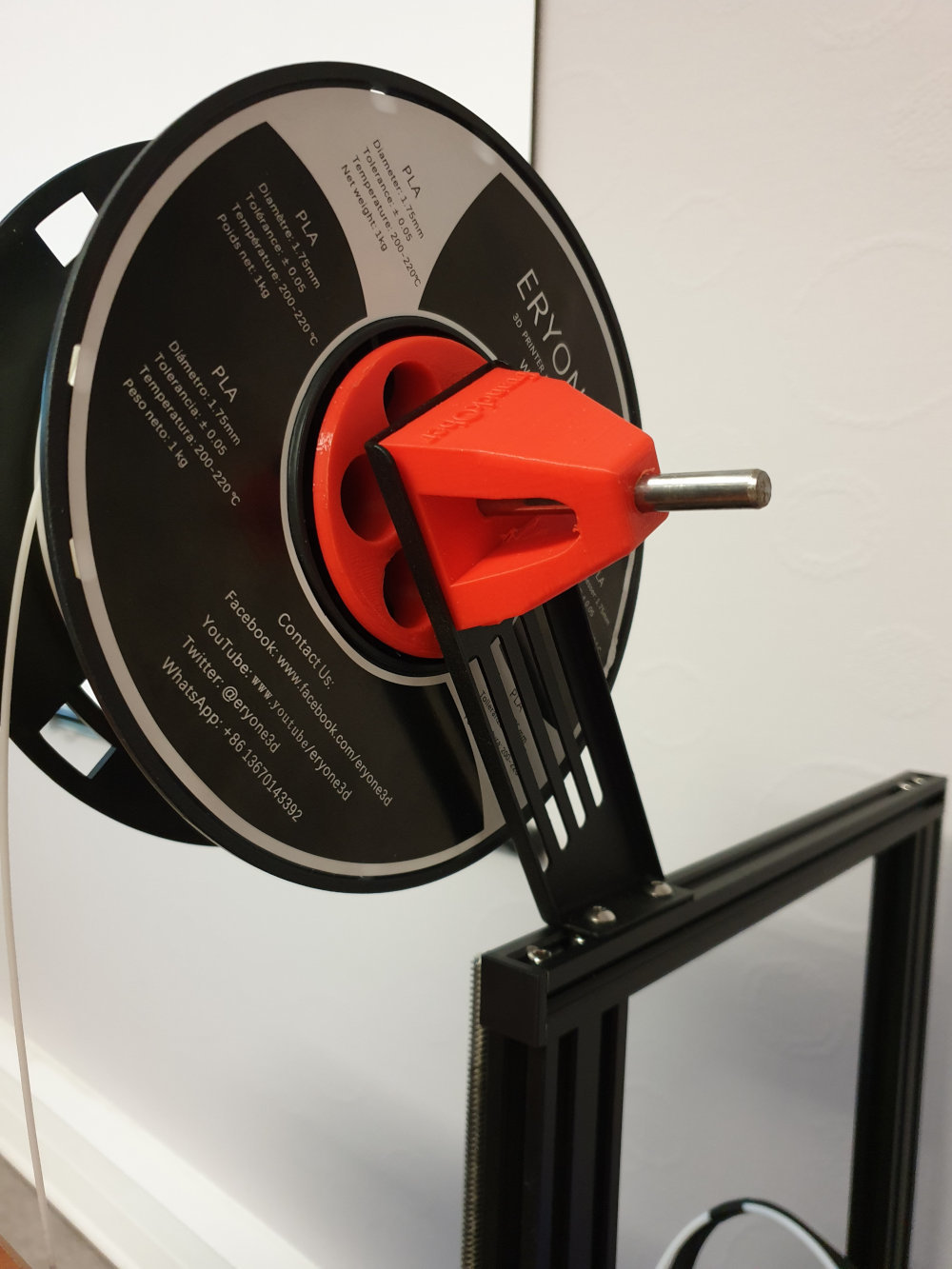

The steel rod support is adapted to the ALFAWISE U30 PRO but can be easily adapted to any metal fixing of this type, the BLENDER source is available for adaptation (drilling for example).

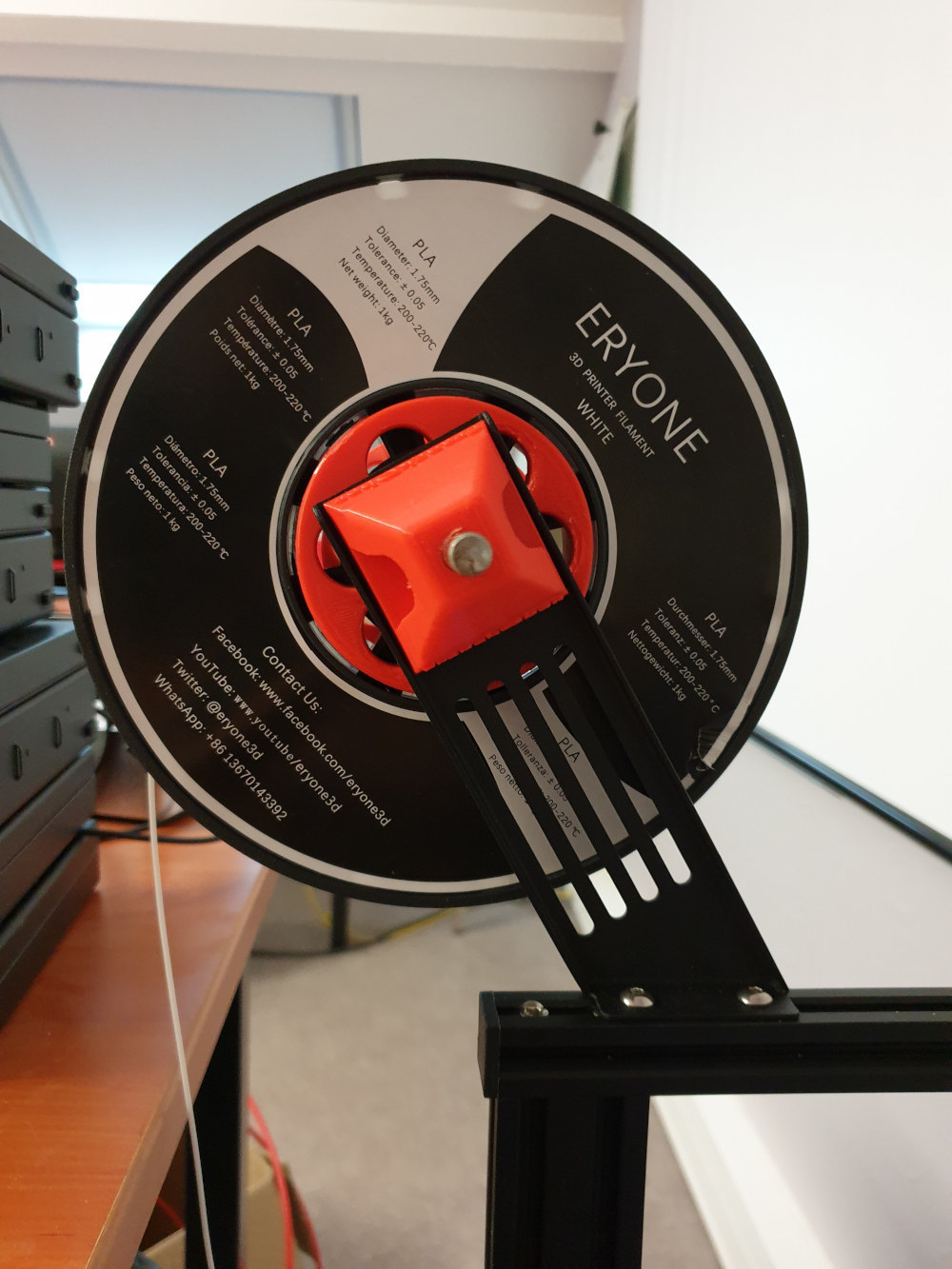

A version for inclined support adapted to the ANET ET4 exists

3D printing settings

Nothing special, all adjustments have been developed from the study "BEARINGS ADJUSTMENTS AND NO SCREWS" with a clearance of 0.5mm.

The "3D Interlocking" structure in CURA increases the strength of the internal structure.
