Analog/Mechanical Load Cell

87095593-a9cb-4cb1-b8ef-411d1874de5a.gif Analog/Mechanical Load Cell
e03ed1e9-21d4-450f-9f0c-a0e7f82da1b3.jpg Analog/Mechanical Load Cell
df4981ce-62f8-4652-8f96-8ece5cb348bd.gif Analog/Mechanical Load Cell
e7ac948e-dcd0-4995-9bc5-c0f5483829ff.JPG Analog/Mechanical Load Cell
599d9f1b-0850-49a6-bc8f-4379356f99c9.JPG Analog/Mechanical Load Cell
c93ac553-e41d-4acd-8254-9f0d437f3a2c.png Analog/Mechanical Load Cell
LoadCell_v2e.stl Analog/Mechanical Load Cell
87095593-a9cb-4cb1-b8ef-411d1874de5a.gif Analog/Mechanical Load Cell
e03ed1e9-21d4-450f-9f0c-a0e7f82da1b3.jpg Analog/Mechanical Load Cell
df4981ce-62f8-4652-8f96-8ece5cb348bd.gif Analog/Mechanical Load Cell
e7ac948e-dcd0-4995-9bc5-c0f5483829ff.JPG Analog/Mechanical Load Cell
599d9f1b-0850-49a6-bc8f-4379356f99c9.JPG Analog/Mechanical Load Cell
c93ac553-e41d-4acd-8254-9f0d437f3a2c.png Analog/Mechanical Load Cell
LoadCell_v2e.stl Analog/Mechanical Load Cell
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
3 files Close
  • Analog_Load_Cell_rev2_v5.step
  • LoadCell_v2e.3mf
  • LoadCell_v2e.stl

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1214289
BubsBuilds

BubsBuilds

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

Full info, and see it in action, here

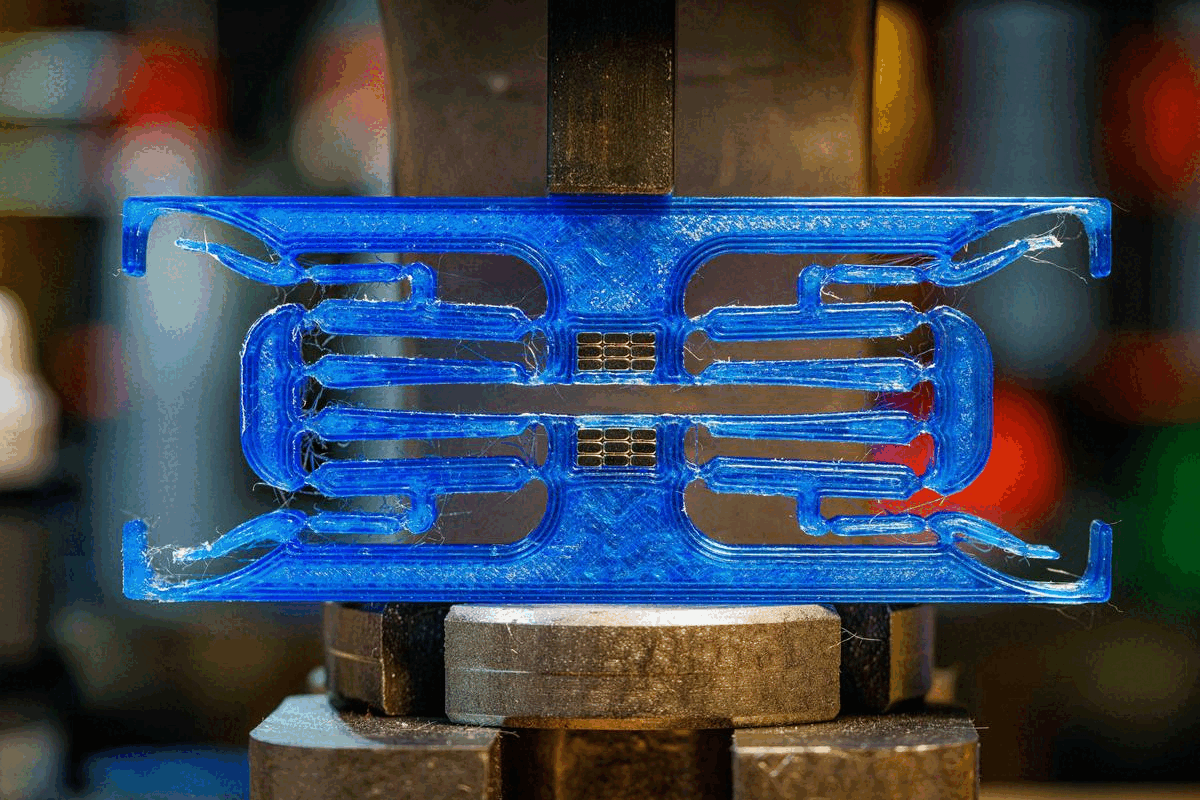

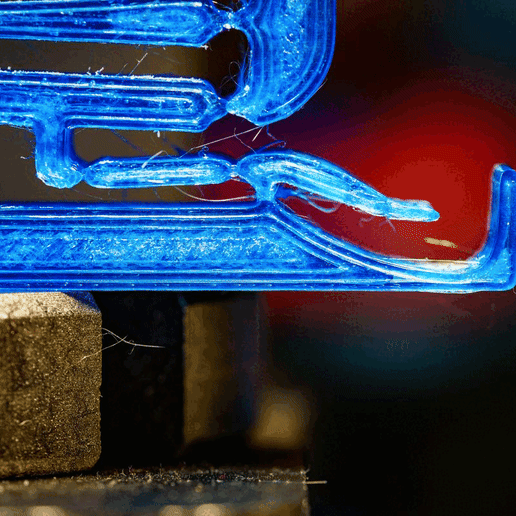

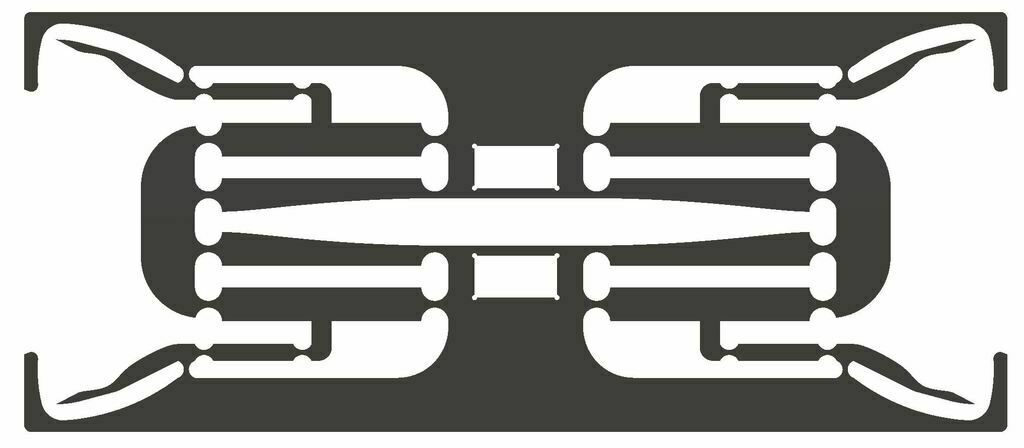

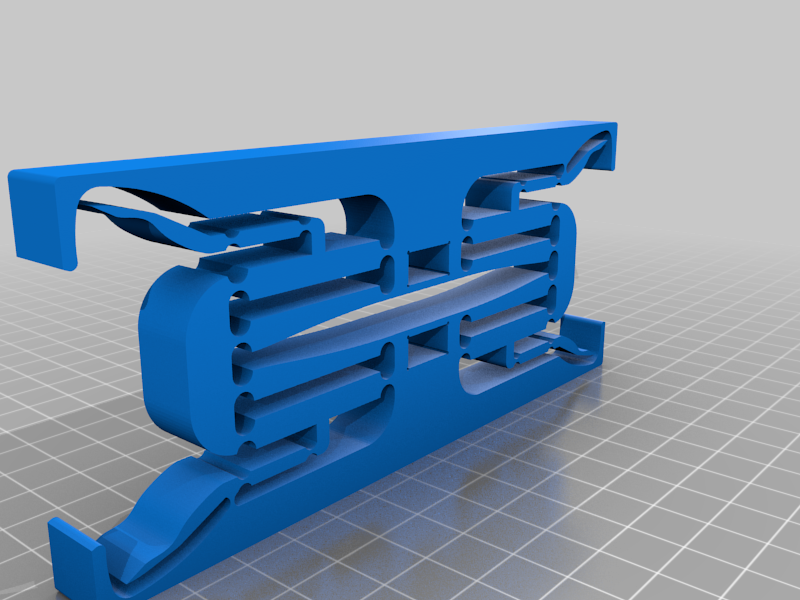

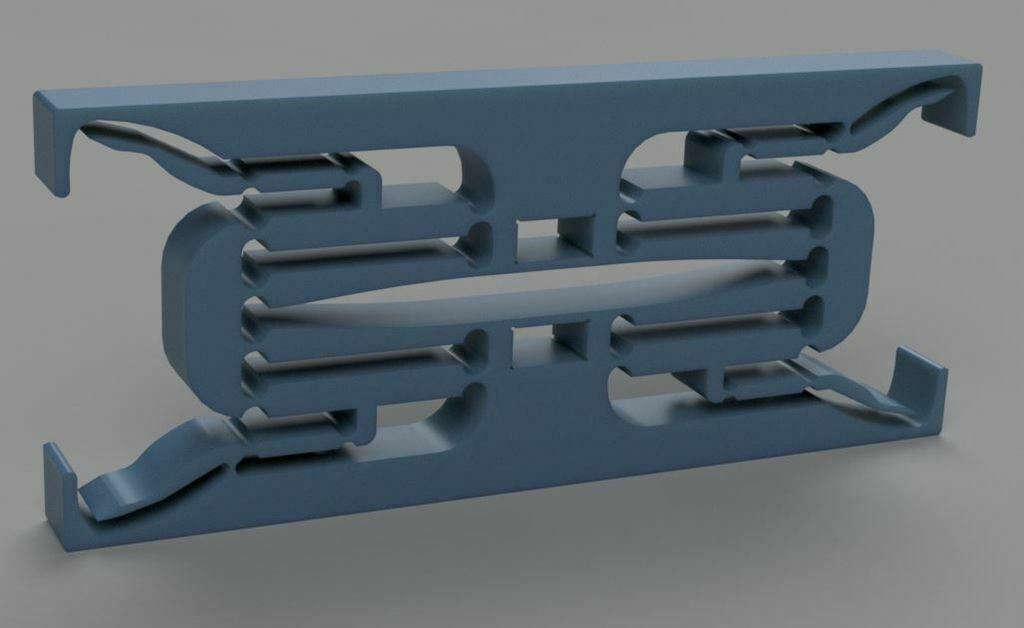

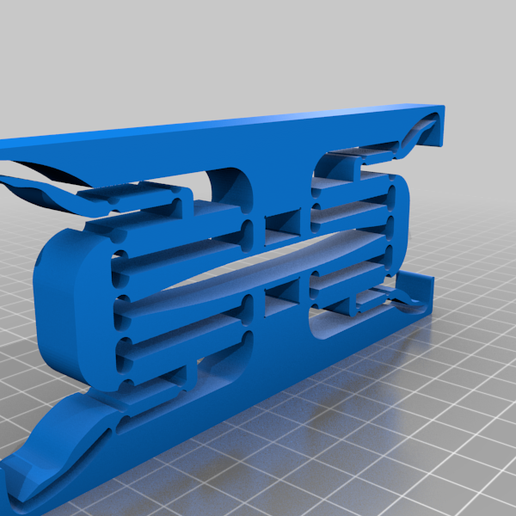

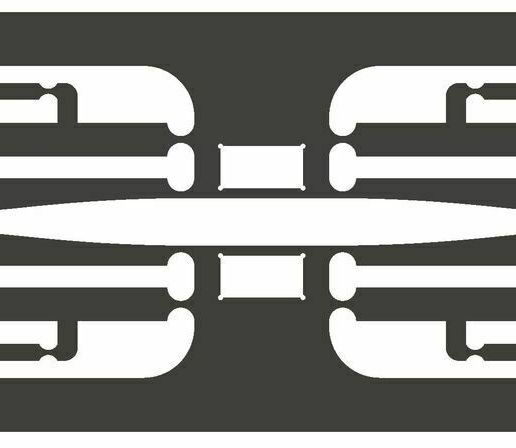

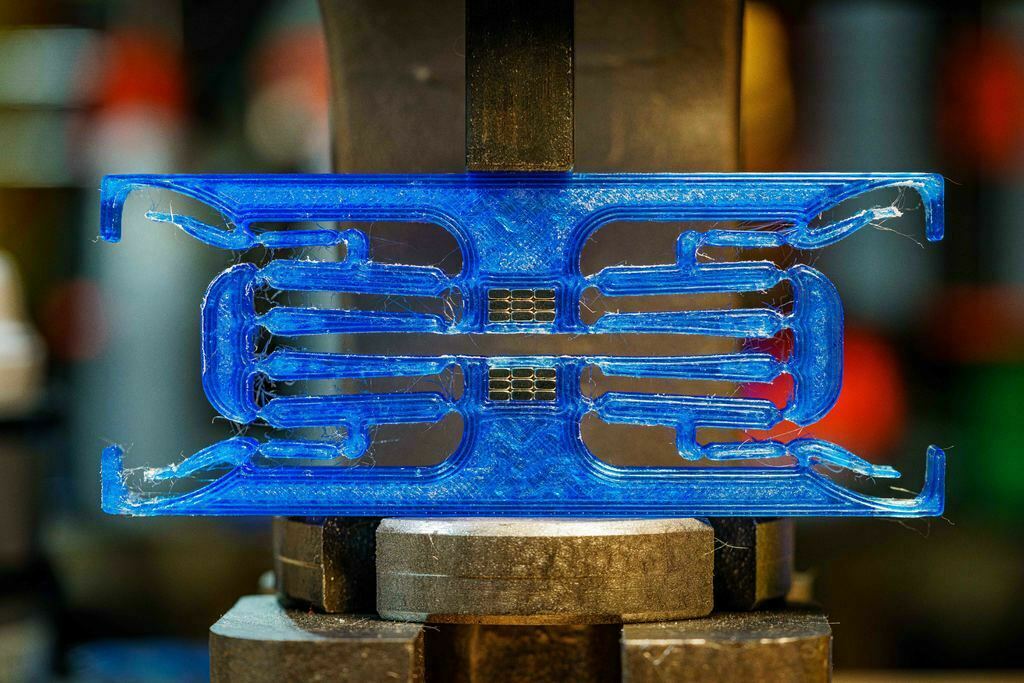

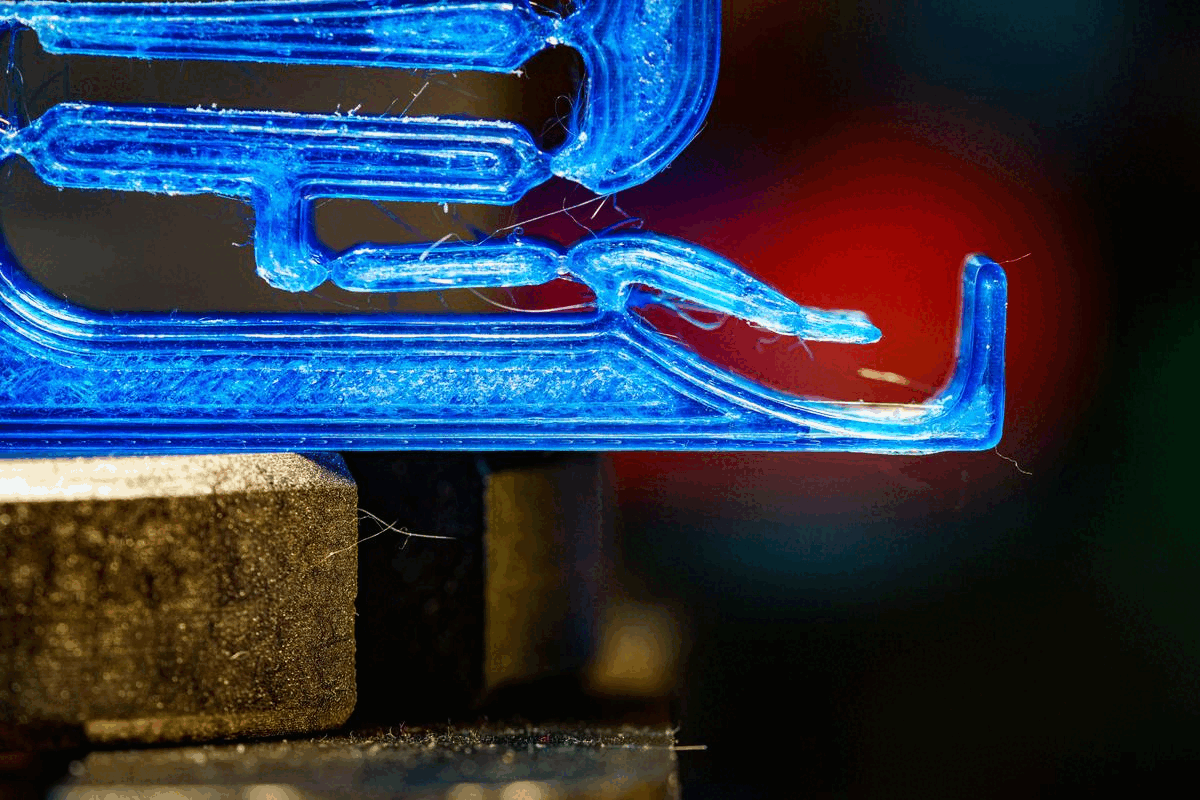

This is intended as sort of a concept demonstrator showing an option for making a load cell with purely mechanical read out, using a series of flexural linkages. It is also a test of using 'magnetic stiffening' for these 3d printed flexures to improve their long term stiffness stability (kind of a nice feature of a load cell :) )
