3D design format
PDF and STL Folder details Close
  • A rail.stl
  • A.stl
  • A1.stl
  • A2.stl
  • A3_Lower Rail.stl
  • AAP01_CHARLIE KIT MP7.pdf
  • B rail.stl
  • B.stl
  • B1.stl
  • B2.stl
  • B3_Lower Rail.stl
  • C.stl
  • C_14CCW.stl
  • D.stl
  • E.stl
  • F.stl
  • G.stl
  • H.stl
  • I.stl
  • J.stl
  • K.stl
  • L.stl
  • ROD (1).stl
  • ROD.stl
  • Sight 1.stl
  • Sight 2.stl
  • Sight 3.stl
  • Sight 4.stl
  • Steel Rod Template 10mm x 4mm Thickness_Dimensions.pdf

Learn more about the formats
3D_ARMY

3D_ARMY

3D printer file info

3D model description

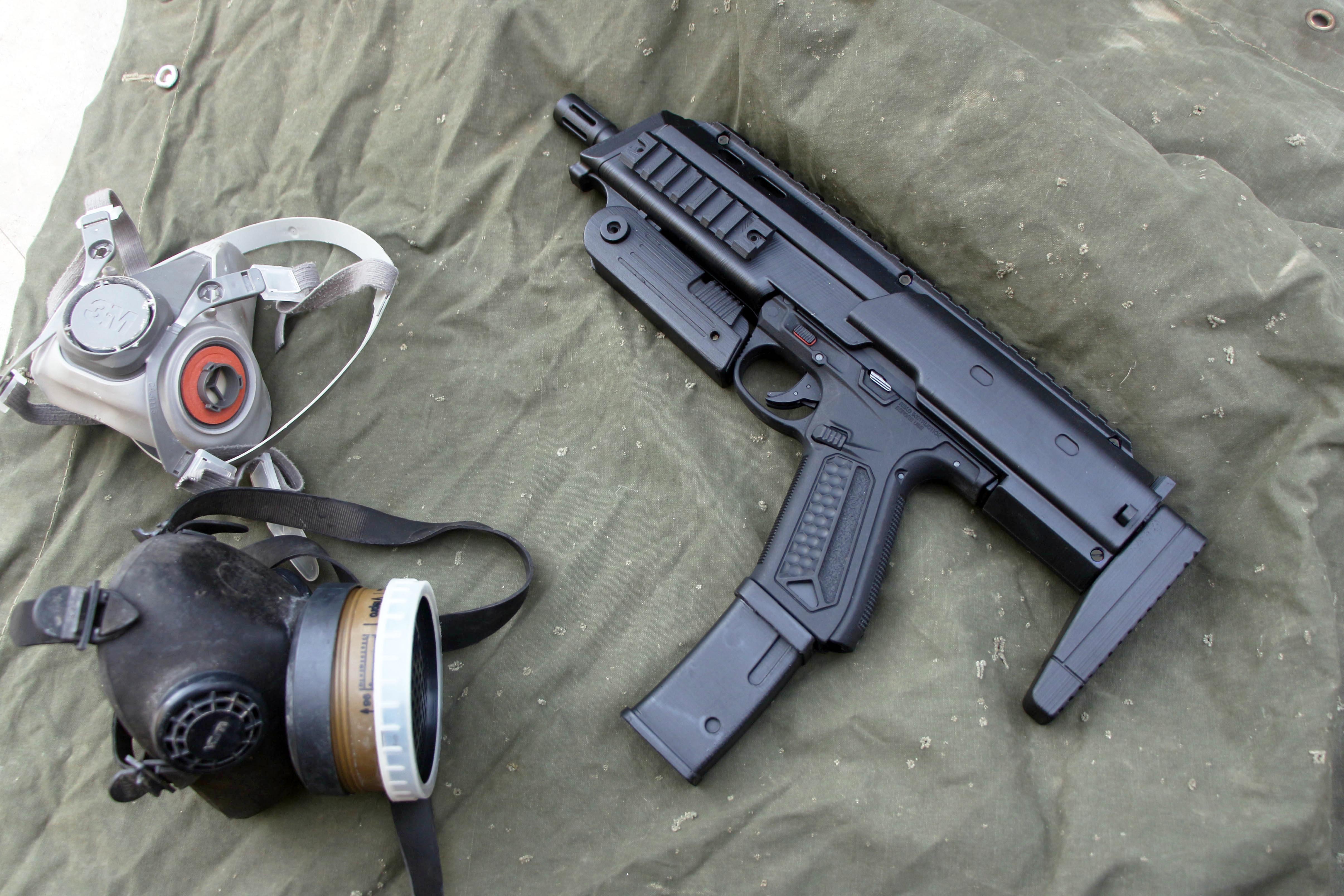

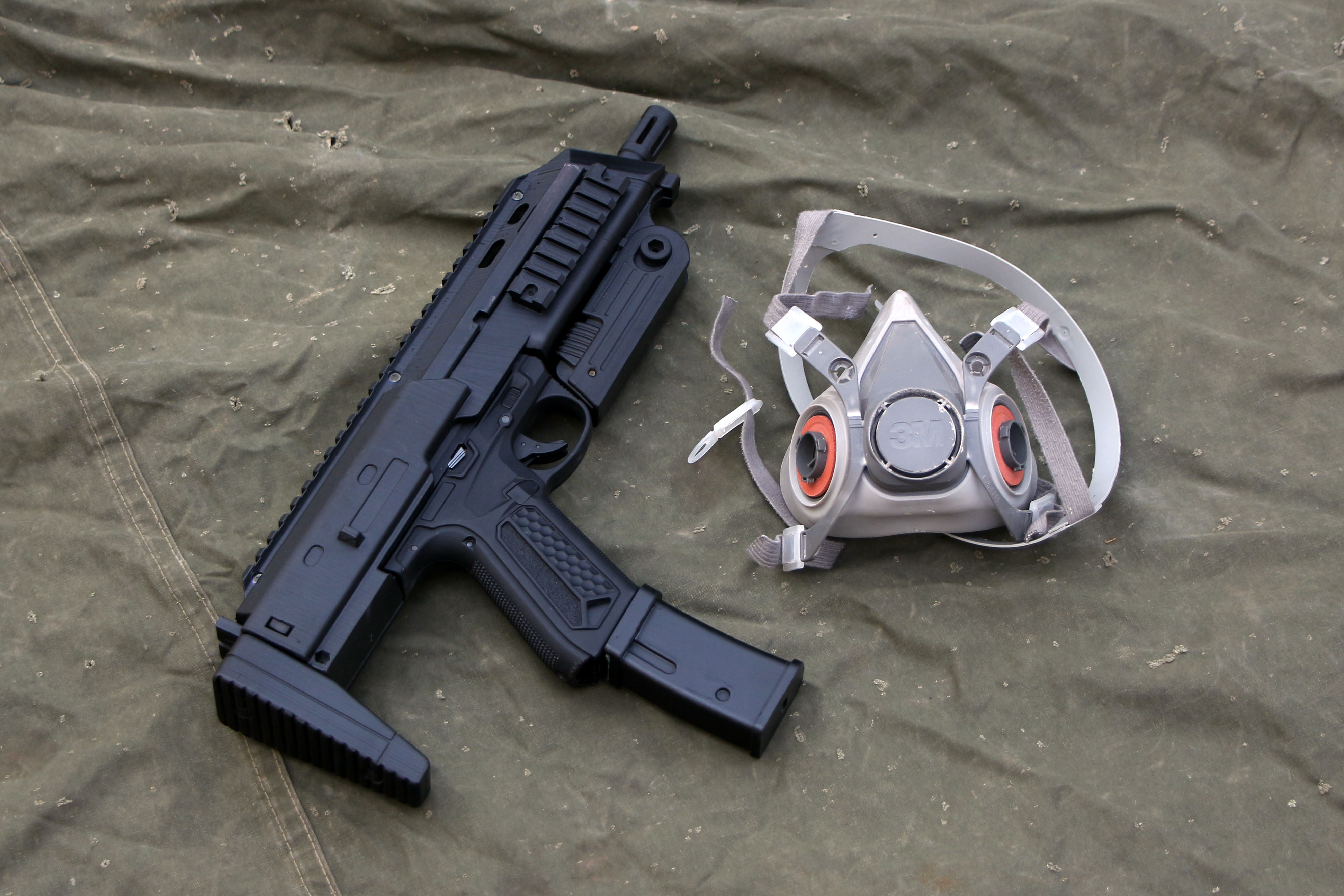

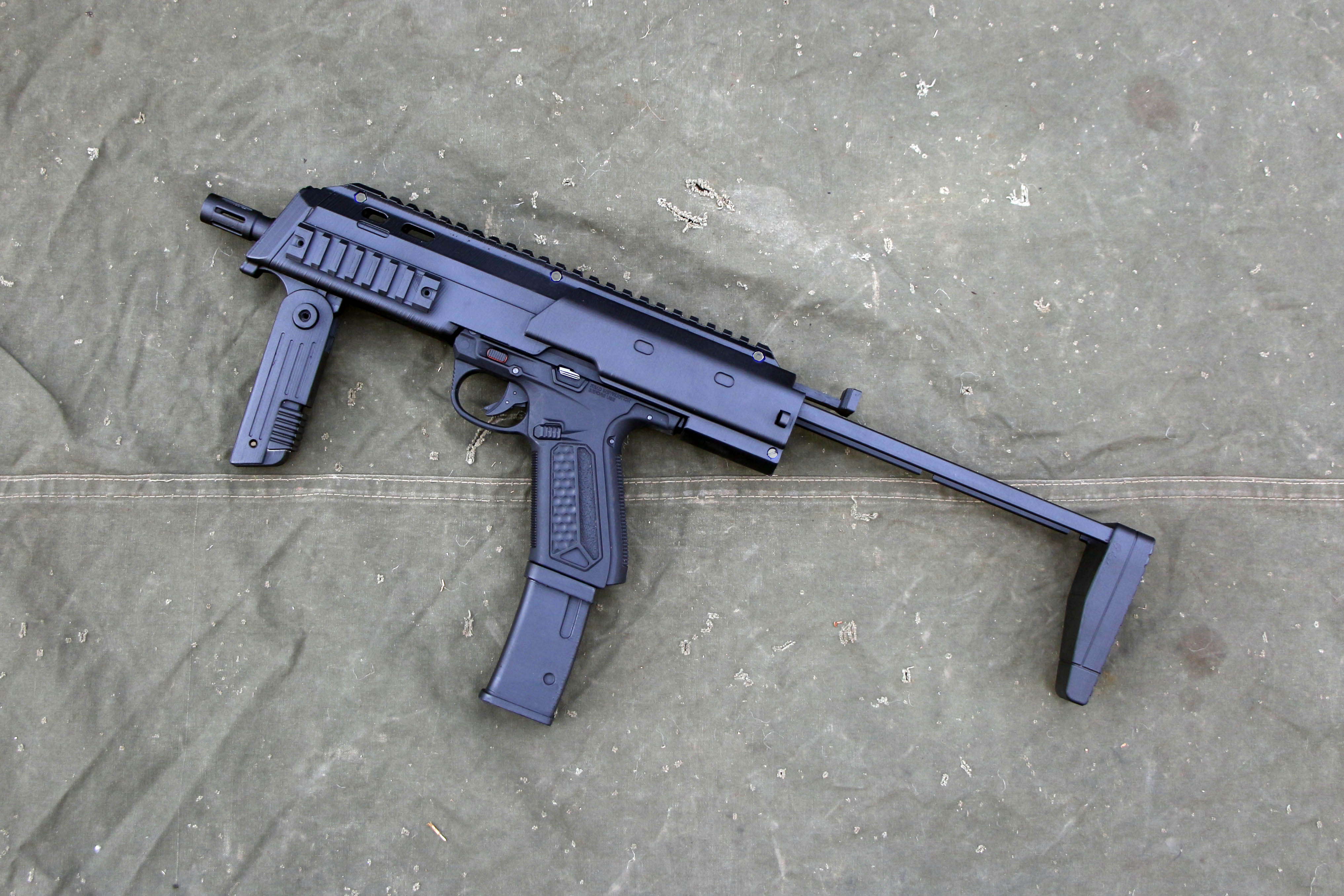

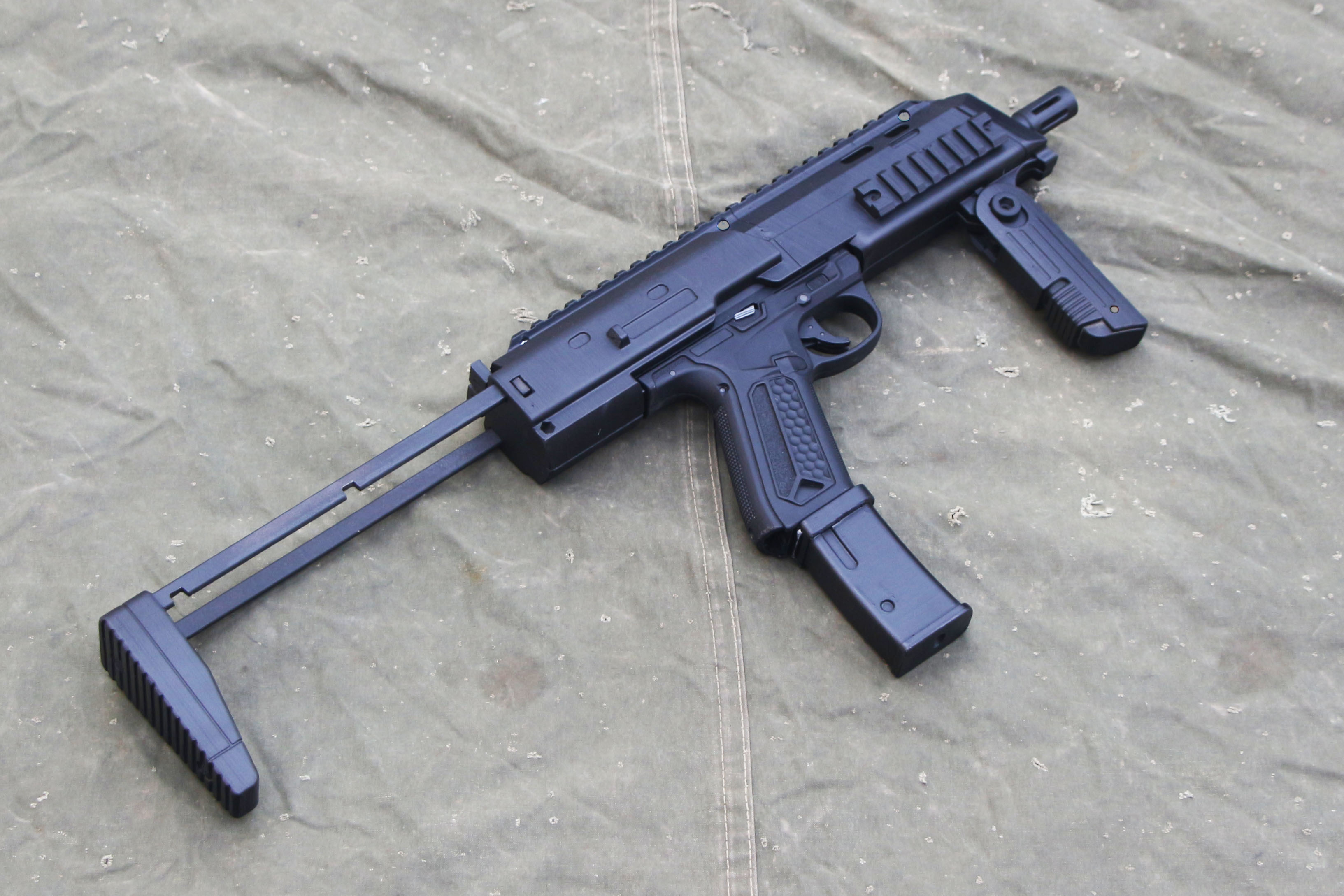

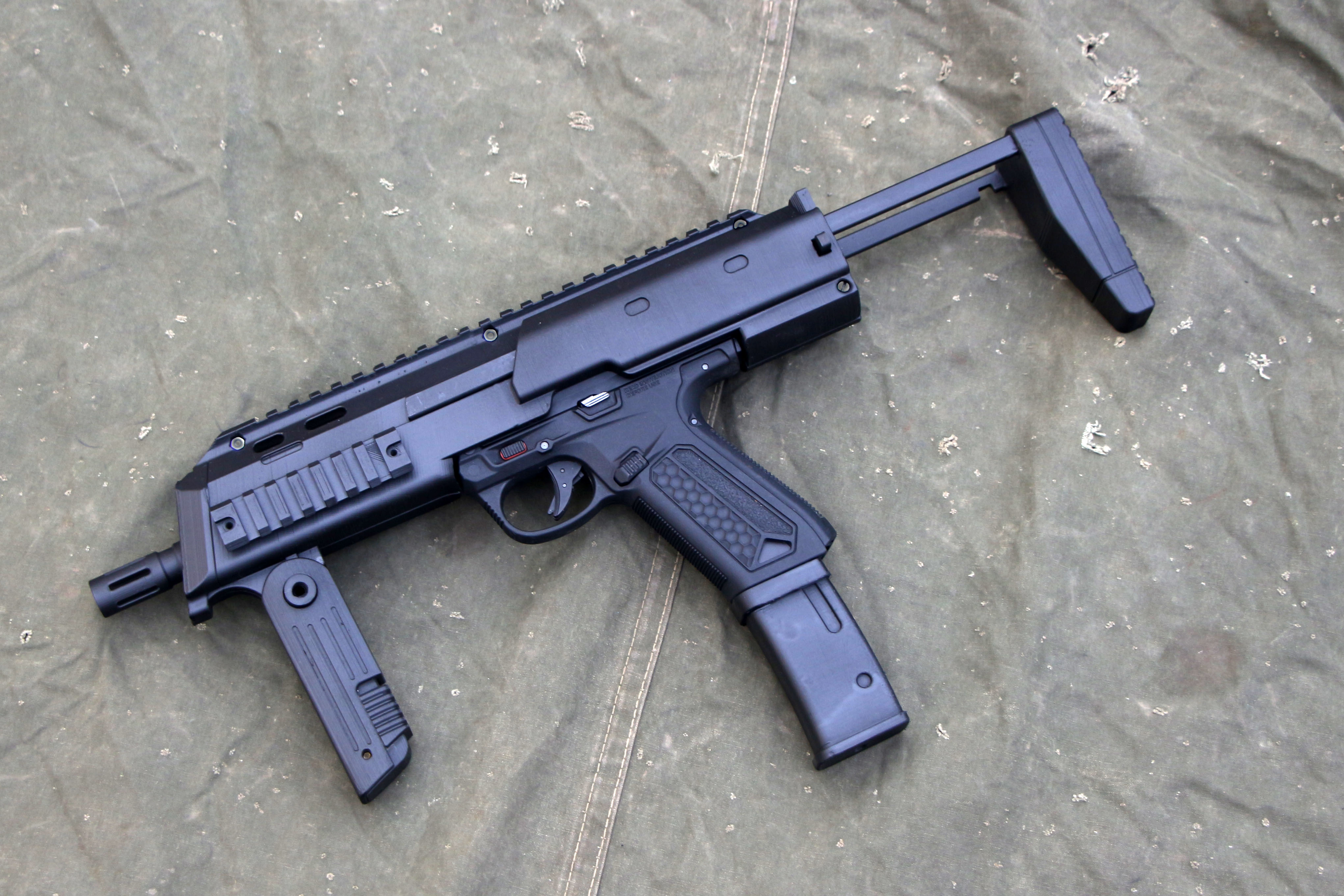

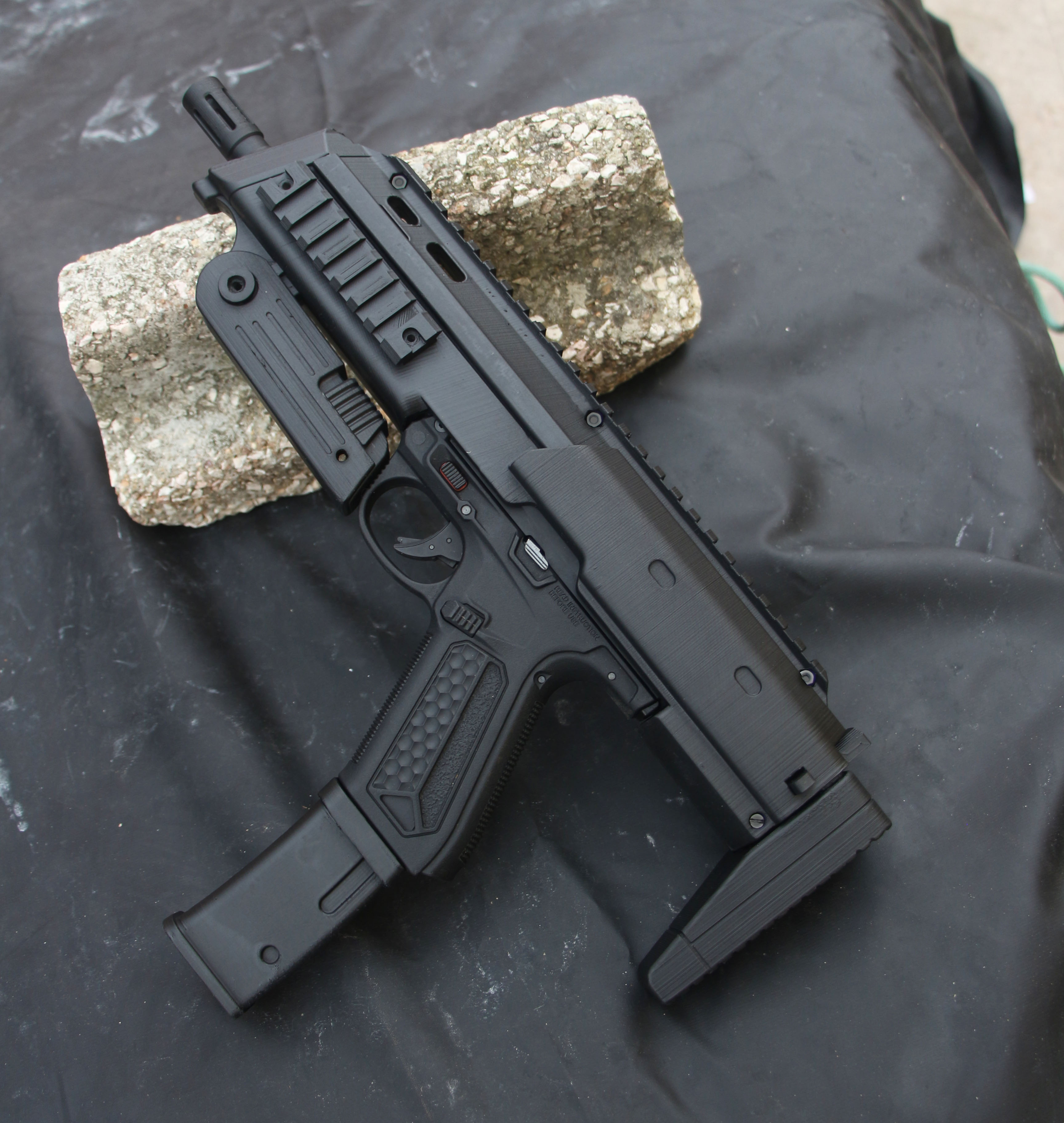

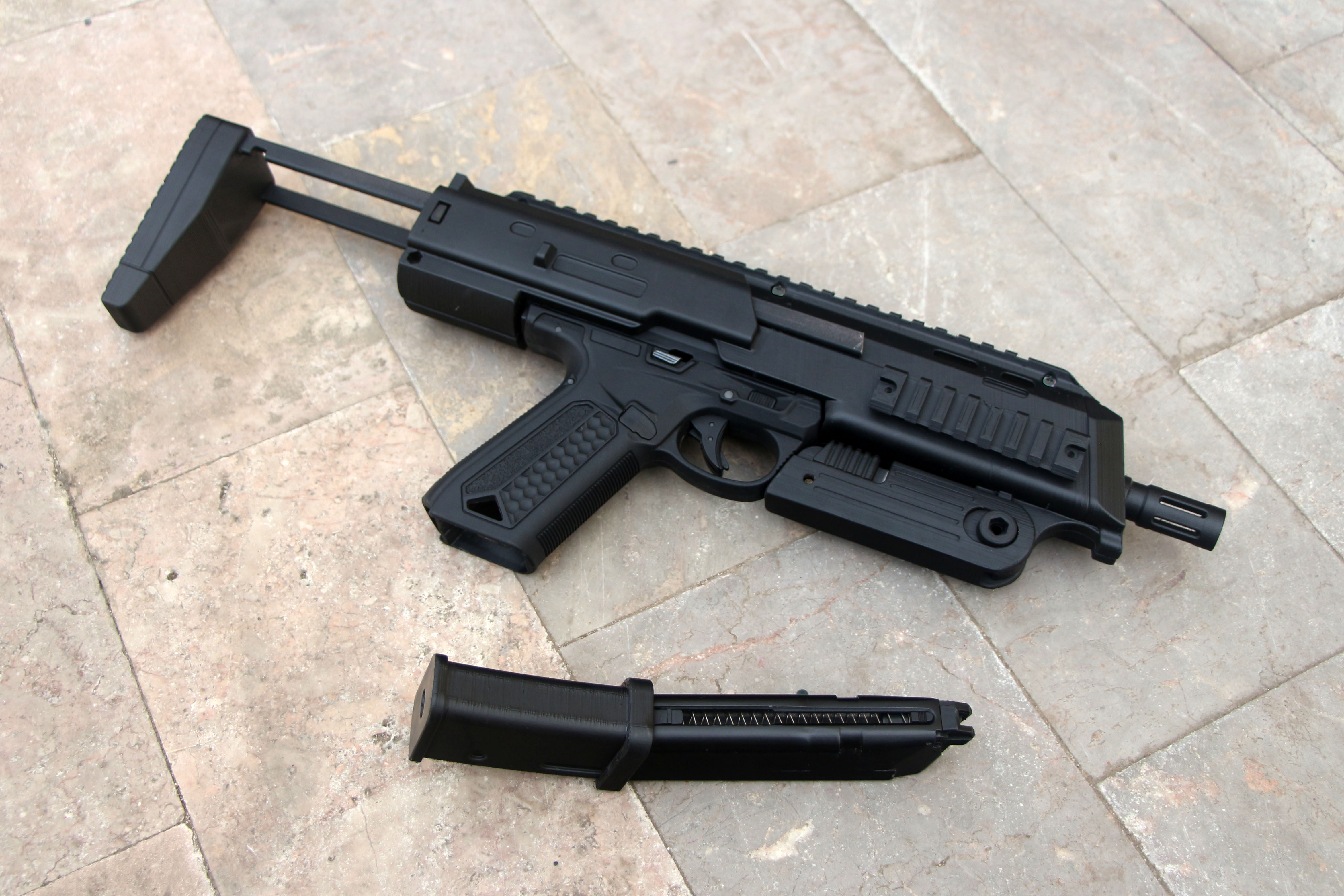

3D ARMY® present this kit for airsoft only, so that you can transform a AAP01 into a MP7 Style SMG.

Assembling this kit does not require any training or knowledge of a gunsmith. It´s a starter kit, which already comes with a detailed instruction manual.

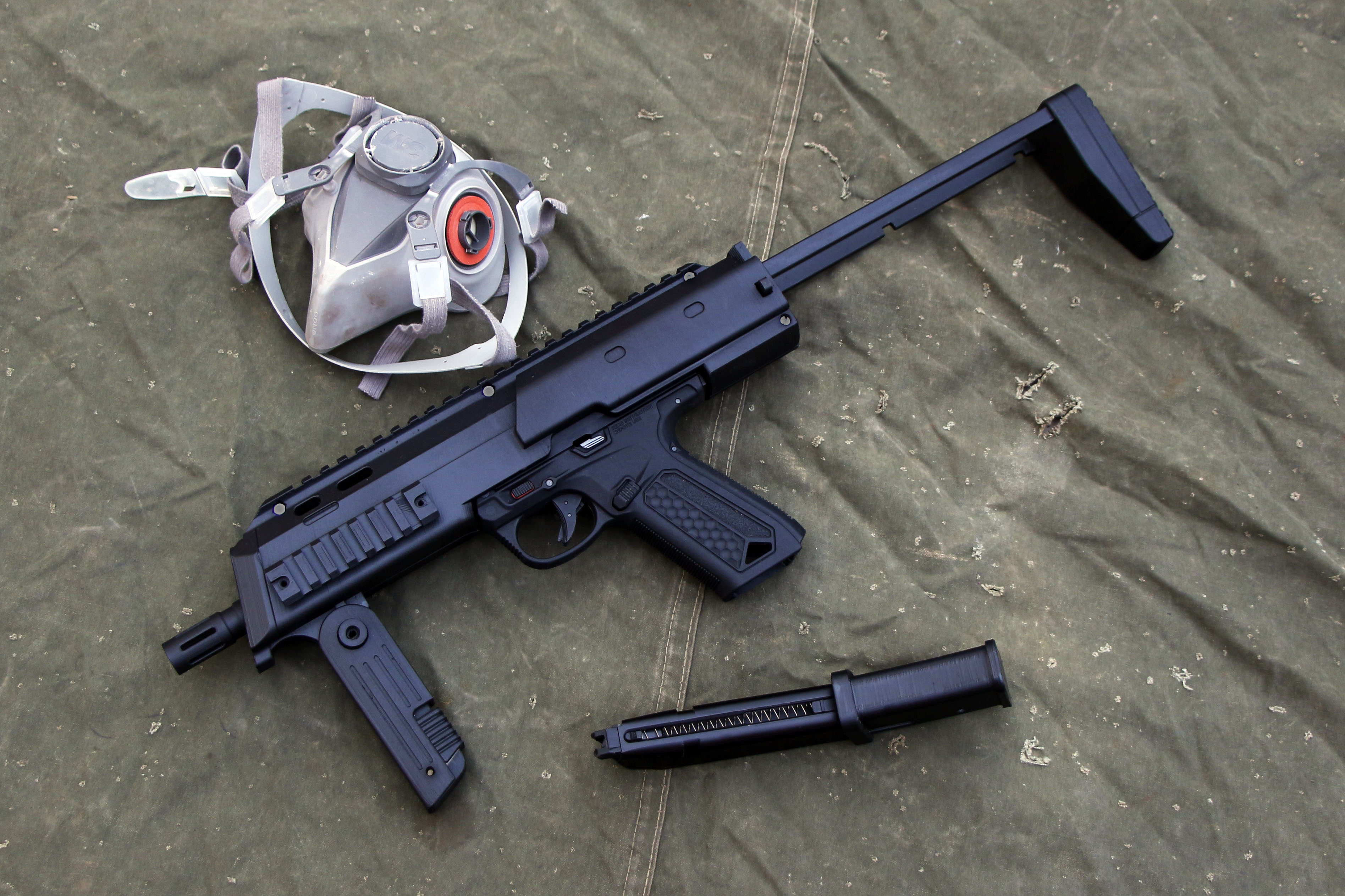

In the attached files there is a second version of the upper with a picatinny rail instead of the normal mp7 folding handle. So you can assemble other types of accessories!

...

3D Army have the commercial authorisation for the foldable MP7 model grip designed by Maverick0197©

You can download the original file here:
https://www.thingiverse.com/thing:4969495

...

List of components needed to assemble the kit:

  • 3D Printed Parts
  • 7x M3 Nut
  • 5x M3 x 12 mm Bolt
  • 2x M3 x 25 mm Bolt
  • 1x M3 x 20 mm Bolt
  • 1x M5 x 8 mm Conic Head Bolt
  • 4x M3 x 100 mm Lenght Rod
  • 1x 8ø x 50 mm Lenght Spring
  • 1x 4ø x 30 mm Lenght Spring
  • 2x 310 mm Length x 10mm x 4mm Rectangular Steel Bar
  • Epoxi Glue

Note:

  • It´s important to glue all the parts that form the upper reciever well.

  • It may be necessary to use light sandpaper to adjust some parts depending on your printer's tolerances.

  • Make sure you use the template that follows in the cults files to cut the steel bars of the stock at 1:1 scale

...

Customize your weapon and make a difference!

Join the revolution and march with us!

Follow uns on Instagram
@3d_army_armory

...

Security Measures!

3D Army don´t assume any responsibility for the misuse, misconduct or damage that it may cause to itself or others of any of the products that we have available for download developed strictly for the practice of airsoft or paintball!

It´s completely prohibited to use, adapt or transform, either digitally or physically, the files available here for real firearms!

3D printing settings

Layer height: 0,16mm
Wall thickness: 3 mm
Infill: 50% (Minimum)
Speed: 40mm/s
